Home / Lighting / Driving & light bars

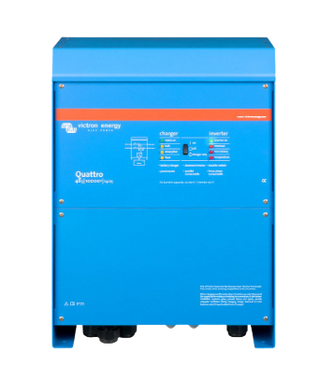

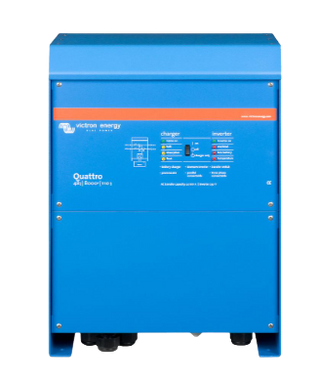

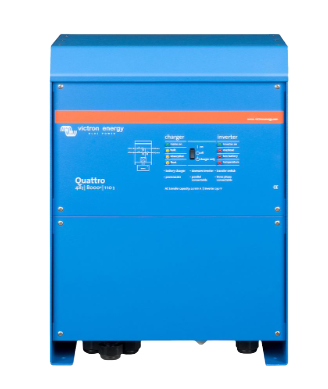

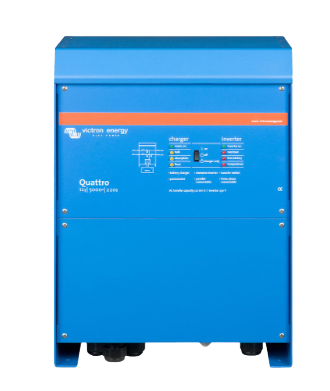

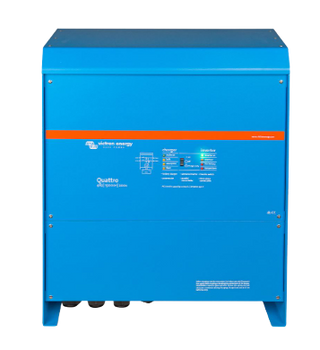

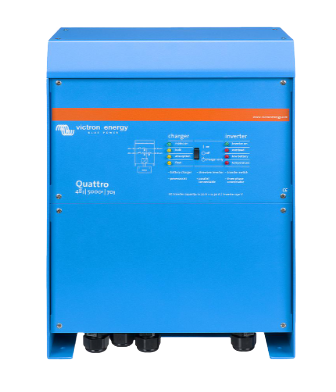

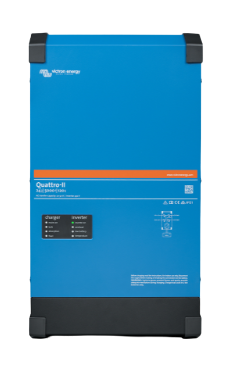

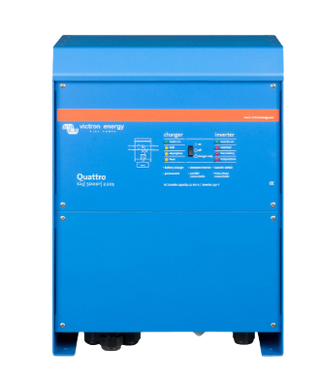

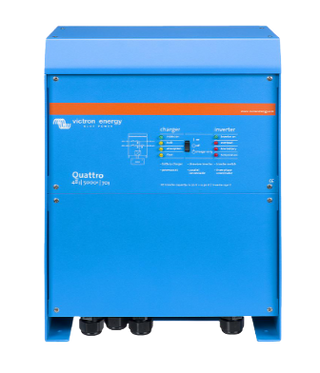

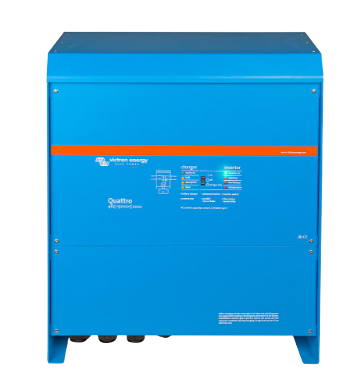

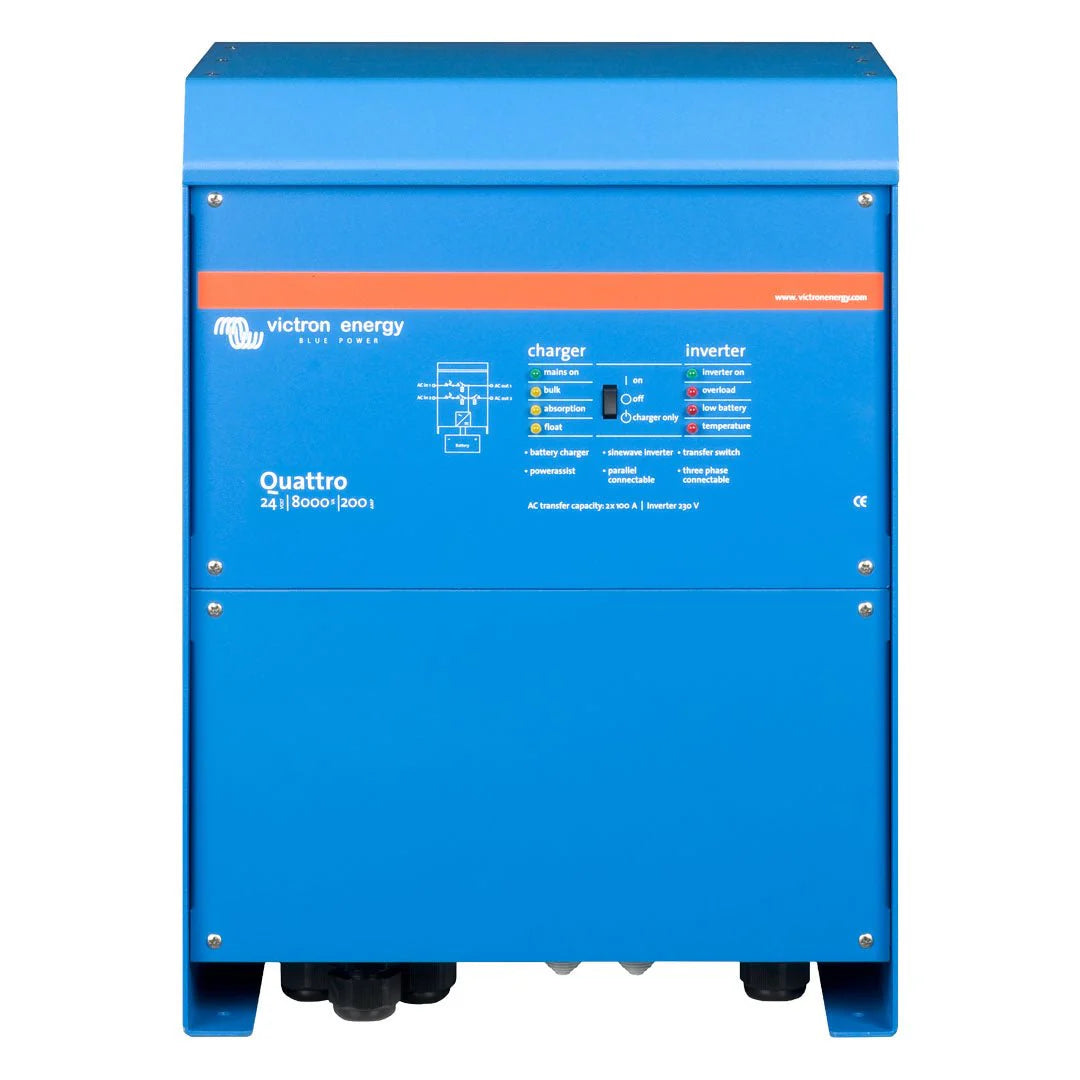

Victron Quattro 48|10000|140 inverter charger, front view of the blue case with the charger and inverter status legend across the middle panelVictron Quattro-II 24|5000|120 front view, the slim-line case with black moulded end caps and the status panel set low on the frontVictron Quattro 24|8000|200 front view, showing the printed wiring diagram and the three-position charger on and off switchVictron Quattro 12|5000|220 front view, the 12 volt model with the cable glands along the underside of the caseVictron Quattro 48|5000|70 front view, the 48 volt model in the taller cabinet-style caseVictron Quattro-II front view with the green inverter on indicator lit, showing the unit runningVictron Quattro 48|8000|110 front view, with the AC transfer capacity and inverter voltage printed under the model nameVictron Quattro inverter charger in the wide-body case, photographed square on, with the cable glands spaced along the baseFront view of a large-case Victron Quattro, the full-width orange band sitting above the charger and inverter status legendVictron Quattro inverter charger in the wide-body case, photographed square on, with the cable glands spaced along the baseVictron Quattro 48|8000|110 front view, with the AC transfer capacity and inverter voltage printed under the model nameVictron Quattro 24|8000|200 shown large against white, with the charger and inverter LED legend and the wiring diagram clearly readableVictron Quattro-II 24|5000|120 from a three-quarter angle, showing the depth of the case and the black mounting frame down the sideVictron Quattro 12|5000|220 photographed square on against white, with the model designation and AC transfer rating printed on the front panelUnderside connection bay of a Victron Quattro-II with the cover removed, showing the AC-IN-1, AC-IN-2, AC-OUT-1 and AC-OUT-2 terminal blocks, the VE.Bus sockets and the red and black battery studsSystem diagram: grid on AC IN 1 and a generator on AC IN 2 feeding a Quattro, solar panels running through a BlueSolar MPPT 150/70 charge controller into 24 volt lithium batteries, with main and auxiliary AC outputsVictron engineering drawing for the 3 kVA enclosure, part number HOU032001112, with dimensioned front, side and top views in millimetresWiring overview of a Quattro inverter charger, 12, 24 or 48 volt from 3 kVA to 15 kVA, with generator and grid inputs through RCD and MCB protection, separate essential and non-essential AC load groups, a fused battery, and an MK3-USB interface to a computerFunction diagram of a Quattro showing the two AC inputs from a generator and the public grid, internal transfer switching out to the AC distribution board, a Digital Multi Control panel, an MK2 interface to VE Configure, and the VE.Bus port used for parallel or three-phase configuration

Victron Energy

Victron Quattro

QUA125020000

Victron’s Quattro and Quattro-II series are premium inverter/chargers engineered for high-demand off-grid, marine, vehicle, and backup power applications. With dual AC inputs, seamless switching between power sources, and intelligent charging, these units ensure clean, reliable power anywhere. Models supporting 12V…

$4,369.05$4,599.00 Save $229.95

4 interest-free payments of $1,092.26 with
or pay over time with
Important note

Victron Quattro and Quattro-II series are premium inverter/chargers ideal for off-grid, marine, vehicle, and backup power systems. With dual AC inputs, high inverter power, and intelligent charging, they ensure seamless transitions and reliable energy delivery—whatever your setup.

1. Voltage
2. Inverter Power & DC Charging current
We accept
Suitable for 4WD, RV, caravans, off-grid systems, marine, and industrial applications.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

Victron’s Quattro and Quattro-II series are premium inverter/chargers engineered for high-demand off-grid, marine, vehicle, and backup power applications. With dual AC inputs, seamless switching between power sources, and intelligent charging, these units ensure clean, reliable power anywhere. Models supporting 12V and 24V battery systems—ideal for everything from RVs to small off-grid homes.

Each unit features robust inverter output, advanced power assist to prevent overload, and compatibility with Victron’s VRM Portal for remote system monitoring. Designed for performance, efficiency, and safety across all battery types, including lithium.

Looking for a different model?
If you don’t see the Victron model you are after? please contact us directly via our contact us page.

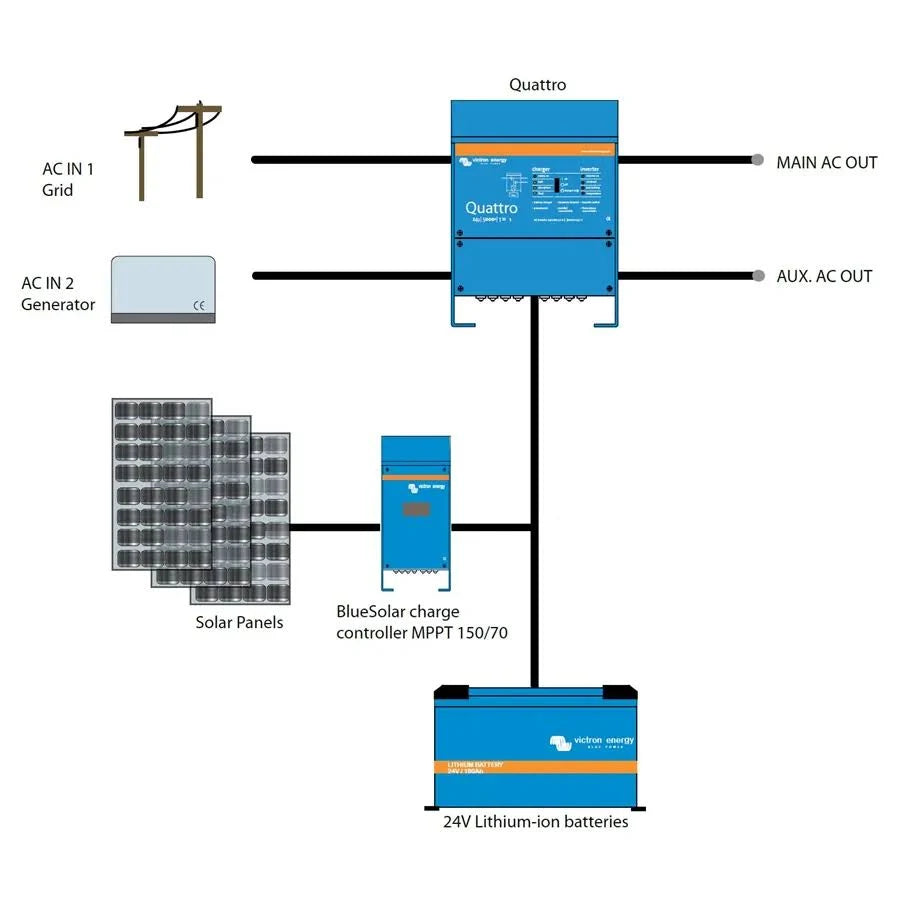

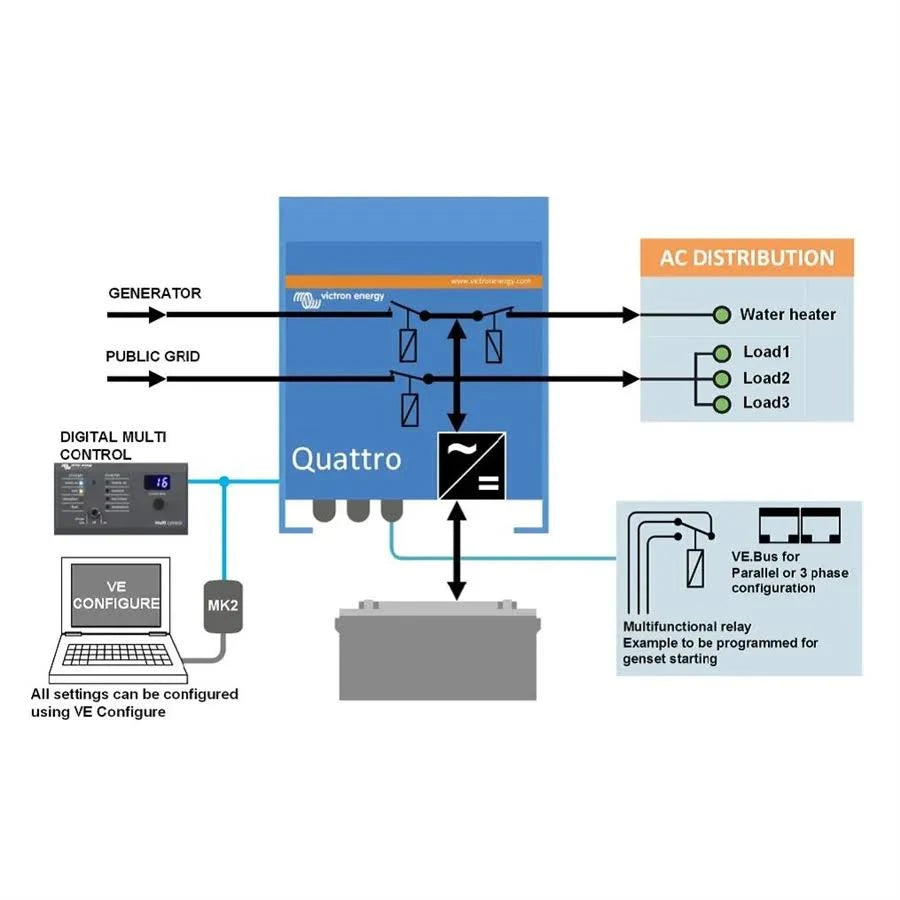

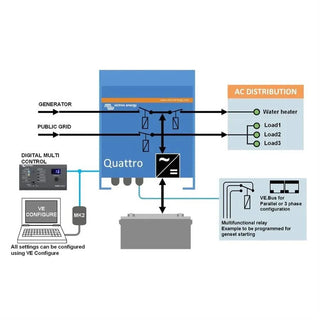

  • Switches automatically between grid, generator, or shore power.
  • Delivers clean, consistent power.
  • Prevents overload by supplementing with battery power.
  • Parallel and three-phase operation supported.
  • Works with Victron’s VRM Portal.
  • Safe and efficient for all battery types including lithium.

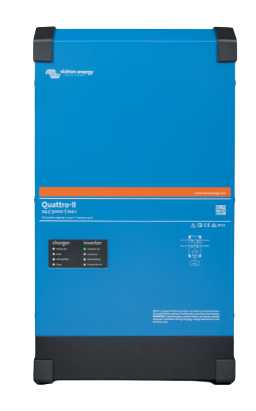

Quattro-II 24/5000/120-50/5024V system with 5000VA inverter power 120A charger | Dual 50A transfer switch Peak power: 9000W | Efficiency: 96%

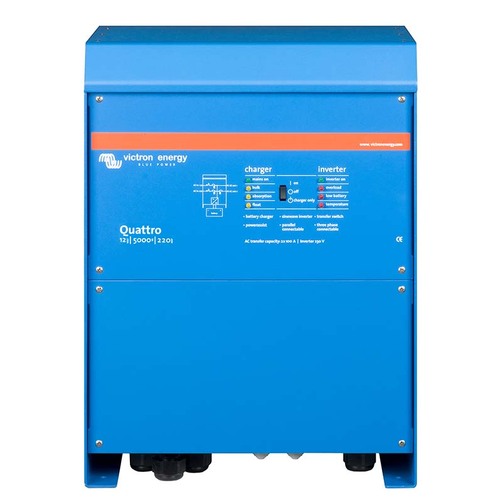

Quattro 12/5000/220-100/10012V system with 5000VA inverter power 220A charger | Dual 100A transfer switch Peak power: 10000W | Efficiency: 95%

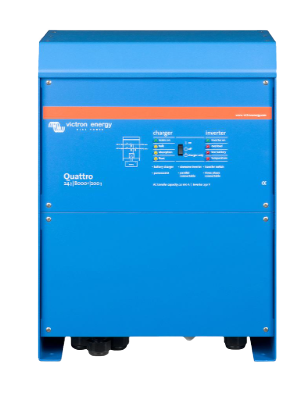

Quattro 24/8000/200-100/10024V system with 8000VA inverter power 200A charger | Dual 100A transfer switch Peak power: 16000W | Efficiency: 95%

Manufacturer-verified dimensions for 2 of 3 variants:

QUA125020000: L 470mm × W 350mm × H 280mm, 34 kg

QUA248020010: L 444mm × W 328mm × H 240mm, 45 kg

Not yet verified: QUA242505010

Victron Quattro

Suitable for 4WD, RV, caravans, off-grid systems, marine, and industrial applications.


Q: Can this run a full off-grid home?

A: Yes, higher VA models like the 10,000VA and 15,000VA can support large systems.

Q: Can I install it myself?

A: We recommend installation by a qualified auto electrician or installer.
