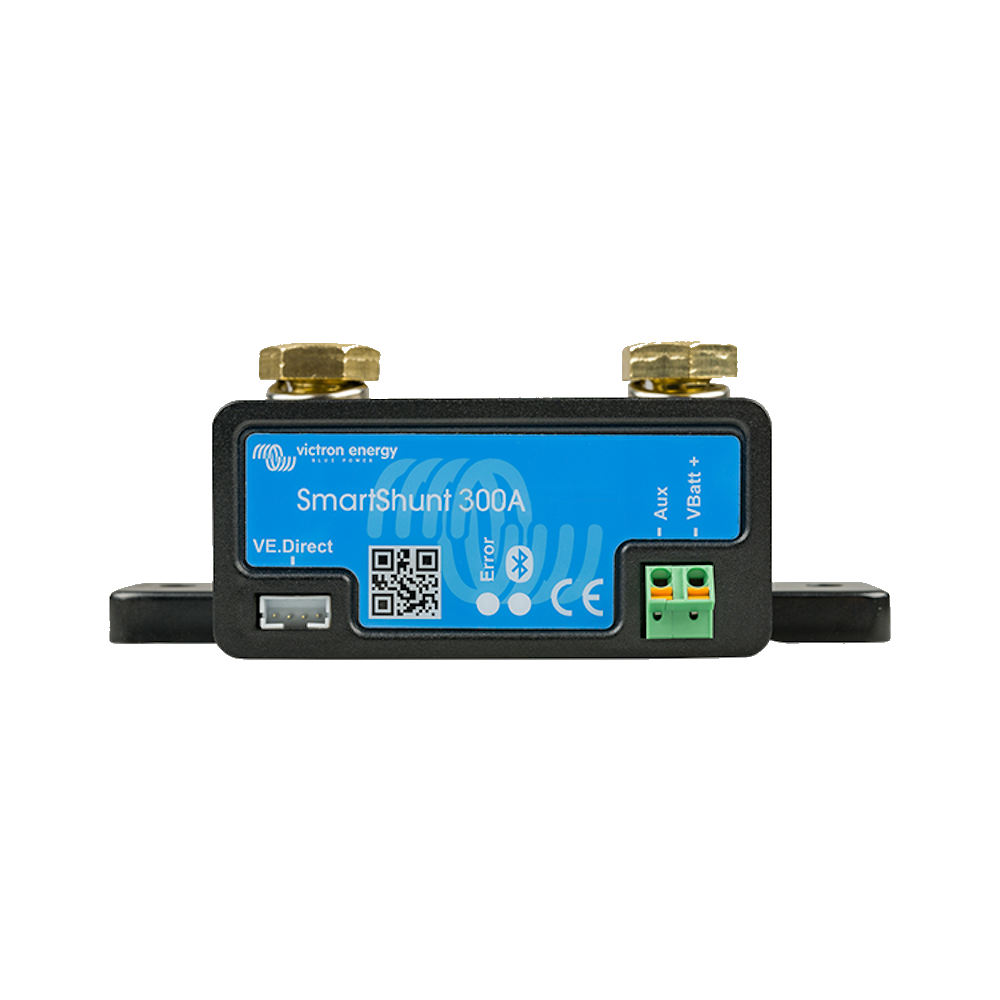

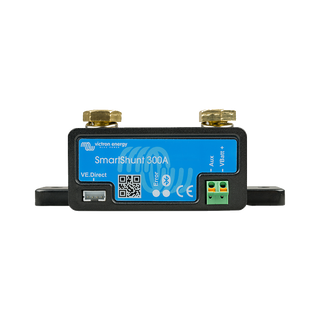

Victron Smart Shunt 300A

Victron Energy

Victron Smart Shunt 300A

SHU050130050

The Victron SmartShunt 300A is a compact, all-in-one battery monitor designed to deliver precise battery state of charge, voltage, current, and power readings without the need for a separate display. Instead, your smartphone or tablet becomes the screen via the…

$117.00$130.00 Save $13

4 interest-free payments of $29.25 with
or pay over time with
Important note

The SmartShunt is a compact all-in-one battery monitor — no separate display required. Your smartphone becomes the screen via the VictronConnect app.

We accept
Suitable for 4WDs, caravans, campers, marine vessels, and off-grid systems requiring accurate battery monitoring with minimal wiring.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The Victron SmartShunt 300A is a compact, all-in-one battery monitor designed to deliver precise battery state of charge, voltage, current, and power readings without the need for a separate display. Instead, your smartphone or tablet becomes the screen via the VictronConnect app, providing convenient wireless monitoring and configuration through Bluetooth.

Ideal for 4WDs, caravans, campers, marine vessels, and off-grid systems, the SmartShunt simplifies installation with minimal wiring and fewer cables compared to traditional battery monitors. It features M8 connection bolts and includes an additional input for monitoring a second battery, midpoint voltage, or temperature, making it highly versatile.

  • It connects via Bluetooth or with a VE.Direct cable to a GX device. With fewer cables and cleaner installs, it’s a great alternative to traditional BMV monitors.
  • M8 connection bolts (instead of M10), and includes an extra input for monitoring a second battery, midpoint voltage, or temperature.
  •

https://www.victronenergy.com/upload/documents/SmartShunt/9172-Manual_BMV_and_SmartShunt-pdf-en.pdf






Length: 120mm

Width: 44mm

Height: 44mm

Weight: 0.235kg

Source: manufacturer-verified

Everything this install needs

0 of 0 in the box

https://www.victronenergy.com/upload/documents/Datasheet-SmartShunt-EN.pdf




Suitable for 4WDs, caravans, campers, marine vessels, and off-grid systems requiring accurate battery monitoring with minimal wiring.

Q: What is the Smart Shunt 300A?

A: It’s a battery monitor that accurately measures battery state of charge, voltage, current, and power for up to 300 amps of continuous current.

Q: How does it connect to my system?

A: The Smart Shunt connects inline with your battery negative terminal and uses Bluetooth to communicate with the VictronConnect app for monitoring and setup.

Q: Can it be used with lithium batteries?

A: Yes, it supports lithium, AGM, lead-acid, and other battery types, allowing custom battery capacity and chemistry settings.

Q: Does it require a display?

A: No, the unit itself has no display. You monitor all data wirelessly via the VictronConnect app on a smartphone or tablet.

Q: What data can I monitor?

A: You can monitor real-time battery voltage, current, power, consumed and remaining amp-hours, and state of charge.

Q: Is it compatible with other Victron products?

A: Yes, it integrates seamlessly with other Victron devices and GX systems for expanded monitoring and control.

Q: What protection features does it have?

A: The Smart Shunt offers over-current protection and accurate current sensing for safe and reliable operation.
