Wema Water Level Gauges

Wema

Water Level Gauges

IPWR-BB

Water level gauge with black dial face and either a black plastic bezel or stainless steel bezel. Comes as standard 12v with dropping resistor included for 24v applications. Compatible also with 24v for stepping motor and LCD type gauges. Requires…

$89.30$94.00 Save $4.70

4 interest-free payments of $22.33 with
or pay over time with
Important note

Comes standard with 12V operation and dropping resistor included for 24V applications. Compatible with stepping motor and LCD gauges. Requires additional resistor for 24V cross coil gauges.

Ohms
We accept
Suitable for use in boats, trucks, caravans, recreational vehicles, and other applications requiring water level measurement.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

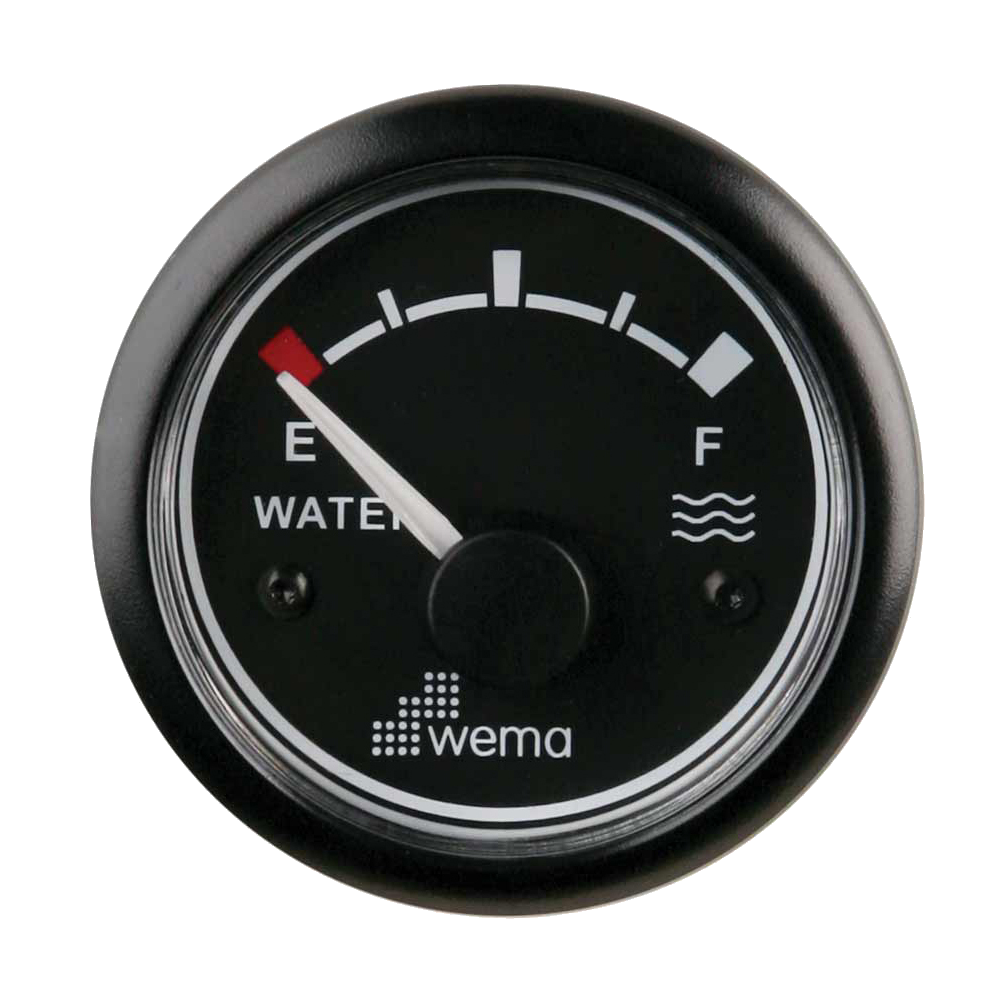

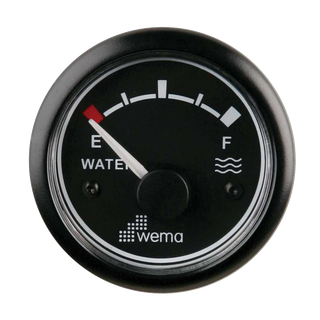

Water level gauge with black dial face and either a black plastic bezel or stainless steel bezel. Comes as standard 12v with dropping resistor included for 24v applications.

Compatible also with 24v for stepping motor and LCD type gauges. Requires an extra resistor to work with 24v for cross coil type gauge.

Rated 0-190 Ohm OR 240-30 Ohm - You must match the same Ohms rated gauge with the sender.

  • Black dial face
  • Choice of black plastic bezel or stainless steel bezel
  • IP67 waterproof rating for the entire gauge
  • Can be submerged up to 1 meter
  • Excellent anti-fogging performance
  • Compatible with 24V stepping motor and LCD gauges

Voltage: 12V (with dropping resistor for 24V)

Resistance: 0-190 Ohm or 240-30 Ohm

Protection Rating: IP67 waterproof

Operating Depth: Up to 1 meter underwater

Range: E to F

Cutout Diameter: 52 mm

Overall Diameter: 65 mm


Everything this install needs

0 of 0 in the box


Fits into 52mm cutout. Ensure matching Ohm rating between gauge and sender for proper operation. Waterproof to IP67 standard and can operate submerged up to 1 meter.

Suitable for use in boats, trucks, caravans, recreational vehicles, and other applications requiring water level measurement.

Q: Can I use this gauge for 24V systems?

A: Yes, it includes a dropping resistor for 24V use. For cross coil type gauges, an additional resistor is required.

Q: What resistance rating should I match?

A: Match the gauge resistance (0-190 Ohm or 240-30 Ohm) with your sender unit for accurate readings.
