Home / Lighting / Driving & light bars

Wema Fuel Level GaugesWema Fuel Level GaugesWema Fuel Level GaugesWema Fuel Level Gauges

Wema

Fuel Level Gauges

IPFR-BB

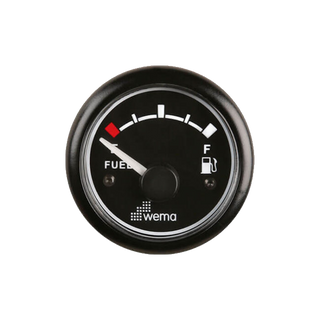

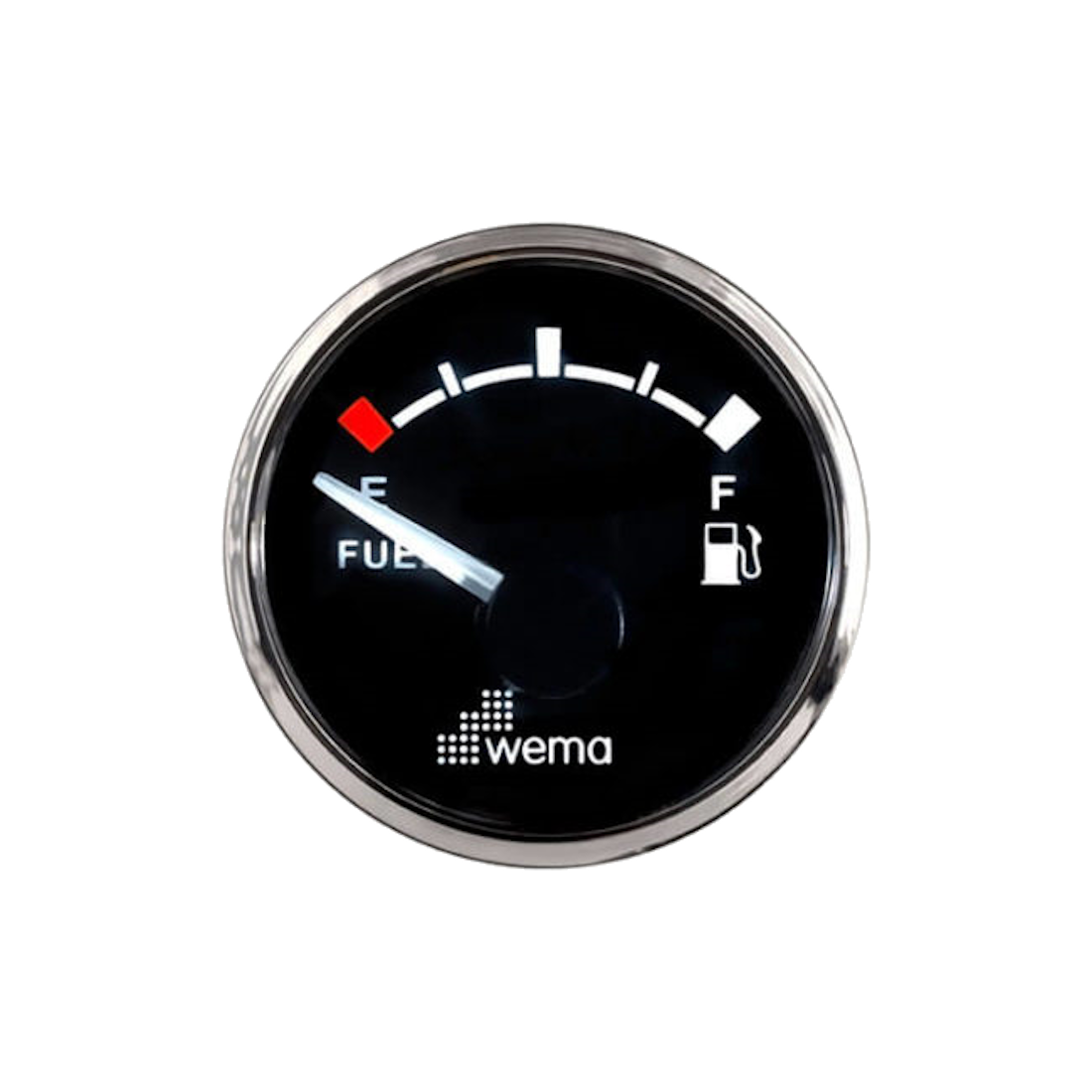

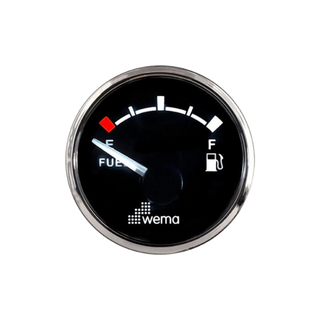

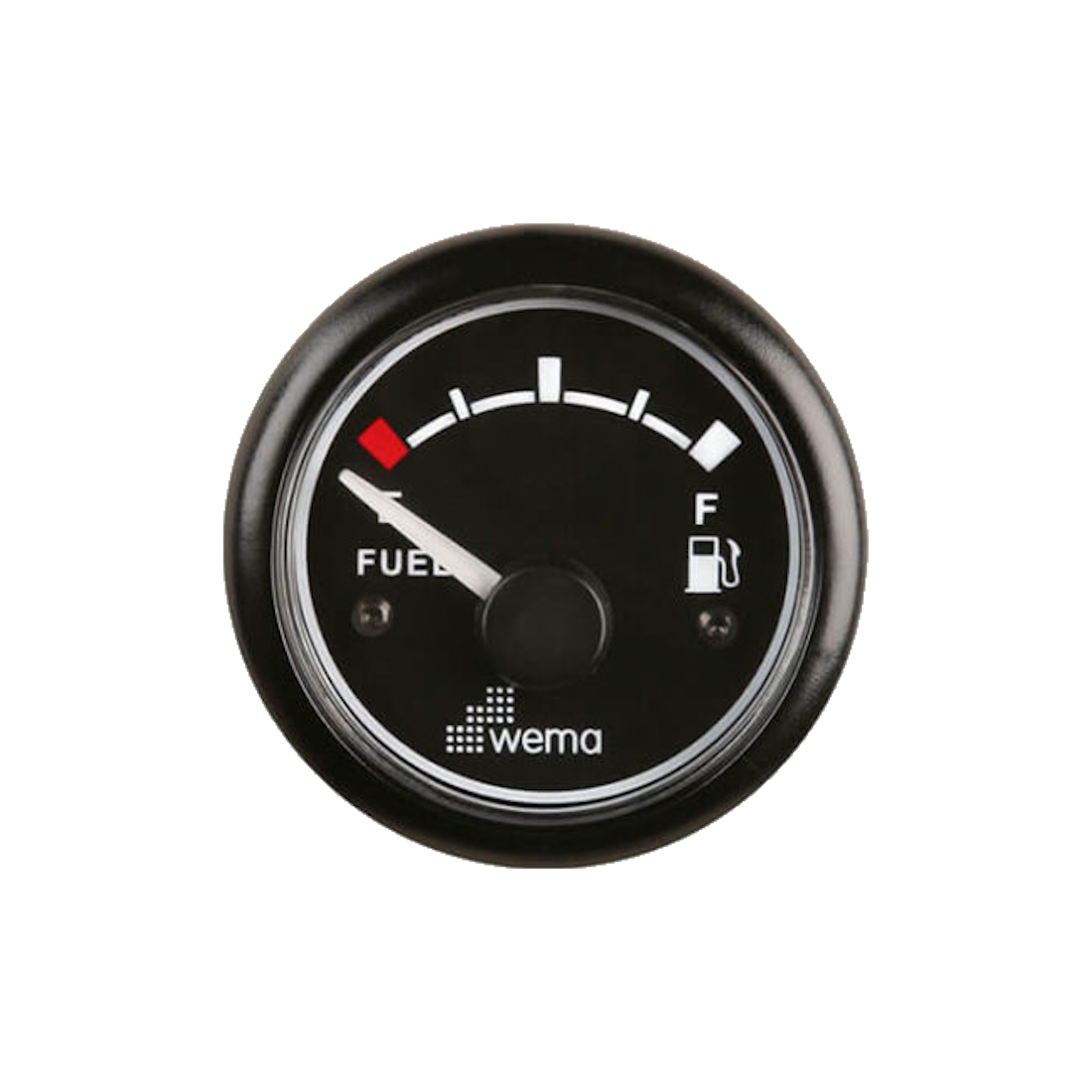

Fuel level gauge with black dial face and either a black plastic bezel or stainless steel bezel. Comes as standard 12v with dropping resistor included for 24v applications. Compatible also with 24v for stepping motor and LCD type gauges. Requires…

$98.00

4 interest-free payments of $24.50 with
or pay over time with
Important note

Wema gauges are known for their durability and precision. Always match the resistance (Ohms) of your gauge to the sender for accurate readings.

Ohms/Material
We accept
Suitable for boats, caravans, 4WDs, trucks, and industrial equipment with 12V or 24V systems.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

Fuel level gauge with black dial face and either a black plastic bezel or stainless steel bezel. Comes as standard 12v with dropping resistor included for 24v applications.

Compatible also with 24v for stepping motor and LCD type gauges. Requires an extra resistor to work with 24v for cross coil type gauge.

Rated 0-190 Ohm OR 240-30 Ohm - You must match the same Ohms rated gauge with the sender.

  • Waterproof and anti-fog design
  • Works underwater up to 1m
  • Easy-to-read E–F range display
  • Drop-in replacement for standard 52mm fuel gauges
  • Excellent for marine, 4WD, and caravan use

Voltage: 12V standard (24V with resistor)

Resistance: 0–190 Ohm or 240–30 Ohm

IP Rating: IP67 (waterproof to 1m)

Face: Black dial

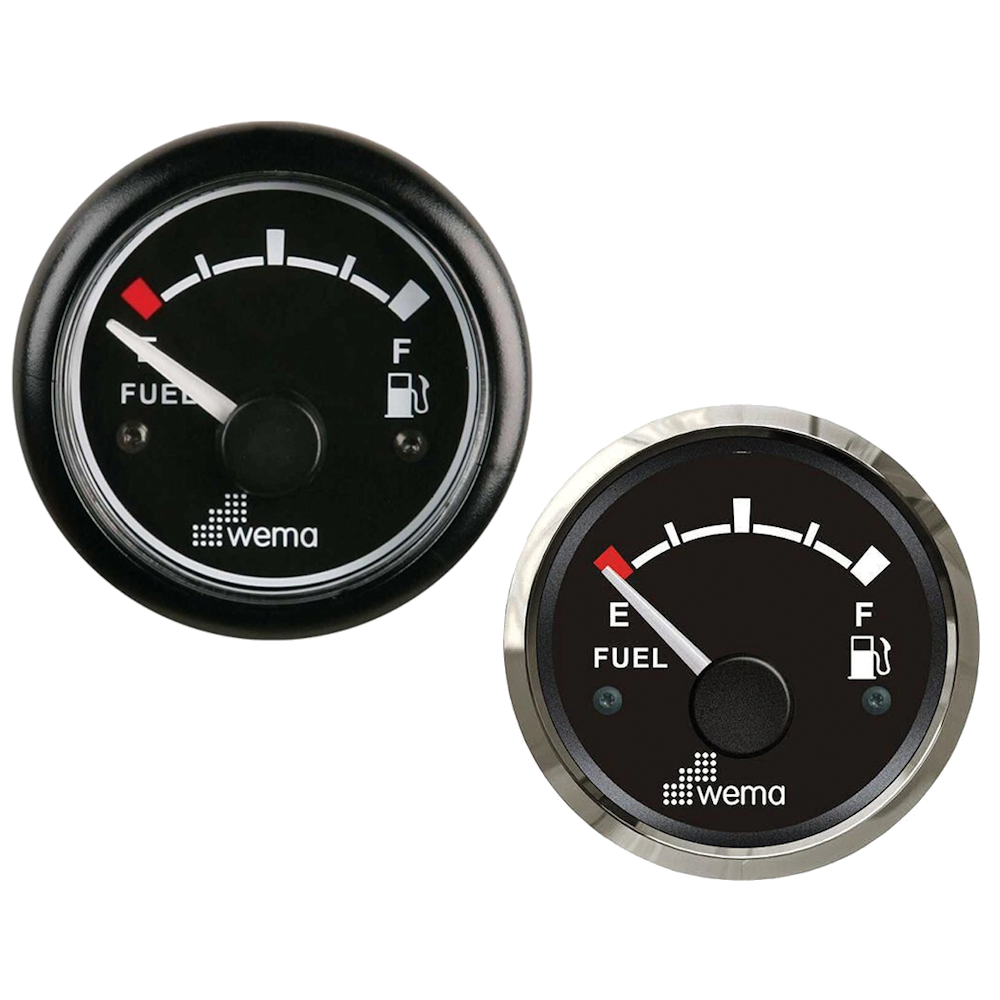

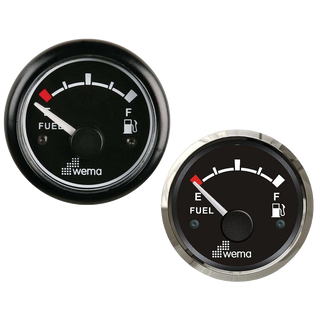

Bezels: Black Plastic or Stainless Steel

Operation Type: Stepping motor or LCD (resistor needed for cross coil)

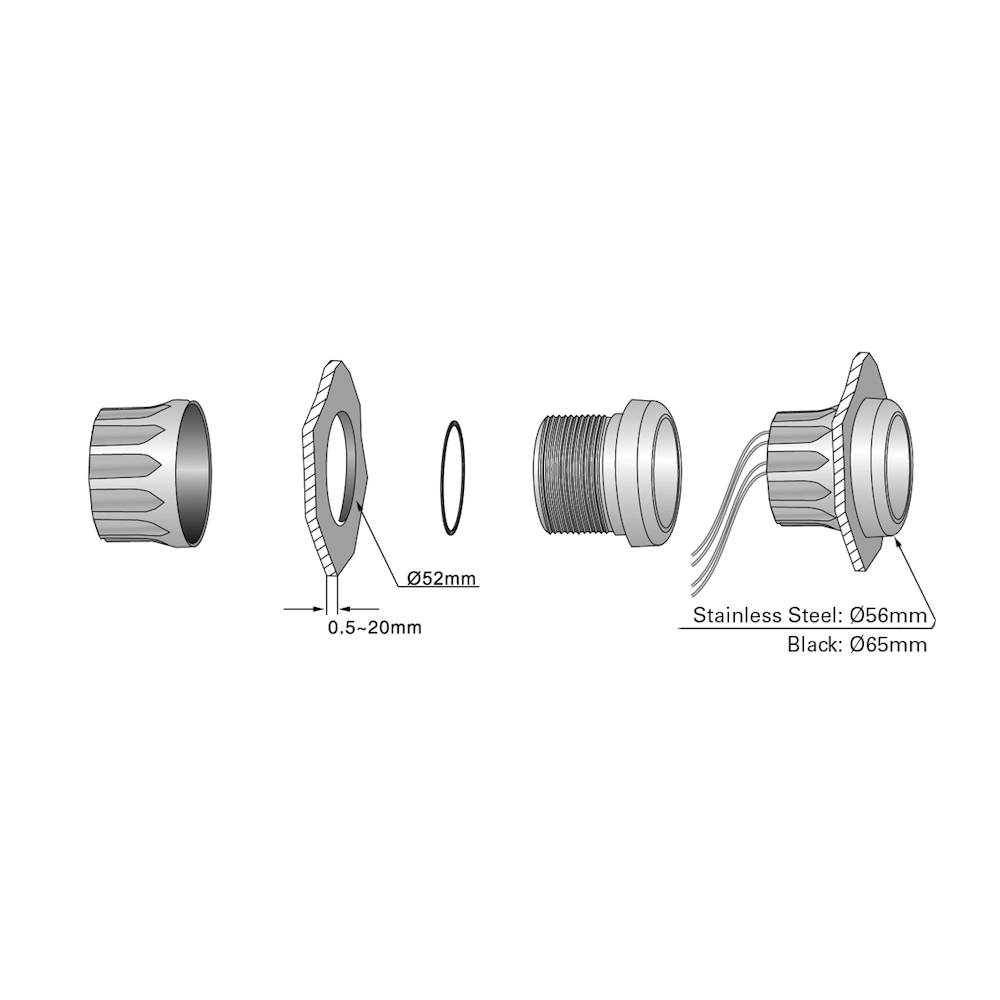

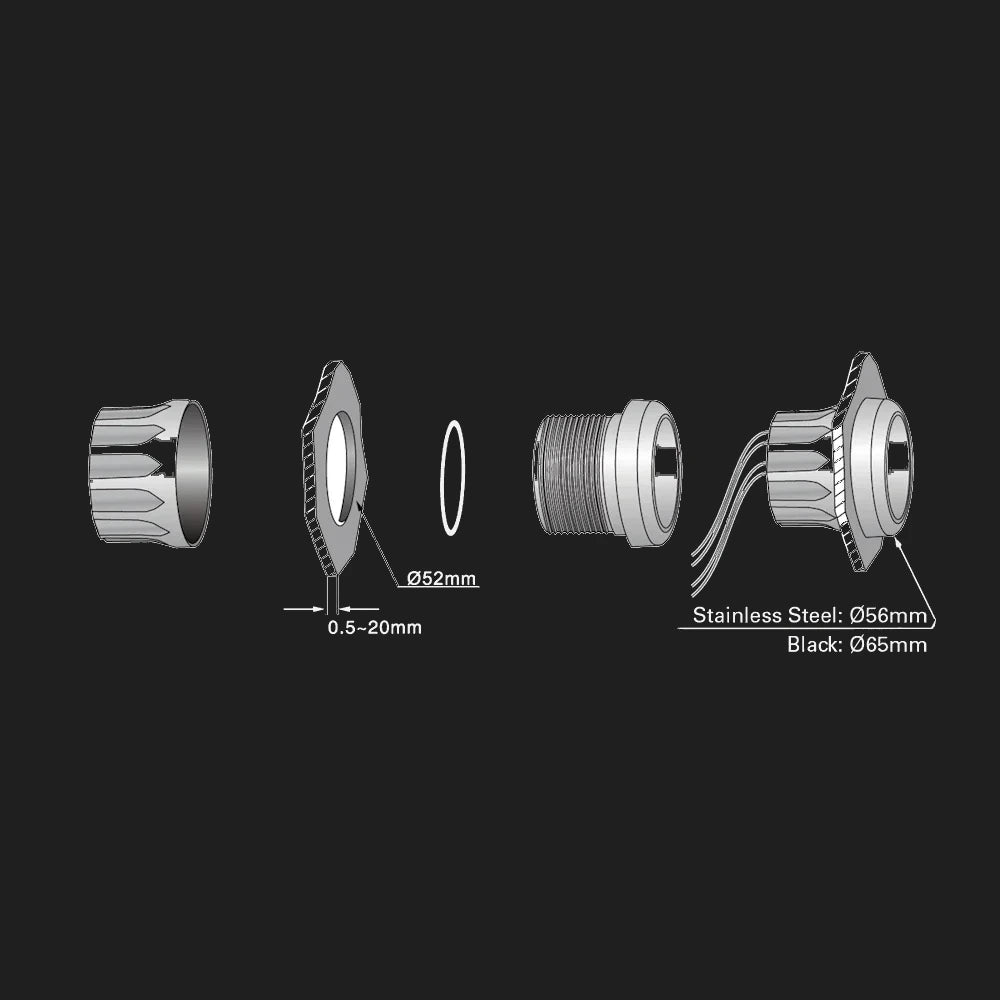

Cutout: 52mm

Overall Diameter: 56–65mm depending on bezel style


Everything this install needs

0 of 0 in the box


Fits standard 52mm dash openings. Requires proper resistance match (0–190 Ohm or 240–30 Ohm). Dropping resistor included for 24V use with 12V models. Mounting hardware included.

Suitable for boats, caravans, 4WDs, trucks, and industrial equipment with 12V or 24V systems.


Q: Can I use this with my 24V system?

A: Yes, a dropping resistor is included for 12V gauges to run on 24V.

Q: What happens if I mismatch the resistance?

A: The gauge will display inaccurate fuel levels. Always match Ohms with your sender.
