Wema Fuel/Water Tank Level Senders Flanged 0-190 Ohms | 150mm-1000mm | perth pro auto electric partsWema Fuel/Water Tank Level Senders Flanged 0-190 OhmsWema Fuel/Water Tank Level Senders Flanged 0-190 OhmsWema Fuel/Water Tank Level Senders Flanged 0-190 Ohms

Wema

Fuel/Water Tank Level Senders Flanged 0-190 Ohms

S5-E150

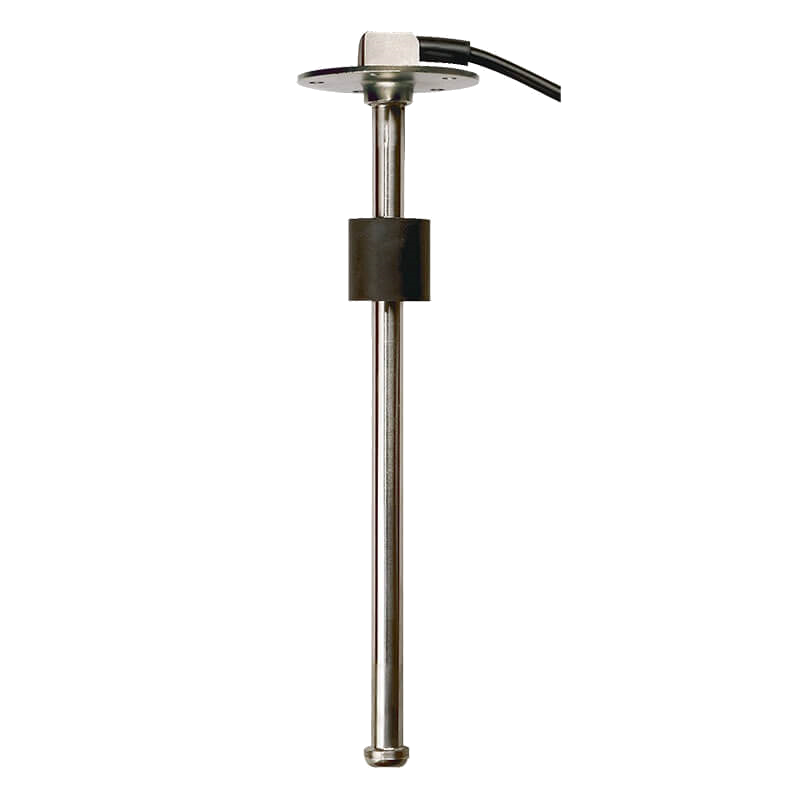

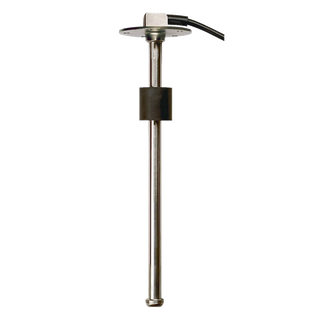

The S5 sender from Wema is an great solution for monitoring the level of fuel and/or water tanks in many vehicles; including boats, trucks, coaches, caravans and recreational vehicles.

$104.50$110.00 Save $5.50

4 interest-free payments of $26.13 with
or pay over time with
Important note

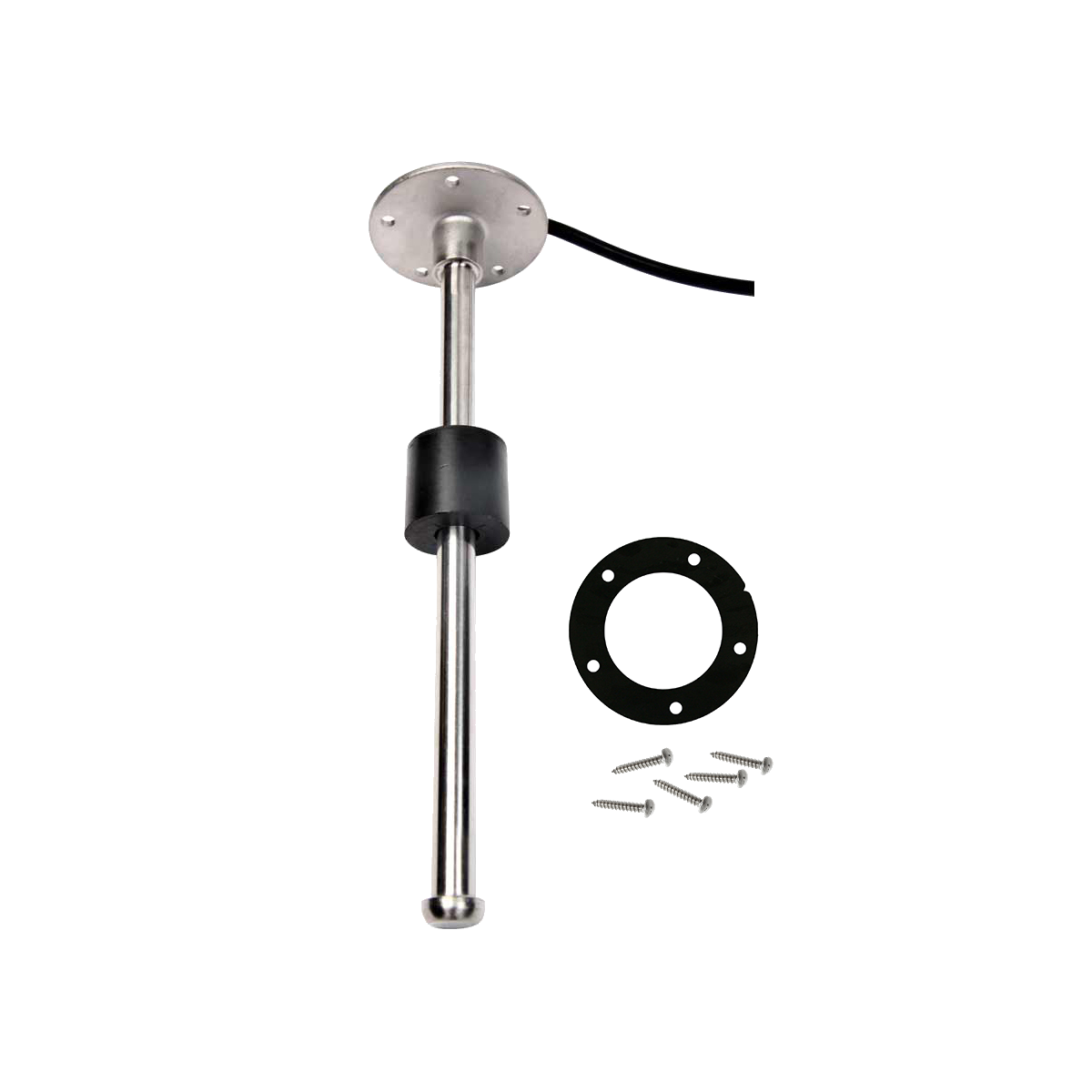

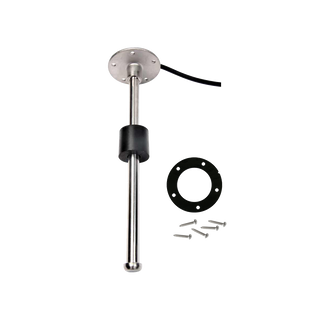

The S5 sender features a five-hole SAE flange mounting with gasket seal and screws included. Designed for longevity and reliability in fuel and water tank level monitoring.

Size
We accept
Suitable for use in boats, trucks, coaches, caravans, and recreational vehicles requiring fuel or water tank level measurement.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The S5 sender from Wema is an great solution for monitoring the level of fuel and/or water tanks in many vehicles; including boats, trucks, coaches, caravans and recreational vehicles.

  • Durable stainless steel construction.
  • Five-hole SAE flange mounting with gasket and screws.
  • Water-resistant cable entry.
  • Non-corrosive materials for harsh environments.
  • Complies with ISO, CE, NMMA, ABYC, USCG standards.

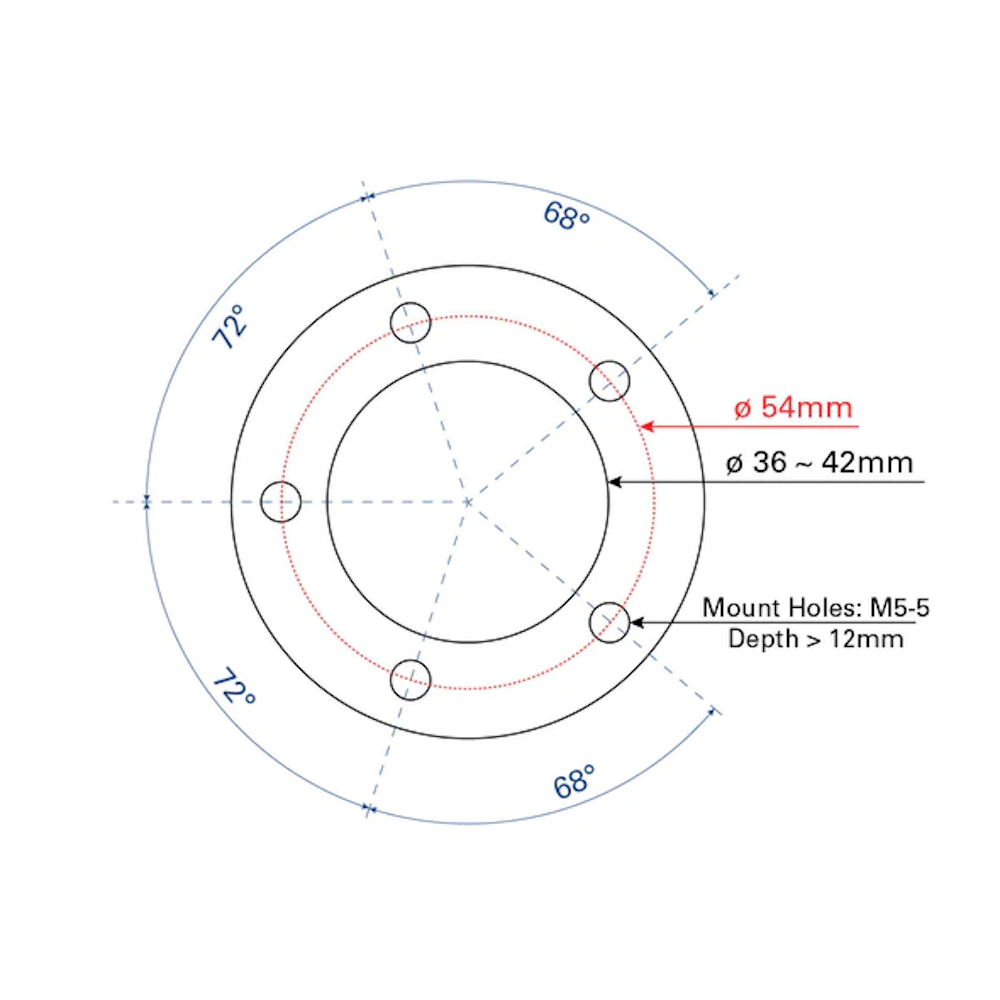

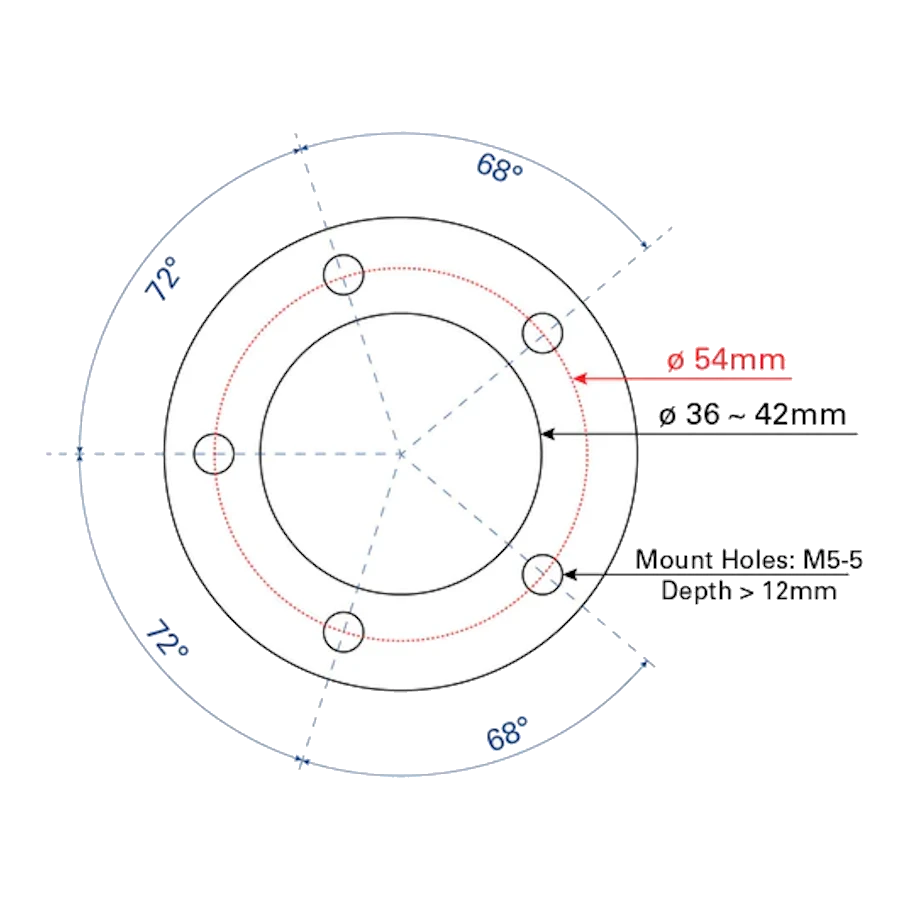

Mounting: 5-hole SAE flange.

Resistance: 0-190 Ohm.

Operating Voltage: 12/24 VDC.

Medium: diesel, petrol, potable water, grey water (not black water).

Material: AISI 316 stainless steel.

Operating Temperature: -40° to +85°C.

Termination: Two tinned flying leads, 290mm sheathed.

Length Options: 150mm to 1000mm (longer lengths available on request).

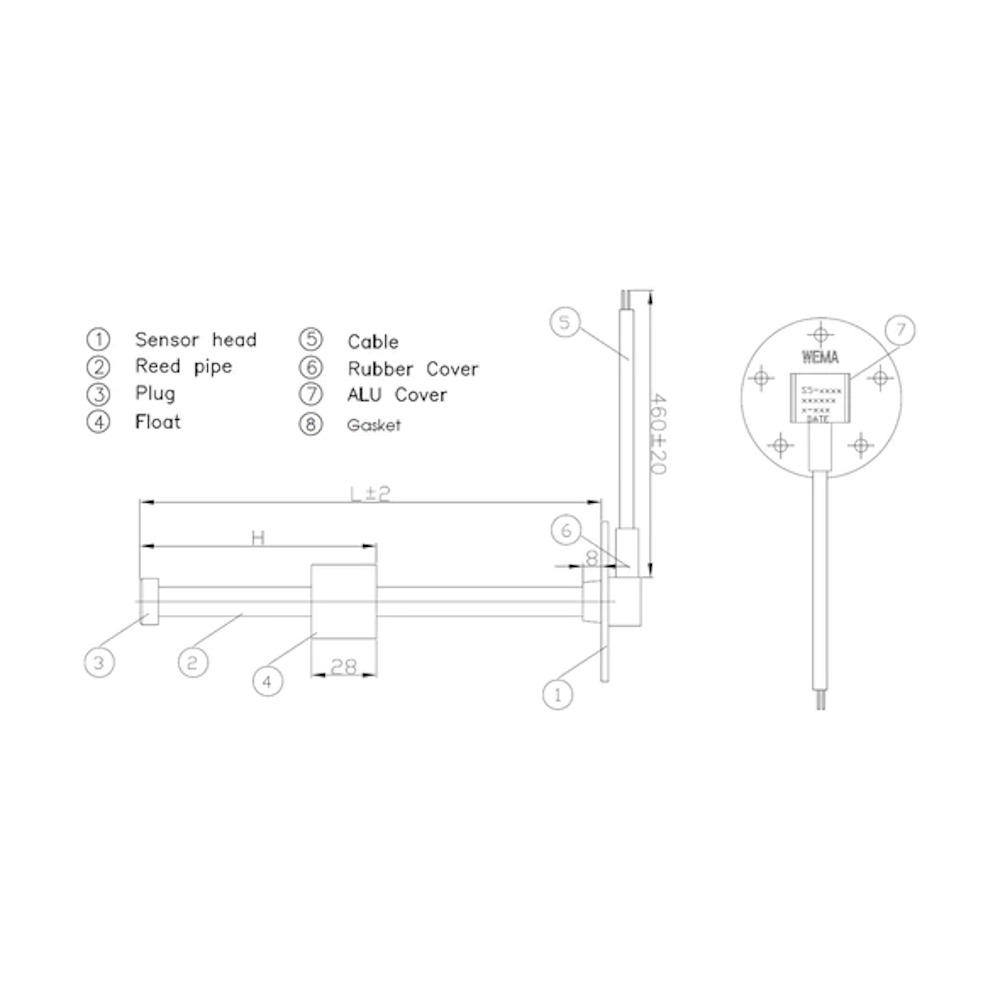

Length measured from underside of flange to base of shaft; various length options available.

Everything this install needs

0 of 0 in the box


Mounts via five-hole SAE flange. Length measured from underside of flange to base of shaft. Installation includes gasket seal and screws. Ensure matching Ohm rating between sender and gauge.

Suitable for use in boats, trucks, coaches, caravans, and recreational vehicles requiring fuel or water tank level measurement.

Q: What Ohm rating should I use?

A: The sender is rated 0-190 Ohm; match this with your gauge’s rating for accurate measurement.

Q: What media can this sender be used with?

A: Suitable for diesel, petrol, potable water, and grey water (not black water).

Q: How do I test the sender?

A: Unscrew the sender, connect to a multimeter on resistance mode, move the float. Reading should range 0 Ohm (float down) to 190 Ohm (float up).
