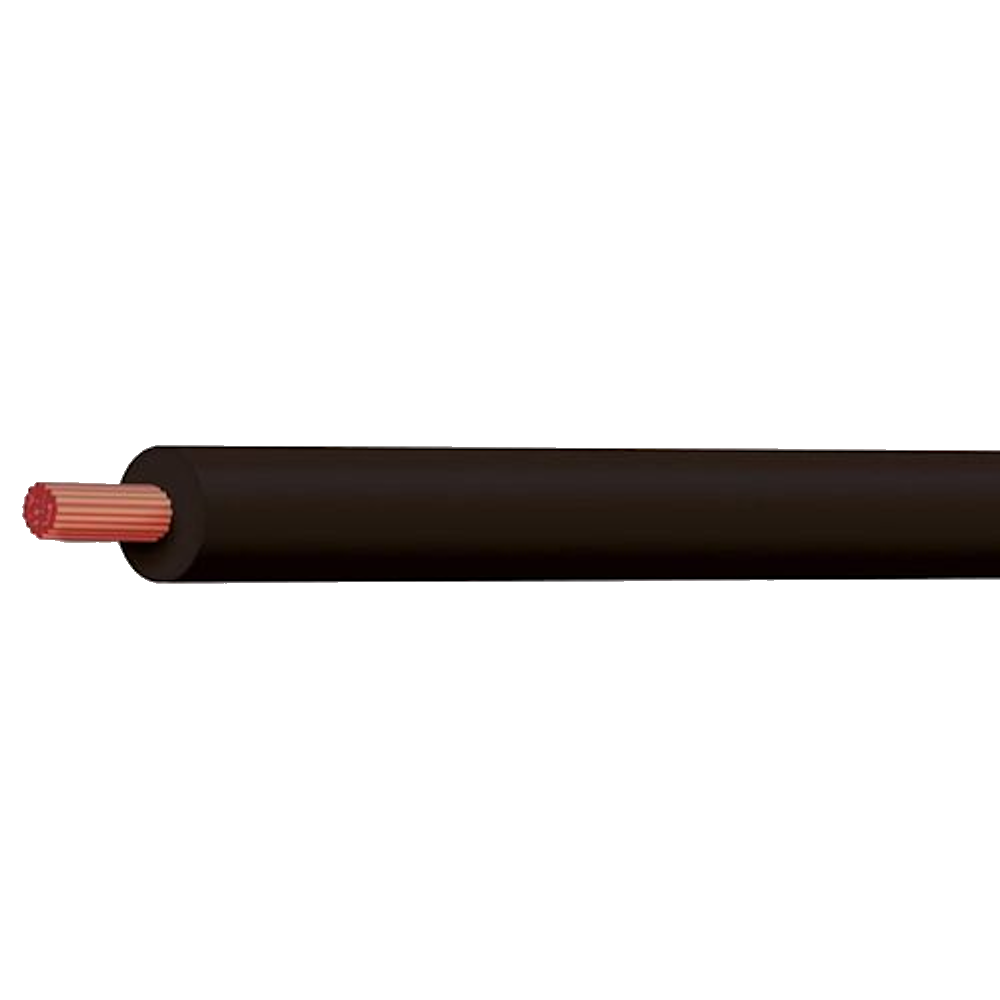

Tycab 4mm Single Core Cable Black Sheath

SKU: CB004A1-030BK
$2.50
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Ideal for automotive, caravan, marine, and 12V applications where single-core insulated cable is required.


Cable is sold per meter (1 quantity = 1 meter of cable)


Length: Sold by the meter

Outer Diameter: 2.6 mm

Cross-sectional Area: 4mm equivalent (1.84 mm²)

Please note cable may be supplied from an alternative brand depending on availability. All alternatives meet the same specifications and quality standards.

 [{"variant_id":"39410560073837" , "metafield_value":""}]

Tycab 4mm Single Core Cable Black Sheath

$2.50
Description

Automotive Cable, Single Insulated, 1 Core, 1.85 sq-mm, 4 mm, Oxygen Free Copper, 15 Amp, 23/0.32 mm Strands, RoHS Compliant PVC Insulation, Unsheathed, Black Insulation




FEATURES


Single-core insulated cable

Oxygen-free copper for optimal conductivity

Flexible and easy to handle

RoHS compliant PVC insulation

Rated for 28A at 30°C

Perfect for 12V, automotive and marine use

FAQ's


Q: Is this cable oxygen-free copper?

A: Yes, it is made with high-quality oxygen-free copper for maximum conductivity.

Q: Can I buy a custom length?

A: Yes, cable is sold by the meter. Enter the quantity you need in meters.

Specifications


Conductor Number/Diameter: 23/0.32 mm

Nominal Area: 1.84 mm²

Nominal Outer Diameter: 2.6 mm

Insulation Thickness: 0.4 mm

Sheath Thickness: 0.4 mm

Mass: 2.1 kg/100m

Amperage Rating @ 30°C: 28 Amps

Industry Equivalent: 4mm

Material: Oxygen-free copper

Insulation: RoHS compliant PVC

Cores: 1

Colour: Black

Installation Information


Sold by the meter. Use appropriate tools and terminals for cutting and crimping. Always follow vehicle wiring diagrams and safety procedures.

Warranty Information

12-month warranty covering manufacturing defects. Warranty void if cable is used improperly or modified.
