15-132 Solenoid 100Amp Continuous Duty - 12Volt | Relays | Perth Pro Auto Electric Parts
15-132 Solenoid 100Amp Continuous Duty - 12Volt | Relays | Perth Pro Auto Electric Parts

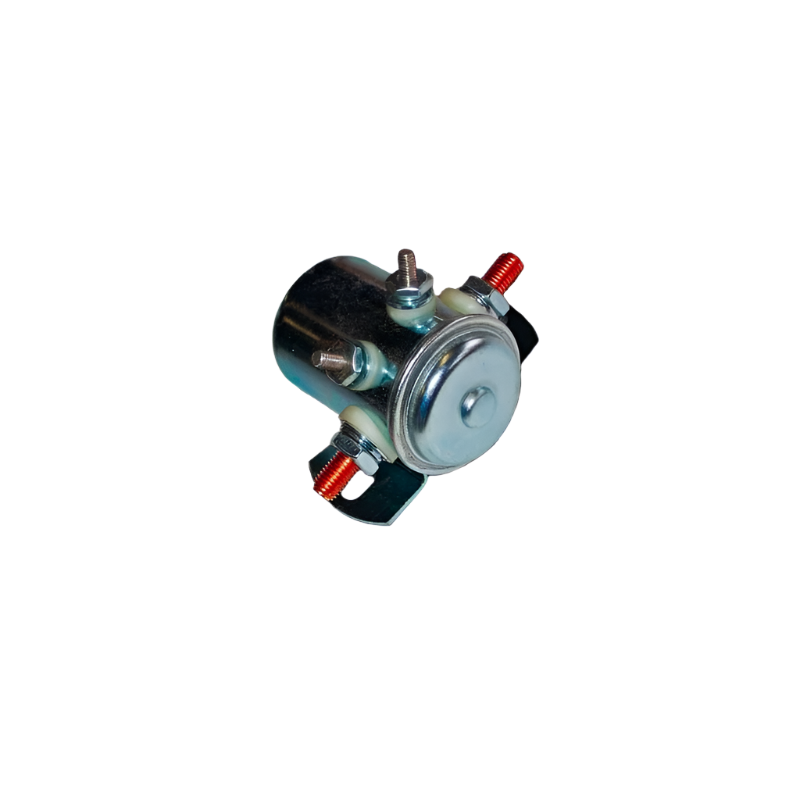

Solenoid 100Amp Continuous Duty - 12Volt

SKU: ACX3322
$55.00
  • VEHICLE
  • INCLUDED
  • DIMENSIONS

Suitable for 12V systems on 4WDs, caravans, RVs, boats, trucks, and heavy-duty vehicles. Commonly used in dual battery isolator circuits and power switching applications.


One 12V 100A Continuous Duty Solenoid (ACX3322). Mounting base and integrated terminals. Installation instructions included.


Length – 85mm

Width – 50mm

Height – 75mm (including terminals)

Mount Hole Spacing – 60mm

 [{"variant_id":"32527706947693" , "metafield_value":""}]

Solenoid 100Amp Continuous Duty - 12Volt

$55.00
Description

The ACX3322 100A Continuous Duty Solenoid is designed for high-current 12V applications where constant power switching is required. Ideal for dual battery systems, winch setups, heavy-duty lighting, or other high-load circuits, it delivers reliable performance and long service life in automotive, marine, and industrial environments.

Engineered for continuous use, this solenoid can handle 100 amps indefinitely without overheating. A trusted component for power distribution in demanding 12V systems.

FEATURES


100A continuous current handling for high-load circuits. Robust metal housing designed for harsh environments. Reliable switching performance in 12V electrical systems. Suitable for dual battery, winch, or auxiliary load control. Compact design for versatile mounting options.

FAQ's

Q: Is this solenoid rated for intermittent use or continuous duty?

A: It is rated for 100A continuous duty, making it suitable for always-on applications.

Q: Can this be used with lithium batteries?

A: Yes, it is compatible with lithium, AGM, and standard lead-acid systems.

Specifications


Operating Voltage – 12V DC

Continuous Current Rating – 100 Amps

Peak Current (short-term) – Up to 400 Amps

Coil Activation – 12V signal

Housing – Metal body with insulated terminals

Mounting – Surface mount

Installation Information


Mount the solenoid securely to a flat surface in a well-ventilated location. Connect main terminals to the power source and load using appropriately rated cable. Activation is triggered via the smaller coil terminals (typically with an ignition or switch signal). Professional installation is recommended.

Warranty Information


Supplied with a 1-Year Manufacturer Warranty covering defects in materials or workmanship under normal conditions.

PICKUP OR SHIPPING


Pickup: Available from Elevate Automotive (WA)

Shipping: World-wide shipping
