Roadpower Switch Panel 8 Way 10-30V 60A

SKU: RSP8300
$429.00
  • VEHICLE
  • INCLUDED
  • Note from Manufacturer

Ideal for 4WDs, trucks, utility vehicles, and any automotive applications requiring versatile auxiliary control.

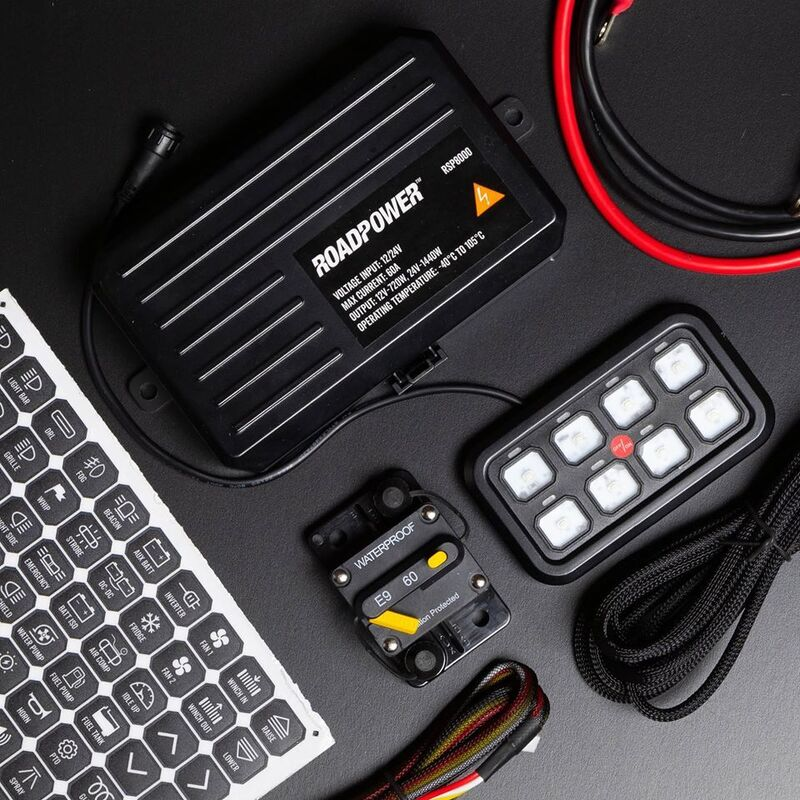

1 x Switch Panel

1 x Power Module

2 x Wiring Harnesses

1 x Battery Lead Set

1 x Decal Sheet (70 switch decals)

1 x Circuit Breaker

1 x Mounting Kit (includes new flush mount)

User Manual


Roadpower switch panels are engineered for easy installation and customizable control, making them a versatile solution for managing your vehicle’s auxiliary electrical systems.

 [{"variant_id":"47814215500049" , "metafield_value":""}]

Roadpower Switch Panel 8 Way 10-30V 60A

$429.00
Description

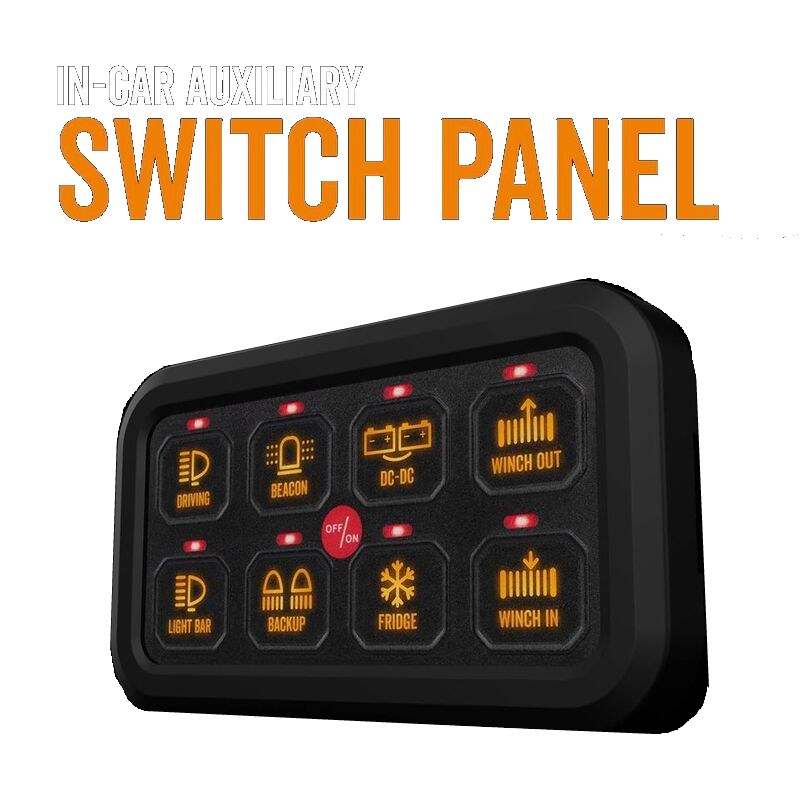

The Roadpower RSP8300 is an in-car auxiliary switch panel designed to give you full control over up to 8 different electrical components such as auxiliary lighting, winch systems, and battery setups. Featuring soft RGB backlit buttons with programmable colors, the switch panel supports On/Off, Momentary, and Pulsating switch functions. It’s built with a solid-state power module that ensures long-lasting, reliable performance with no moving parts or internal relays. The panel also includes useful features like LED fuse indicators and optional high beam inputs for compliance with ADR or light bar/driving lamp fitments.

FEATURES

8 programmable switches (On/Off, Momentary, Pulsating)

Master ON/OFF override with one-touch activation

RGB backlit switch buttons with full color customization

LED fuse indicator for easy troubleshooting

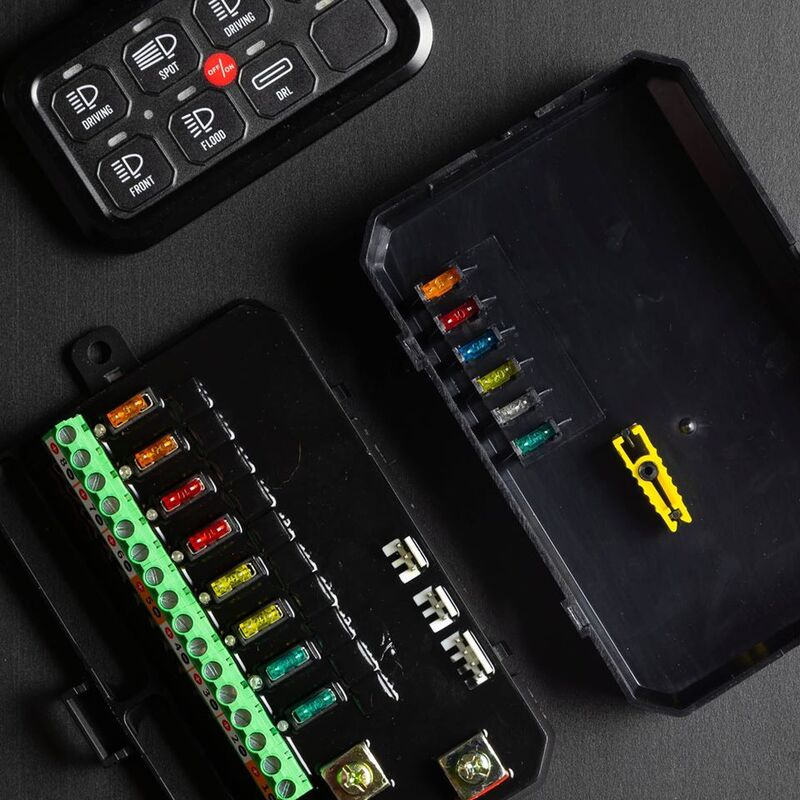

Solid-state power module with no internal relays

2 high beam inputs for compliance and automation

Includes 70 user-selectable switch decals

Multiple mounting options including flush mount

High beam memory feature for trigger recall

Robust temperature rating for all weather conditions








FAQ's

Q: Can the switch panel control momentary functions?
A: Yes, each of the 8 switches can be programmed for On/Off, Momentary, or Pulsating modes.

Q: How many amps can each circuit handle?
A: Each circuit is rated at 25A max, with a combined maximum output of 60A.

Specifications

Power Module:

Voltage Input: 10-30V DC

Maximum Output: 60A continuous

Per Circuit Output: 25A max (without external relay)

High Beam Input: Positive or Negative switched

Standby Current: <100mA

Operating Temperature: -40°C to 105°C


Switch Panel:

LED Indicator Color: Red

Backlit Colors: Full RGB programmable

High Beam Active Switches: 0 or 2 (switches 1 & 5)

Master ON/OFF Switch: Yes




















Switch Panel:









Dimensions

[Please insert specific panel dimensions here if available]

Features





















Included

















If you want, I can also help create SEO meta titles and descriptions for Shopify!

Installation Information

Comes with wiring harnesses, mounting kits (including flush mount), and detailed user manual for straightforward DIY installation.

USER MANUAL

Warranty Information


2-Year Manufacturer Warranty.

PICKUP OR SHIPPING

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.
