Seaflo 12 volt diaphragm pump with the flow direction arrow moulded into the housing, the orange retaining clip on the pump head, the four rubber-isolated mounting feet, and the two barbed hose tails supplied with it
End view of the Seaflo diaphragm pump showing the black moulded pump head with its single fixing screw, the orange pressure switch cover behind it and the rubber-isolated mounting feet
Seaflo water pressure pump seen from above, the flow arrow moulded into the cover, two orange retaining clips, and the rating panel reading model SFDP1-007-070-23A, open flow 2.65 LPM or 0.70 GPM, 12 volts, 1.2 amps with 2.5 amps maximum, pressure setting 70 PSI or 4.8 bar, and a warning not to pump flammable liquids

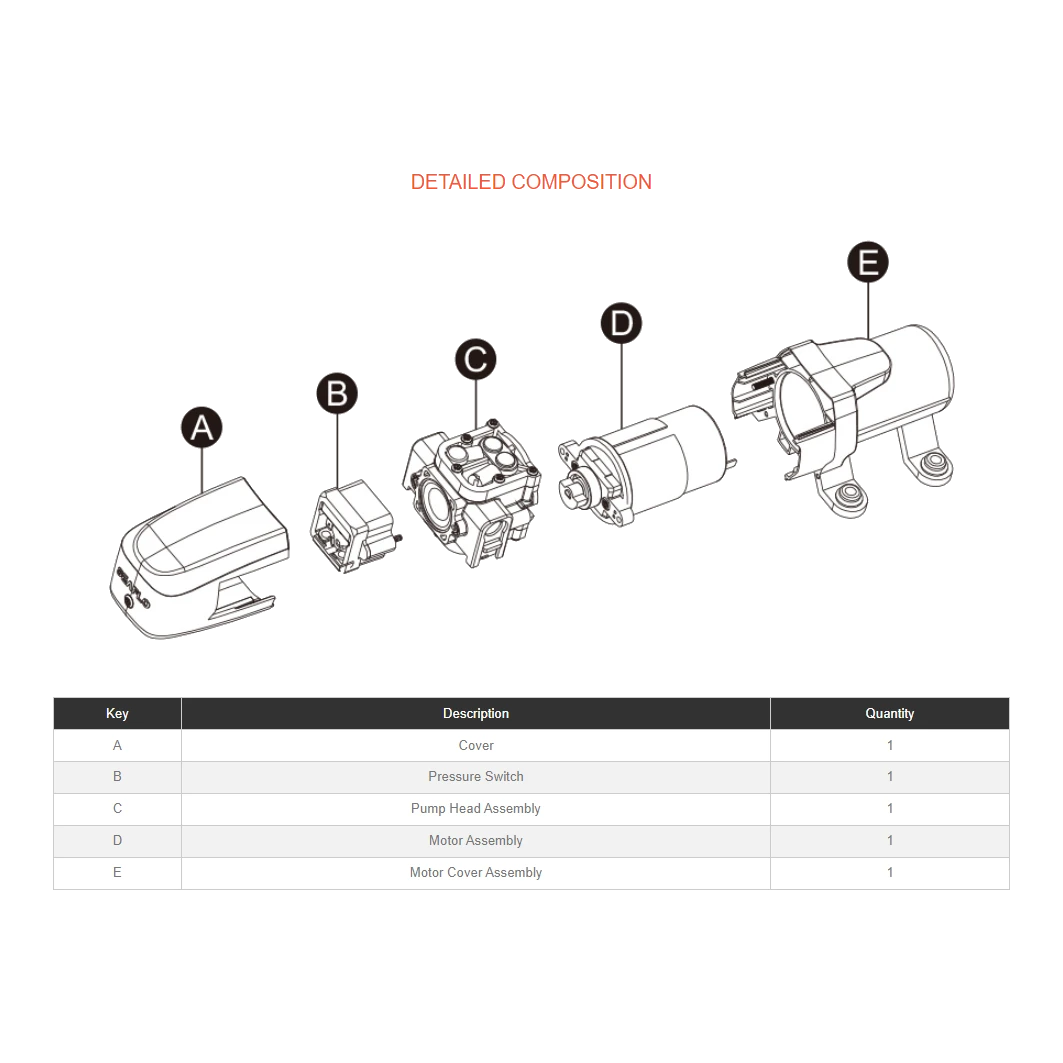

Exploded diagram of the Seaflo pump naming its five assemblies: A the cover, B the pressure switch, C the pump head assembly, D the motor assembly and E the motor cover assembly, each listed once in the parts table below

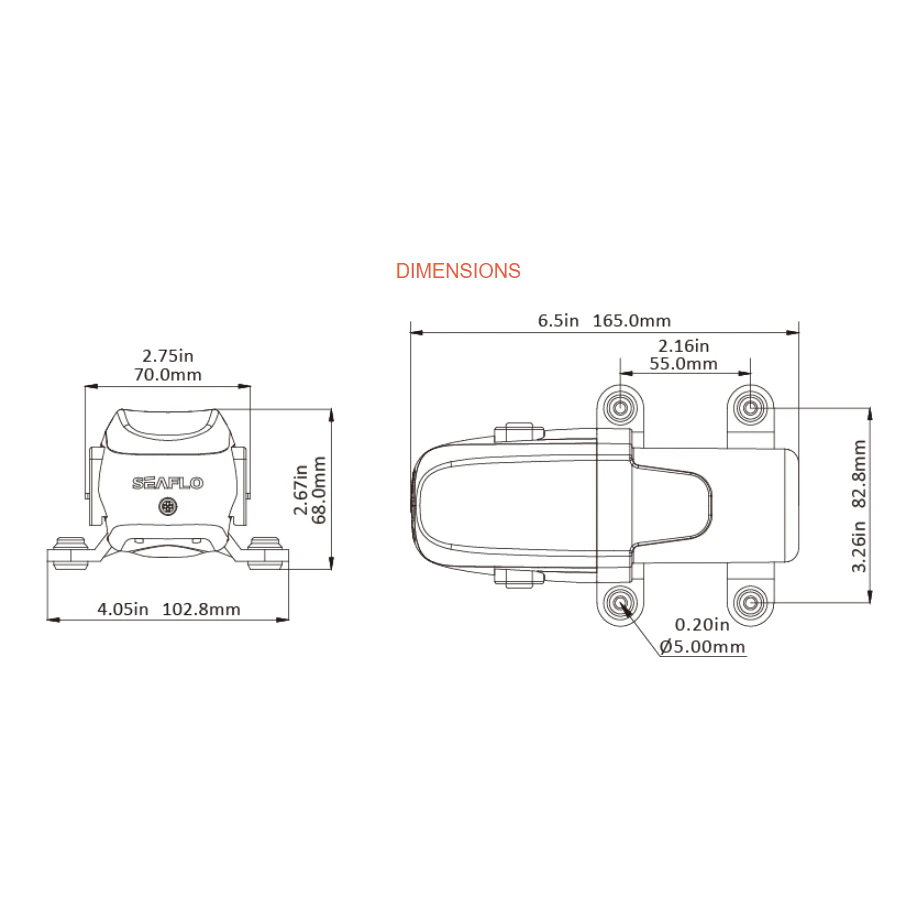

Dimension drawing of the Seaflo pump: 70.0mm wide across the body and 102.8mm across the mounting feet, 68.0mm tall, 165.0mm long overall with 55.0mm between the mounting hole centres, 82.8mm across the feet and 5.00mm diameter mounting holes

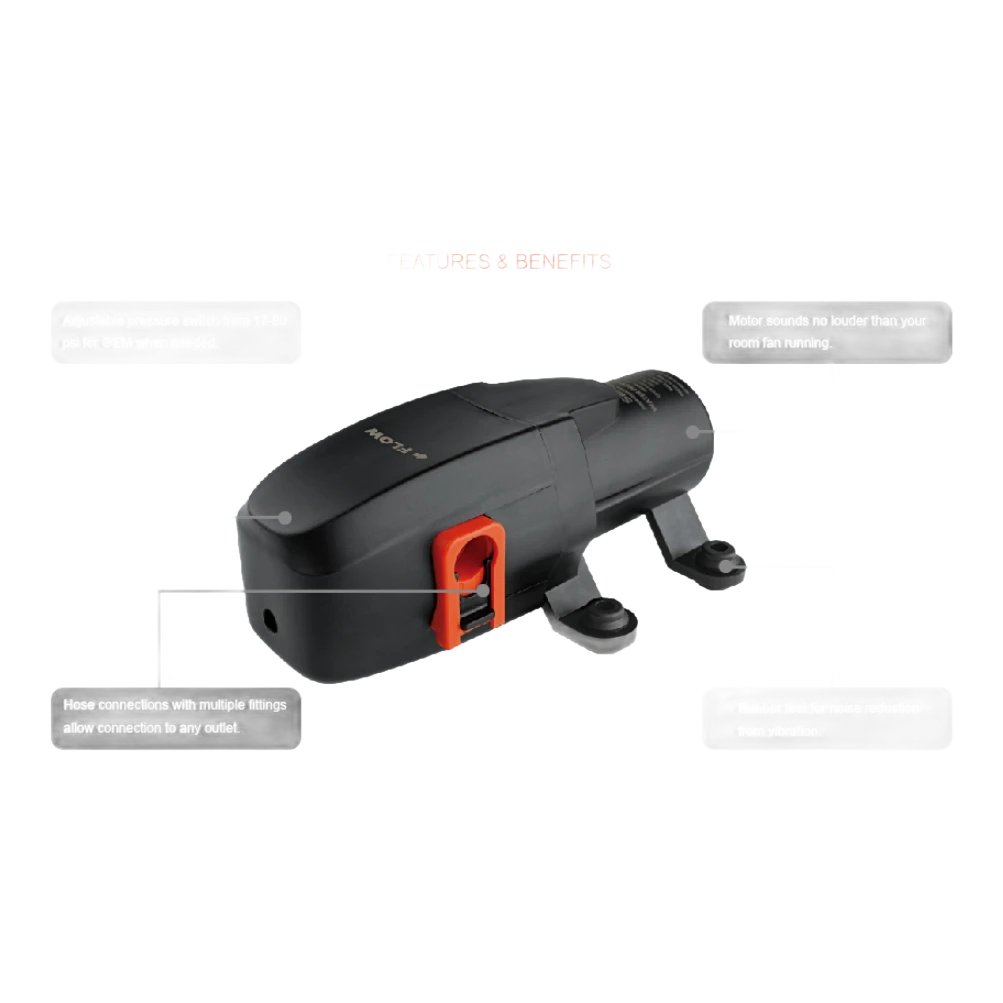

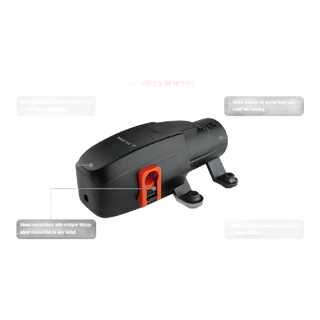

Seaflo pump with four callouts: an adjustable pressure switch from 17 to 80 psi, a motor no louder than a room fan, hose connections that take multiple fittings, and rubber feet to reduce vibration noise
Seaflo 12 volt diaphragm pump with the flow direction arrow moulded into the housing, the orange retaining clip on the pump head, the four rubber-isolated mounting feet, and the two barbed hose tails supplied with it
End view of the Seaflo diaphragm pump showing the black moulded pump head with its single fixing screw, the orange pressure switch cover behind it and the rubber-isolated mounting feet
Seaflo water pressure pump seen from above, the flow arrow moulded into the cover, two orange retaining clips, and the rating panel reading model SFDP1-007-070-23A, open flow 2.65 LPM or 0.70 GPM, 12 volts, 1.2 amps with 2.5 amps maximum, pressure setting 70 PSI or 4.8 bar, and a warning not to pump flammable liquids
Exploded diagram of the Seaflo pump naming its five assemblies: A the cover, B the pressure switch, C the pump head assembly, D the motor assembly and E the motor cover assembly, each listed once in the parts table below
Dimension drawing of the Seaflo pump: 70.0mm wide across the body and 102.8mm across the mounting feet, 68.0mm tall, 165.0mm long overall with 55.0mm between the mounting hole centres, 82.8mm across the feet and 5.00mm diameter mounting holes
Seaflo pump with four callouts: an adjustable pressure switch from 17 to 80 psi, a motor no louder than a room fan, hose connections that take multiple fittings, and rubber feet to reduce vibration noise

12v SeaFlo 23A 4.3LPM 40PSI

SKU: SFDP1-012-040-23A
Slide image

Suitable for caravans, 4WDs, RVs, boats, and other mobile setups requiring pressurised water systems.

Slide image

SEAFLO 23A Water Pump

Two 10mm hose fittings

2-pin power connector leads

$129.00
Taxes included.
Shipping & Collection
Worldwide Shipping Available*
In-Store Pickup
Professional Installation Available
Shipping costs are calculated at checkout based on your location and the items in your cart. Some products may not be available for delivery to your address due to shipping restrictions

12v SeaFlo 23A 4.3LPM 40PSI

$129.00

The SEAFLO 23A 4.3LPM 40PSI Pump is a compact, reliable water pump perfect for caravans, 4WDs, marine, and off-grid setups. It delivers up to 1.2GPM at 40PSI, is self-priming up to 1.5m, IP54 waterproof, and includes 10mm hose fittings. Ideal for RVs, agricultural spraying, filtration, and more.

Warranty


12-month manufacturer's warranty.
