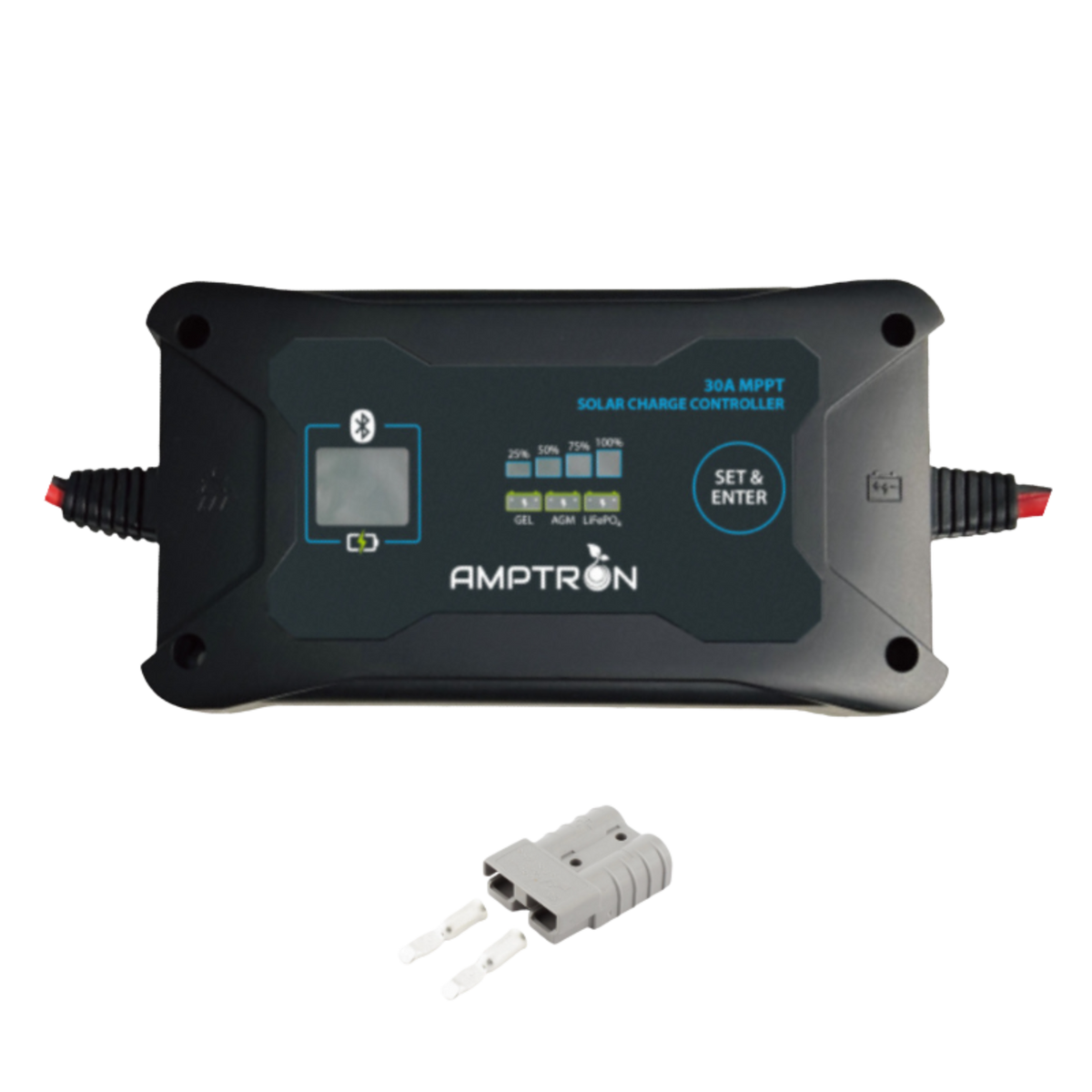

Amptron 30A MPPT solar charge controller, the black moulded case printed 30A MPPT Solar Charge Controller with a Bluetooth symbol beside the display window, battery-type buttons for gel, AGM and LiFePO4, charge indicators at 25, 50, 75 and 100 per cent, and a Set and Enter button, shown with the grey Anderson connector supplied with it

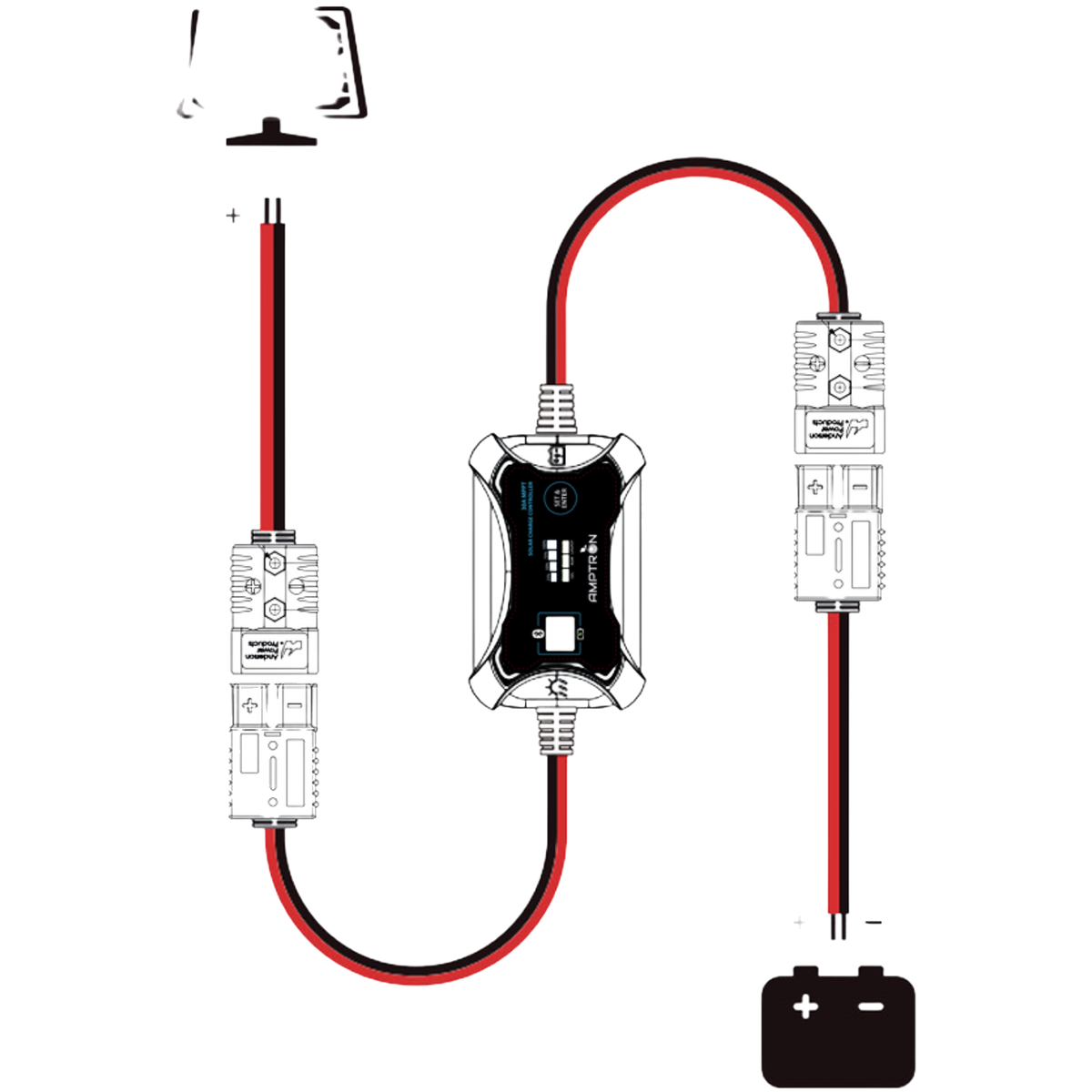

Connection diagram for the inline MPPT controller: the solar panel at one end runs through an Anderson connector into the controller, and a second lead leaves the controller through another Anderson connector to the battery, with positive and negative marked at each bare-wire end
The charge controller app on a phone showing the Data History screen, with daily cumulative charge, daily cumulative discharge, maximum charge power, and lowest and highest battery voltage listed for the selected date, and tabs across the bottom for real-time monitoring, data history, parameter setting and device info
Amptron 30A MPPT solar charge controller, the black moulded case printed 30A MPPT Solar Charge Controller with a Bluetooth symbol beside the display window, battery-type buttons for gel, AGM and LiFePO4, charge indicators at 25, 50, 75 and 100 per cent, and a Set and Enter button, shown with the grey Anderson connector supplied with it
Connection diagram for the inline MPPT controller: the solar panel at one end runs through an Anderson connector into the controller, and a second lead leaves the controller through another Anderson connector to the battery, with positive and negative marked at each bare-wire end
The charge controller app on a phone showing the Data History screen, with daily cumulative charge, daily cumulative discharge, maximum charge power, and lowest and highest battery voltage listed for the selected date, and tabs across the bottom for real-time monitoring, data history, parameter setting and device info

30A 12V/24V Inline AM MPPT Solar Charge Controller w/ Bluetooth

SKU: AT-SOLCHR-AM2430PV01
Slide image

Suitable for a wide range of 12V and 24V systems, including RVs, caravans, marine vessels, solar energy storage, and industrial applications requiring dependable solar charge management.

Slide image


One Amptron 30A 12V/24V Inline AM MPPT Solar Charge Controller w/ Bluetooth (AT-SOLCHR-AM2430PV01)

$142.00
Taxes included.
Shipping & Collection
Worldwide Shipping Available*
In-Store Pickup
Professional Installation Available
Shipping costs are calculated at checkout based on your location and the items in your cart. Some products may not be available for delivery to your address due to shipping restrictions

30A 12V/24V Inline AM MPPT Solar Charge Controller w/ Bluetooth

$142.00

The Amptron 30A 12V/24V Inline AM MPPT Solar Charge Controller (AT-SOLCHR-AM2430PV01) is an advanced, high-efficiency, and ultra-fast Multi-peak Maximum Power Point Tracking (MPPT) controller with built-in Bluetooth. Designed to maximize solar energy harvest, it supports various battery types, including Lithium Iron Phosphate (LiFePO₄), Sealed Lead Acid, Gel, and AGM. With its compact design and robust features, it's ideal for applications such as RVs, marine systems, off-grid setups, and portable solar solutions

This controller features a smart MPPT algorithm that ensures optimal tracking in multiple power points, enhancing energy efficiency by 15% to 20% over traditional PWM controllers. It includes built-in Bluetooth for real-time monitoring via Android and iOS apps, supports historical data storage with 300 days of data logging, and offers extensive electronic protections, including over-temperature, reverse polarity, and reverse current protection.

BATTERY VOLTAGES
Flooded Lead Acid
Sealed Lead Acid
Gel (Default)
User
(adjustable)
Lithium (adjustable)
Equalize Charge Voltage
14.8V*n
14.6V*n
–
Default: GEL
–
Boost Charge Voltage
14.6V*n
14.4V*n
14.2V*n
Default: GEL
Default: 14.2V*n
Float Charge Voltage
13.8V*n
13.8V*n
13.8V*n
Default: GEL
–
Boost Charge Recovery Voltage
13.2V*n
13.2V*n
13.2V*n
Default: GEL
–
Over-discharge Recovery Voltage
12.6V*n
12.6V*n
12.6V*n
Default: GEL
–
Over-discharge Voltage
11.1V*n
11.1V*n
11.1V*n
Default: GEL
Default: 11.1V*n
Auto Temperature Compensation
-3mV/2V/℃
-3mV/2V/℃
-3mV/2V/℃
Default: GEL
–

Warranty


Supplied with a 2-year manufacturer warranty covering defects in materials or workmanship.
