Home / Lighting / Driving & light bars

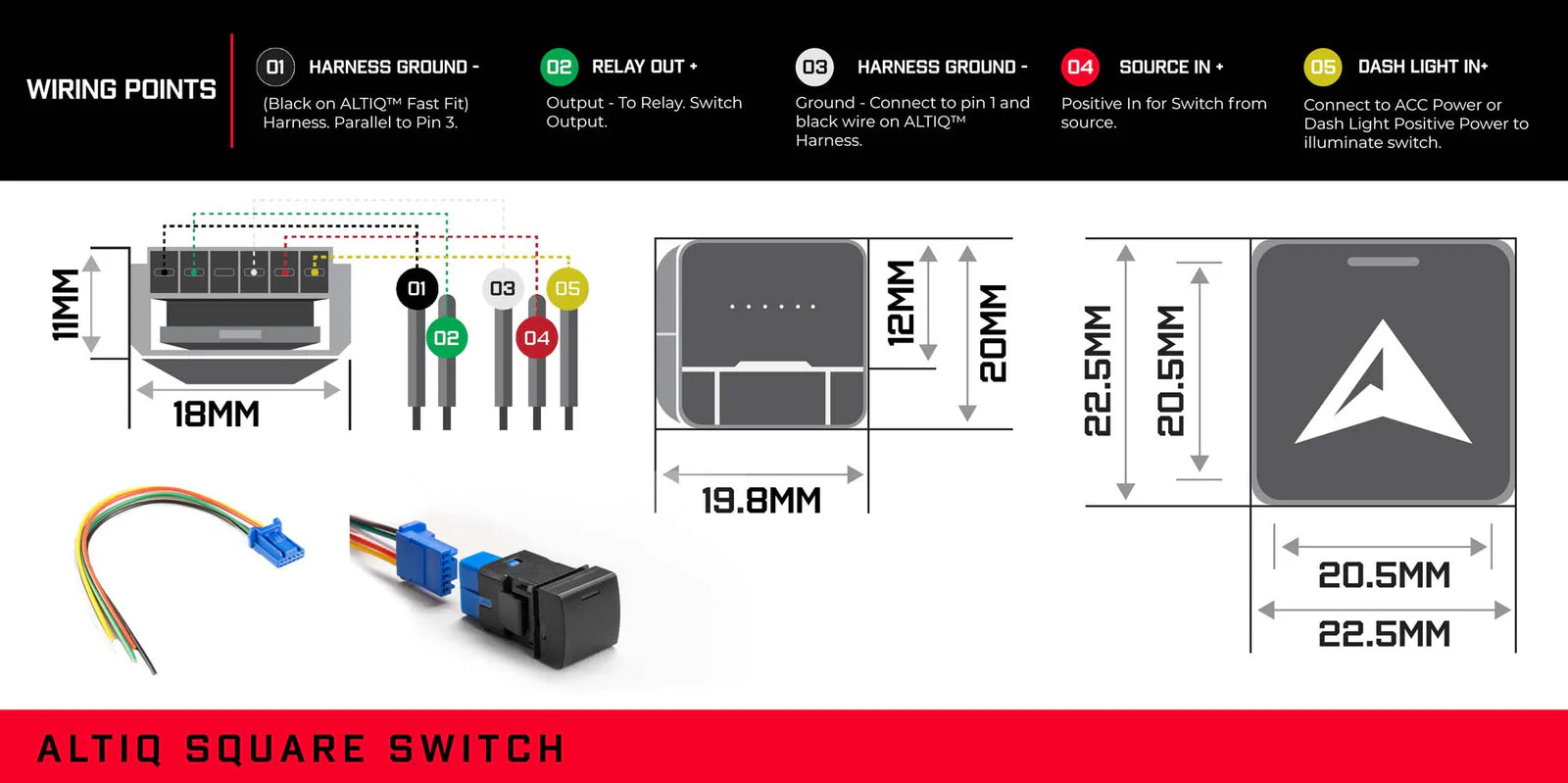

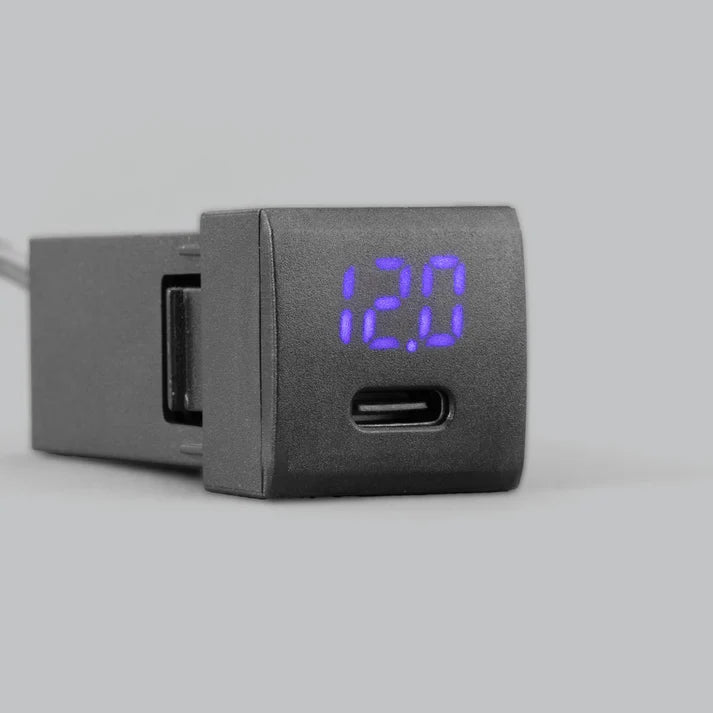

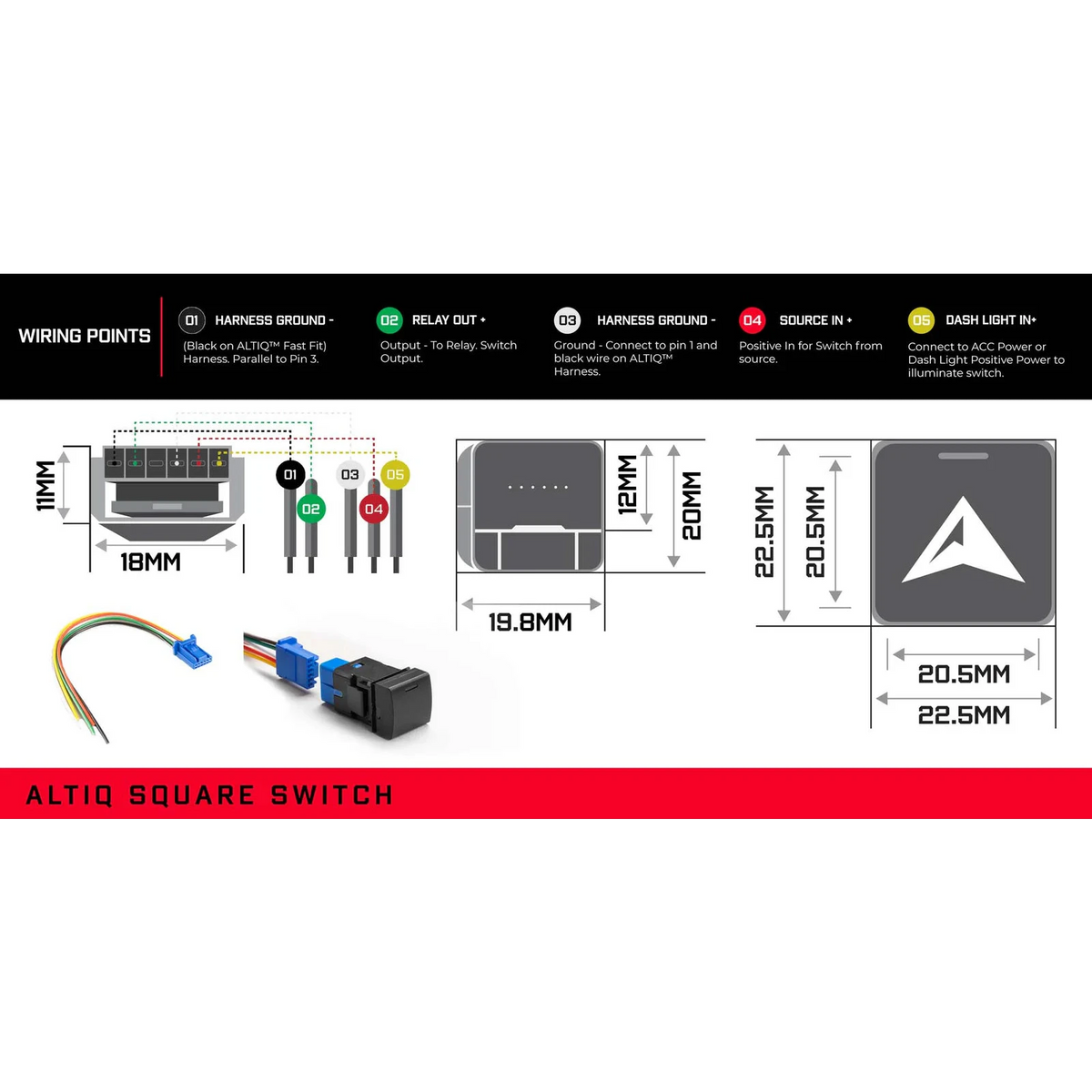

ALTIQ panel-mount USB-C voltmeter module with a blue seven-segment display reading 12.0, shown at an angle with the black moulded body and mounting shoulder behindALTIQ square switch reference card. Five wiring points: 01 harness ground negative, 02 relay out positive, 03 harness ground to pin 1, 04 source in positive, 05 dash light in positive to illuminate the switch. Dimensions given are 18mm and 11mm across the terminal block, 19.8mm by 20mm by 12mm for the body, and a 22.5mm by 20.5mm face

Altiq

ALTIQ USB-C + Voltmeter Push Module — Toyota-Style Switch Blank Fit

ASSA-VUSBC

ALTIQ square push module with USB-C fast charging and a live 12V voltmeter. Drops into Toyota-style switch blanks or ALTIQ fascia panels.

USB-C fast charge
Live 12V voltmeter
Toyota switch-blank fit

$29.00

4 interest-free payments of $7.25 with
or finance your build with
We accept
Toyota-style fitment12V DC systems, drops into standard Toyota switch blanks and ALTIQ fascia panels.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

An OEM-style Toyota switch-blank module that pairs a USB-C charging port with a live 12V voltmeter on the same square face. Runs phone, tablet and USB-C-native accessory charging on the port side and shows battery voltage on the digital readout above. Drops straight into a Toyota-style factory switch blank or an ALTIQ fascia panel without cutting.

Body is the ALTIQ square that matches the rest of the modular range so it sits flush next to other switches, blanks and accessory modules on the same panel. Face is laser-etched, illumination is dual LED and the voltage display is a blue seven-segment readout. Wiring is a pigtail on the rear that takes a fused 12V accessory feed, ground and dash-illumination trigger. Body footprint is 19.8 by 20 by 12mm with a 22.5 by 20.5mm face; terminal block is 18 by 11mm.

Fuse the input at the source, sized to the cable feeding the panel. The USB-C port carries fast-charge capability but the exact wattage a device pulls depends on its own charger negotiation. Not for 24V systems direct.

  • USB-C fast charge — for newer phones and tablets.
  • Live voltmeter — blue LED display of battery voltage.
  • OEM fitment — drops into Toyota switch blanks.
  • ALTIQ square — shares a panel with other ALTIQ modules.
  • Dual LED — illuminated face for night use.
  • Compact body — 19.8 by 20 by 12mm behind fascia.

Electrical

Input: 12V DC

USB Output: USB-C

Display: Digital voltmeter

Fitment

Format: ALTIQ square

Body: 19.8 x 20 x 12mm

Face: 22.5 x 20.5mm

Illumination: Dual LED

Length: 19.8mm

Width: 20mm

Height: 12mm

12V DC systems, drops into standard Toyota switch blanks and ALTIQ fascia panels.
Suits Hilux, Prado, LandCruiser and other Toyota switch-blank layouts.
Fits any ALTIQ modular fascia panel alongside other ALTIQ modules.
Not for 24V systems direct — the voltmeter and USB regulator are 12V DC.

Q: What does the module do?
Two things on one square face: a USB-C charging port for phones, tablets and USB-C accessories, and a live blue voltmeter display showing battery voltage.

Q: What does it fit into?
Any standard Toyota-style factory switch blank (Hilux, Prado, LandCruiser and similar) or any ALTIQ modular fascia panel. Same square footprint as the rest of the ALTIQ range.

Q: Does it need cutting or modification?
No. Pushes into an existing blank aperture from the front and clips in from behind. Wiring is a pigtail on the rear.

Q: What is the physical size?
Body 19.8 by 20 by 12mm behind the face, face size 22.5 by 20.5mm, terminal block 18 by 11mm. Same across every module in the ALTIQ range so multiple modules line up.

Q: Does it work on 24V?
No. USB regulator and voltmeter display are 12V DC only. Fit a 24V-to-12V converter upstream on a 24V system.

Q: Does it support USB-C fast charging?
Yes. The USB-C port supports fast charging on compatible devices. Actual wattage negotiated depends on the device's own charging profile.

Q: USB-A vs USB-C, which do I want?
This is the USB-C version, which suits newer phones, tablets and USB-C-native accessories. The sibling ASSA-VUSB is USB-A 3.0 for older cables and standard accessory leads.

Q: What are the wiring points?
Five points: harness ground negative, source in positive, harness ground to pin 1, relay-out positive when used as a switch, and dash-light positive to illuminate the face at night.
