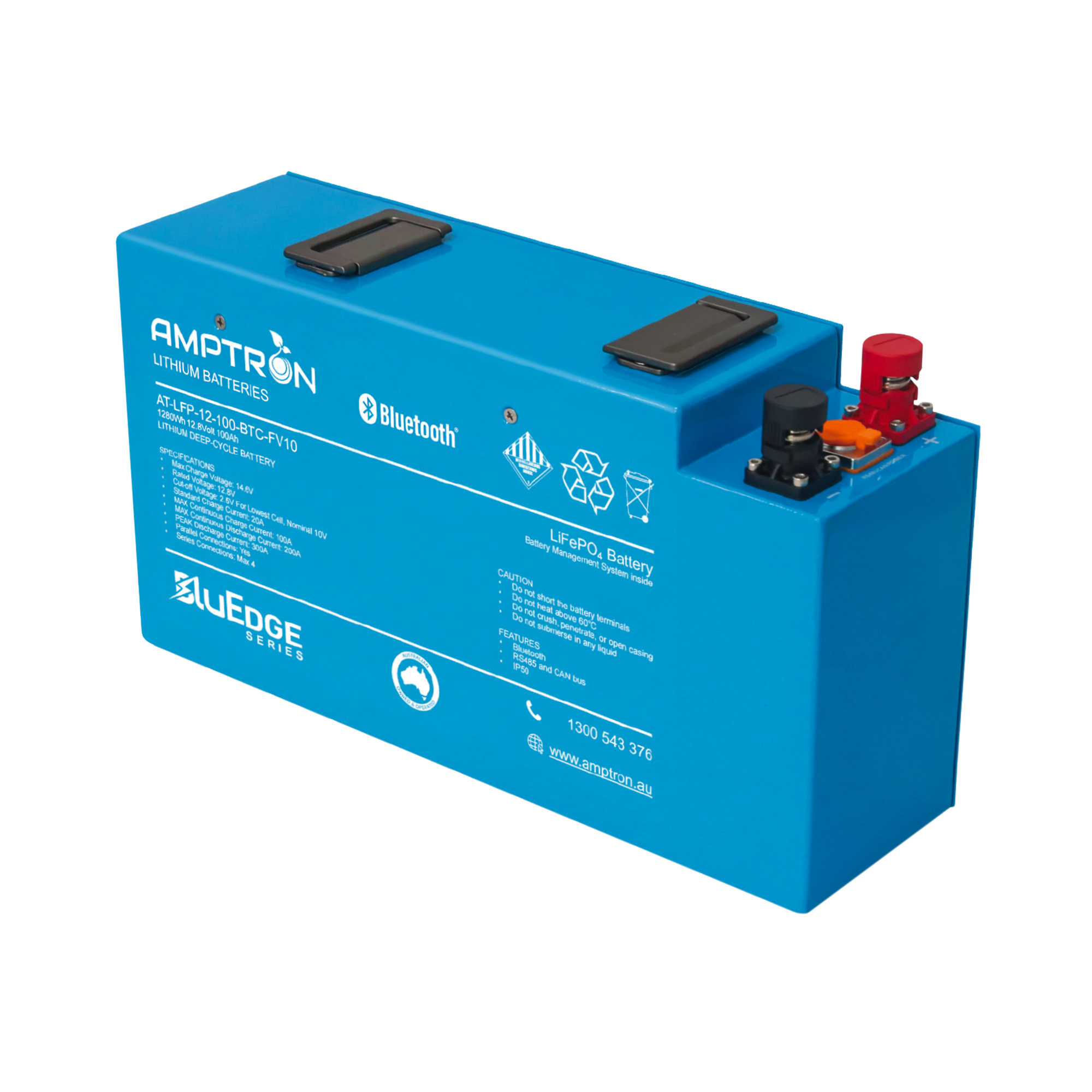

Blue battery with AMPTRON branding on a white background
Blue battery with AMPTRON branding on a white background

Amptron Lithium Battery 12V 100Ah / 200A Continuous Discharge LiFePO4 Slimline With Bluedge Technology

SKU: AT-LFP-12-100-BTC-FV10
$1,030.00
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Suitable for installation in 4WDs, vans, camper trailers, caravans, RVs, boats, and off-grid solar setups.


1 x AMPTRON 12V 100Ah LiFePO₄ Slimline Battery with built-in BMS

User manual available via manufacturer site

Length: 395mm

Width: 110mm

Height: 220mm

Weight: 11.2kg

Built with high-quality prismatic LiFePO₄ cells, AMPTRON batteries are engineered to deliver superior performance, long cycle life, and safer lithium power. All batteries are supported with robust internal BMS and manufactured to ISO certified standards.

 [{"variant_id":"51771481882897" , "metafield_value":""}]

Amptron Lithium Battery 12V 100Ah / 200A Continuous Discharge LiFePO4 Slimline With Bluedge Technology

$1,030.00
Description

The AMPTRON 12V 100Ah Slimline LiFePO₄ Battery is a lightweight, space-saving solution for powering 12V or 24V systems in 4WDs, RVs, boats, and off-grid applications.

Designed for high current loads, this battery can continuously discharge at 175A and is housed in a durable ABS case. Its internal BMS (Battery Management System) protects against overcharging, over-discharging, and overheating.

Ideal as a replacement for deep-cycle AGM, Gel or Lead Acid batteries, this lithium unit is built for long cycle life, safety and reliability.

FEATURES

Slimline design for tight installs

Internal Battery Management System (BMS)

Supports high-current discharge

Over 2000 cycle life at 100% DoD

IP65 rated for dust and water protection

Can be mounted flat or upright

Compatible with most lithium profile chargers

Safe, stable, and maintenance-free operation

FAQ's

Q: Can I install this on its side?
A: Yes, the ABS case allows for horizontal or vertical mounting.


Q: Does this battery come with a charger?
A: No, this product includes the battery only. Compatible lithium chargers are available separately.


Q: Can I parallel or series connect this battery?
A: Yes, but only under strict BMS-aligned conditions. Check Amptron documentation for limits.

Specifications

Model: AT-LFP-12-100FV01

Nominal Voltage: 12.8V

Nominal Capacity: 100Ah (1280Wh)

Chemistry: Lithium Iron Phosphate (LiFePO₄)

Discharge Current (Continuous): 175A

Discharge Current (Peak): 350A for 5 sec

Charging Voltage: 14.6V max

Standard Charging Current: 20A

Recommended Charging Current: 50A

Cycle Life: >2000 cycles at 100% DoD

Internal BMS: Yes (protects against over/under voltage, current, temp)

Case Type: ABS

IP Rating: IP65

Installation Information

Can be installed in any orientation including on its side.

Ensure your charger supports lithium charging profiles. Use suitable cable gauge and fuse protection per your current draw.

Detailed user manual available on the manufacturer’s website.

Warranty Information


This battery comes with a 4-year manufacturer's warranty covering manufacturing defects and BMS failure under normal usage conditions.

PICKUP OR SHIPPING

Pickup: Available from Elevate Automotive (WA)

Shipping: Australia-wide shipping
