Home / Lighting / Driving & light bars

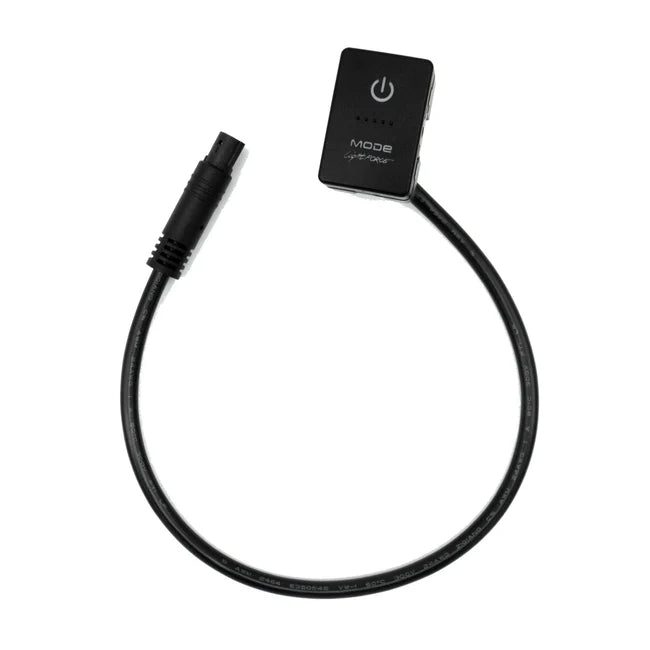

The MODE touch switch shown with its full lead, a black sealed connector at the free end and the switch body with its power symbol and indicator dots at the otherLightforce MODE touch switch seen at an angle, a black rectangular button with a power symbol, a row of five indicator dots and the MODE by Lightforce name, on a moulded body with a lead leaving the back

Lightforce

BEAST Switch — DC3 Fit for Isuzu D-Max/MU-X & Mazda BT-50 (2020+)

LFSWDC3BST-WB

OEM-style dash switch for Lightforce BEAST driving lights. Drops into the factory blank on 3rd-gen Isuzu D-Max, MU-X and Mazda BT-50. 10-16V input, 3A output.

$53.00

4 interest-free payments of $13.25 with
or finance your build with
We accept
Vehicle-specific fitment3rd-gen Isuzu D-Max, MU-X and Mazda BT-50

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

A dash-fit switch that controls Lightforce BEAST driving lights from the factory blank on 3rd-gen Isuzu D-Max, MU-X and Mazda BT-50. Short press flicks between SPOT and FLOOD; long press triggers BEAST mode. Slots into the original switch cutout so the dash looks like it left the factory that way.

The face is 18 by 28mm and clips into the OEM blank without any cutting or trimming. Illumination is white when the light is off, blue when it's on. Runs 10 to 16V input and drives 3A output, enough to trigger a relay but not to run the lights directly.

Pair it with the Lightforce BEAST Universal Harness for plug-and-play wiring. Only fits BEAST driving lights. It uses their control protocol, so it won't work as a generic on/off for other lights.

  • OEM factory fit — drops into 3rd-gen D-Max, MU-X and BT-50 dash blank
  • Three-mode control — SPOT, FLOOD and BEAST modes
  • 10-16V input — direct wire to 12V vehicle system
  • 3A output — triggers relay, no separate driver
  • Backlit illumination — white off, blue on
  • BEAST-only control — matched to Lightforce BEAST driving lights

Electrical

Input voltage: 10-16V DC

Output current: 3A trigger

Illumination: White / blue

Physical

Face size: 18 × 28mm

Fit: OEM blank

3rd-gen Isuzu D-Max, MU-X and Mazda BT-50
Isuzu D-Max 3rd Gen (9/2020 to current)
Isuzu MU-X 2nd Gen (9/2020 to current)
Mazda BT-50 3rd Gen (2020 to current)
Earlier D-Max or BT-50 generations, different dash blank
Other vehicles, factory blank shape is BT-50/D-Max specific

Q: What does BEAST mode do?
BEAST mode fires both the spot and flood beams together at their full output. Short-press once and the light drops back to SPOT.

Q: Will this control any driving light, or only BEAST?
Only Lightforce BEAST driving lights. The switch talks to the light's BEAST controller, so it won't work as an on/off for older Lightforce lights or other brands.

Q: Do I need a separate wiring harness?
Yes. The switch runs on the Lightforce BEAST Universal Harness (LFDLHBEAST-U). The harness carries the battery feed, ignition trigger, ground and the control lead back to the switch.

Q: Will this fit a pre-2020 D-Max or BT-50?
No. The switch blank shape changed with the 3rd-gen release in 2020. Earlier dash blanks need a different switch.

Q: Is this a genuine Lightforce part?
Yes. This is a genuine Lightforce BEAST switch under SKU LFSWDC3BST-WB. Design and engineering are done in Adelaide; manufacture is under Lightforce quality control.

Q: Can the switch handle the full current of the driving lights directly?
No. The switch outputs 3A, enough to trigger the light's built-in relay. The lights themselves draw their full current straight from the battery through the harness fuse.

Q: What's the difference between short press and long press?
Short press toggles between SPOT and FLOOD. Long press activates BEAST mode (both beams together). Another short press returns to SPOT.

Q: Can I fit this to a Toyota with a similar blank?
No. Toyota blanks are a different shape and hold size, even where they look close. Lightforce make Toyota-specific fitments (TY4, TYDH) for LC300, Prado 250 and Hilux.
