Black Series ALT 12V 240A, ISUZU D-MAX - 4JJ1, 4JJ3-TCX DSL [FIXED PULLEY]
Black Series ALT 12V 240A, ISUZU D-MAX - 4JJ1, 4JJ3-TCX DSL [FIXED PULLEY]
Black Series ALT 12V 240A, ISUZU D-MAX - 4JJ1, 4JJ3-TCX DSL [FIXED PULLEY]
Black Series ALT 12V 240A, ISUZU D-MAX - 4JJ1, 4JJ3-TCX DSL [FIXED PULLEY]
Black Series ALT 12V 240A, ISUZU D-MAX - 4JJ1, 4JJ3-TCX DSL [FIXED PULLEY]
Black Series ALT 12V 240A, ISUZU D-MAX - 4JJ1, 4JJ3-TCX DSL [FIXED PULLEY]
Black Series ALT 12V 240A, ISUZU D-MAX - 4JJ1, 4JJ3-TCX DSL [FIXED PULLEY]
Black Series ALT 12V 240A, ISUZU D-MAX - 4JJ1, 4JJ3-TCX DSL [FIXED PULLEY]
Black Series ALT 12V 240A, ISUZU D-MAX - 4JJ1, 4JJ3-TCX DSL [FIXED PULLEY]
Black Series ALT 12V 240A, ISUZU D-MAX - 4JJ1, 4JJ3-TCX DSL [FIXED PULLEY]

Black Series ALT 12V 240A, ISUZU D-MAX - 4JJ1, 4JJ3-TCX DSL [FIXED PULLEY]

SKU: BKS-240DMAX
$939.00
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Suitable for Isuzu D-MAX models with 4JJ1 and 4JJ3-TCX diesel engines.

Black Series 240A alternator for Isuzu D-MAX 4JJ1 & 4JJ3-TCX DSL

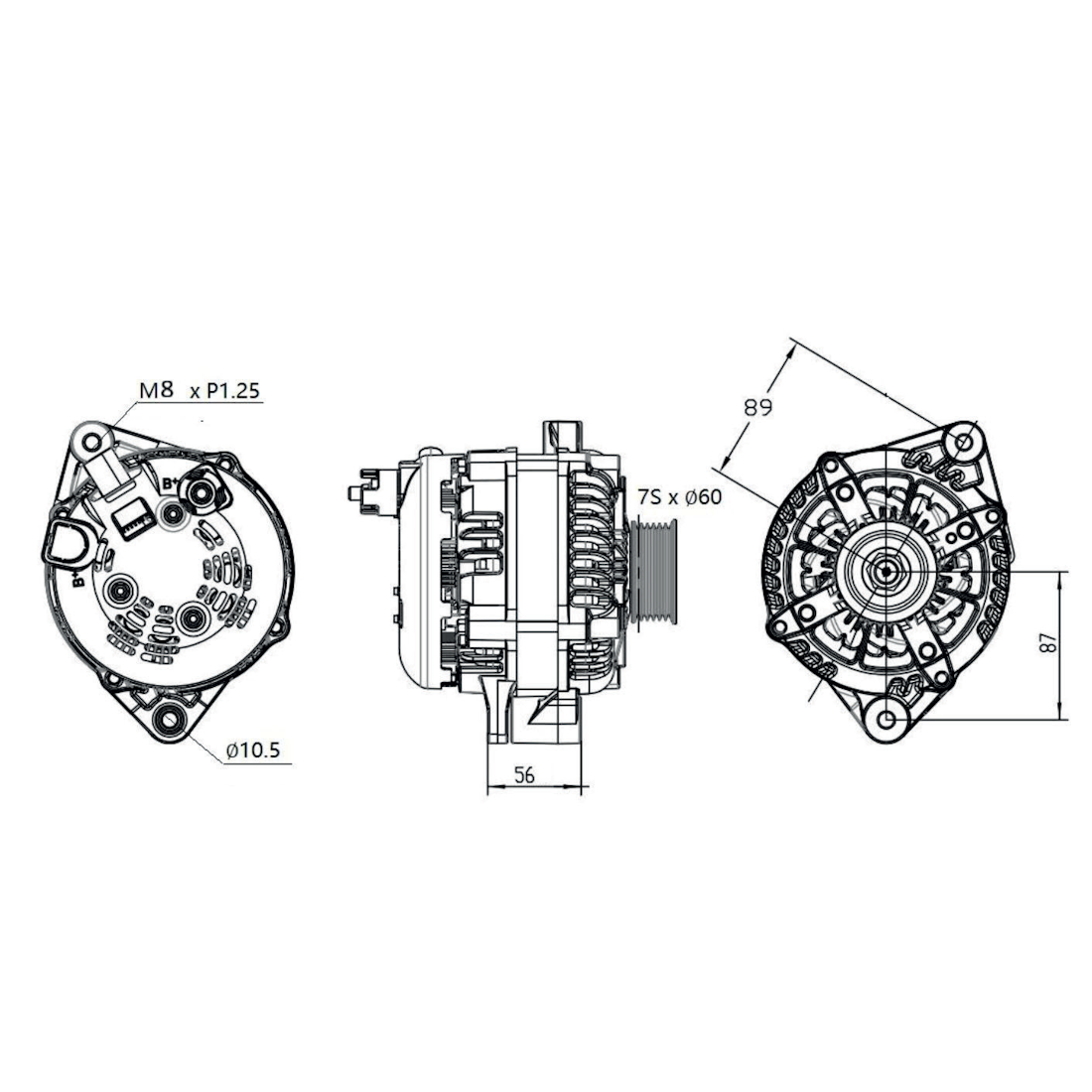

Installation instructions

Mount leg distance: 161mm center to center

Shaft diameter: 17mm

Pulley diameter: 62mm

Jaylec alternators are designed and tested for use with standard lead-acid battery systems. These units are not suitable for direct use with lithium (LiFePO4) battery setups

 [{"variant_id":"48092104458513" , "metafield_value":""}]

Black Series ALT 12V 240A, ISUZU D-MAX - 4JJ1, 4JJ3-TCX DSL [FIXED PULLEY]

$939.00
Description

MOUNT: Direct Fit
VEHICLE: Isuzu D-MAX 4JJ1, 4JJ3-TCX DSL



  • Suitable for vehicles with high electrical loads and 4x4 vehicles requiring higher
    outputs than the standard 130A Alternator.
  • Allows the battery packs to be maintained in a full state of charge.
  • Higher charge @ lower RPM.
  • Professional look.

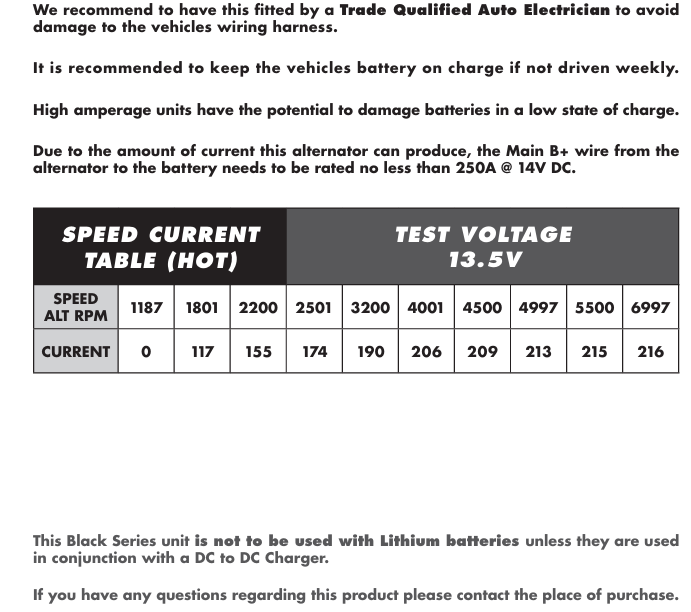

  • 13.5V @ 240A Cold
  • 13.5V @ 217A Hot
  • Upgraded technology
FEATURES

High amperage output at low RPM

Internal LIN regulator

OE-matched fitment

Environmental protective coating

Durable bearings and efficient cooling

Professional finish

Specifications
  • Voltage: 12V
  • Amperage: 240A
  • Mount Leg ID: 55mm
  • Centre to Centre Mounts: 161mm
  • Top Hole ID: M8
  • Bottom Hole ID: 10mm
  • Shaft Size: 17mm
  • Pulley Type: 7PV Fixed
  • Pulley Grooves: 7
  • Pulley Diameter: 62mm
  • Regulator Type: Internal
  • Connections Plug #: —
  • Terminals: B+, LIN
  • Excitation: External
  • Ground: Negative
Installation Information

Direct OE fitment; requires battery positive wiring upgrade. Not compatible with L or M regulator alternators.

Warranty Information

12 months warranty covering manufacturing defects and build quality.

PICKUP OR SHIPPING

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.

FAQ's

Q: Will this fit my Isuzu D-MAX?
A: Compatible with 4JJ1 and 4JJ3-TCX diesel models only.

Q: Does it require any wiring changes?
A: Yes, a battery positive wiring upgrade is needed.

Guides & Tutorials

MOUNT: Direct Fit
VEHICLE: Isuzu D-MAX 4JJ1, 4JJ3-TCX DSL



  • Suitable for vehicles with high electrical loads and 4x4 vehicles requiring higher
    outputs than the standard 130A Alternator.
  • Allows the battery packs to be maintained in a full state of charge.
  • Higher charge @ lower RPM.
  • Professional look.
  • 13.5V @ 240A Cold
  • 13.5V @ 217A Hot
  • Upgraded technology
