Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]

Name: Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]
Brand: Jaylec
Price: 989.0 AUD
Availability: InStock

SKU: BKS-240MUX

Compatible with Isuzu MU-X models equipped with 4JJ1 and 4JJ3-TCX Diesel engines.

Black Series high-performance alternator

OE stator, rotor, regulator, rectifier, and clutch pulley

$989.00

Taxes included.

{"in_cart_html"=>"<span class=\"quantity-cart\">{{ quantity }}</span> in cart", "decrease"=>"Decrease quantity for {{ product }}", "multiples_of"=>"Increments of {{ quantity }}", "minimum_of"=>"Minimum of {{ quantity }}", "maximum_of"=>"Maximum of {{ quantity }}"}

1
2
3
4
5
6
7
8
9
10 +

Shipping & Collection

Worldwide Shipping Available*

In-Store Pickup

Professional Installation Available

Shipping costs are calculated at checkout based on your location and the items in your cart. Some products may not be available for delivery to your address due to shipping restrictions

Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]

$989.00

BOLTS INTO THE FACTORY LOCATION

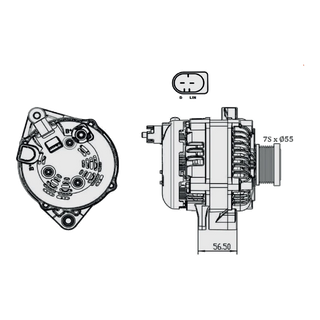

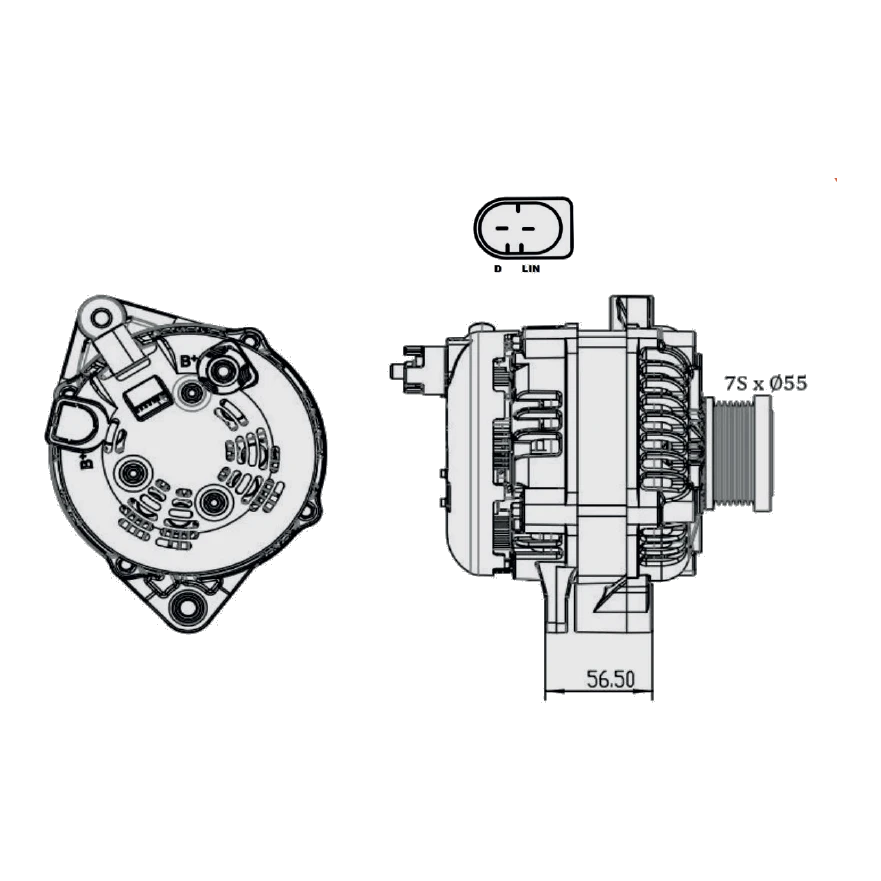

161mm mount spacing, 55mm leg ID and a 17mm shaft, all matching the original, so no brackets or spacers

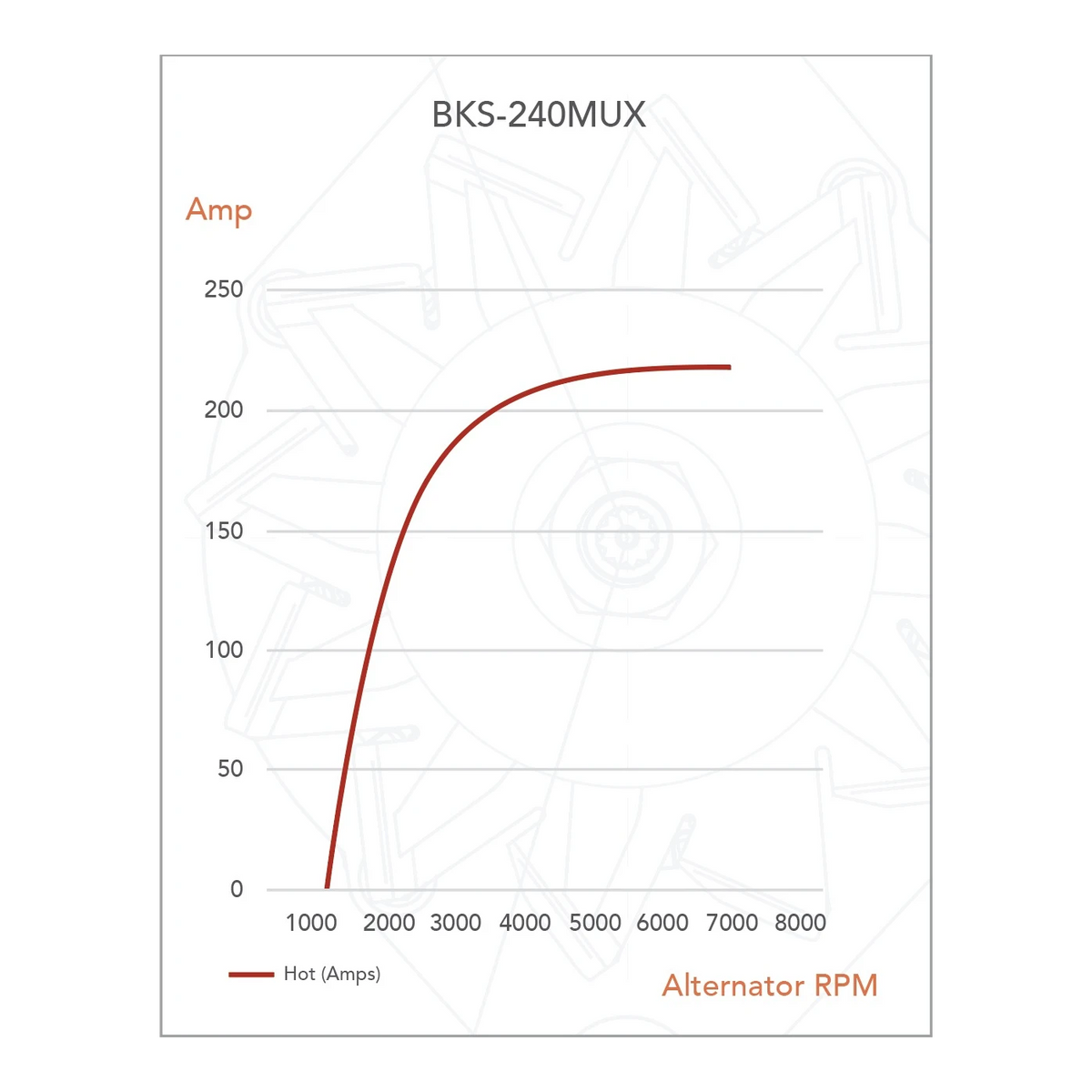

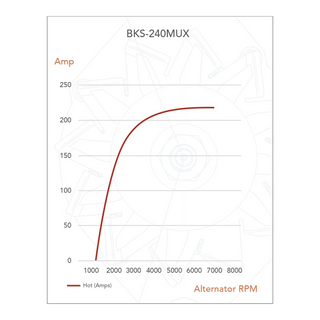

217A HOT, NOT JUST COLD

The honest working figure at 13.5V once up to temperature, rather than the cold bench rating alone

240A REPLACES 130A

Close to double the factory output, so a loaded touring system is no longer sitting at capacity.

WIRING UPGRADE REQUIRED

Supplied as the alternator only. The factory positive cable is not rated for this output and must be upgraded, along with fusing, before the unit is run.

TALKS TO THE ECU

Internal LIN regulator communicates exactly as the factory alternator does, with no ECU changes or resistor tricks

MOUNT: Direct Fit
VEHICLE: Isuzu MU-X 4JJ1 4JJ3-TCX DSL

FEATURE:
• 13.5V @ 240A Cold
13.5V @ 217A Hot
• Upgraded technology

BENEFITS:
• Suitable for vehicles with high electrical loads and 4x4 vehicles requiring higher
outputs than the standard 130A Alternator.
• Allows the battery packs to be maintained in a full state of charge.
• Higher charge @ lower RPM.
• Professional look

THIS UNIT IS LIN REG FUNCTION. AND WILL NOT INTERCHANGE WITH ALTERNATORS THAT ARE L,M REGULATOR FUNCTION. THIS ALTERNATOR IS FITTED WITH OE STATOR, ROTOR, REGULATOR, RECTIFIER AND CLUTCH PULLEY. PLEASE NOTE A BATTERY POSITIVE WIRING UPGRADE IS NEEDED FOR THIS ALTERNATOR.

Voltage	12V
Amperage	140A
Mount Leg ID	55mm
C-C Mounts	161mm
Hole ID Top	M8
Hole ID Bottom	10mm
Shaft Size	17mm
Pulley Type	7PV, CLUTCH
Pulley Belt Width
Pulley Grooves	7
Pulley Diameter	62mm
Regulator Type	INTERNAL
Series
Connections Plug #
Terminals	B+, LIN
Excitation	EXTERNAL
Ground	NEGATIVE

Warranty

2 Years, with a maximum of 25,000 kilometres, covering defects in materials or workmanship.
Connecting this alternator directly to a lithium battery voids the warranty. A DC to DC charger must be fitted between the alternator and any lithium bank.
