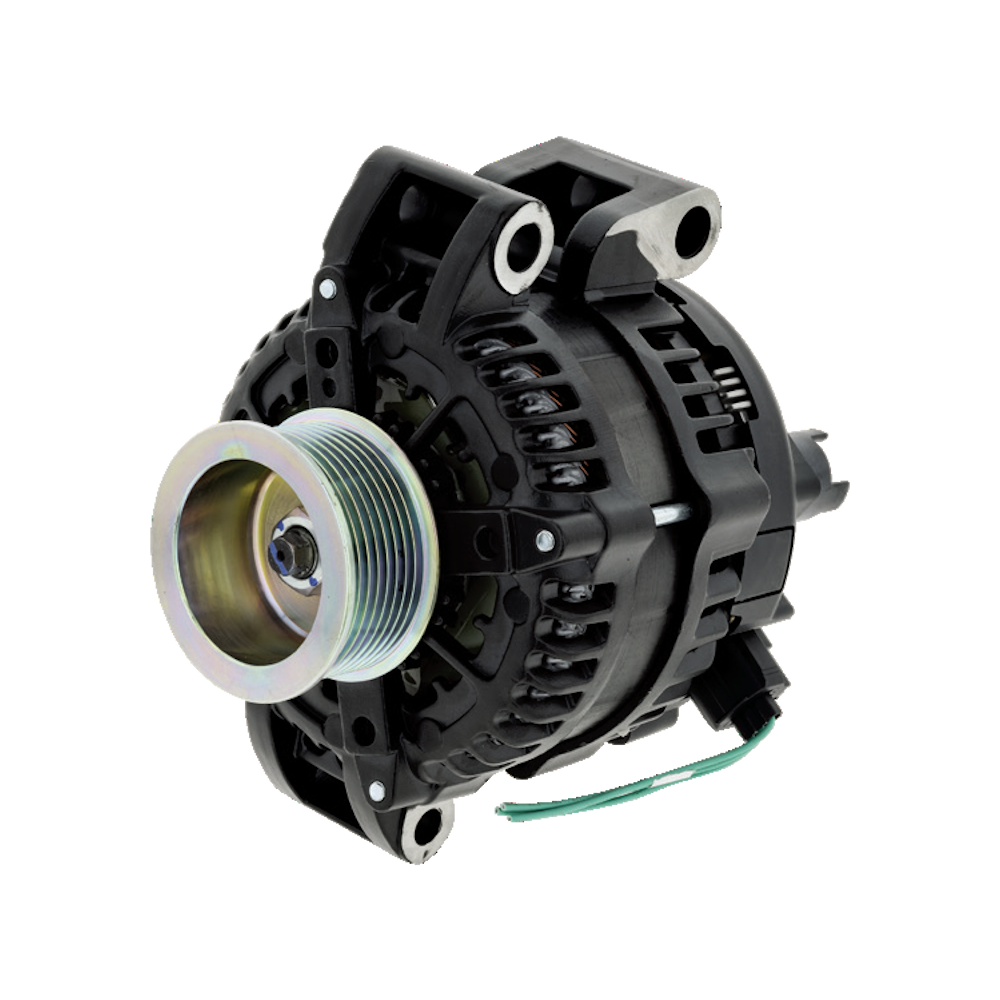

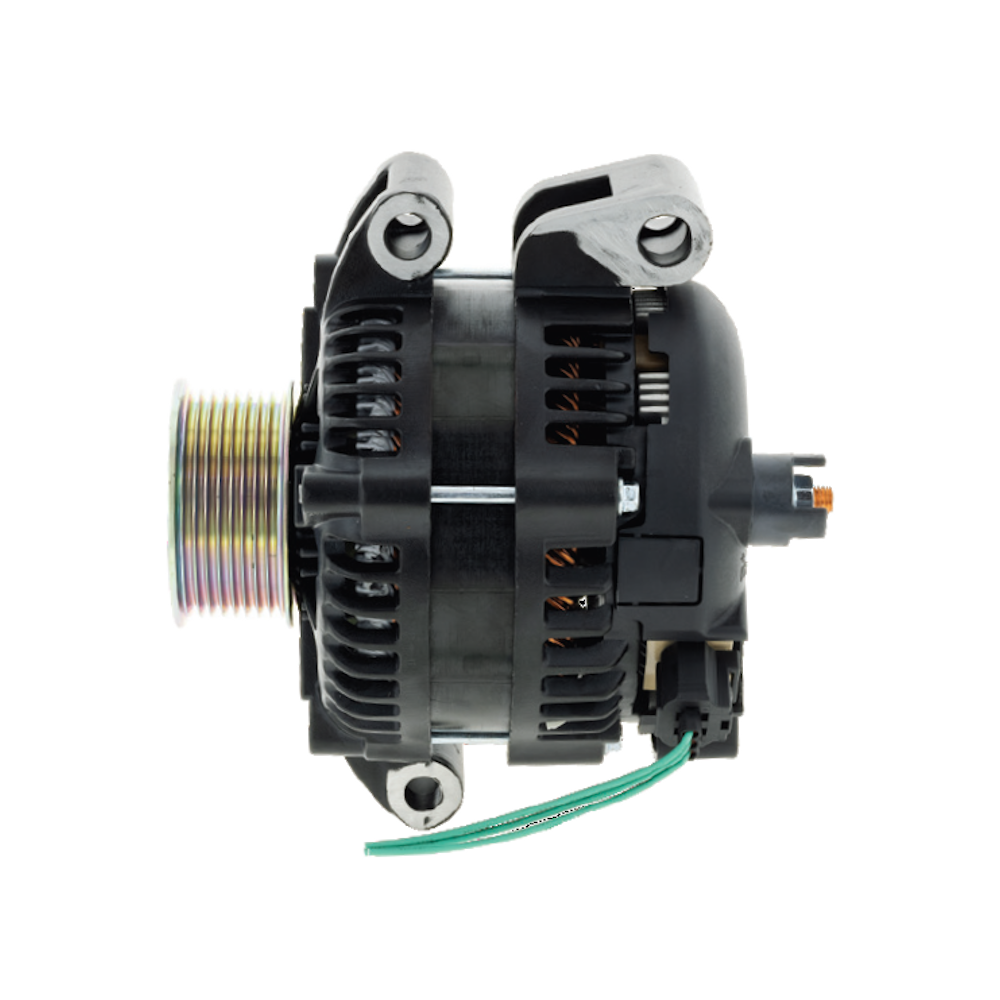

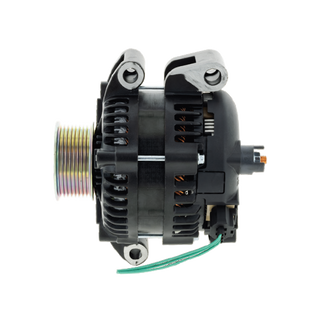

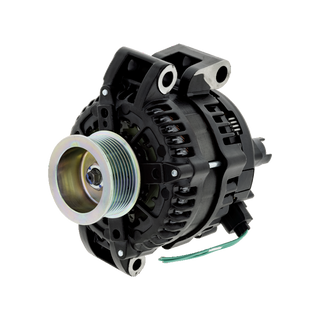

Black Series Upgraded Alternator 12V 240A, FORD F TRUCKS T TYPE PAD / DIRECT MOUNT
- VEHICLE
- INCLUDED
- DIMENSIONS
- Note from Manufacturer
Jaylec alternators are designed and tested for use with standard lead-acid battery systems. These units are not suitable for direct use with lithium (LiFePO4) battery setups
Description
MOUNT: Type Pad / Direct Mount
VEHICLE: Ford F Truck
FEATURE:

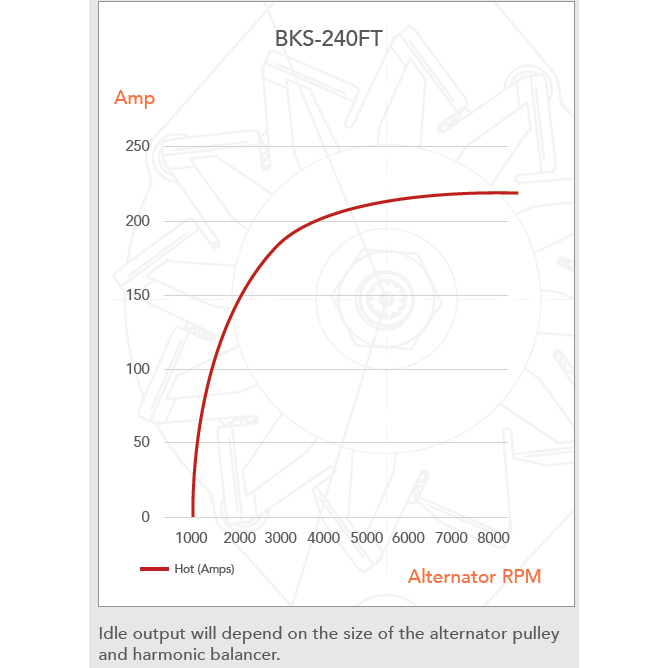

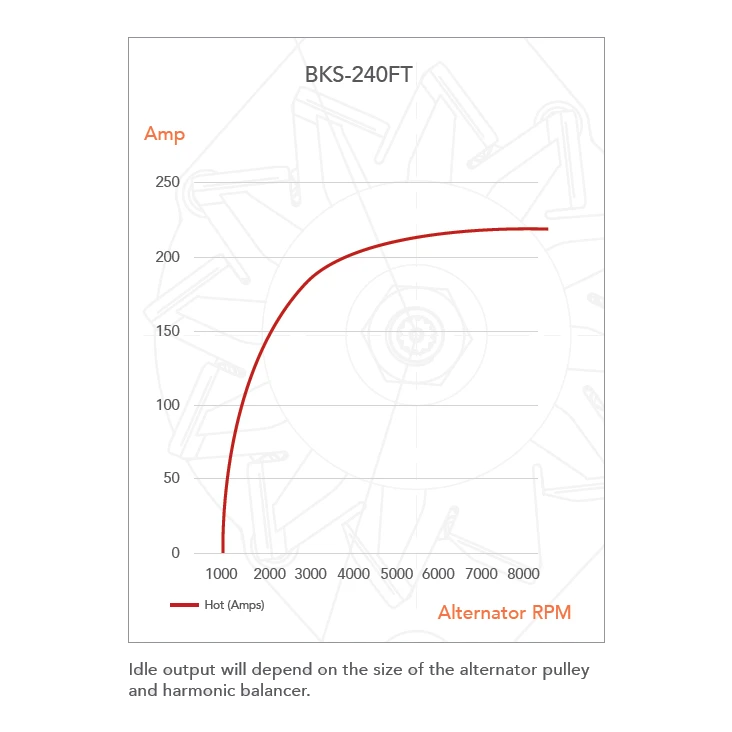

• 13.5V @ 250A Cold
13.5V @ 218A Hot
• High output
• Upgraded technology
• Reduced break downs
BENEFITS:
• Higher amperage to run a greater number of accessories, while maintaining battery
performance & durability
• 100A over the O.E. standard product.
• Reduces likelihood of flat batteries on vehicles running additional electrical
accessories.
• Higher charge @ lower RPM.
• Professional look.
HIGH OUTPUT REPLACEMENT FOR OE THIS ALTERNATOR IS FITTED WITH OE STATOR, ROTOR, REGULATOR AND RECTIFIER. PLEASE NOTE A BATTERY POSITIVE WIRING UPGRADE IS NEEDED FOR THIS ALTERNATOR.

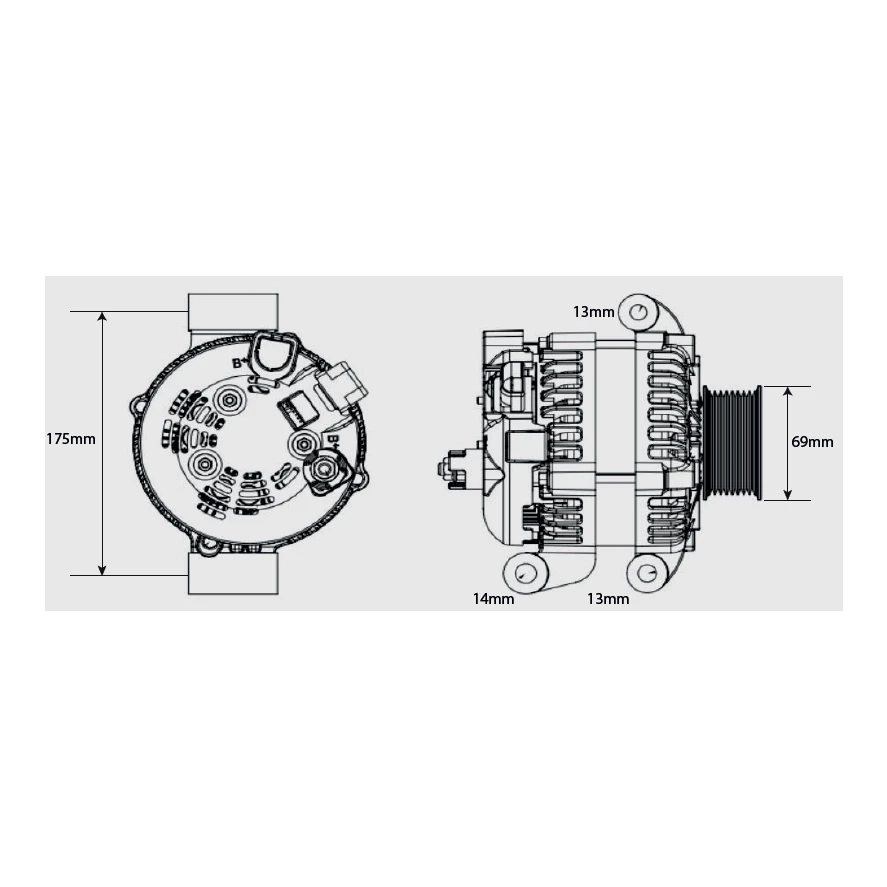

Specification
| Voltage | 12V |
| Amperage | 240A |

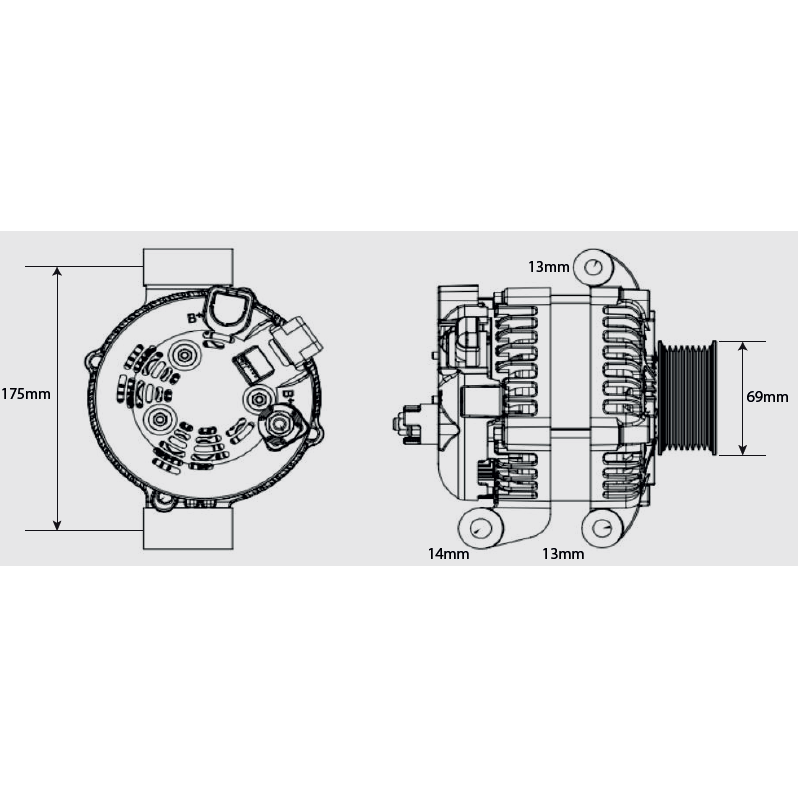

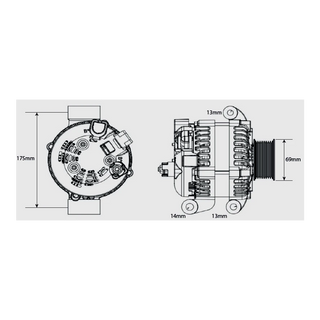

| Mount Leg ID | 55mm |
| C-C Mounts | 175mm |
| Hole ID Top | 11mm |
| Hole ID Bottom | 13mm, 14mm |
| Shaft Size | 17mm |
| Pulley Type | 8PV, FIXED |
| Pulley Belt Width | |
| Pulley Grooves | 8 |
| Pulley Diameter | 69mm |
| Regulator Type | INTERNAL |
| Series | |
| Connections Plug # | EP52 |
| Terminals | B+, A, D, I |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
