Home / Lighting / Driving & light bars

Bushman 30L Drawer Fridge Freezer Heavy Duty Series - 12V / 24VBushman 30L Drawer Fridge Freezer Heavy Duty Series - 12V / 24V – view 2Bushman 30L Drawer Fridge Freezer Heavy Duty Series - 12V / 24V – view 3Bushman 30L Drawer Fridge Freezer Heavy Duty Series - 12V / 24V – view 4Bushman 30L Drawer Fridge Freezer Heavy Duty Series - 12V / 24V – view 5Bushman 30L Drawer Fridge Freezer Heavy Duty Series - 12V / 24V – view 6

Bushman

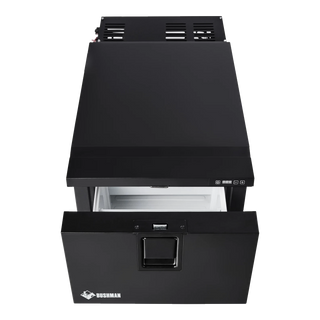

30L Drawer Fridge Freezer Heavy Duty Series - 12V / 24V

DF30-HD

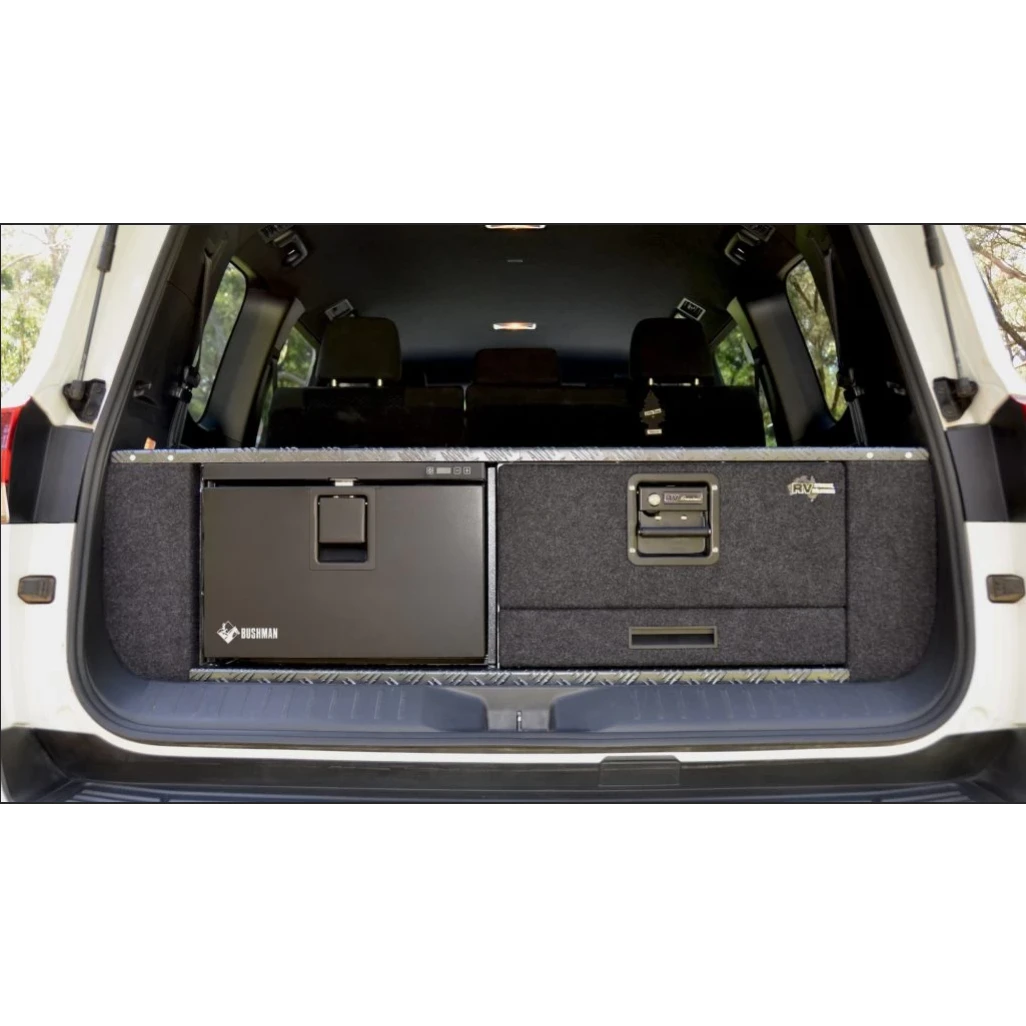

The Bushman DF30-HD is a genuine 12V drawer freezer, sized to slide into a 4WD canopy, ute drawer system or camper trailer. Bushman rate it for -18°C deep freezing in ambients up to 45°C, and +4°C refrigeration in ambients up…

$1,480.00

4 interest-free payments of $370.00 with
or finance your build with
We accept
Suitable for 4WDs, camper trailers, caravans, boats, utes, and off-grid power systems where space-saving drawer-style refrigeration is required.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

-18°C IN 45°C HEAT

Genuine deep freezer performance — holds -18°C in ambients up to 45°C.

25L DRAWER TUB

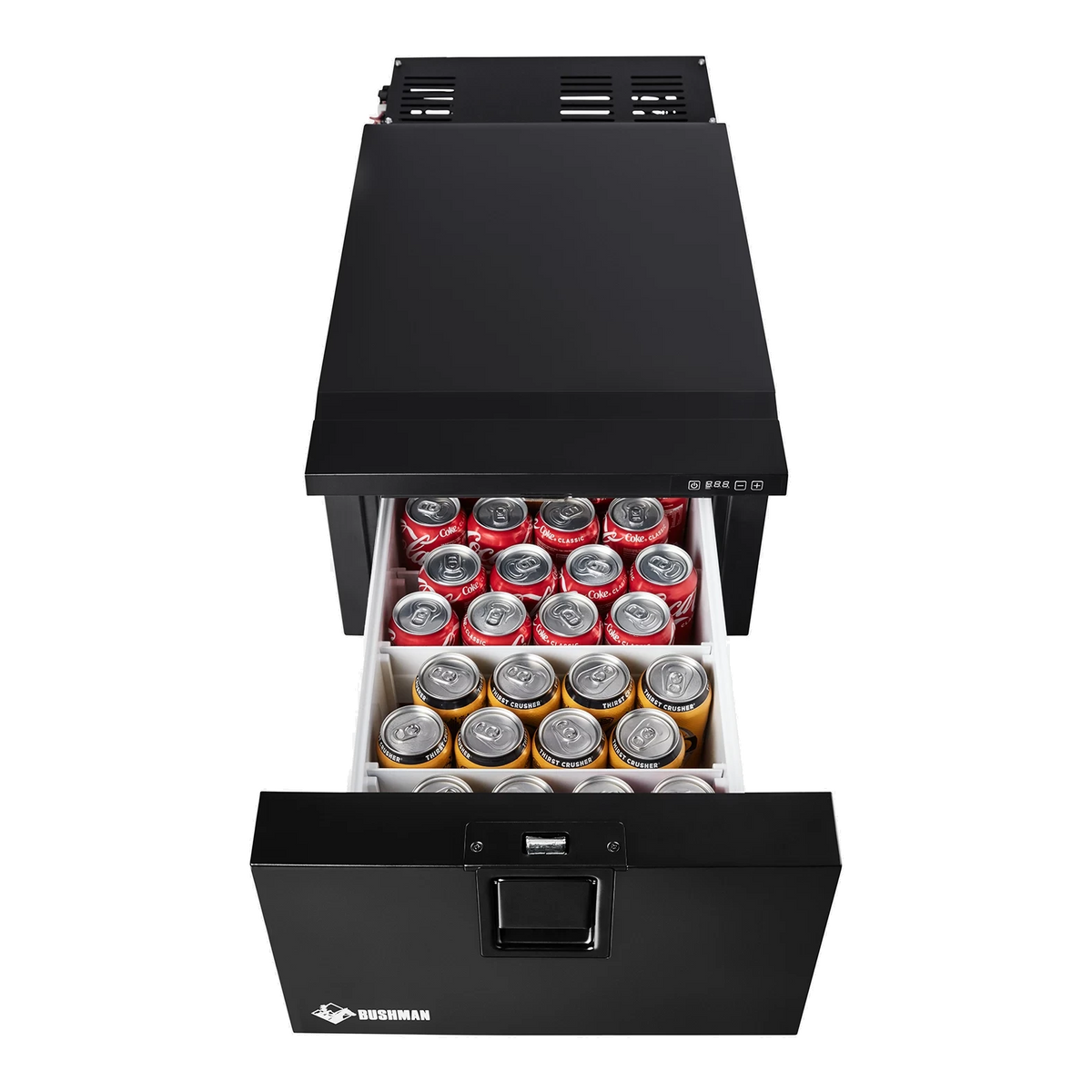

Low-profile drawer body slides into a 4WD canopy, ute drawer or camper trailer. Fits 28 x 375ml cans upright.

0.5 AH PER HOUR

Secop Danfoss BD35HD variable speed compressor keeps the average draw low enough for a modest battery bank.

7 YEAR COMPRESSOR WARRANTY

Backed by 7 years on the compressor and 3 years on the fridge, direct from Bushman.

STAINLESS DRAWER RUNNERS, MOUNT KIT SUPPLIED

100% stainless steel runners and slam latch. Mounts with the supplied L brackets or the internal M5 sleeves.

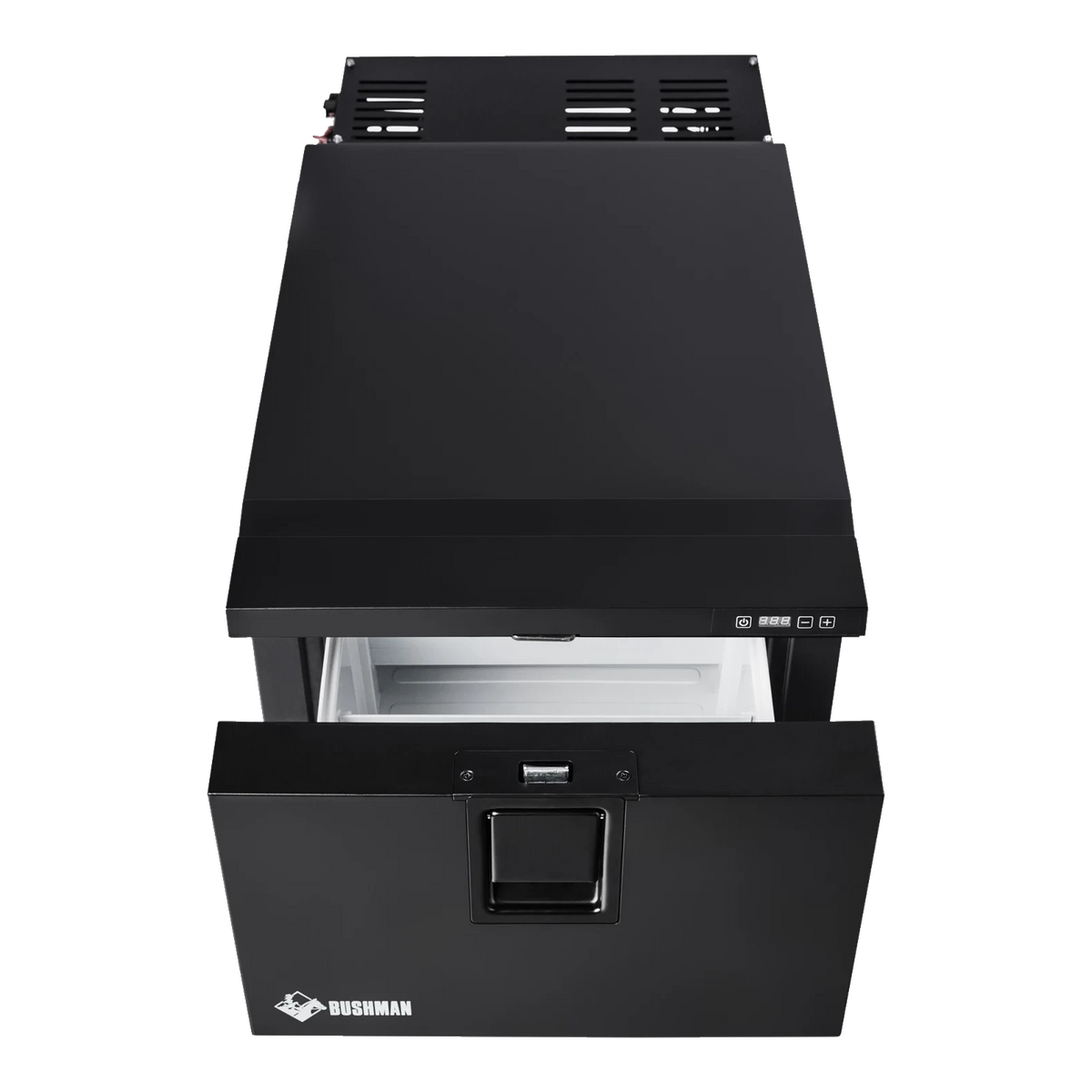

The Bushman DF30-HD is a genuine 12V drawer freezer, sized to slide into a 4WD canopy, ute drawer system or camper trailer. Bushman rate it for -18°C deep freezing in ambients up to 45°C, and +4°C refrigeration in ambients up to 50°C. Ice cream in the Simpson is Bushman's own line, and the numbers back it up.

It runs a genuine Secop Danfoss BD35HD compressor, a 60W unit on a variable speed drive drawing up to 7.5A on 12V. Power consumption sits at around 0.5 Ah/hr at 4°C in a 25°C ambient, rising to 3.8 Ah/hr running as a freezer at -18°C in 45°C heat. Twin cross-flow heat extraction fans keep the compressor cavity cool, and closed cell insulation up to 3 inches thick around the tub is what makes the extreme performance possible.

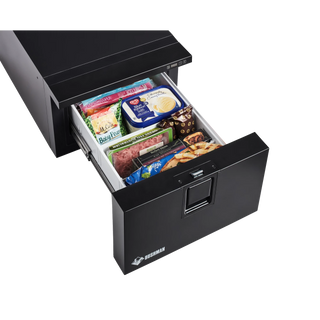

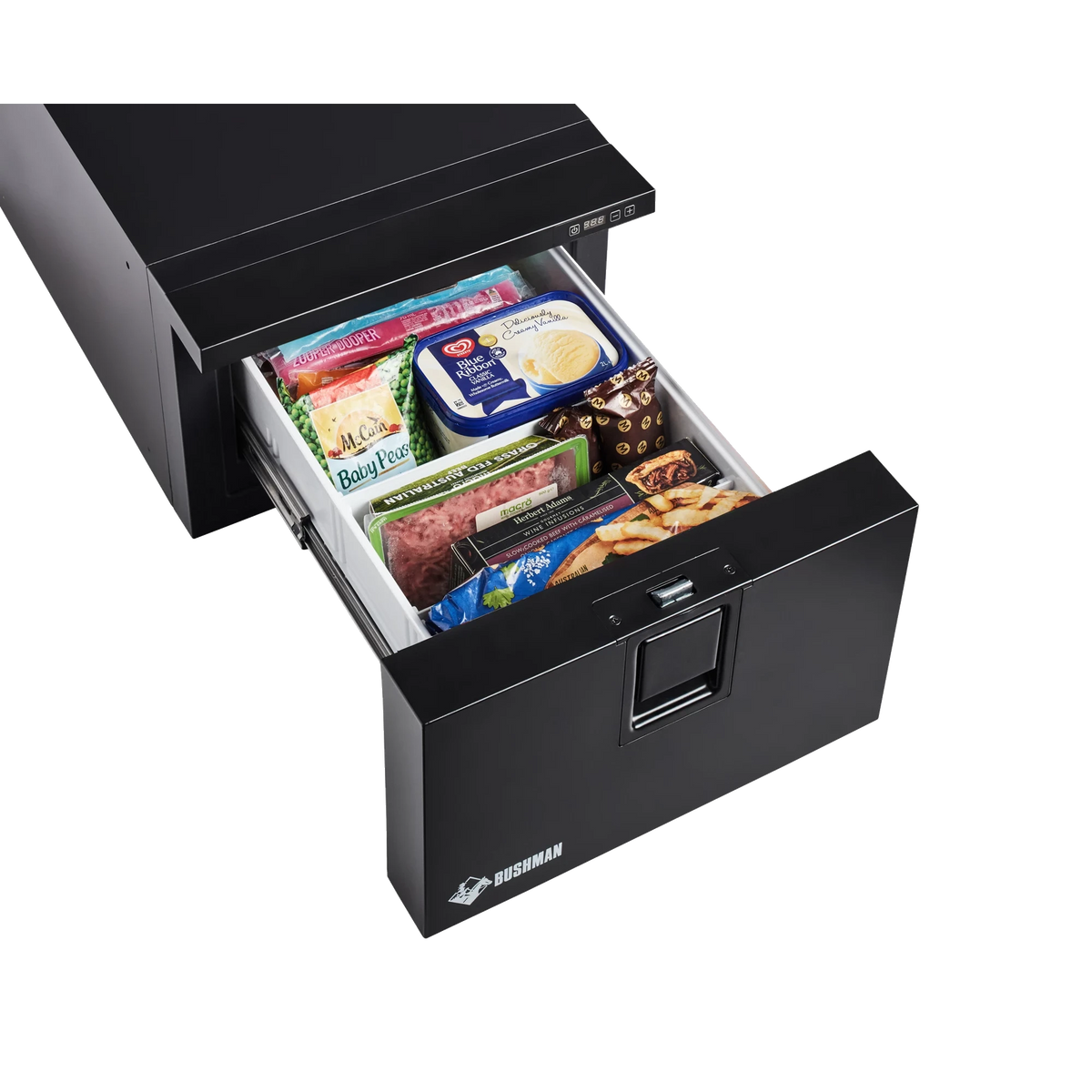

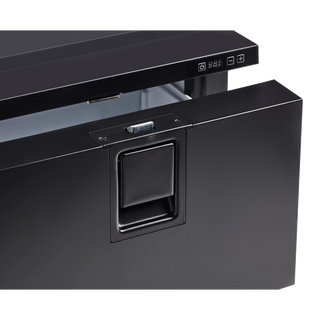

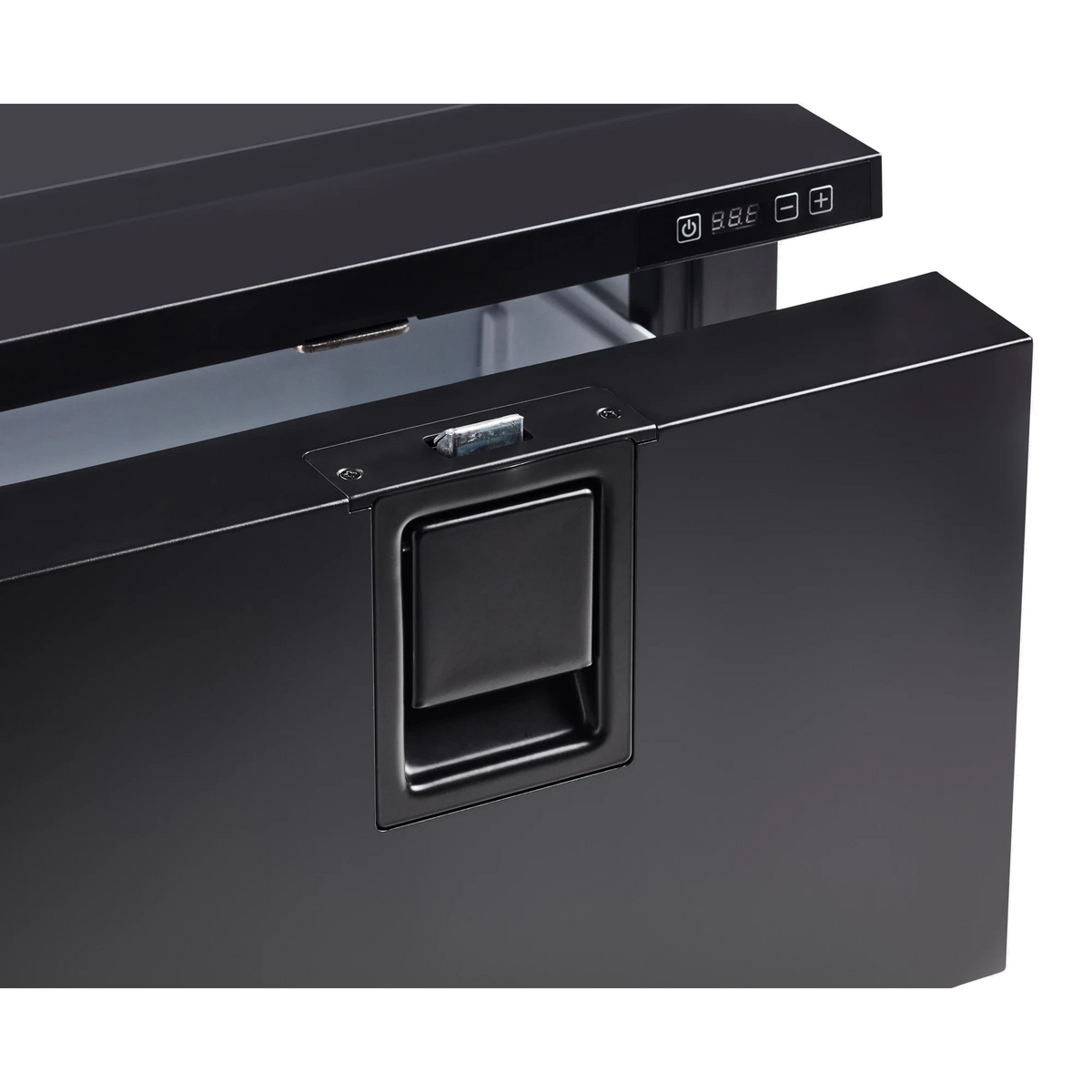

Storage is a single 25 litre drawer tub with 100% stainless steel drawer runners, all-steel hardware and a slam latch that holds shut on corrugations. Mount it three ways: the supplied HD L brackets, internal mounting sleeves, or the M5 threaded nut inserts on each side for custom brackets. It also stacks with the DF40-HD using the Bushman Double Stack Kit if you want a fridge and a freezer side by side or one on top of the other.

Wire it on its own dedicated circuit straight back to the battery bank. The fridge comes with a 1.5 metre Anderson lead fitted.

  • Secop Danfoss BD35HD compressor, 60W, variable speed drive, 7 year warranty
  • Deep freezing to -18 degrees C in ambients up to 45 degrees C
  • Twin cross-flow heat extraction fans on the compressor cavity
  • Closed cell insulation up to 3 inches thick
  • 25 litre drawer tub with 100% stainless steel runners and steel slam latch
  • Three mounting options: supplied HD L brackets, internal sleeves, or M5 threaded inserts on each side for custom brackets
  • Stacks with the DF40-HD using the Bushman Double Stack Kit
  • Supplied with a 1.5m Anderson plug lead

Product Code: DF30-HD

Voltage: 12V or 24V DC, auto sensing

Total Storage: 25 litre drawer tub

Temperature Range: -18 degrees C to +6 degrees C

Fridge Performance: +4 degrees C in ambients up to 50 degrees C

Freezer Performance: -18 degrees C in ambients up to 45 degrees C

Power Consumption: 0.5 Ah/hr at 4 degrees C in 25 degrees C ambient, 1.4 Ah/hr at 4 degrees C in 45 degrees C ambient, 1.5 Ah/hr at -18 degrees C in 25 degrees C ambient, 3.8 Ah/hr at -18 degrees C in 45 degrees C ambient

Compressor: Secop Danfoss BD35HD, 60W

Max Current: 7.5A on 12V, 3.75A on 24V

Refrigerant: R134A, 120g charge

Low Voltage Cut-In (minimum to start): 10.9V on 12V systems, 22.7V on 24V systems

Low Voltage Cut-Out (minimum to continue running): 9.6V on 12V systems, 21.3V on 24V systems

Insulation: closed cell, up to 3 inches thick

Tropical Rating: Climate class T

Connection: 1.5m Anderson plug lead

Cabinet: Powder coated steel, all-steel hardware, 100% stainless steel drawer runners, steel slam latch

Length: 840mm

Width: 440mm

Height: 310mm

Weight: 24.0kg

Source: manufacturer-verified

Mounting options: three methods. 1. Supplied HD L brackets. 2. Internal mounting sleeves inside the cabinet. 3. M5 threaded nut inserts on each side for custom brackets

Cut-out cavity depth: 880mm, to provide a 40mm gap at the rear

Ventilation: the compressor cavity must have free air flow in and out. Do not enclose the compressor end in a sealed cabinet

Wiring: dedicated circuit direct to the battery bank. 4mm2 cable is acceptable for a typical install; 6mm2 is our preferred size and gives headroom on longer runs. Fit a 15A fuse close to the battery, and an isolation switch rated at least 20A on 12V or 10A on 24V

Power supply: 12V or 24V DC only. Never connect directly to 240V AC. Any inverter must be pure sine wave

Orientation: do not lay the fridge on its back, top or sides, or at any angle over 30 degrees. If it has been laid over, stand it upright for 12 hours before switching it on

Stacking: stacks with the Bushman DF40-HD using the Double Stack Kit for a fridge and freezer combination

Installation must be carried out by a suitably trained professional. See the owner manual for the full ventilation and installation detail

Suitable for 4WDs, camper trailers, caravans, boats, utes, and off-grid power systems where space-saving drawer-style refrigeration is required.

Q: How do I mount my Bushman DF30-HD?
A: Three ways: using the supplied L brackets, using the internal mounting sleeves, or mounting with the M5 nut inserts on each side.

Q: Can it be fitted flush?
A: Yes. The DF30-HD can be flush-fitted to your cabinetwork.

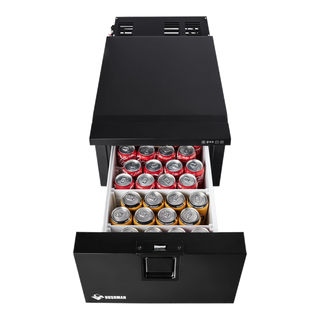

Q: Can I stand 375ml cans upright inside?
A: Yes. 28 x 375ml cans fit perfectly upright inside the DF30-HD.

Q: What are the internal tub dimensions?
A: 490mm long by 300mm wide by 170mm high.

Q: What is the internal tub volume?
A: 25 litres.

Q: What size battery and solar do I need?
A: It depends on your setup — solar input, state of charge, other loads on the same battery, ambient temperature and how often the fridge is opened. Bushman's starting point running as a fridge is a 120Ah AGM or 80Ah lithium with 200W of solar. Running as a deep freezer, a 300Ah AGM or 240Ah lithium with 500W of solar. Both assume a fridge-only circuit in average conditions.

Q: What colour is it available in?
A: Matte black only.

Q: Can I run it from 240V power?
A: Yes, using a 240V to 12V transformer — but most customers run their fridge from a battery bank all the time and use a smart battery charger to maintain the battery when 240V is available.

Q: Can I use it as a fridge?

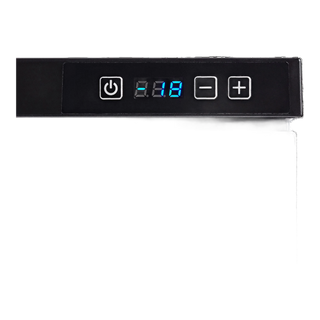

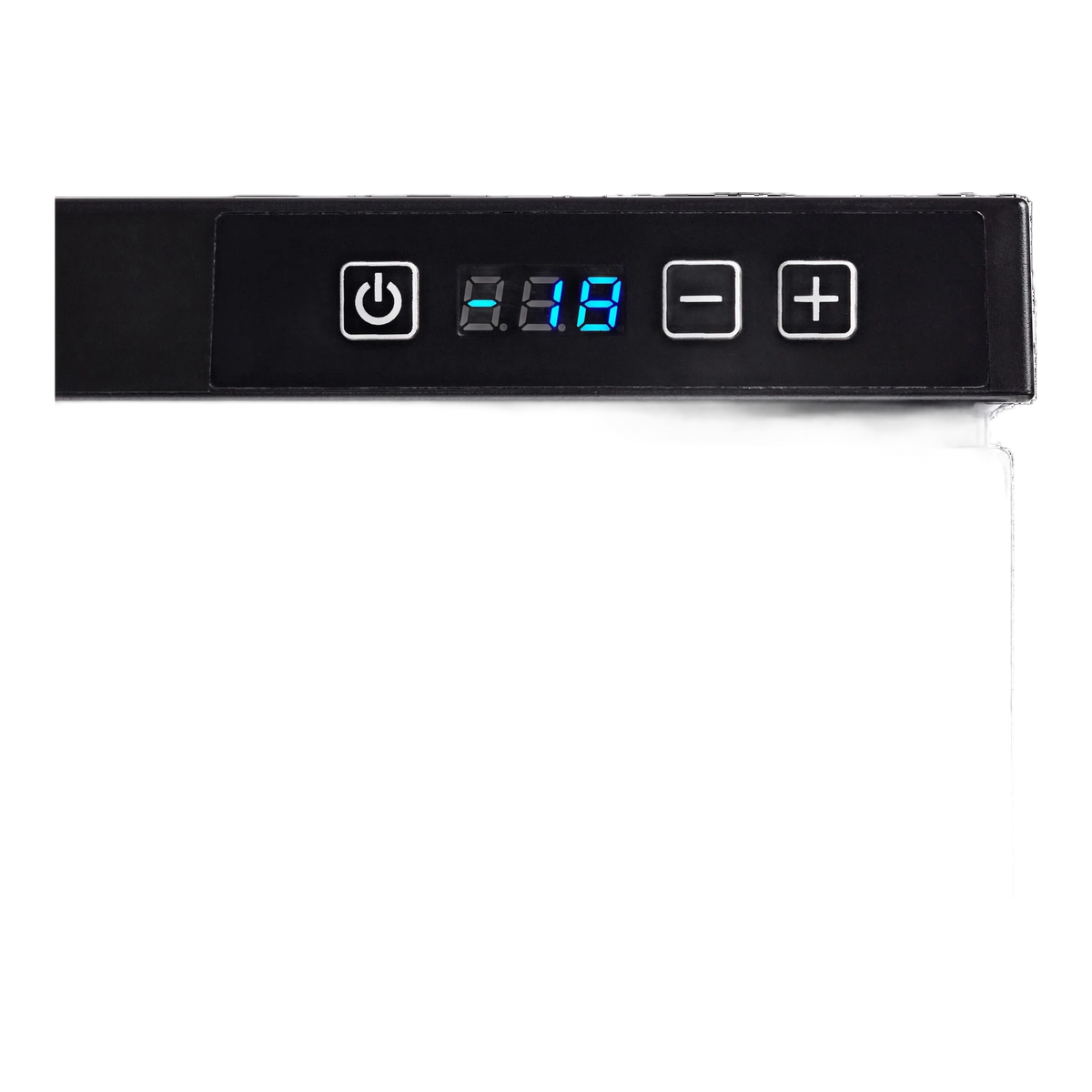

A: Yes. Set the thermostat to 4°C.

Q: Can I use it as a deep freezer?
A: Yes. Set the thermostat to -18°C.

Q: Can the compressor be moved?
A: No. The compressor is fixed at the rear of the fridge.

Q: Can I freeze ice cream in it?
A: Yes. The DF30-HD will hold -18°C in 45°C ambient weather.
