Home / Lighting / Driving & light bars

Bushman DC-X Series Fan Kit to suit 130L

Bushman

DC-X Series Fan Kit to suit 130L

DC130-FANKIT

The Bushman DC-X Series Fan Kit is a cooling upgrade for the Bushman DC130-X upright fridge. It fits inside the compressor cavity and moves warm air away from the condenser, which improves cooling efficiency and pulls average current draw down…

$99.00

4 interest-free payments of $24.75 with
or finance your build with
Important note

This fan kit is designed to match the HD Series internal fan specifications and is backwards compatible with earlier DC-X models. Installation requires basic hand tools and simple DC wiring knowledge. Warranty remains valid when installed correctly.

We accept
Universal – suited to 12V/24V touring setups including 4WDs, canopies, caravans and camper trailers

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

RETROFIT FOR PRE-2026 DC130

Designed specifically for pre-2026 Bushman DC130 upright fridges. Not required on current Heavy Duty models.

THERMOSTAT CONTROLLED

The fan only runs when the compressor cavity actually needs it. Doesn't add unnecessary background draw.

PRECISION FIT

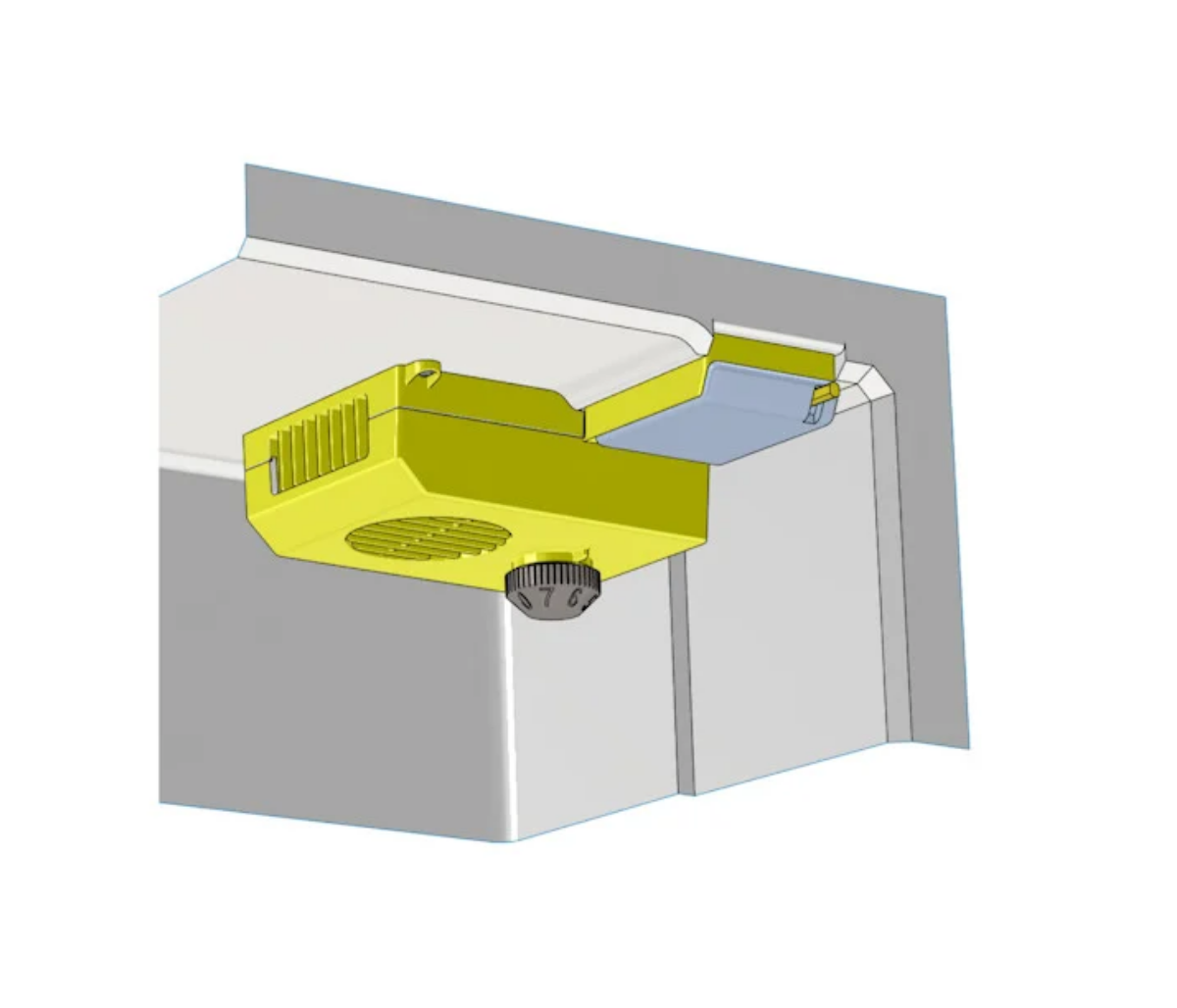

Developed in 3D CAD for a factory-style finish. Fits inside the compressor cavity without modifications.

PIGGY-BACK ELECTRICAL INSTALL

Wiring loom and piggy-back connectors supplied — no cuts or splices, clips onto existing fridge wiring.

COMPLETE KIT IN THE BOX

2-piece thermostat and light housing, 50mm DC fan, wiring loom, piggy-back connectors, fasteners, installation instructions.

The Bushman DC-X Series Fan Kit is a cooling upgrade for the Bushman DC130-X upright fridge. It fits inside the compressor cavity and moves warm air away from the condenser, which improves cooling efficiency and pulls average current draw down in hot ambients or tight installations — canopies, campers and caravan cavities where airflow is restricted.

Precision fit developed in 3D CAD, factory-style finish. The kit is thermostat controlled, so the fan only runs when the compressor cavity gets hot enough to need it.

Fitment note. This kit is designed for pre-2026 Bushman DC130 fridges. It is not compatible with the current Heavy Duty Series — the 2026 DC130-X ships with the condenser fan fitted as standard, and this retrofit is not required.

  • Thermostat controlled: the fan only runs when the compressor cavity actually needs it
  • Precision fit developed in 3D CAD for a factory-style finish
  • Improves cooling efficiency in hot ambients and restricted installations
  • Complete kit with wiring loom and piggy-back connectors, straightforward electrical install
  • Suitable for retrofit or new installations on pre-2026 Bushman DC130 fridges

Product Code: DC130-FANKIT

Fits: Bushman DC130 upright fridges, pre-2026 model

Fan: 50mm DC, 12V or 24V

Control: Thermostat controlled, fan runs only when required

Supplied: 2-piece thermostat and light housing, 50mm DC fan, wiring loom, piggy-back connectors, fasteners, installation instructions


Approx. 20 × 15 × 10 cm (boxed)

Installation is straightforward with the supplied hardware and instructions

Wiring uses piggy-back connectors that clip onto the existing fridge wiring - no cuts or splices required

Not compatible with the current Heavy Duty Series (2026 DC130-X). Bushman's current DC-X range ships with the condenser fan fitted as standard, and this retrofit is not required

If you are unsure which model you have, check the compressor cavity behind the fridge - if a fan is already fitted, this kit is not needed

Universal – suited to 12V/24V touring setups including 4WDs, canopies, caravans and camper trailers

Q: Which fridges is this designed for?
A: Pre-2026 Bushman DC130 upright fridges. It is not compatible with the current Heavy Duty Series — the 2026 DC130-X ships with the condenser fan fitted as standard.

Q: How do I know if I need it?
A: Check the compressor cavity at the rear of the fridge. If a fan is already fitted, this kit is not required.

Q: Does the fan run all the time?
A: No. The fan is thermostat controlled — it only runs when the compressor cavity gets hot enough to need it.

Q: How do I install it?
A: Straightforward using the supplied hardware and instructions. Wiring uses piggy-back connectors that clip onto the existing fridge wiring — no cuts or splices required.

Q: Will this affect my fridge warranty?
A: Bushman supply this as an approved retrofit, so a correct installation per the instructions does not affect the fridge's warranty.

Q: Why would I fit it?
A: Improves cooling efficiency in hot ambients and restricted installations — canopies, campers and caravan cavities where airflow is limited. Lowers average current draw.
