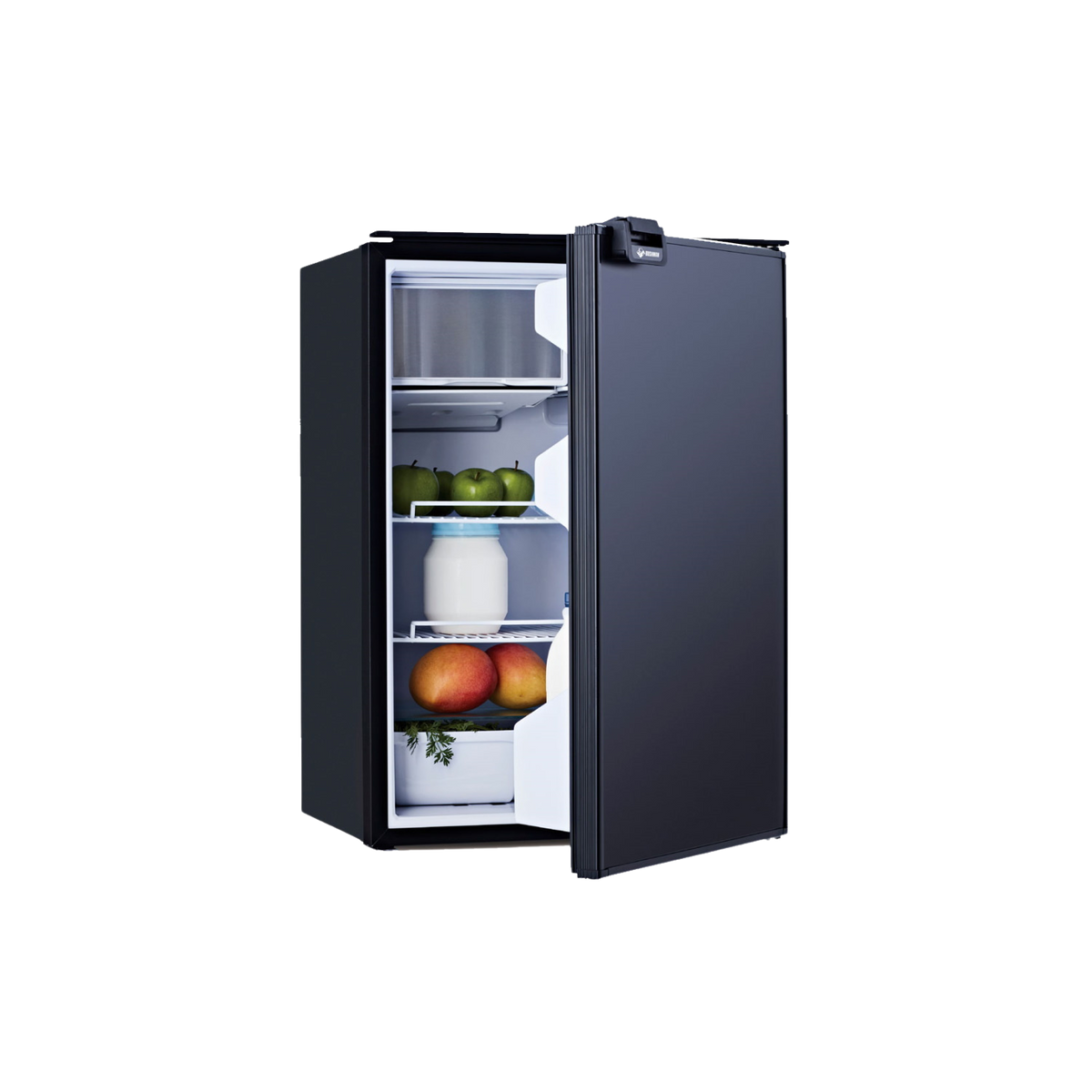

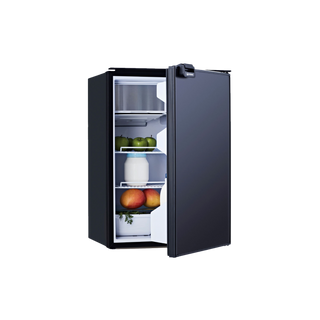

Bushman DC130-X upright fridge freezer at an angle with the door part open, showing the top freezer compartment, adjustable shelves and crisper tub

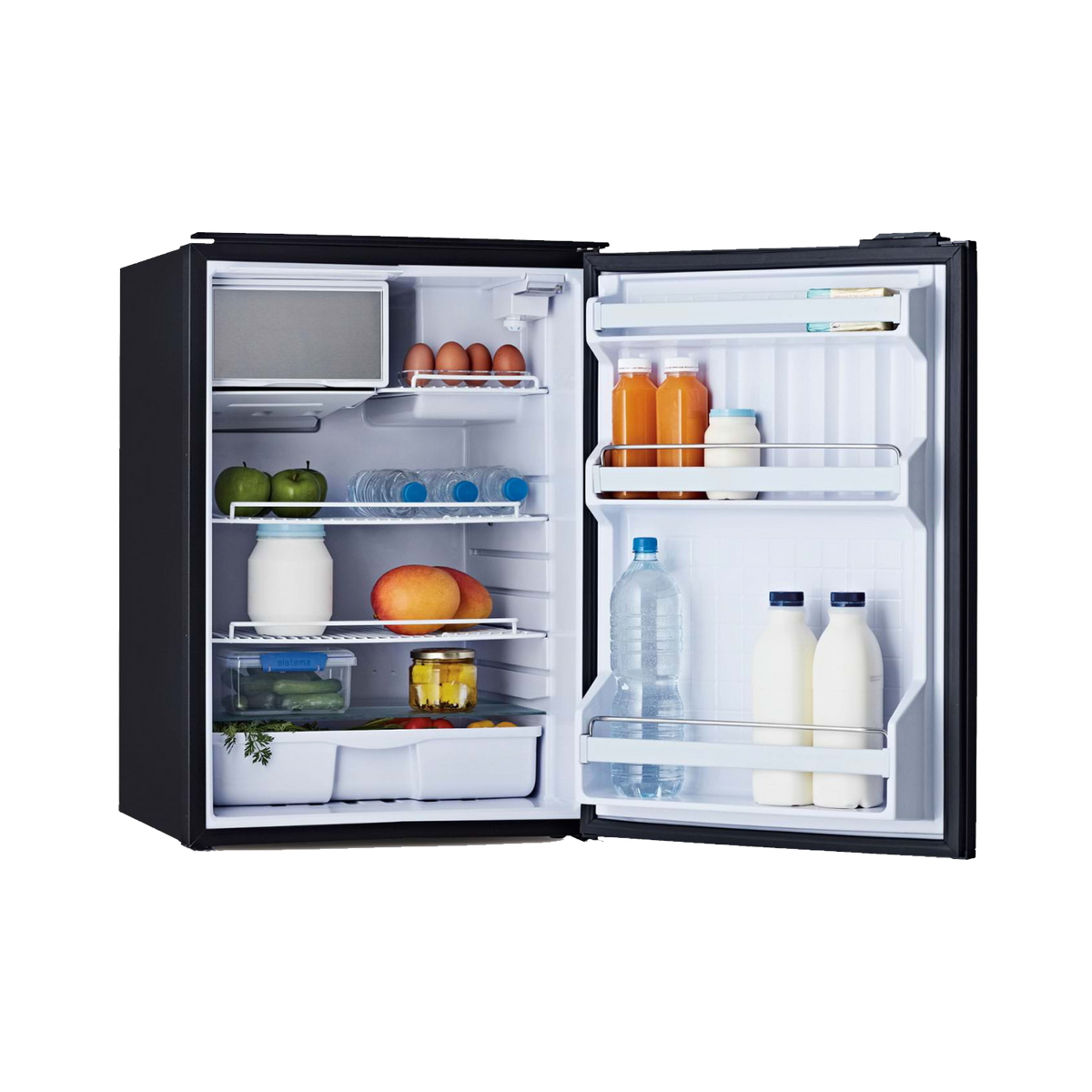

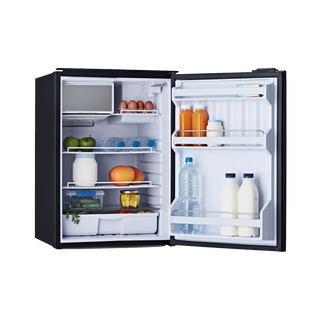

Bushman DC130-X with the door fully open, showing the freezer, adjustable wire shelves stocked with food, the crisper tub and deep door balconies holding milk and bottles

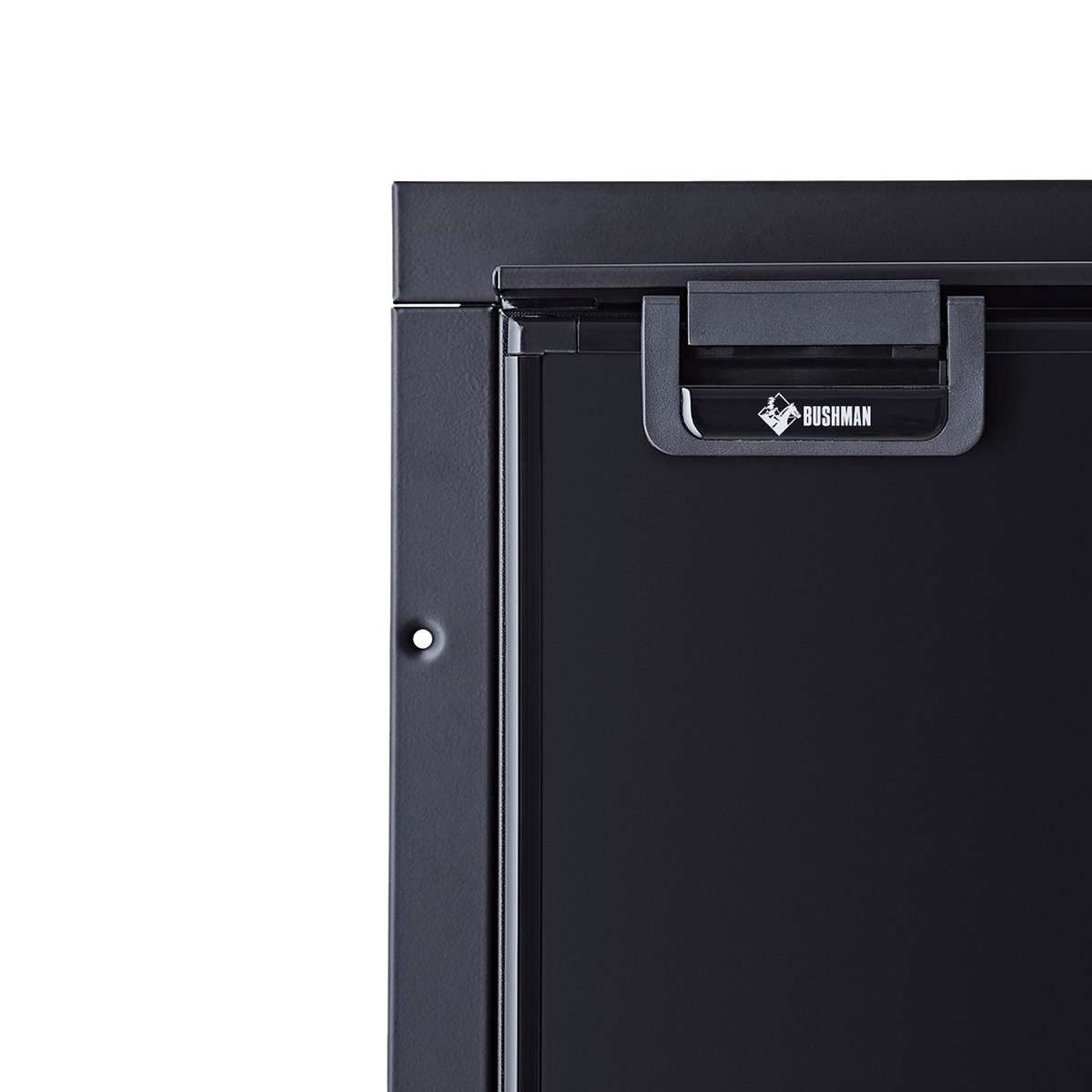

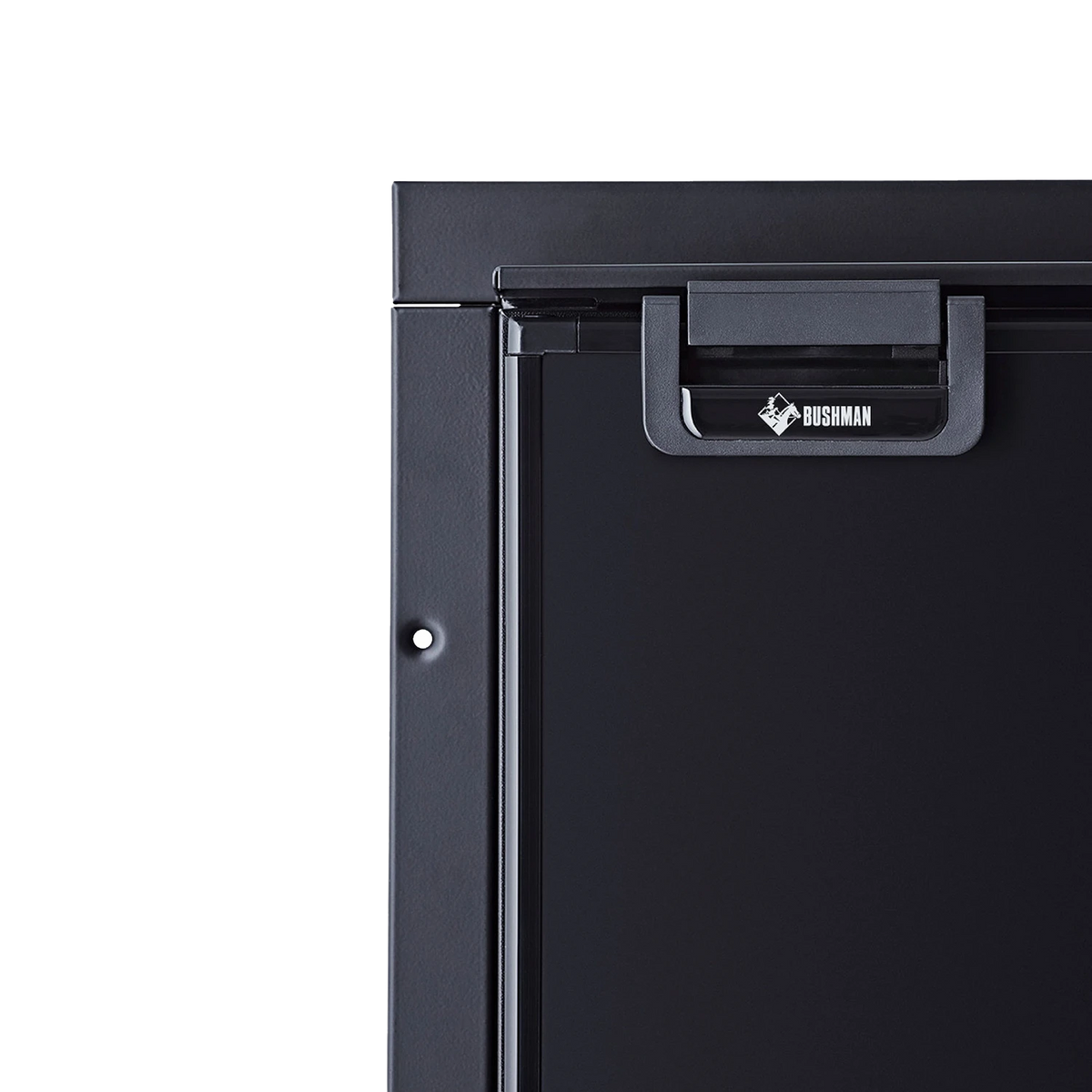

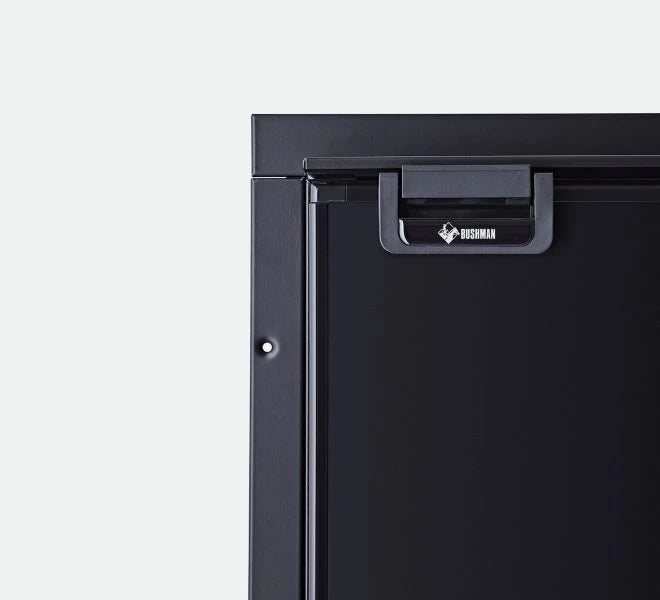

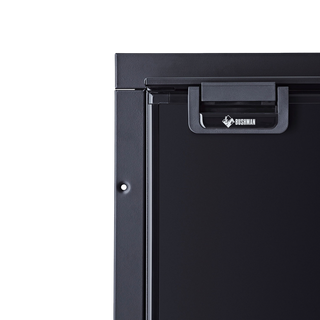

Close up of the Bushman DC130-X top corner showing the recessed door handle with Bushman badge, the door seal and the mounting flange

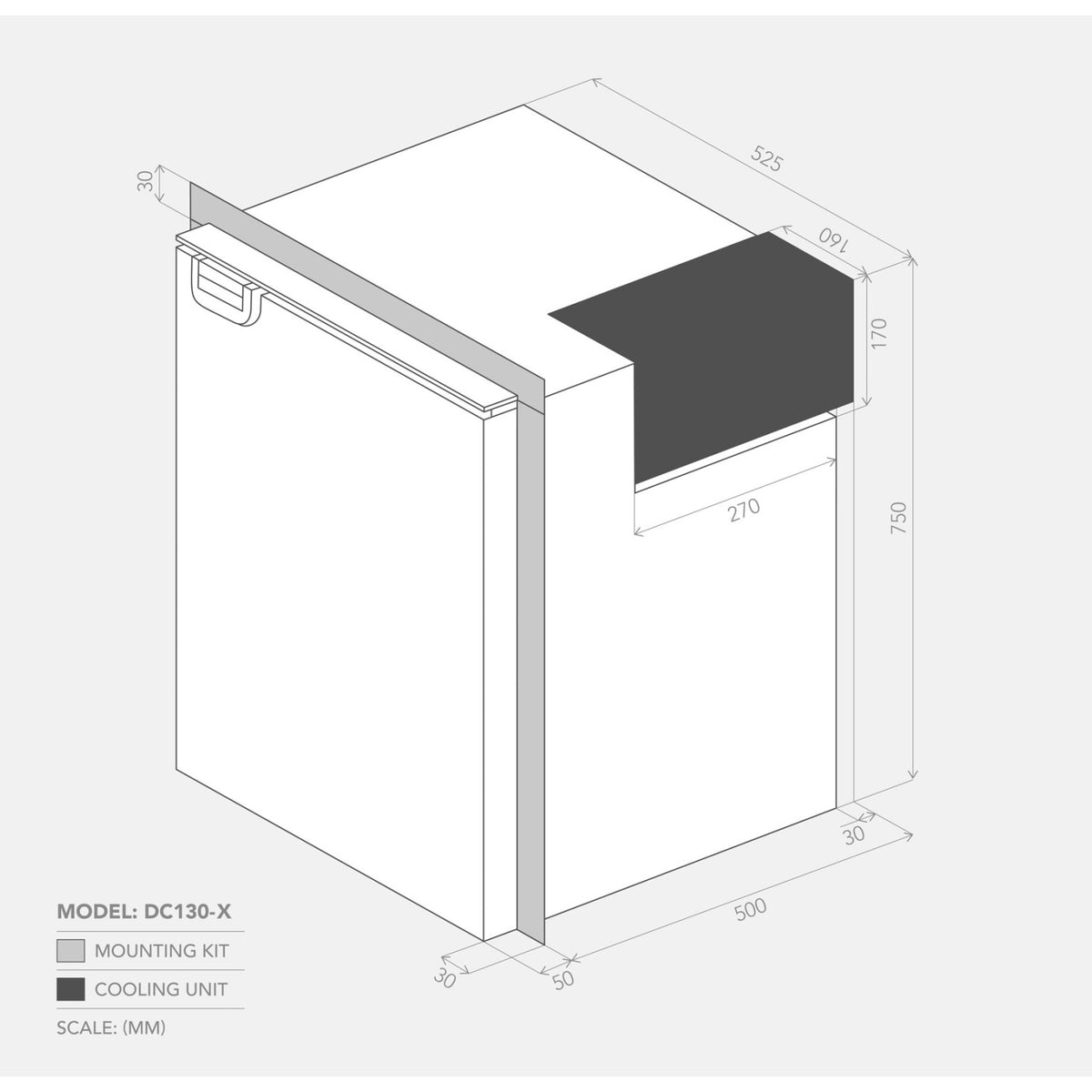

Bushman DC130-X dimensions drawing showing external height, width and depth alongside the minimum cabinet cut out sizes

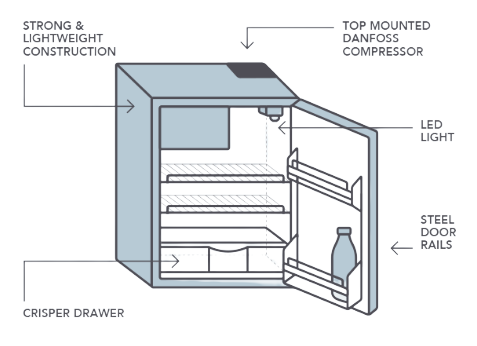

Cutaway diagram of a Bushman DC-X series upright fridge labelling the top mounted Danfoss compressor, LED light, steel door rails, crisper drawer and lightweight construction

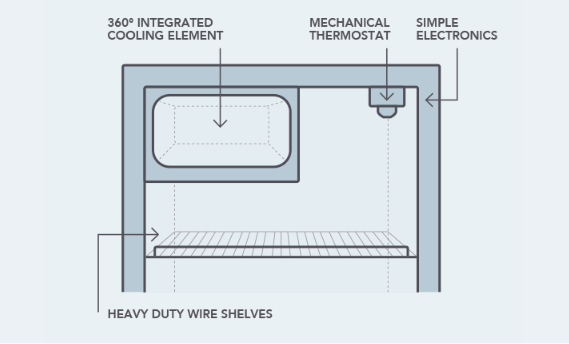

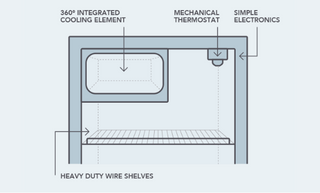

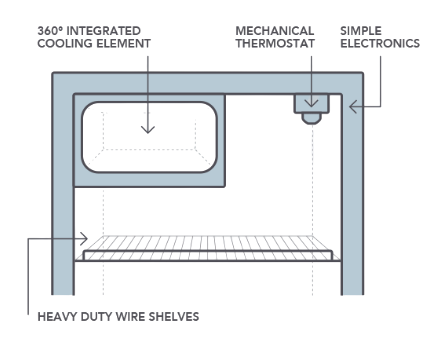

Cutaway diagram of a Bushman upright fridge showing the 360 degree integrated cooling element wrapped around the cabinet, the mechanical thermostat and simple electronics at the top, and the heavy duty wire shelf across the middle

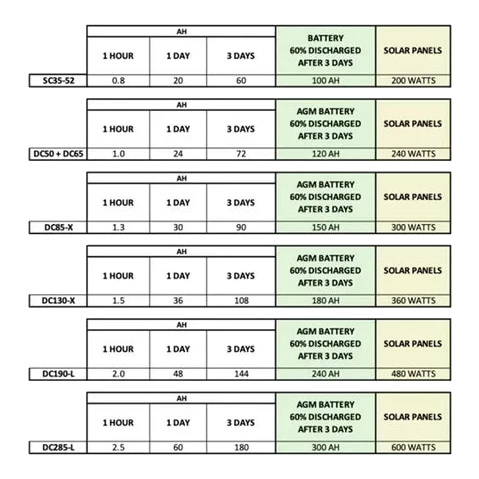

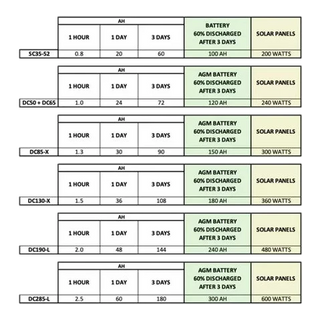

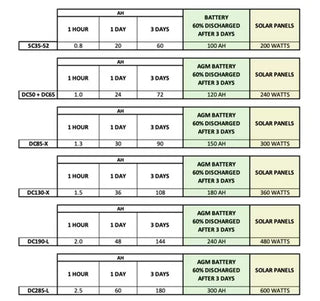

Bushman DC130-X 130L Under-Bench Fridge Freezer — 12V/24V – guide to recommended battery capacity and solar panel charge input for running a Bushman fridge off grid

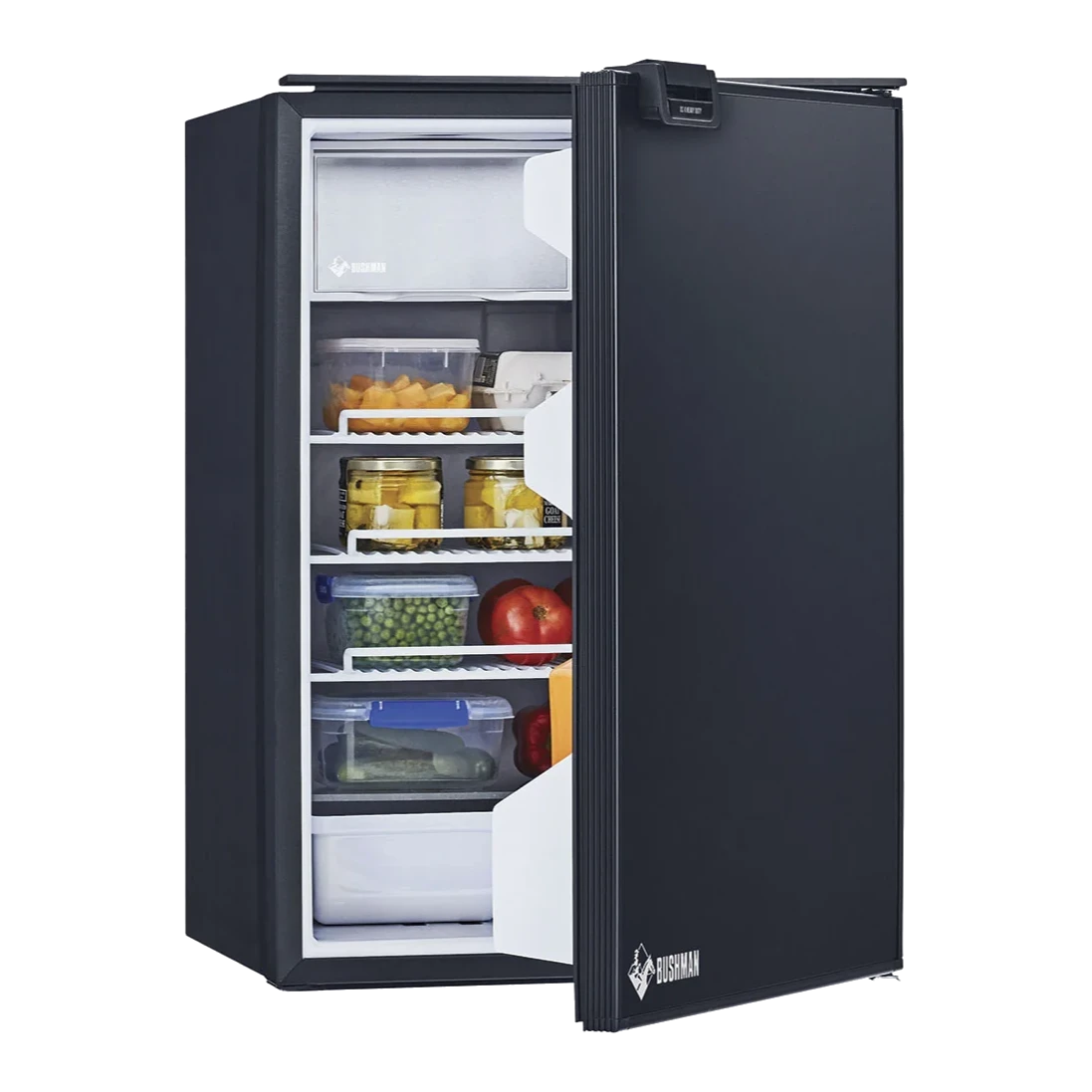

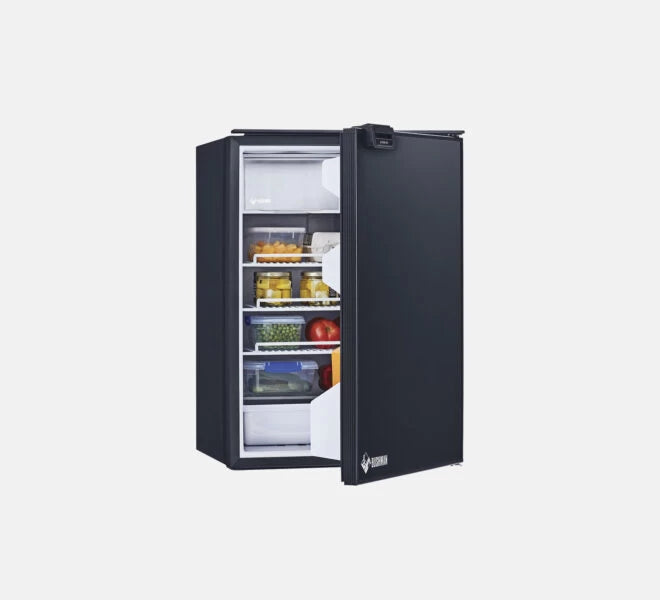

Bushman DC130-X at an angle with the door open and shelves stocked with food and drinks

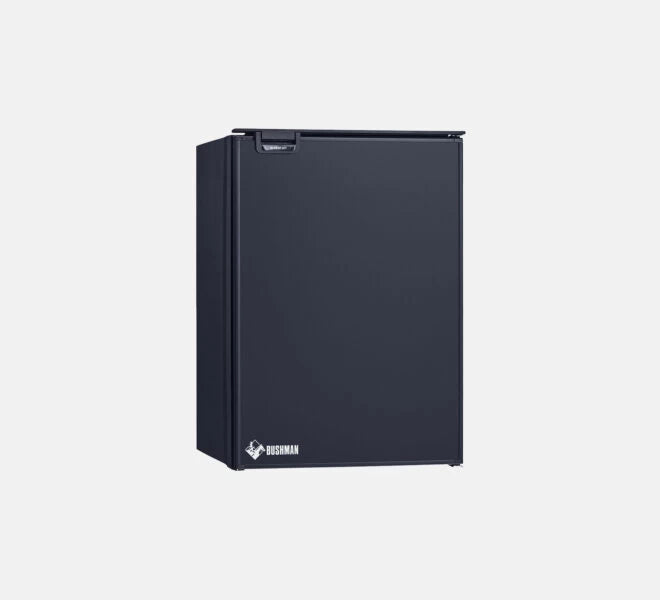

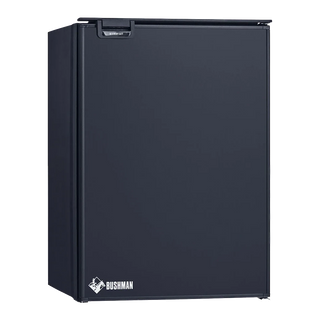

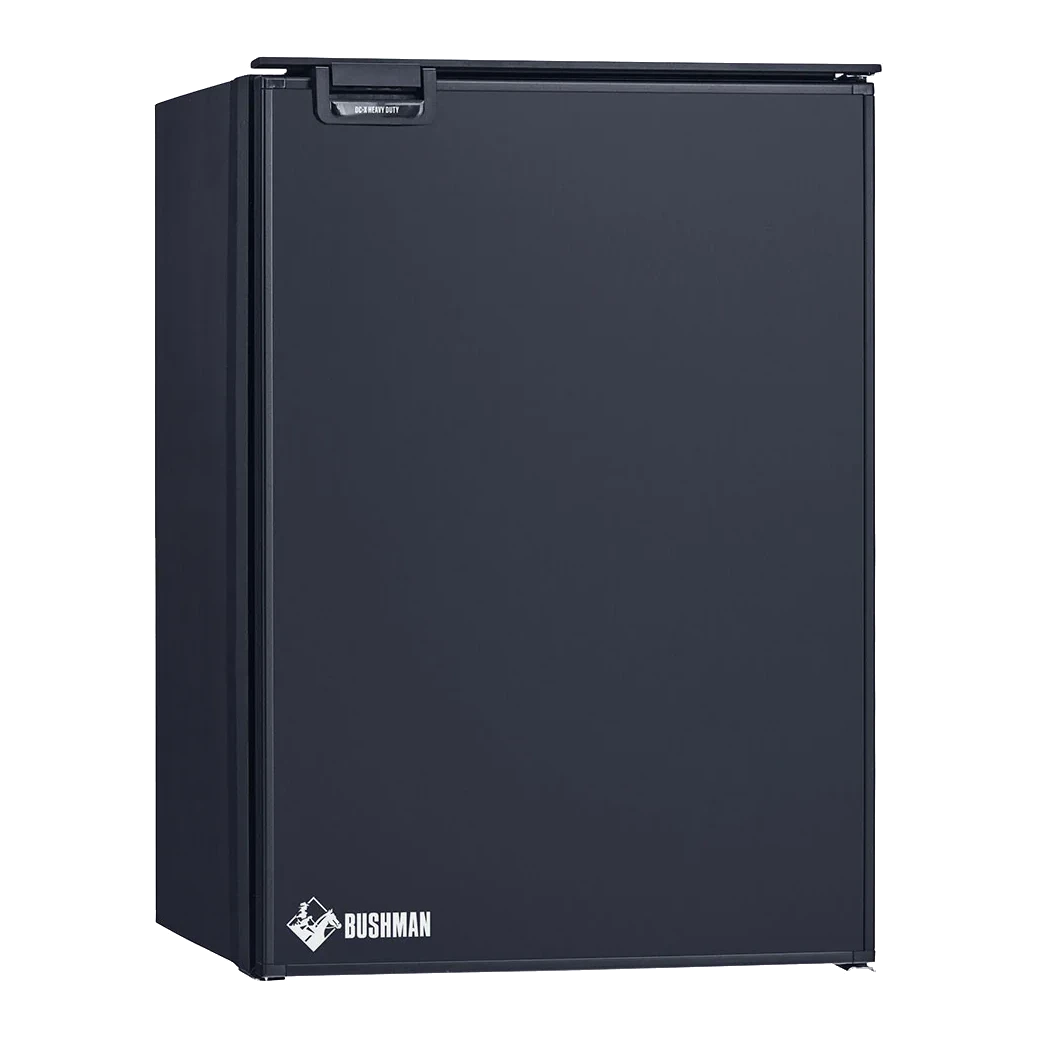

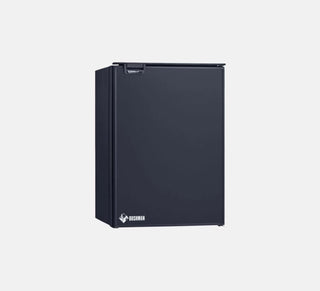

Bushman DC130-X upright fridge freezer with the door closed, showing the matte black front panel and Bushman badge

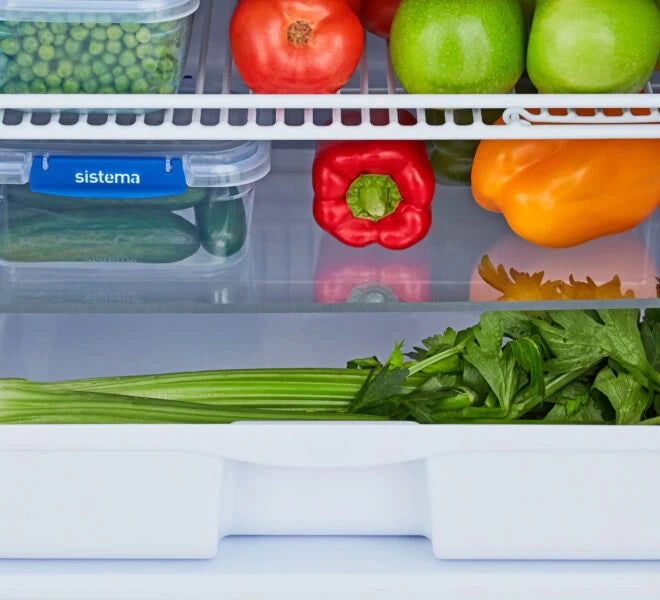

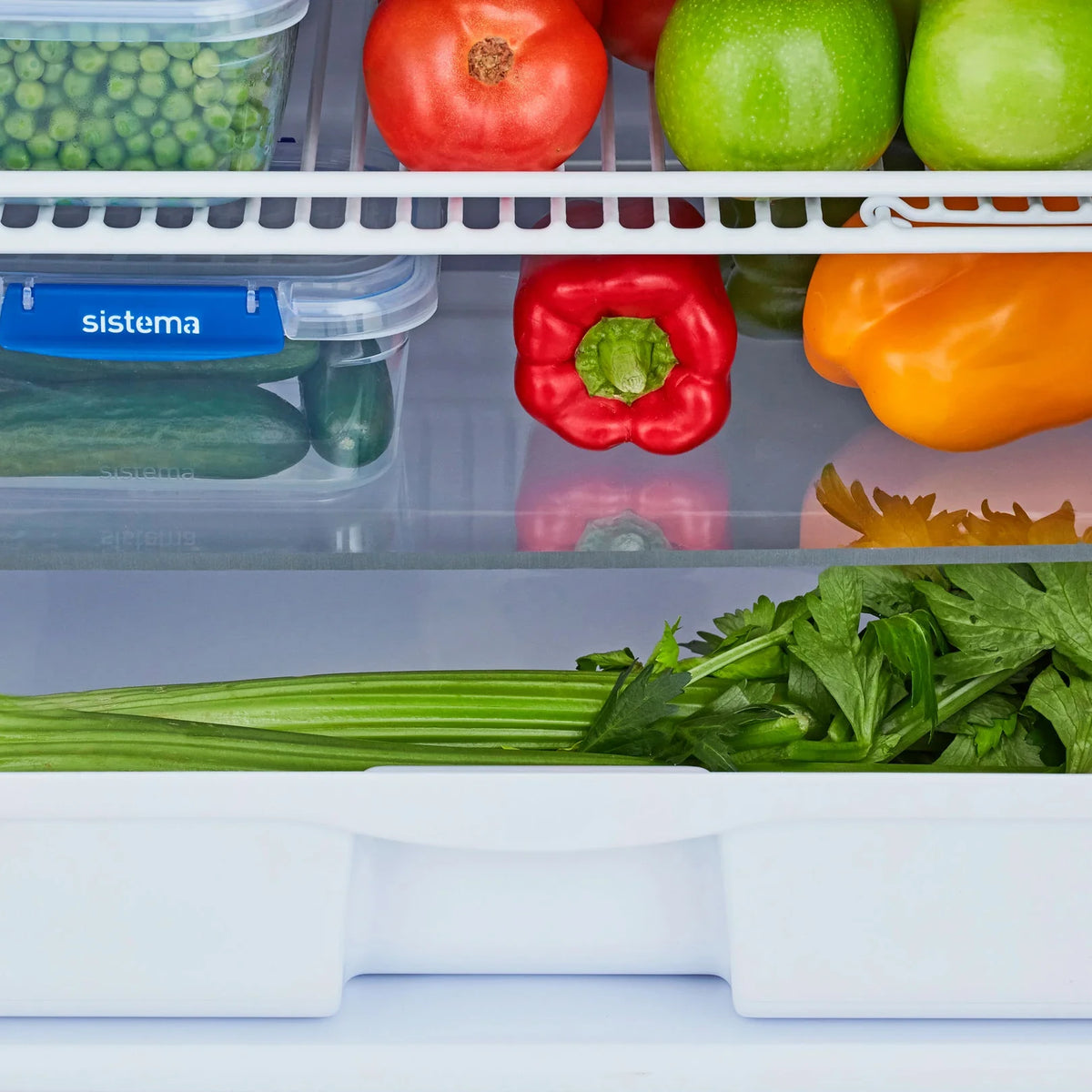

Close up inside the Bushman DC130-X showing the wire shelf, perspex crisper shelf and crisper tub holding fresh vegetables

Bushman

DC130-X 130L Under-Bench Fridge Freezer — 12V/24V

Name: Bushman DC130-X 130L Under-Bench Fridge Freezer — 12V/24V
Brand: Bushman
SKU: DC130-X
Price: 1685.00 AUD
Availability: InStock

DC130-X

Bushman DC130-X 130L upright under-bench fridge freezer. 1.5 Ah/hr at 25°C. Nidec Danfoss BD35HD compressor. Tropical rated to 43°C. 12V/24V DC auto with 1.2m Anderson lead fitted. Cut-out of 755 × 530 × 550mm.

Fridge temp4°C ±2°C

Capacity130L total

Power draw1.5 Ah/hr @ 25°C

$1,685.00

4 interest-free payments of $421.25 with Afterpay

or finance your build with Allied Finance

We accept Visa Mastercard Amex Apple Pay PayPal Zip Afterpay Finance

Universal fitmentAny caravan, motorhome, camper trailer or similar with a bench cut-out of 755mm H × 530mm W × 550mm D plus rear ventilation

Shipping & collection

Worldwide shipping available^*

In-store pickup

Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

TROPICAL RATED TO 43°C

Holds temperature in ambients up to 43°C, so it keeps working through an Australian summer.

~7L INTERNAL FREEZER

Deep and narrow by design, so the freezer takes as little as possible from your fridge space.

1.5 AH PER HOUR

Secop Danfoss BD35HD variable speed compressor keeps the average draw low enough for a modest battery bank.

7 YEAR COMPRESSOR WARRANTY

Backed by 7 years on the compressor and 3 years on the fridge, direct from Bushman.

REVERSIBLE DOOR, MOUNT KIT SUPPLIED

Hinge the door left or right to suit your layout. Full mounting kit and 1.2m Anderson lead included.

The Bushman DC130-X is the under-bench upright in the Heavy Duty DC-X range. At 130 litres it holds enough for a couple on a long trip or a family on a short one, and at 750mm tall it is sized to slide in under a standard kitchen bench. It draws about 1.5 amp hours per hour at 25°C ambient.

Bushman fit a Nidec Danfoss BD35HD compressor, a 60W variable speed unit that ramps between roughly 2A and 4.5A depending on what the fridge actually needs rather than slamming on and off at full noise. Over a 24 hour period that is what keeps the average draw down. The whole unit is tropical rated and holds temperature in ambients up to 43°C.

The freezer is deliberately deep and narrow rather than wide, which frees up the fridge section so you can stand tall bottles upright instead of laying them down. Shelves are height adjustable heavy duty wire, there is a plastic crisper tub under a single-piece perspex shelf, and the door balconies are deep enough for 2 litre milk bottles with built-in stainless rails so nothing shifts on corrugations. An internal fan keeps the temperature even from top to bottom, and the door is reversible to suit whichever way your cabinetry opens.

A mounting kit is supplied and the fridge comes with a 1.2 metre Anderson lead fitted. Bushman support four mounting methods: internal sleeves, the supplied mounting kit fascia, custom brackets on the M5 threaded inserts, or a Bushman DC130-X aluminium fridge box. Ventilation needs 2 rear vents of 400cm² free area each. Run it on its own dedicated circuit straight back to your battery bank.

If you are weighing this up against the smaller DC85-X, both fridges are 550mm deep and mount the same way, so it comes down to the opening you have. The DC130-X needs a cut out of 755mm high by 530mm wide. The DC85-X needs 630mm high by 480mm wide and gives up 45 litres of space.

Variable-speed compressor — Nidec Danfoss BD35HD, 60W, 2 to 4.5A draw
Tropical T-Class — holds temperature in 43°C ambient
Deep-narrow freezer — leaves room for tall bottles in the fridge
Adjustable wire shelves — heavy-duty with perspex crisper lid
2L door balconies — stainless rails stop shift on corrugations
Internal cooling fan — even temperature top to bottom

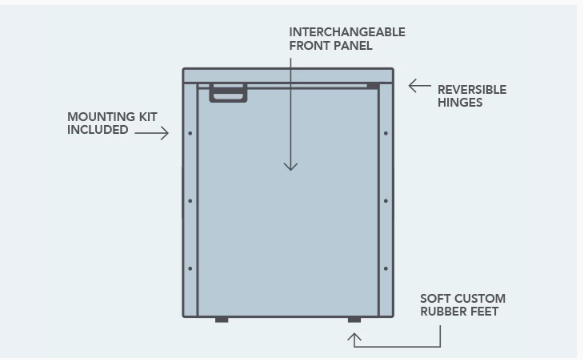

Reversible door — hinges swap left or right
Four mount options — sleeves, fascia, brackets or box
Soft rubber feet — smooth out corrugations
Anderson lead fitted — 1.2m from factory

Capacity and temperature

Volume: 130L total

Fridge temp: 4°C ±2°C

Freezer temp: -12°C ±2°C

Tropical rating: T-Class to 43°C

Electrical

Voltage: 12V/24V DC auto

Draw @ 25°C: 1.5 Ah/hr avg

Cut-in: 10.9V (12V), 22.7V (24V)

Cut-out: 9.6V (12V), 21.3V (24V)

Start surge: 10A for 0.5s

Compressor and cooling

Compressor: Nidec Danfoss BD35HD

Power: 60W variable speed

Draw range: 2A to 4.5A

Internal fan: Yes

Connection and finish

Connection: 1.2m Anderson lead fitted

Finish: Matte black, interchangeable panel

Length: 550mm

Width: 525mm

Height: 755mm (with handle)

Weight: 27.2kg

Mounting options: Bushman support four methods. 1. Four M5 threaded sleeves inside the cabinet, two per side. 2. The supplied mounting kit fascia, fastened to the sides and top of the cabinet. 3. M5 threaded nut inserts and matching bolts around the cabinet for custom brackets, minimum eight bolts. 4. The separately available Bushman DC130-X aluminium fridge box

Sized to fit under a standard kitchen bench at 750mm high, or 755mm over the handle. Allow the full cut-out of 755mm H x 530mm W x 550mm D

Ventilation: two rear vents required, each with a free cross-section of at least 400cm2. A 400 x 200mm vent frame with a 400cm2 free-area grille meets one vent. The compressor cavity must vent to outside or to the main room, not into a sealed cabinet

Wiring: dedicated circuit direct to the battery bank. 4mm2 cable is acceptable for a typical install; 6mm2 is our preferred size and gives headroom on longer runs. Fit a 15A fuse close to the battery, and an isolation switch rated at least 20A on 12V or 10A on 24V

Power supply: 12V or 24V DC only. Never connect directly to 240V AC. Any inverter must be pure sine wave. If wired through a shunt or battery management system, connect the fridge to the terminal closest to the battery

Orientation: do not lay the fridge on its back, top or sides, or at any angle over 30 degrees. If it has been laid over, stand it upright for 12 hours before switching it on

Thermostat: start on setting 3, wait 24 hours, then adjust one notch at a time. Settings 3 to 5 suit most installs. Above 5 causes rapid ice build-up

Installation must be carried out by a suitably trained professional. See the owner manual below for the full ventilation and installation detail

Any caravan, motorhome, camper trailer or similar with a bench cut-out of 755mm H × 530mm W × 550mm D plus rear ventilation

12V or 24V DC auto-sensing

Mounts under a standard kitchen bench

400cm² free area per rear vent (two required)

Tropical conditions up to 43°C ambient

Running from 240V AC without a transformer

Starter batteries without a dedicated circuit

Fully enclosed cabinets without ventilation

Q: How do I mount my Bushman DC130-X fridge?
A: Four ways: using the supplied mounting frame, purchasing a Bushman DC130-X aluminium fridge box, using the internal mounting sleeves, or creating your own brackets.

Q: Does the door protrude past the outside of the fridge cabinet when opened at 90°?
A: No, the door does not protrude past the cabinet, however the door handle does, by about 20mm.

Q: How tall is the DC130-X door?
A: The door is 745mm tall including the handle. Move the handle to the side of the door and the door height without the handle is 730mm.

Q: Can I fit 2L milk bottles in the door?
A: Yes. 2L milk bottles fit in the DC130-X door.

Q: What are the dimensions of the wire shelves?
A: Approximately 440mm wide and 340mm deep.

Q: What are the freezer dimensions?
A: Approximately 210mm wide, 350mm deep and 90mm tall, with rounded corners.

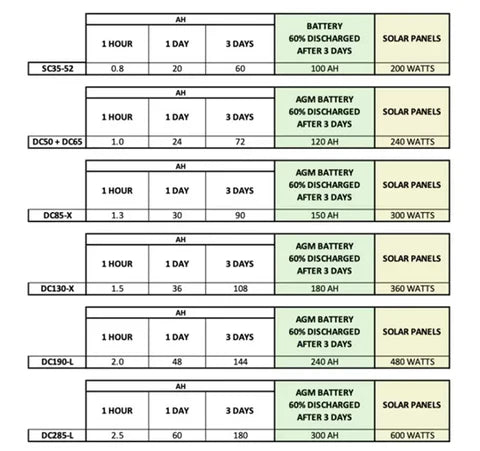

Q: What size battery and solar do I need?
A: It depends on your setup, solar input, state of charge, other loads on the same battery, ambient temperature and how often the fridge is opened. Bushman's starting point is around a 180Ah AGM or 100Ah lithium battery with 300W of solar, but that assumes a fridge-only circuit in average conditions.

Q: Can the door open from the other side?
A: Yes. The hinges move from the right side to the left, and the door handle moves to match.

Q: What colour is it available in?
A: Matte black only.

Q: Can I run it from 240V power?
A: Yes, using a 240V to 12V transformer. Most customers run their fridge from a battery bank all the time and use a smart battery charger to maintain the battery when 240V is available.

Q: What are the internal dimensions of the crisper tub?
A: Approximately 420mm wide, 320mm deep and 90mm tall.

Q: Can I remove the crisper when the door is only open 90°?
A: Yes, but only without the perspex shelf in place. With the perspex shelf, there is not enough room to lift the crisper out.

Q: What does Tropical T rating actually mean?
A: Climate class T is the hottest rating, confirming the fridge holds temperature in ambients up to 43°C. Fridges without a T rating slow down or run full-time once ambient climbs above 32°C.

Q: What is a variable-speed compressor?
A: Instead of switching between full-on and off, the Nidec Danfoss BD35HD ramps its draw between 2A and 4.5A to match what the fridge actually needs. That keeps the average power draw down and reduces starting-current surges on the battery.
