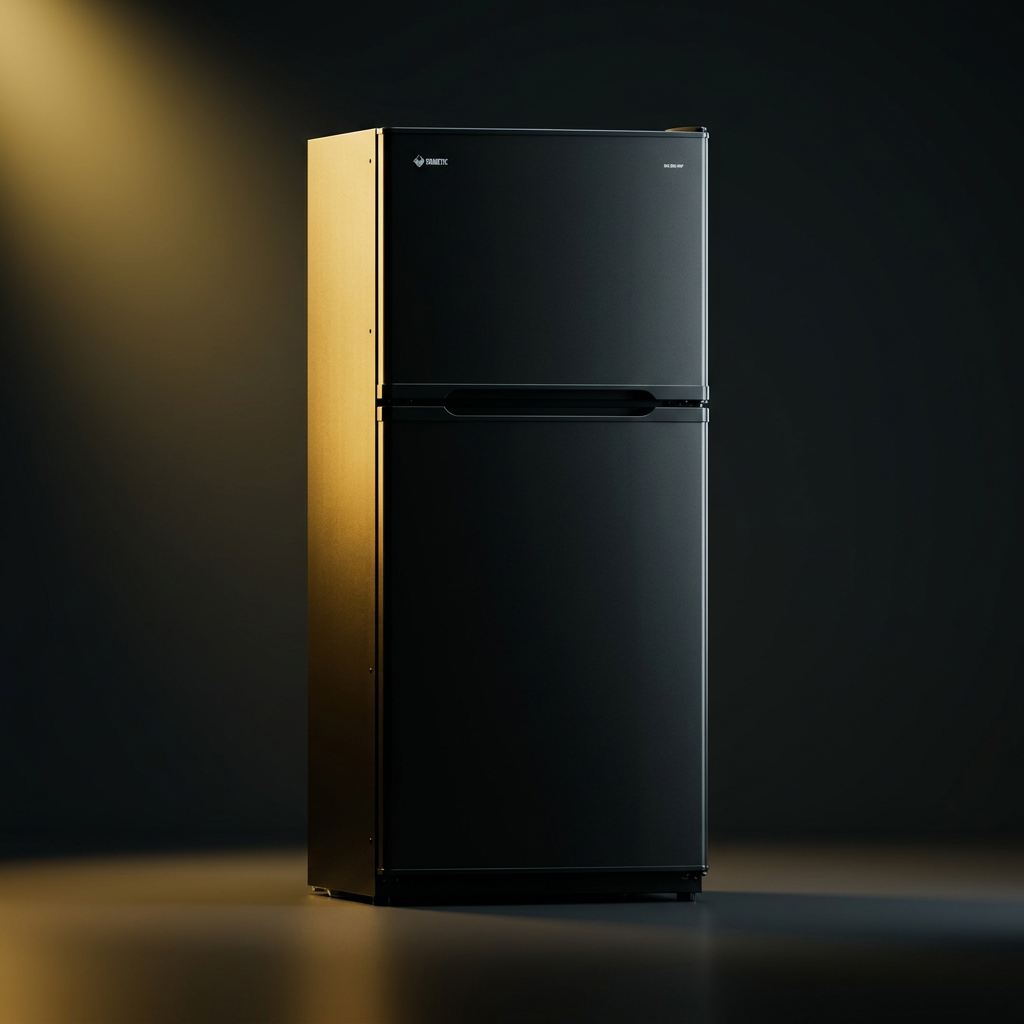

Bushman DC190L-X upright fridge freezer with both doors closed, showing the two door layout with the separate freezer above the fridge

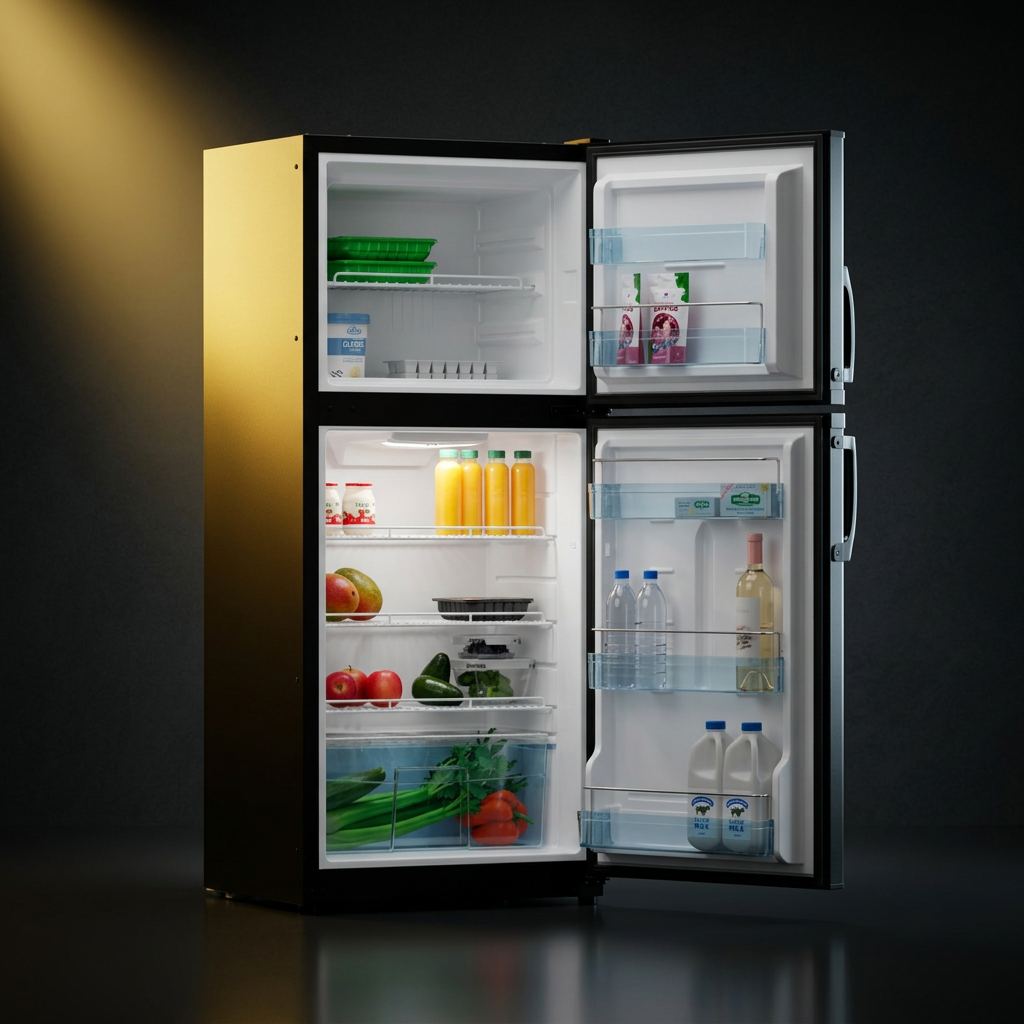

Bushman DC190L-X with both doors open, showing the separate 45 litre freezer above and the fridge section below with adjustable shelves, crisper drawer and deep door balconies

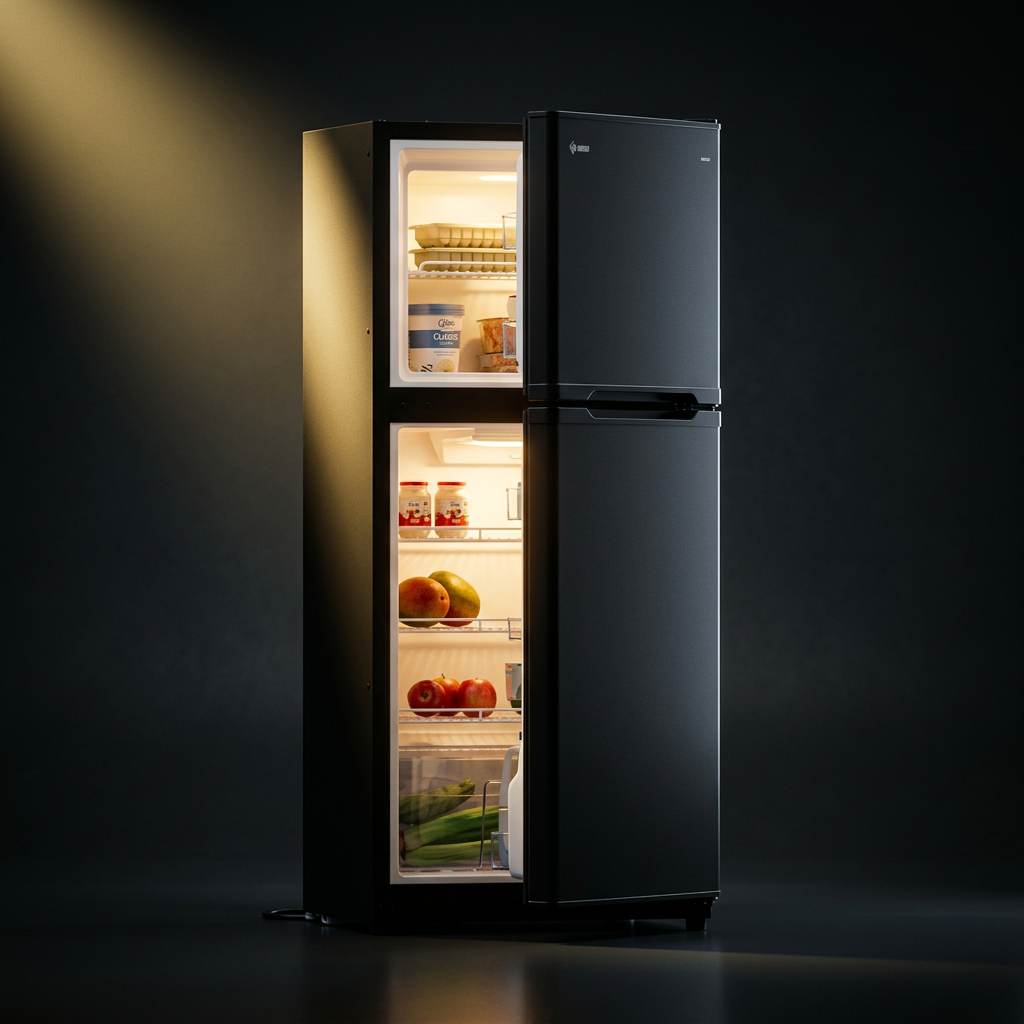

Bushman DC190L-X at an angle with both doors open and the interior LED lighting on, showing the freezer and stocked fridge shelves

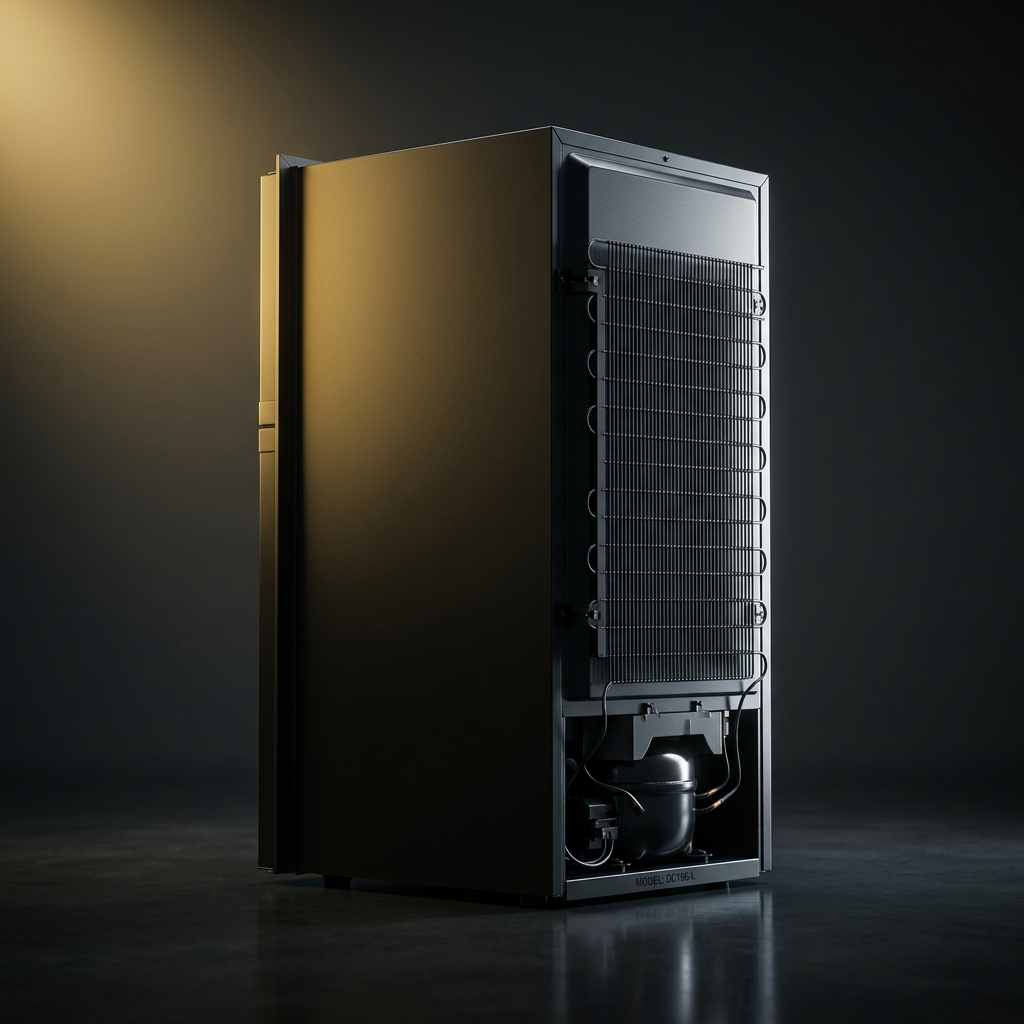

Rear view of the Bushman DC190L-X showing the full copper condenser coil and the compressor mounted at the base

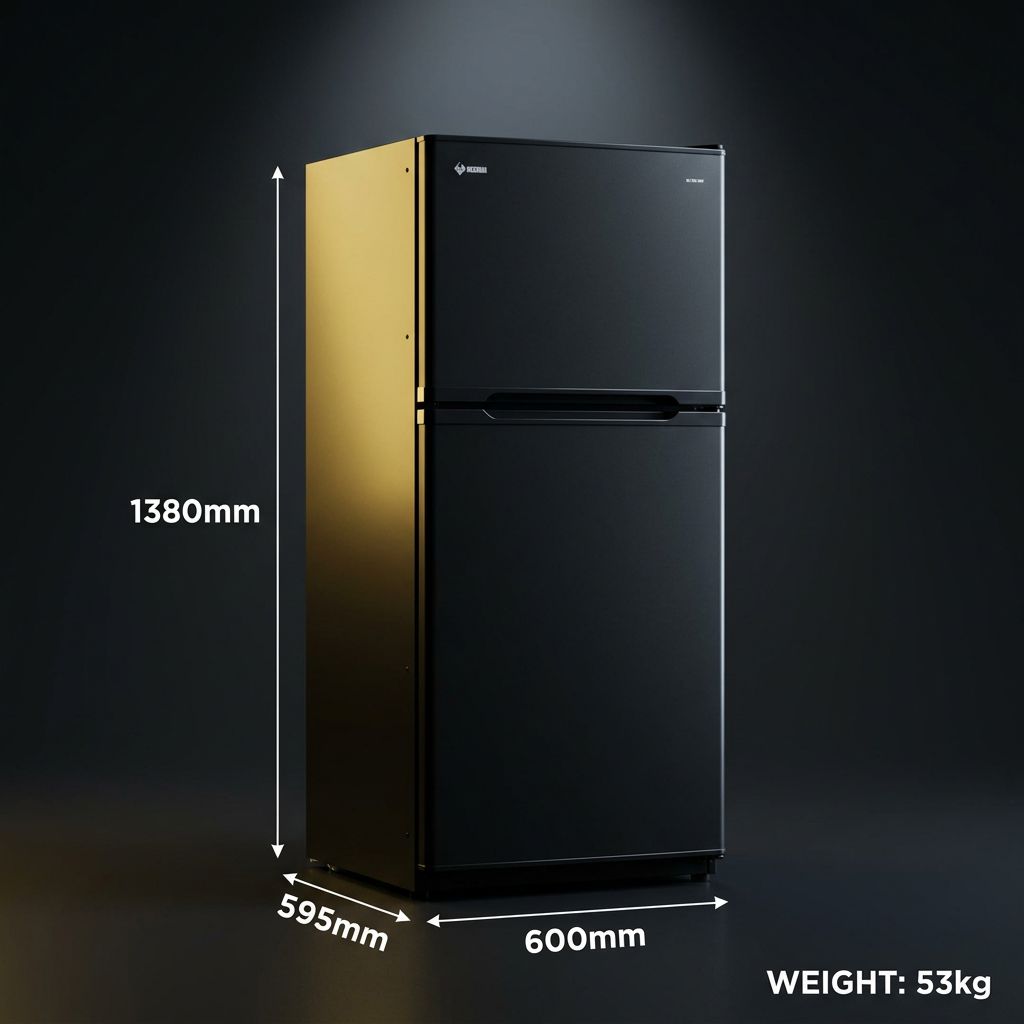

Bushman DC190L-X dimensions diagram showing 1380mm high, 600mm wide and 595mm deep, with a weight of 53kg

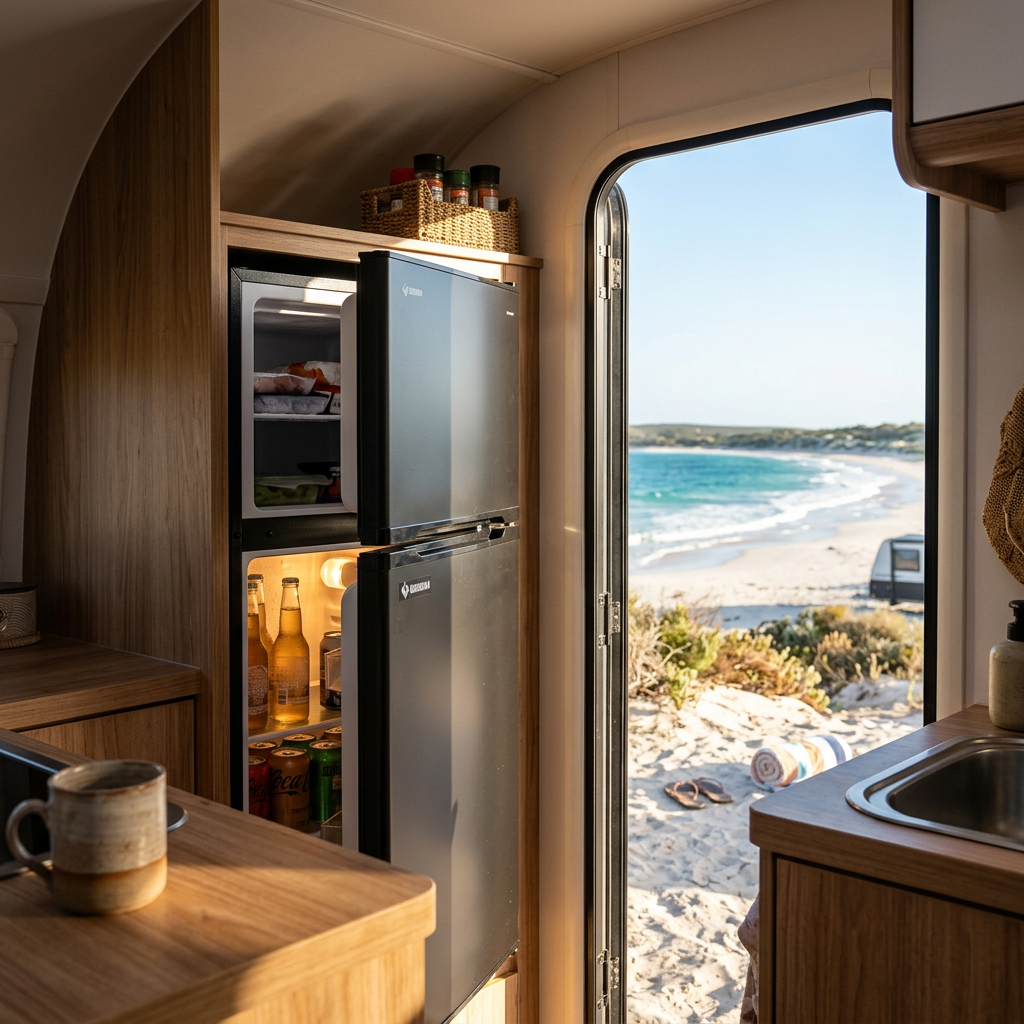

Bushman DC190L-X installed in a caravan kitchen with the doors open, looking out through the van door to a beach

Bushman

190L Caravan Fridge Heavy Duty Upright Fridge Series - 12V / 24V

Name: Bushman 190L Caravan Fridge Heavy Duty Upright Fridge Series - 12V / 24V
Brand: Bushman
SKU: DC190L-X
Price: 2679.00 AUD
Availability: InStock

DC190L-X

190L upright 12V/24V DC fridge with a separate 45L freezer, Nidec Danfoss BD80CN High Capacity compressor and full copper cooling. Tropical rated to 43°C. Direct swap for Dometic RM4601, RM4605 and RPD190.

190L total (145L + 45L freezer)

~2.0 Ah/hr at 25°C

12V or 24V DC

$2,679.00

4 interest-free payments of $669.75 with Afterpay

or finance your build with Allied Finance

We accept Visa Mastercard Amex Apple Pay PayPal Zip Afterpay Finance

Universal fitment190L full-height upright 12V/24V DC fridge with a separate 45L freezer, for caravans, motorhomes, RVs, tiny houses, boats and off-grid cabins.

Shipping & collection

Worldwide shipping available^*

In-store pickup

Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

TROPICAL RATED TO 43°C

Holds temperature in ambients up to 43°C, so it keeps working through an Australian summer.

45L SEPARATE FREEZER

A proper separate freezer with its own door, not a compartment inside the fridge space.

2.0 AH PER HOUR

Secop Danfoss BD80CN High Capacity compressor. Full copper cooling system keeps the average draw low.

7 YEAR COMPRESSOR WARRANTY

Backed by 7 years on the compressor and 3 years on the fridge, direct from Bushman.

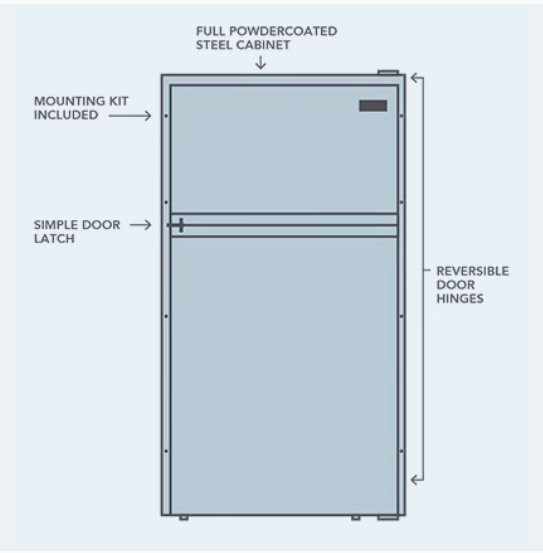

REVERSIBLE DOORS, MOUNT KIT SUPPLIED

Hinge the doors left or right to suit your layout. Full mounting kit and 2.3m Anderson lead included.

The Bushman DC190L-X is a full height upright in the Heavy Duty L series, and the one to look at if you want a genuine freezer rather than a small compartment inside the fridge. Of the 190 litres total, 45 litres is a proper separate freezer, which is enough to actually shop for a week rather than just keep ice and a few things frozen.

It uses a Secop Danfoss BD80CN High Capacity compressor paired with a full copper cooling system, and Bushman rate the whole unit climate class 'T' tropical, holding temperature in ambients up to 43°C. Power consumption is roughly 2.0 amp hours per hour at 25°C, rising to about 3.0 at 35°C, which is reasonable for a fridge of this size and freezer capacity. The interior is a single piece moulding, so there are no seams and joins to crack or collect moisture over a few thousand kilometres of corrugations.

Shelving is adjustable, the door storage is large, there is internal LED lighting, and the door is reversible so it can hinge to suit your layout. A full mounting kit is supplied along with a 2.3 metre Anderson lead, which is long enough to reach a battery bank that is not directly behind the fridge.

At 53kg it is a genuine two-person lift, and worth planning for before it arrives. There are two different cut outs depending on how you fit it: flush into the cabinetry needs 1385mm high by 605mm wide by 570mm deep, while fitting with the supplied mounting kit needs the same height and depth but 615mm of width. Ventilation is the detail that decides whether it performs — the compressor needs free air in and out, with the clearances set out in the owner manual below, and it should run on its own dedicated circuit back to the battery bank.

The closest fridge to this one is the DC225L-X. The two share the same BD80CN compressor, the same 600mm width and the same 45 litre freezer, so every one of the extra 35 litres goes into the fridge section rather than the freezer. What it costs you is height and power: the DC225L-X stands 1550mm tall against 1380mm here, weighs 57kg against 53kg, and draws around 2.4 amp hours per hour at 25°C against 2.0. If your cabinet opening is under about 1.5 metres, the DC190L-X is the one that fits.

Secop Danfoss BD80CN High Capacity compressor
Full copper cooling system for low power draw and fast recovery
Separate 45L freezer, not a compartment inside the fridge
Single piece moulded interior with no seams to crack or hold moisture
Climate class T tropical rating, holds temperature in ambients up to 43 degrees C
Adjustable shelving, large door storage and internal LED lighting
Reversible door, hinge it left or right to suit your layout
Supplied with a mounting kit and a 2.3m Anderson plug lead

Capacity and temperature

Total Capacity: 190L (145L fridge + 45L separate freezer)

Fridge Temperature: 4°C ±2°C

Freezer Temperature: -15°C ±2°C

Tropical Rating: Climate class T, rated to 43°C ambient

Electrical

Voltage: 12V or 24V DC, auto sensing

Power Consumption: ~2.0 Ah/hr at 25°C ambient, ~3.0 Ah/hr at 35°C

Start Surge: Up to 10A for 0.5s at compressor start

Low Voltage Cut-In: 10.9V on 12V, 22.7V on 24V

Low Voltage Cut-Out: 9.6V on 12V, 21.3V on 24V

Compressor and cooling

Compressor: Nidec Danfoss BD80CN High Capacity series

Refrigerant: R290, 50g charge

Cooling System: Full copper, over 15m of copper piping, single-piece moulded interior

Insulation: 80mm around the freezer, 50mm around the fridge

Connection and finish

Connection: 2.3m Anderson plug lead, fitted

Finish: Matte black with interchangeable front panel

Product Code: DC190L-X

Length: 595mm

Width: 600mm

Height: 1380mm

Weight: 53.0kg

Mounting options: Bushman support three methods for the DC-L series. 1. Six internal M5 threaded sleeves in the cabinet: two per side in the fridge and one per side in the freezer. 2. The supplied two-piece mounting kit fascia, fitted with M5 bolts. 3. Two chassis bolt holes at the rear of the compressor mounting for extra support in mobile installations

T-latch: a T-latch is supplied inside the crisper tub and must be fitted for any mobile installation such as a caravan, boat or RV

Cut-out sizes differ by mounting method. Flush fit: 1385mm H x 605mm W x 570mm D. With the mounting kit: 1385mm H x 615mm W x 570mm D. Both allow a 50mm gap at the rear when the doors sit proud of the cabinetwork

Ventilation: two vents required, one at the bottom and one at the top of the fridge cavity, each with a free cross-section of approximately 600cm2. A 500 x 250mm fluted vent provides approximately 600cm2 of free air flow. Vents can be to the outside environment or the general area where the fridge is located

Wiring: dedicated circuit direct to the battery bank. 4mm2 cable is acceptable for a typical install; 6mm2 is our preferred size and gives headroom on longer runs. Fit a 15A fuse close to the battery, and an isolation switch rated at least 20A on 12V or 10A on 24V

Power supply: 12V or 24V DC only. Never connect directly to 240V AC. Any inverter must be pure sine wave. If wired through a shunt or battery management system, connect the fridge to the terminal closest to the battery

Orientation: do not lay the fridge on its back, top or sides, or at any angle over 30 degrees. If it has been laid over, stand it upright for 12 hours before switching it on

At 53kg the DC190L-X is a two-person lift. Plan the approach and any door removal before delivery day

Thermostat: start on setting 3, run for 2 to 3 days, then adjust one notch at a time only if the fridge is not reaching 4 degrees C. Do not use setting 7

Installation must be carried out by a suitably trained professional. See the owner manual below for the full ventilation and installation detail

190L full-height upright 12V/24V DC fridge with a separate 45L freezer, for caravans, motorhomes, RVs, tiny houses, boats and off-grid cabins.

Suits 12V and 24V DC house battery systems

Needs a cabinet opening of 1385mm high x 605–615mm wide x 570mm deep (depending on mount method)

Ventilation: two vents (top and bottom) of approximately 600cm² free area each

Direct swap replacement for Dometic RM4601, RM4605 (gas) and RPD190 (DC)

Not for direct connection to 240V AC mains (use via 12V transformer or inverter)

Q: How do I mount my Bushman DC190L-X fridge?
Into a cavity using the supplied mounting kit, or flush using the internal mounting sleeves. Some installs use custom brackets to suit the vehicle.

Q: Does the door protrude past the outside of the fridge cabinet when opened at 90°?
Yes. The door curves outwards in the centre. When opened 90° the centre of the door protrudes 25mm past the side of the fridge cabinet.

Q: Can I fit 2L milk bottles in the door?
Yes. 2L milk bottles fit in the DC190L-X door.

Q: How deep is the fridge with the doors removed?
525mm deep with the doors removed, useful for getting it in through a caravan door.

Q: What are the dimensions of the shelves?
Fridge wire shelves are approximately 480mm wide by 240mm deep. Freezer wire shelves are approximately 430mm wide by 260mm deep.

Q: What are the freezer dimensions?
Approximately 440mm wide, 300mm deep and 330mm tall, with rounded corners.

Q: What size battery and solar do I need?
It depends on your setup: solar input, state of charge, other loads on the same battery, ambient temperature and how often the fridge is opened. Bushman's starting point is around a 240Ah AGM or 140Ah lithium battery with 400W of solar, assuming a fridge-only circuit in average conditions.

Q: Can the doors open from the other side?
Yes. The hinges move from the right side to the left, and the door latch moves to match.

Q: What colour is it available in?
Matte black only.

Q: Can I run it from 240V power?
Yes, using a 240V to 12V transformer. Most installs run the fridge from a battery bank full-time and use a smart battery charger to maintain the battery when 240V is available.

Q: Will it replace a Dometic RM4601 or RM4605 3-way fridge?
Yes. The DC190L-X is a direct swap replacement for the Dometic RM4601 and RM4605 gas fridge.

Q: Will it replace a Dometic RPD190 12V fridge?
Yes. The DC190L-X is also a direct swap replacement for the Dometic RPD190 190L 12V fridge.

Q: What does Climate class T tropical rating mean?
Class T is the toughest ambient-temperature rating under ISO 15502. The fridge holds its internal temperature in ambient conditions up to 43°C. Important for caravans and motorhomes that sit in cabin heat on a 40°C summer day.

Q: Why does the DC190L-X have a separate freezer rather than a compartment inside the fridge?
A separate 45L freezer with its own door keeps freezer air out of the fridge every time you open it, so both sections hold temperature better. The size is enough to actually shop for a week rather than just hold ice and a few things frozen.
