Home / Lighting / Driving & light bars

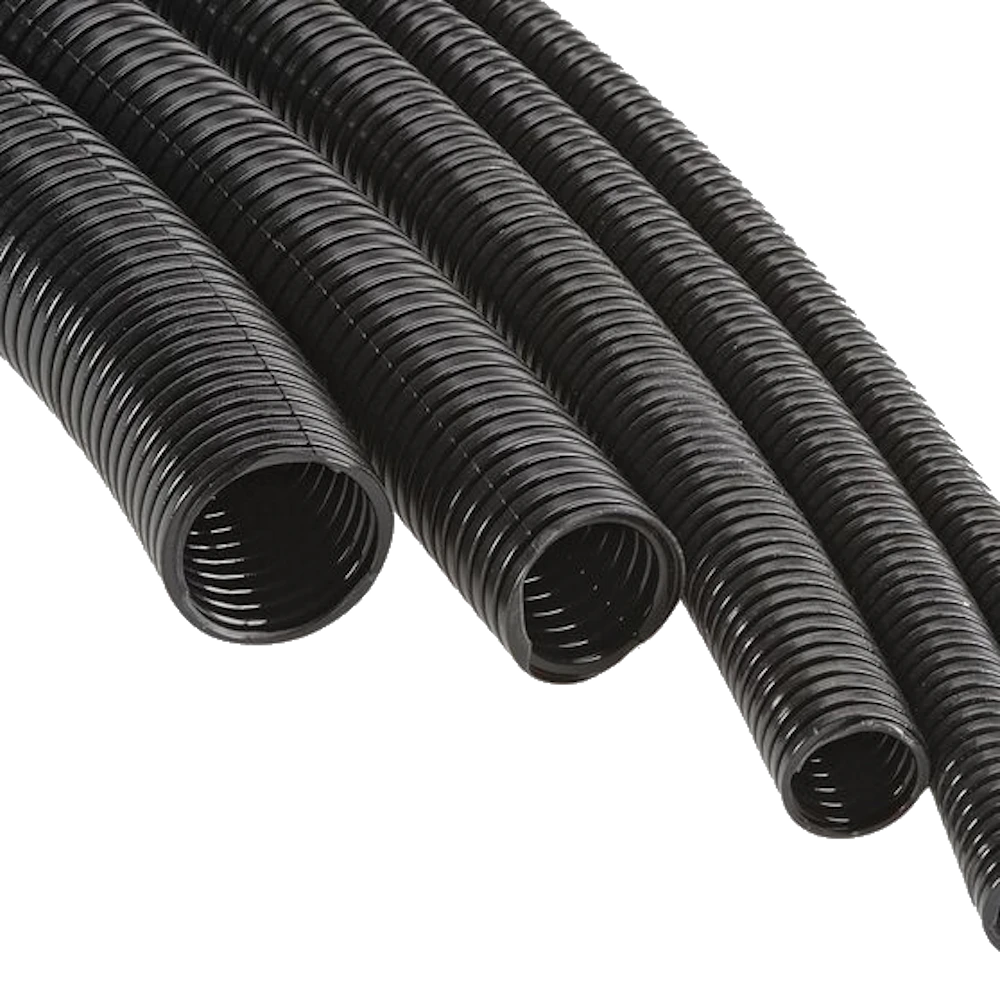

Black non-split PA6 nylon conduit, IP68 rated

Elevate Automotive

Conduit Black - Non-Split

EANC-8

Non-split PA6 nylon conduit rated IP68, -25°C to 80°C. Fully sealed cable protection for automotive, marine and industrial wiring. Sold per metre.

IP ratingIP68
Temp range-25°C to 80°C
MaterialPA6 nylon

$3.00

4 interest-free payments of $0.75 with
or finance your build with
Thickness
We accept
Universal fitmentFully sealed IP68 cable protection for automotive, marine, caravan and industrial wiring runs.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

Non-split corrugated conduit made from Polyamide 6 (PA6) nylon, providing an IP68 rating for wiring runs that need full protection from water, dust, dirt and vibration.

Because the wall is closed rather than slit, cables are fed through end-to-end before termination — this keeps the IP68 seal intact for the life of the install. Resists chemicals, oils and solvents, with a continuous operating range of -25°C to 80°C (short-term to 150°C) and self-extinguishing, halogen-free flame retardance.

Suits automotive, marine, caravan and industrial cable-protection applications where a full seal matters more than mid-run access — see the FAQ below for when split loom tube is the better pick instead.

Sold per metre.

  • IP68 sealed — non-split tube keeps water and dust out
  • PA6 nylon — durable, chemical and abrasion resistant
  • Wide temp range — -25°C to 80°C, engine-bay rated
  • Flame retardant — self-extinguishing, halogen-free

Material & rating

Material: Polyamide 6 (PA6) nylon

Ingress protection: IP68 (non-split)

Temperature range

Continuous: -25°C to 80°C

Short-term: Up to 150°C

Resistance

Chemical: Oils, solvents, chemicals

Flame: Self-extinguishing, halogen-free

Fully sealed IP68 cable protection for automotive, marine, caravan and industrial wiring runs.
Underbody, chassis, engine bay and exposed harness runs where water and dust sealing matters
Runs where the full loom is finalised before the conduit goes on
Looms you'll need to add or remove wires from later — use split loom tube ([split-loom-tube]) instead

Q: What's the difference between this and split loom tube?
Non-split conduit is a closed tube — cables are fed through end to end, which keeps the full IP68 seal intact. Split loom tube has a slit along its length so you can pop cables in and out after the harness is built, but it isn't sealed against water and dust the same way. Use non-split conduit for exposed, wet or vibration-prone runs (chassis, underbody, engine bay); use [split-loom-tube] where you might need to add or remove wires later.

Q: Is it flexible?
Yes — despite the closed wall, the corrugated profile lets it bend around chassis rails and through tight spaces without kinking.

Q: What temperature range does it handle?
Continuous use from -25°C to 80°C, with short-term exposure up to 150°C — covers engine bay and underbody conditions.

Q: Is it sold per metre?
Yes — order the length you need, no minimum and no fixed spool size.
