4 Pin Deutsch Plug Connector Complete Kit

SKU: DT4
$17.00
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Ideal for 4WDs, trucks, off-road rigs, marine craft, trailers, agricultural machinery, and industrial equipment requiring a sealed 4-pin connector.

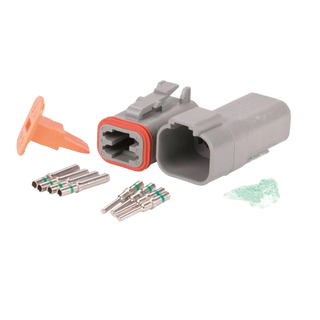

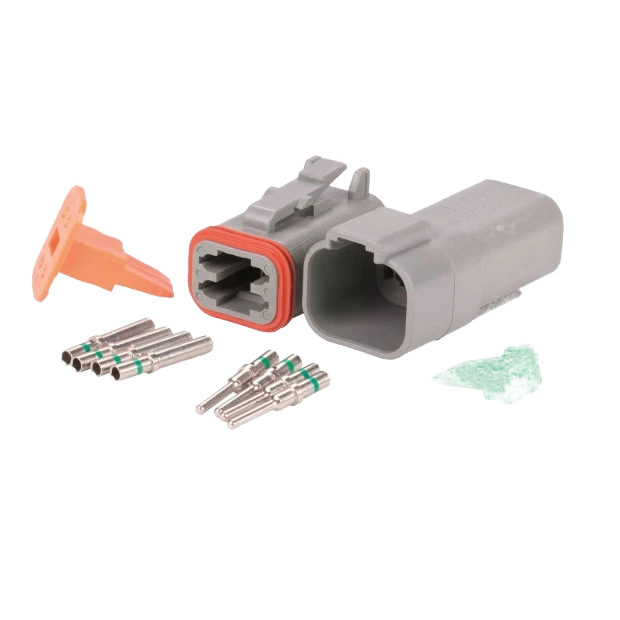

1 x Male 4-pin Deutsch DT housing

1 x Female 4-pin Deutsch DT housing

4 x Male terminals

4 x Female terminals

2 x Wedge locks

Compact 4-pin configuration designed for use in tight or engine-bay installations

Made with thermoplastic housings and silicone rubber seals, the DT Series ensures maximum reliability in extreme environments. These connectors are rated for 13A per contact and are vibration tested to 20G RMS, making them ideal for demanding automotive, industrial, and marine applications.

 [{"variant_id":"33029518983277" , "metafield_value":""}]

4 Pin Deutsch Plug Connector Complete Kit

$17.00
Description

The 4 Circuit Deutsch DT Series Connector Kit is a complete solution including male and female housings, terminals, and wedge locks.

Designed for cable-to-cable applications on the engine, transmission, chassis, or in the cab, this connector is built to perform in harsh environments where reliable signal integrity is essential.

FEATURES

Environmentally sealed to IP68 standards

Durable thermoplastic housing and silicone rubber seals

Maintains secure, low-resistance connections in wet, dusty, or high-vibration environments

Operates in extreme temperature and vibration conditions

Widely used in automotive, marine, and industrial applications

FAQ's

Q: Can I use this for power and signal applications?
A: Yes, each pin is rated at 13A and suitable for both low-voltage power and signal.

Q: Is this compatible with other Deutsch DT components?
A: Yes, it integrates with other Deutsch DT plugs, mounts, and seals.

Specifications

Series: Deutsch DT

Configuration: 4 Pin

Contact Rating: 13A per contact at 125°C

Operating Temperature: -55°C to +125°C

Ingress Protection: IP68

Housing Material: Thermoplastic

Seal Material: Silicone Rubber

Vibration Rating: 20G RMS at 10–2000Hz

Installation Information

Each connector kit is designed for easy crimp-and-click assembly.

Simply crimp the terminals onto compatible cable, insert into the housing, and secure with the included wedge lock.

Requires no soldering and supports quick field serviceability.

Warranty Information


Covered by a 12-month manufacturer warranty against defects in materials or workmanship under normal use conditions.

PICKUP OR SHIPPING

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.
