FAB-DPH24 Deutsch connector bracket
Description

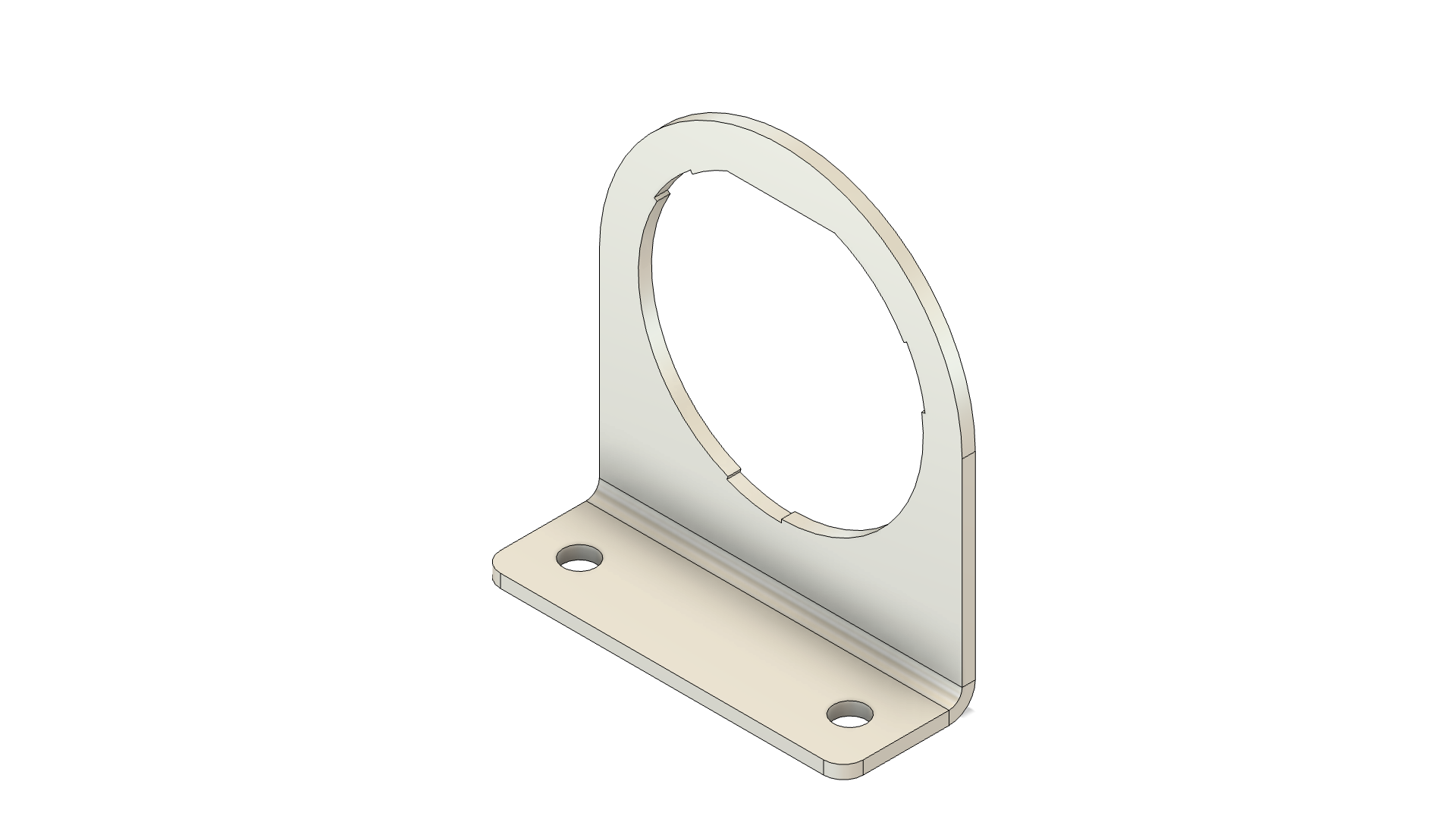

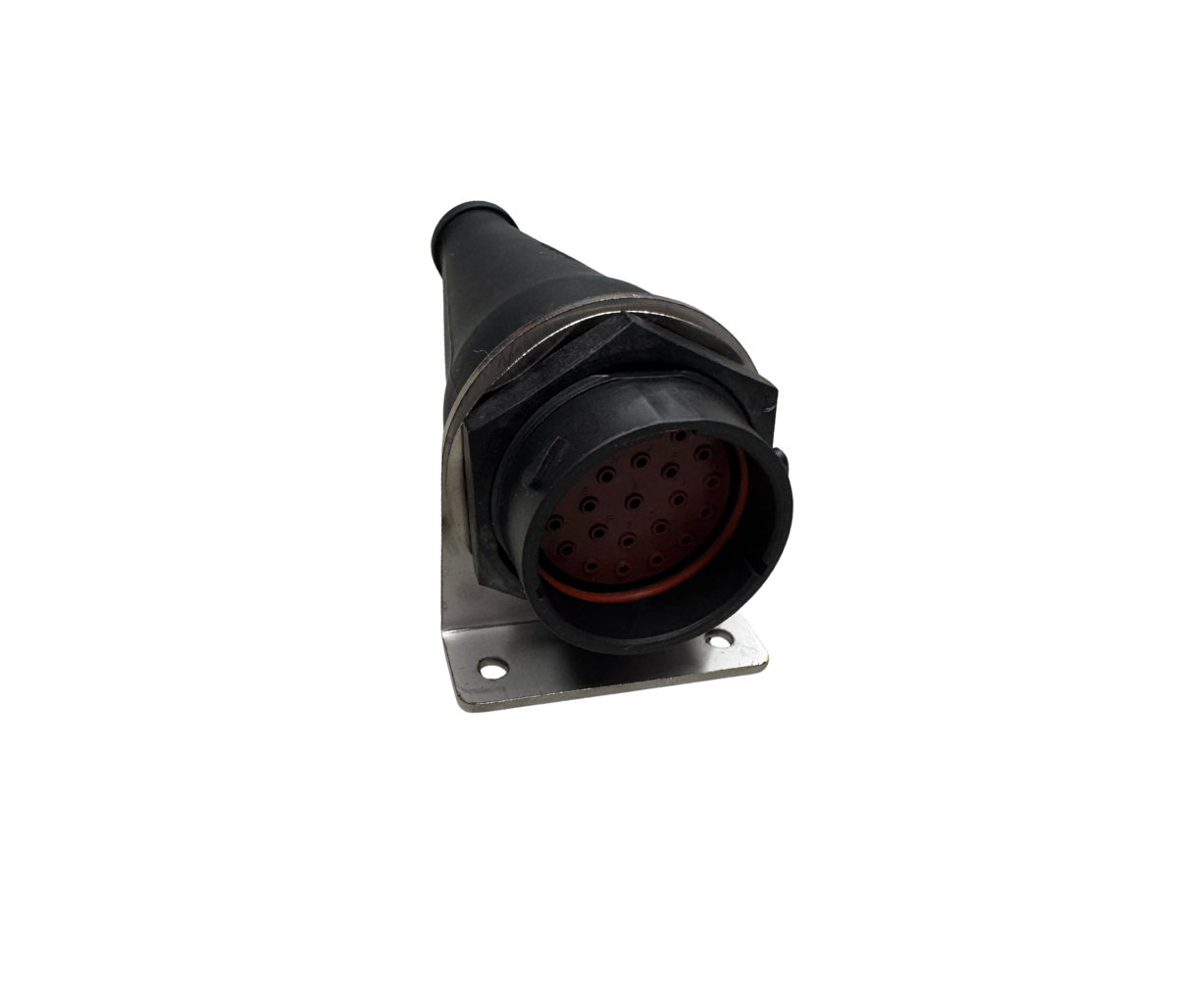

The FAB-DPH24 Deutsch Connector Bracket is a heavy-duty stainless steel right-angle mounting bracket designed to securely mount 23 Pin and 31 Pin Male Deutsch-style plugs with boot when recessed mounting is not possible.
Built for professional automotive and industrial installations, this bracket delivers a clean, robust, and service-friendly solution for large multi-pin connectors used in complex wiring systems.
Ideal for canopies, trays, electrical cabinets, service bodies, and mining vehicles, the FAB-DPH24 allows quick access to high-density connectors while maintaining proper strain relief and connector alignment.
Benefits
-
Professional and secure connector mounting
-
Simplifies installation of high-pin-count connectors
-
Ideal for quick-disconnect electrical systems
-
Reduces strain on wiring looms and connectors
-
Long-term durability in off-road and industrial conditions
Common Applications
-
4WD canopies and tray-back vehicles
-
Mining and industrial equipment
-
Modular electrical cabinets
-
Fleet and service vehicles
-
Situations requiring fast disconnection of multiple circuits
This bracket is especially valuable where large wiring looms need to be disconnected in one action, such as removing a canopy from a tray or isolating an electrical cabinet.
