Home / Lighting / Driving & light bars

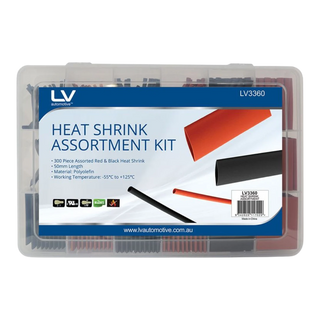

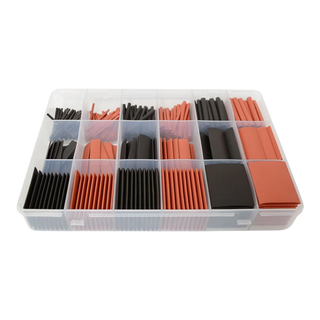

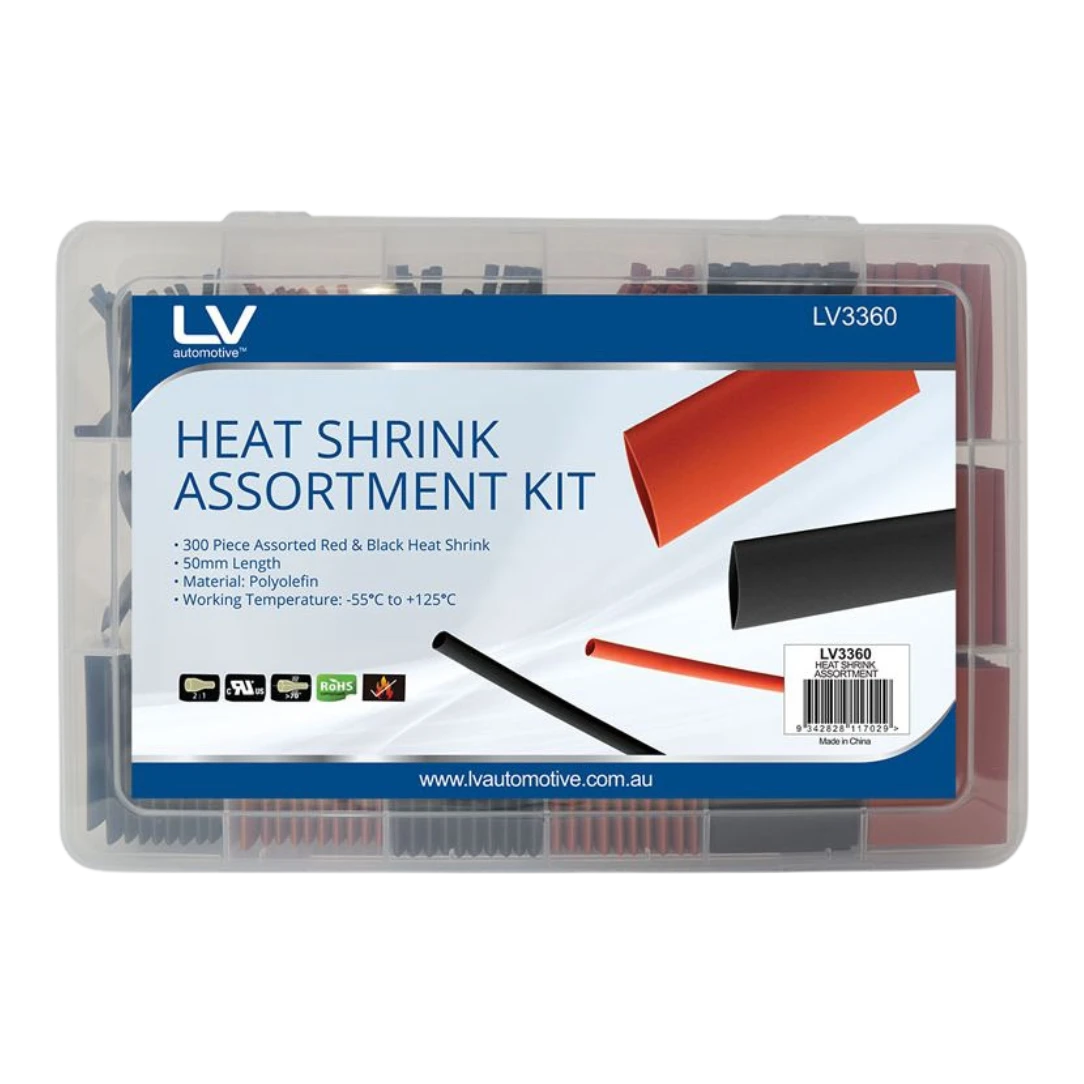

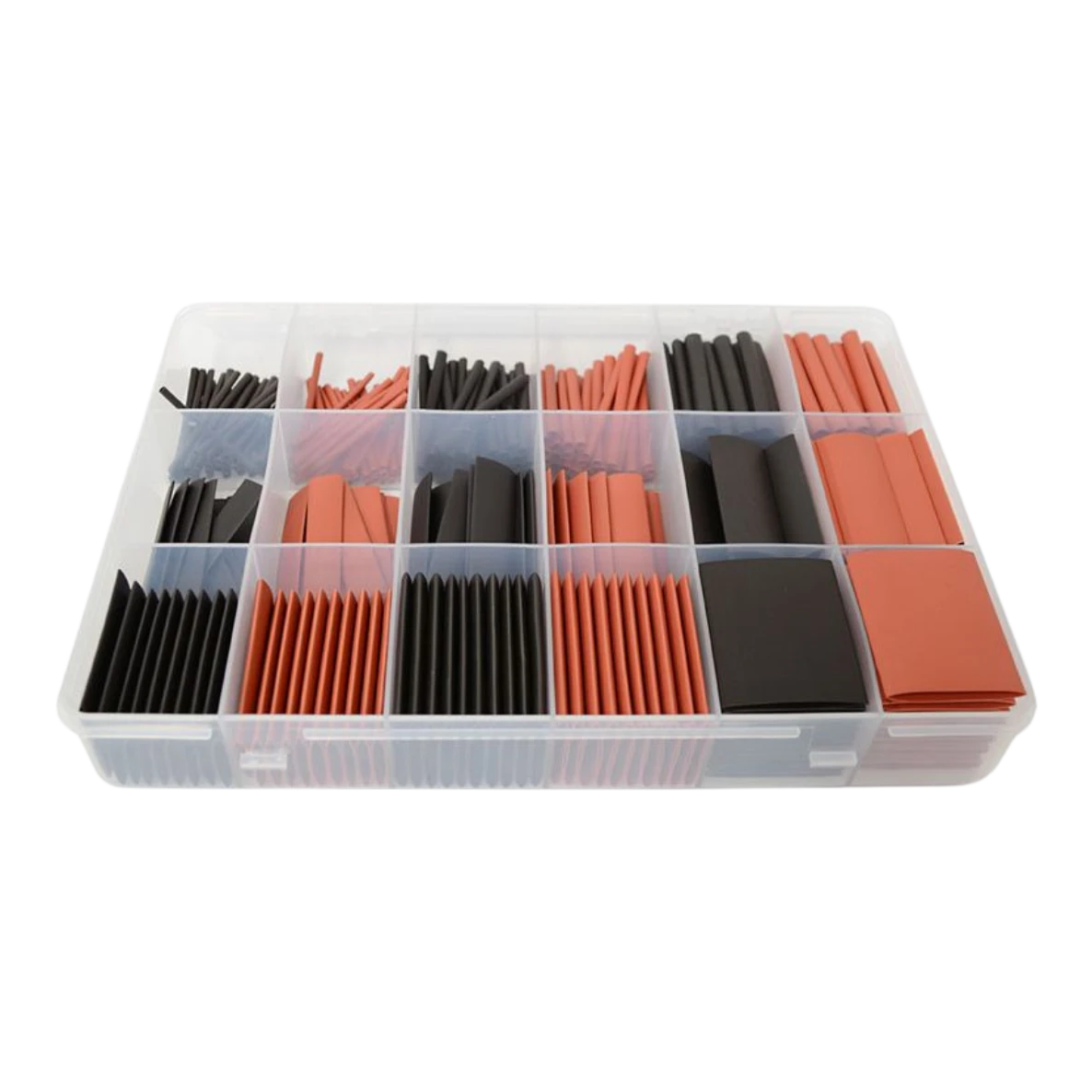

Heat shrink assortment kit, red and black, 300-piece set in divided caseHeat shrink kit contents laid out, red and black tubes, assorted sizesSingle-wall heat shrink tubing close-up, red and black

Elevate Automotive

Heat Shrink Kit — 300 Pieces, 9 Sizes, Red & Black

LV3360

Single-wall polyolefin heat shrink assortment, 300 pieces across 9 sizes from 2mm to 25mm, red and black, 2:1 shrink ratio, rated to 300V. Flame-retardant insulation only. Not waterproof.

MaterialPolyolefin, flame-retardant
Shrink ratio2:1 (half diameter under heat)
Voltage rating300V max

$69.00

4 interest-free payments of $17.25 with
or finance your build with
We accept
Universal workshop consumable, not vehicle-specific. Works on any wiring voltage up to 300V (polyolefin dielectric limit). Suits automotive, marine, caravan, 12V, 24V, 48V and mains-rated electrical insulation jobs.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

A 300-piece heat shrink assortment that covers a workshop wiring range from 2mm to 25mm across nine sizes, split between red and black so you can mark polarity or circuit function at a glance. Insulates crimped joins and spliced wires on automotive, marine and 12V/24V jobs. Fits a divided storage case so each size stays sorted at the bench.

Single-wall, non-adhesive polyolefin. Flame-retardant and self-extinguishing, rated to 300V. The 2:1 shrink ratio pulls each tube down to about half its original diameter under heat and grips the joint underneath for an insulated finish. Single-wall means it insulates but does not seal against water, so this kit is for dry-side insulation work; for a water-tight seal around battery lugs or outdoor joints, use adhesive-lined dual-wall tubing instead.

Heat the tube evenly with a proper heat gun, not a naked flame, until it shrinks snugly around the wire. Pick a diameter that slides on easily before shrinking, not one that just fits, otherwise the shrink range cannot do its job.

  • Polyolefin, flame-retardant — self-extinguishing when the heat is pulled away
  • Single-wall insulation — covers crimped joins and spliced wires, not a water seal
  • 2:1 shrink ratio — tube shrinks to about half diameter under heat
  • Rated to 300V — any 12V, 24V, 48V or mains electrical job
  • Red and black — mark polarity or circuit at a glance
  • Nine sizes, 2 to 25mm — covers a bench's working range
  • Divided case — sizes stay in their own compartments

Build

Material: Polyolefin, flame-retardant and self-extinguishing

Construction: Single-wall, non-adhesive

Shrink ratio: 2:1

Voltage rating: 300V maximum

Colours: Red and Black

Format

Total pieces: 300

Size count: 9 sizes

Size range: 2mm to 25mm

Tube length50mm (every tube in the kit)

Everything this install needs

10 of 10 in the box
2mm heat shrink30 Red + 30 Black (60 pieces)In the box
3mm heat shrink30 Red + 30 Black (60 pieces)In the box
5mm heat shrink30 Red + 30 Black (60 pieces)In the box
7mm heat shrink10 Red + 10 Black (20 pieces)In the box
10mm heat shrink10 Red + 10 Black (20 pieces)In the box
13mm heat shrink10 Red + 10 Black (20 pieces)In the box
16mm heat shrink10 Red + 10 Black (20 pieces)In the box
20mm heat shrink10 Red + 10 Black (20 pieces)In the box
25mm heat shrink10 Red + 10 Black (20 pieces)In the box
Divided storage caseIn the box
Universal workshop consumable, not vehicle-specific. Works on any wiring voltage up to 300V (polyolefin dielectric limit). Suits automotive, marine, caravan, 12V, 24V, 48V and mains-rated electrical insulation jobs.

Q: Is this tubing waterproof?
A: No. This is single-wall non-adhesive heat shrink. It insulates the joint but does not seal against water. For a water-tight seal around battery lugs or outdoor connections, choose an adhesive-lined dual-wall kit instead.

Q: What is the difference between single-wall and dual-wall heat shrink?
A: Single-wall tubing is one layer of shrinkable plastic. It insulates the joint but does not seal it. Dual-wall tubing has an outer shrinkable layer plus an inner adhesive lining that melts under heat and bonds to the wire for a water-tight seal. This kit is single-wall, so it is for insulation only.

Q: Can I use this on battery terminals?
A: Not for sealing. Dual-wall adhesive-lined heat shrink is the correct choice for sealing and insulating battery lugs and terminals so moisture cannot reach the copper. This kit can insulate exposed metal but will not seal it against water.

Q: What size heat shrink do I need for my wire?
A: Pick a tube that slides over the wire or joint easily before shrinking, not one that just fits. When in doubt go one size larger, the shrink pulls it in.

Q: How do I use it?
A: Cut the length you need, slide it over the connection before making the final crimp, then apply heat evenly with a heat gun until it shrinks tight around the wire.

Q: Can I shrink this with a lighter or naked flame?
A: No. A naked flame scorches the outer shell and leaves it brittle. Use a proper heat gun, or a butane torch on a very low blue flame if that is all you have.
