Hella Black Magic Cube LED Kits 12/24V 3.2"

SKU: 1FA 358 176-831
$195.00
Options3.2" Flood Light Set (Flush Mount)
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Universal fitment – suits most 4WDs, SUVs, and off-road vehicles

2 x HELLA 3.2" LED Cube Flood Lights

1 x Wiring Harness with DT Connector

1 x Relay

1 x Illuminated Switch

1 x Mounting Bracket Set

1 x Installation Guide

Width: 81 mm (3.2")

Height: 83 mm (3.3")

Depth: 68 mm (2.7")

Constructed from durable steel and finished with a protective powder coat Includes all necessary mounting hardware Designed for a direct fit into the engine bay of compatible models

 [{"variant_id":"47961459556625" , "metafield_value":""},{"variant_id":"47961574179089" , "metafield_value":""}]

Hella Black Magic Cube LED Kits 12/24V 3.2"

$195.00
Description

The HELLA Black Magic 3.2" LED Cubes are built to deliver powerful illumination for serious off-road performance. Engineered with premium materials and boasting the highest dust and water resistance ratings in the industry (IP68/IP69K), these lights are ready for the toughest environments.

Their stealth blackout design and sleek profile reduce dirt buildup and complement modern 4x4 aesthetics. Each cube delivers 3000 lumens from four high-performance LEDs, with multivolt support (10–30V DC) and a durable die-cast aluminium body.

The kit includes everything needed for a hassle-free installation—wiring harness, switch, relays, and mounting brackets—whether you’re fitting them upright, pendant, or integrated into bumpers or bars.

FEATURES

Blackout styling for stealth install

Flood beam pattern for wide-area visibility

Dust- and water-tight (IP68/IP69K rated)

Universal fit with compact footprint

Multivolt operation for 12V or 24V systems

Sleek, dust-repelling surface design

FAQ's

Q: Are these lights suitable for use on highways?
A: These are off-road auxiliary lights and are not ADR-approved for on-road use.

Q: Can I install these myself?
A: Yes, the kit includes a wiring harness, switch, and mounting hardware for DIY installation.

Q: Do they work with 12V and 24V systems?
A: Yes, they support multivolt input from 10–30V DC.

Specifications

LED high-beam cube lights

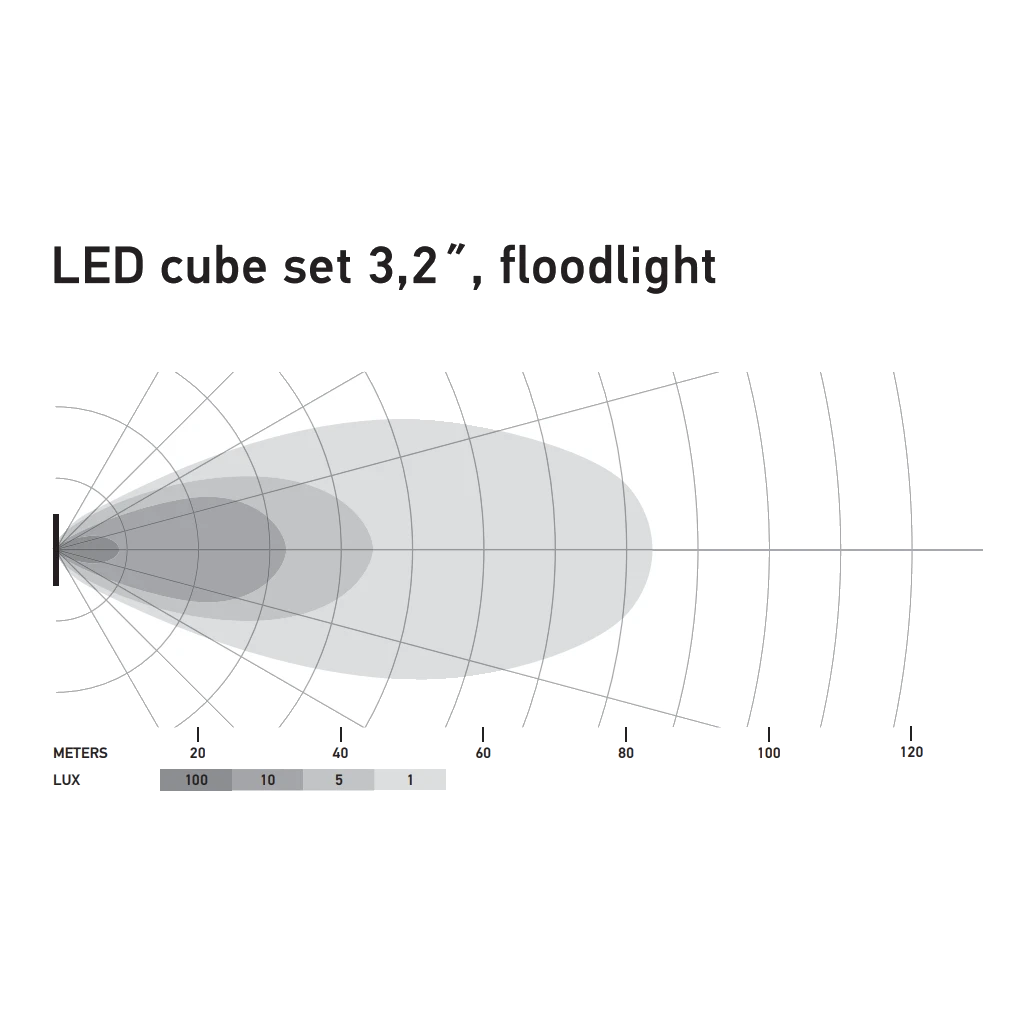

Light function: Flood beam

4 x high-intensity LEDs per light

Measured lumen output: 3000 lm

Multivolt: 10–30V DC

Current Draw: 3.4A @ 12V / 1.6A @ 24V

Power: 40W

Housing: Die-cast aluminium

Mounting Bracket: Black stainless steel

Connection: 500mm DT connector cable + adapter harness

EMC: ECE-R10 compliant

Color Temperature: 5700K

Weight: 358g per unit

Ingress Protection: IP68 / IP69K (dustproof + high-pressure waterproof)

Installation Information

Compact 3.2" size allows upright or pendant mounting, or integration into bumpers/bodywork

All necessary wiring and mounting components are included for plug-and-play setup

DT connector and short adapter harness simplify connection to existing systems

Product Information

Warranty Information

HELLA offers a 5-year warranty against defects in material or workmanship under normal off-road use.

PICKUP OR SHIPPING

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.
