Home / Lighting / Driving & light bars

Lazer Lamps Land Rover Defender 2020+ mounting kit, hero viewLazer Lamps Defender roof mount bracket detailLazer Lamps Defender roof mount bracket, side profileLazer Lamps Defender roof mount with Linear-42 lamp installedLazer Lamps Defender roof mount bracket detail viewLazer Lamps Defender roof mount with Triple-R lamp installedLazer Lamps Defender Sentinel roof pod mounting kitLazer Lamps CANNY CAN-bus interface for Defender integrationLazer Lamps Defender expedition rack mounting kitLazer Lamps Linear-12 lamps on Defender expedition rack mountLazer Lamps Defender roof mount vehicle viewLazer Lamps Defender integrated lighting kit, vehicle fittedLazer Lamps Defender fitted view, auxiliary lighting onLazer Lamps Defender Sentinel pods, vehicle viewLazer Lamps Defender integration kit, roofline detailLazer Lamps Defender mounting bracket hardware setLazer Lamps Defender roof mount fitting detail

Lazerlamps

Lazer Lamps Mounting Kits — Land Rover Defender 2020+

VIFK-DEF2020-0L

Lazer Lamps vehicle-specific brackets, pods and expedition rack kits for Land Rover Defender 2020+. No drilling, 3mm A2 stainless. Available as brackets alone or complete plug-and-play kits with Linear, Triple-R or Sentinel lamps.

Fitment: Defender 2020+
Material: 3mm A2 stainless
Install: No drilling

$375.00

4 interest-free payments of $93.75 with
or finance your build with
1. Style
2. Light
We accept
Vehicle-specific fitment

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

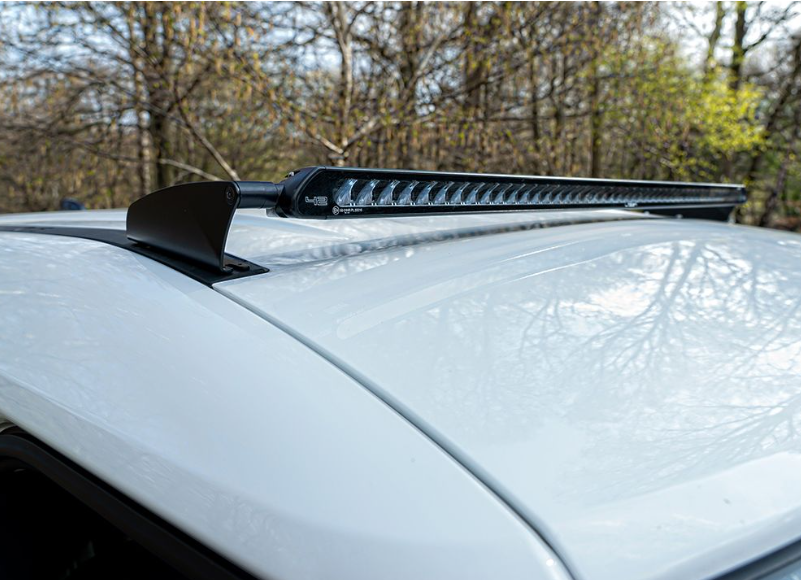

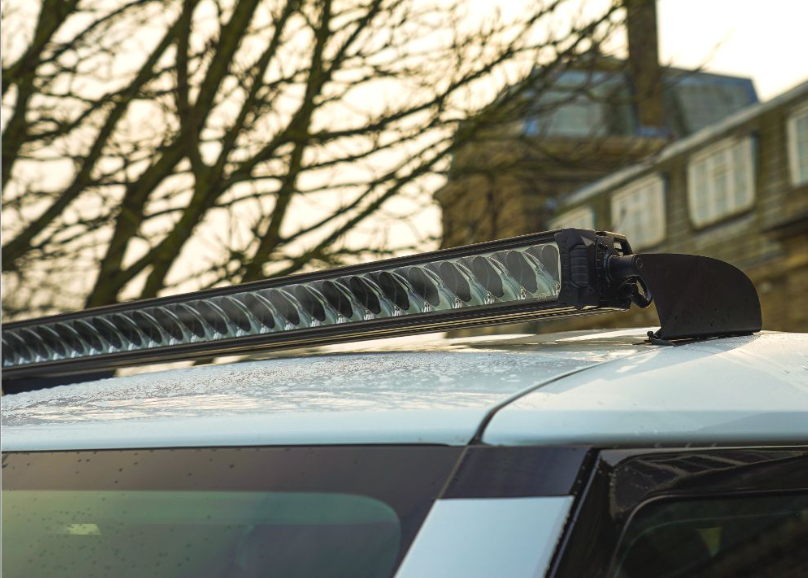

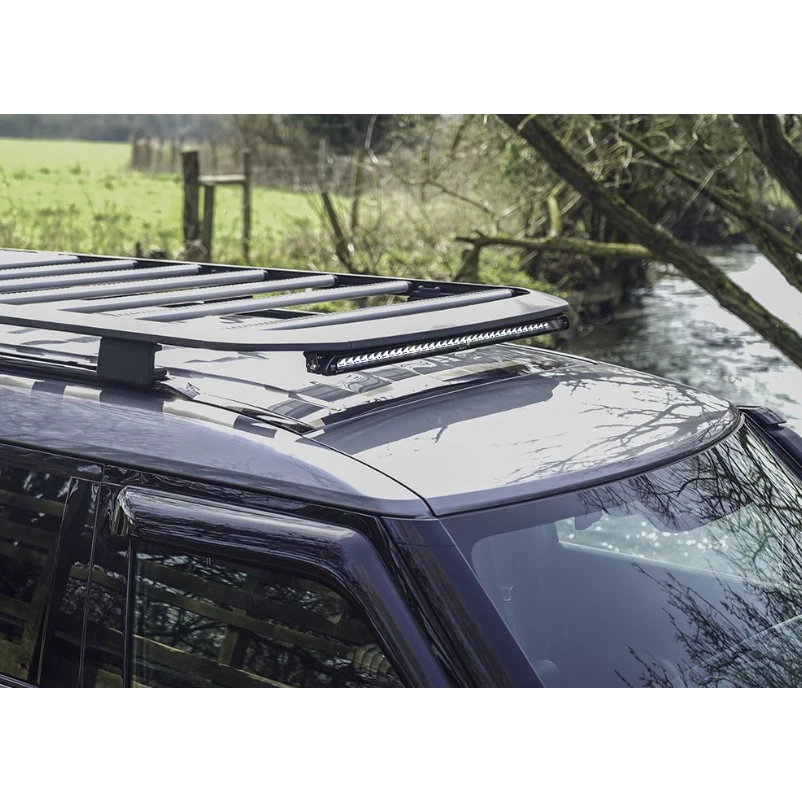

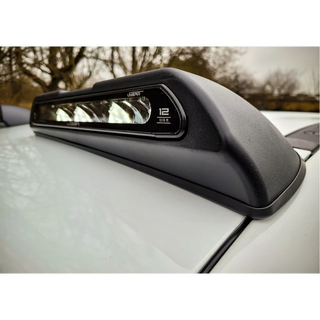

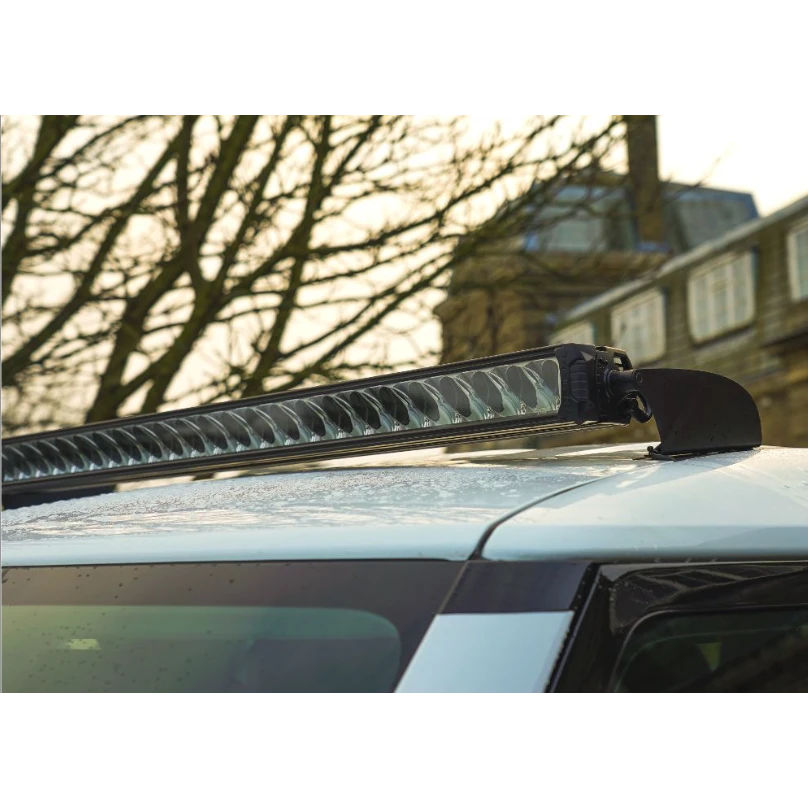

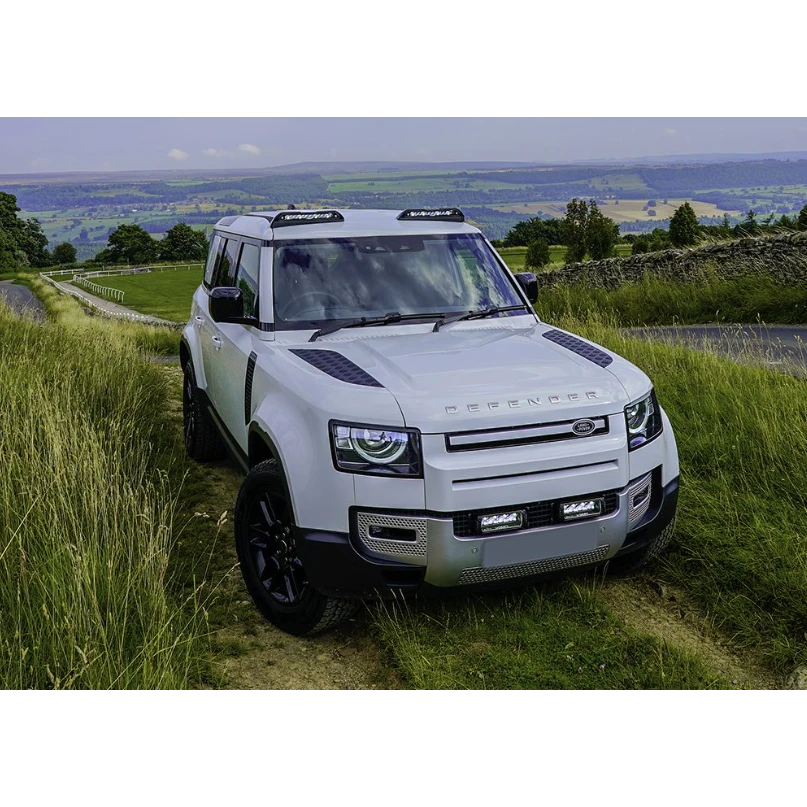

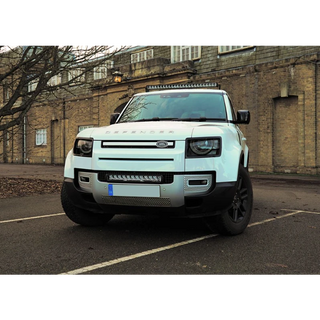

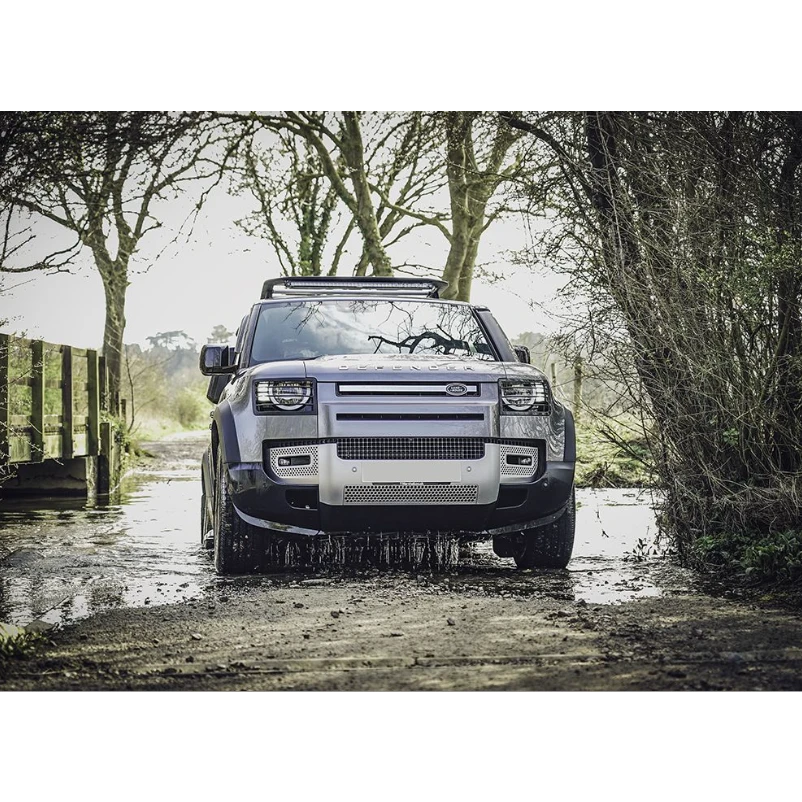

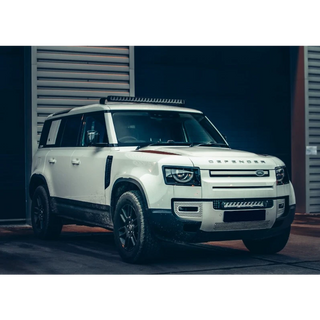

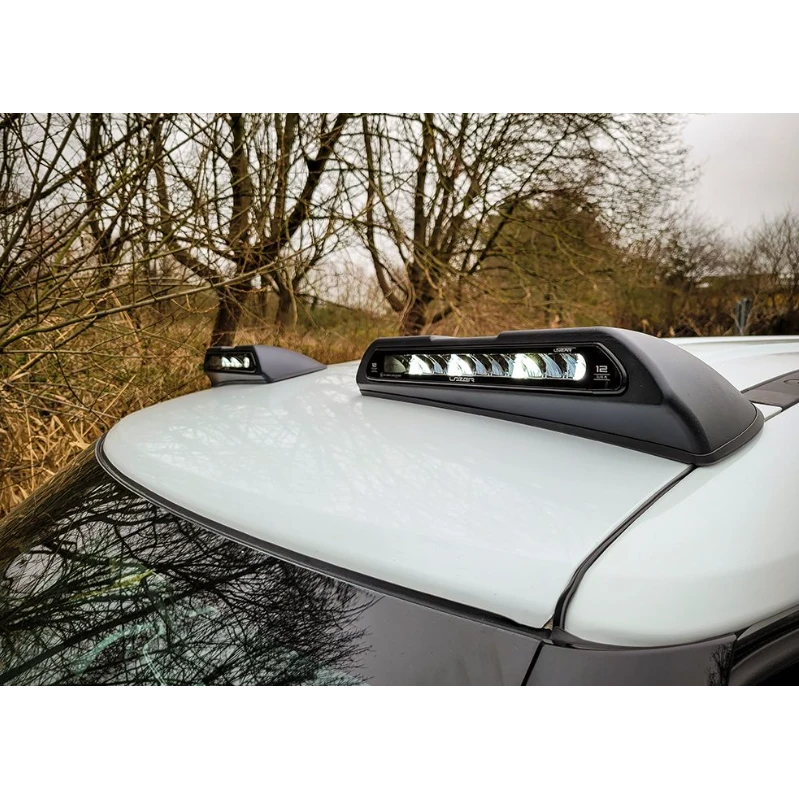

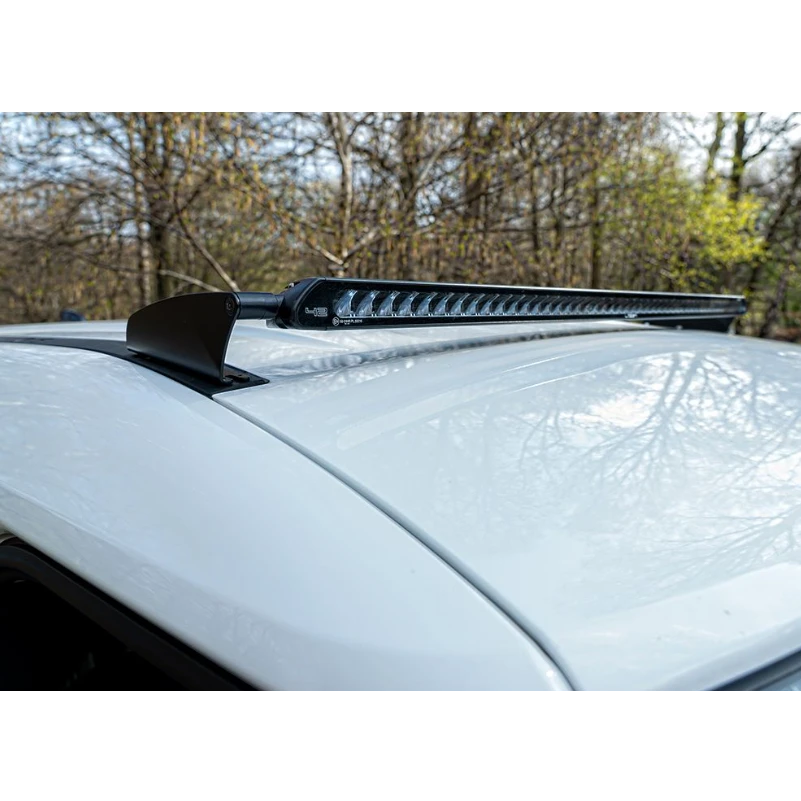

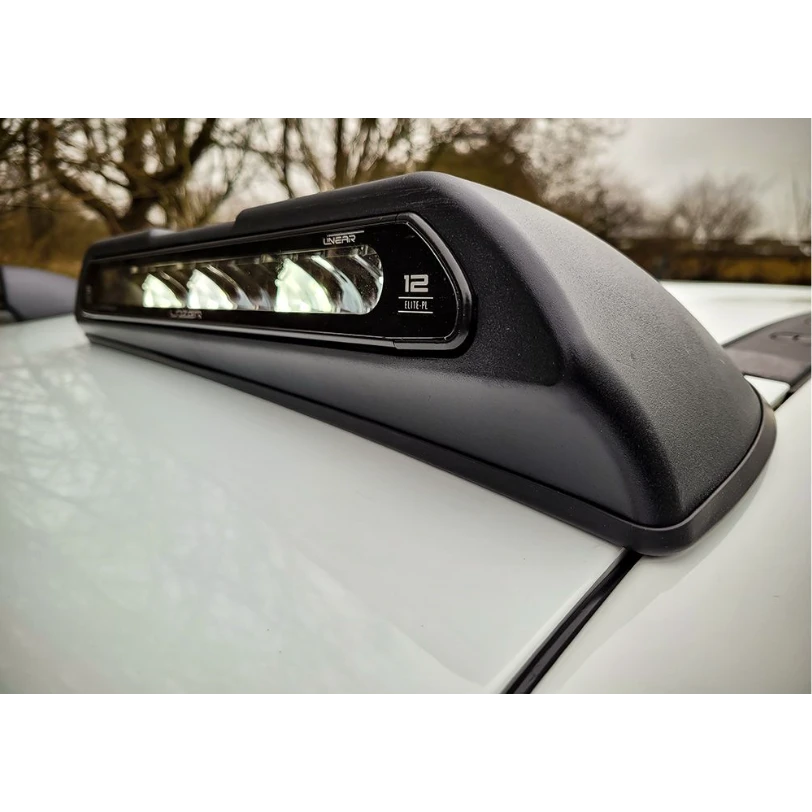

Vehicle-specific brackets, pods and expedition rack kits that bolt Lazer Lamps lighting onto the Land Rover Defender 2020+ without cutting or drilling. Roof mounts use the factory-drilled ditch holes under the gutter trim. Roof pods swap in beside the sunroof surround. Expedition rack kits fasten to the Land Rover Expedition rack. Pick a bracket-only variant to BYO lamp, or step up to a bundle that includes the matched Linear, Triple-R or Sentinel lamp and the OE-style wiring harness.

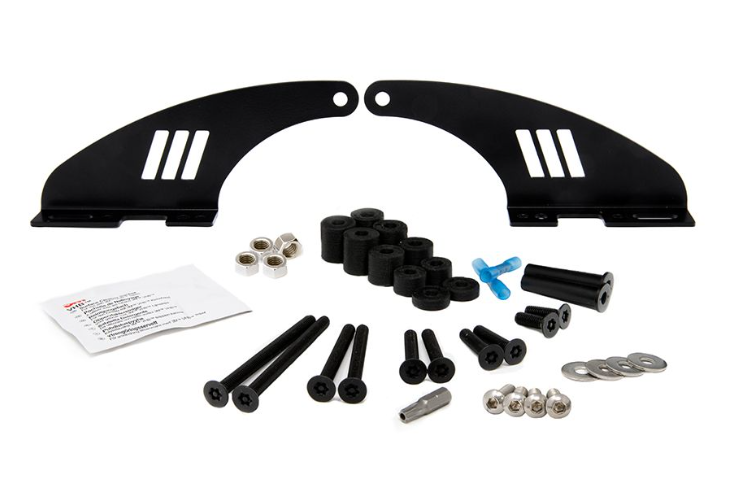

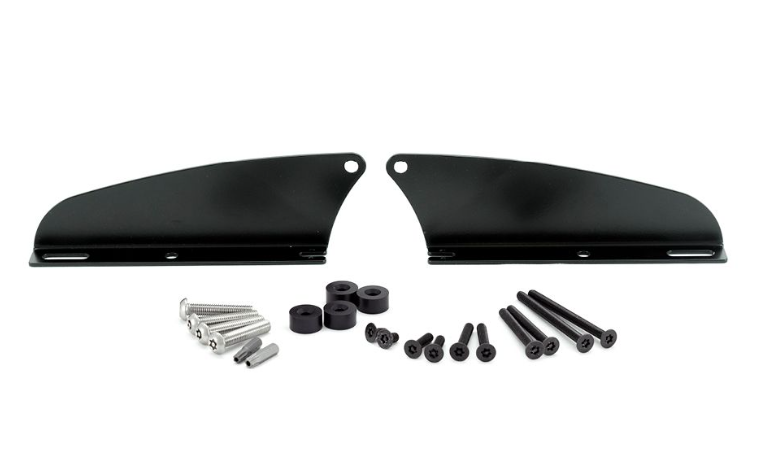

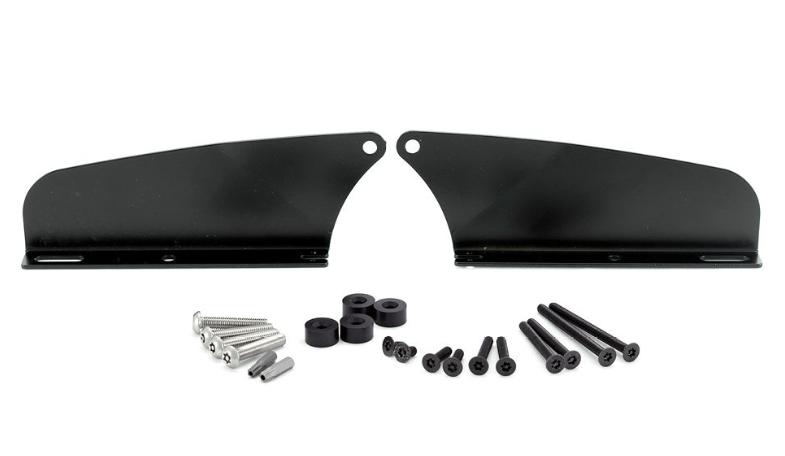

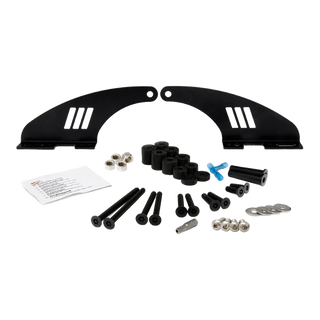

Brackets are 3mm A2 stainless steel with a UV-stable satin black powder coat. Fasteners are A2 stainless, countersunk and anti-theft, in matched lengths and spacer sets. Elite tier bundles add the CANNY CAN-bus interface so the auxiliary lamps follow the Defender's high beam, including on vehicles with LED Matrix headlights.

Panoramic sunroof or gloss roof-rail Defenders are not supported for the roof mount series. The brackets rely on standard ditch mountings. The roof pod kits are the alternative for those vehicles. Check the SKU wiring table below against the bracket type and lamp you want.

SKU and wiring guide

SKU What it fits and what ships in the kit
3001-DEF20-60-K Brackets only, for Lazer Linear-42
3001-DEF20-60-K42 Brackets + Linear-42 Standard + single-lamp harness (2-pin, Superseal, 12V)
3001-DEF20-60-K42E Brackets + Linear-42 Elite + single-lamp harness
3001-DEF20-73-K Brackets only, for Lazer Triple-R 24
3001-DEF20-73-K24E Brackets + Triple-R 24 Elite + single-lamp harness
3001-DEF20-73-K24EP Brackets + Triple-R 24 Elite+ + harness + licence plate relocation

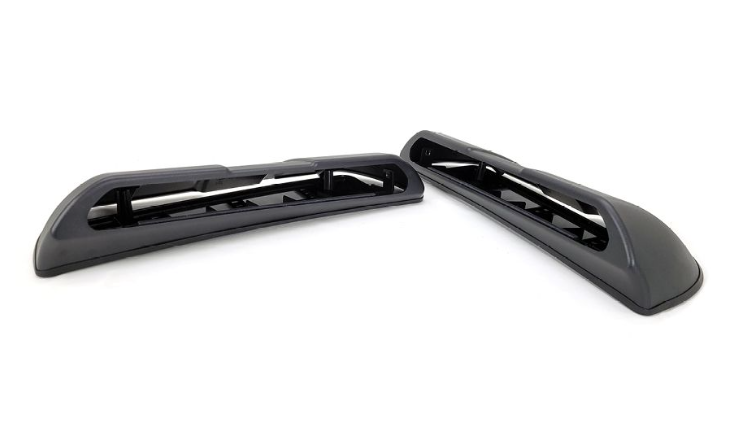

3001-DEF-67-K Sentinel pod brackets only (fits 2018 and 2020+ Defender)
3001-DEF-67-K28E Brackets + 1x Sentinel 7" Elite + harness
3001-DEF-67-K48 Brackets + 2x Sentinel 7" Standard + harness
3001-DEF-67-K48E Brackets + 2x Sentinel 7" Elite + harness

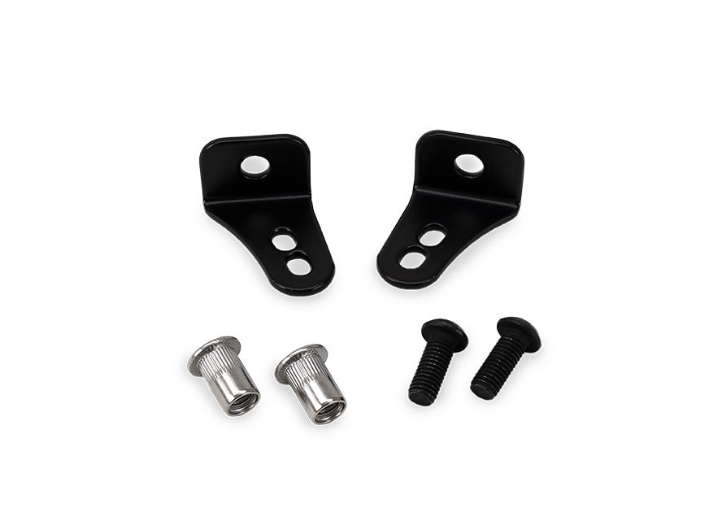

3001-RR-DEF Roof-rail extension bracket only
3001-RR-DEF36 Roof-rail bracket + Lazer lamp + single-lamp harness
3001-RR-DEF36E Roof-rail bracket + Lazer lamp Elite + harness

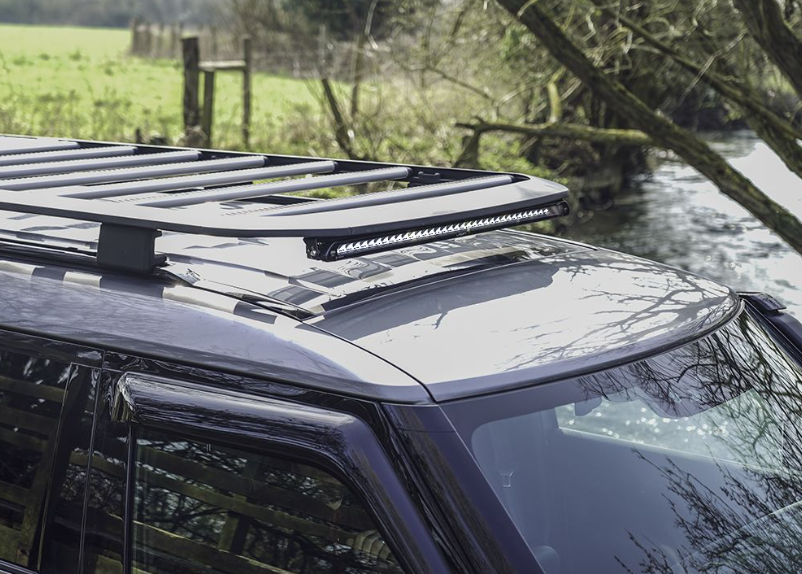

VIFK-DEF2020-0L Expedition rack mount brackets only
VIFK-DEF2020-0L12 Expedition brackets + 2x Linear-12 + 2-lamp wiring kit (2-pin + 3-pin Superseal 12V) + 3m extension (2-pin Econoseal)
VIFK-DEF2020-0L12E Expedition brackets + 2x Linear-12 Elite + 2-lamp wiring kit + 3m extension
VIFK-DEF2020-0L12EPL Expedition brackets + 2x Linear-12 Elite + wiring kits + licence plate kit
  • Vehicle-specific fit — brackets, pods and expedition rack kits for Defender 2020+
  • No drilling — uses factory ditch holes or OE mounting points
  • 3mm A2 stainless — UV-stable satin black powder coat
  • Anti-theft fasteners — countersunk A2 stainless in matched lengths
  • Plug-and-play wiring — OE-style harness on complete kits
  • ECE approved lamps — road legal in most regions
  • Position Light and i-LBA — on Elite lamp variants

Mount

Material: 3mm A2 stainless

Finish: Satin black powder coat

Fasteners: A2 stainless, anti-theft

Fitment: Defender 2020+

Electrical

Voltage: 12V DC

Connectors: Superseal

CAN interface: CANNY on Elite tiers

3001-DEF-67-K: 170mm × 250mm × 50mm, 2.0kg

3001-DEF-67-K28E: 170mm × 250mm × 50mm, 2.0kg

3001-DEF-67-K48: 170mm × 250mm × 50mm, 2.0kg

3001-DEF-67-K48E: 170mm × 250mm × 50mm, 2.0kg

3001-DEF20-60-K: 150mm × 280mm × 90mm, 2.0kg

3001-DEF20-60-K42: 150mm × 280mm × 90mm, 2.0kg

3001-DEF20-60-K42E: 150mm × 280mm × 90mm, 2.0kg

3001-DEF20-73-K: 150mm × 280mm × 90mm, 2.0kg

3001-DEF20-73-K24E: 150mm × 280mm × 90mm, 2.0kg

3001-DEF20-73-K24EP: 150mm × 280mm × 90mm, 2.0kg

3001-RR-DEF: 10mm × 80mm × 200mm, 0.5kg

3001-RR-DEF36: 10mm × 80mm × 200mm, 0.5kg

3001-RR-DEF36E: 10mm × 80mm × 200mm, 0.5kg

VIFK-DEF2020-0L: 150mm × 280mm × 90mm, 1.5kg

VIFK-DEF2020-0L12: 150mm × 280mm × 90mm, 1.5kg

VIFK-DEF2020-0L12E: 150mm × 280mm × 90mm, 1.5kg

VIFK-DEF2020-0L12EPL: 150mm × 280mm × 90mm, 1.5kg


No drilling required. Mounts use existing OEM mounting points (roof rails or rack). All required fixings included. Optional lamps preconfigured and plug-and-play ready.



Vehicle-specific fitment
Land Rover Defender L663 (2020+)
Land Rover Defender L663 2018 — 3001-DEF-67-K series only
Not for panoramic sunroof or gloss roof-rail Defenders — roof mount kits need the standard ditch mounts
Not for pre-2018 Defender (L316)

Q: Which mount do I need?

The 3001-DEF20-60-K series fits a Lazer Linear-42 bar; the 3001-DEF20-73-K series fits a Triple-R 24; the 3001-DEF-67-K series fits the Sentinel pods (and also fits the 2018 Defender for that SKU family only); the 3001-RR-DEF series is a small roof-rail extension; the VIFK-DEF2020-0L series fits the Land Rover Expedition Rack.

Q: What is the difference between Linear-42, Triple-R and Sentinel?

Linear bars give a low-profile look and a wide spread beam; Triple-R bars give a focused long-range beam; Sentinel pods combine a round pod form factor with a DRL ring. Pick by beam pattern and roofline look you want.

Q: What is the difference between Standard and Elite?

Elite adds a Position Light / i-LBA DRL function to the lamp and includes the OE-style wiring loom. Standard is the lamp alone and needs a separate harness.

Q: Does the install need drilling?

No. Roof mounts use the factory-drilled ditch holes under the gutter trim. Roof pods use the OE pod mount points. Expedition rack kits bolt to the Land Rover Expedition rack. All fixings are included.

Q: Will this fit a panoramic sunroof Defender?

The roof mount kits do not fit panoramic sunroof or gloss roof-rail Defenders — those rooflines do not have the standard ditch mounts the brackets need. Roof pod kits are the alternative for those vehicles.

Q: What is CANNY and when do I need it?

CANNY is a Lazer CAN-bus interface that reads the Defender's lighting messages so the auxiliary lamps follow high-beam. Defenders with LED Matrix headlights need it to trigger the auxiliaries from the stalk; non-Matrix Defenders can use direct wiring. The Elite kits include the CANNY unit.

Q: Are the lamps road legal?

Lazer Linear, Triple-R and Sentinel lamps supplied in these kits are ECE approved and legal for road use in most regions. Local on-road use rules still apply — check your state or territory requirements before fitting.

Q: Can I buy the brackets alone and add the lamp later?

Yes. Each series has a brackets-only SKU and matching bundle SKUs that add the lamp and wiring. The brackets, lamp and loom are the same parts in both paths, so a staged upgrade reaches the same end point.

Q: Which SKU covers the 2018-model Defender?

Only the 3001-DEF-67-K series (the Sentinel-pod mount family) fits the 2018 Defender; every other series on this listing is 2020+ only.
