Lazerlamps Triple-R

CAI-Optimised Reflector System for superior beam control

Intelligent Low Beam Assist on select Elite models

Integrated Beacon mode on Beacon variants

E-Boost dual output mode

IP67/IP69K rated for dust and water resistance

Durable aluminum housing and polycarbonate lens

Multi-voltage (10–32V) compatibility

50,000-hour LED lifespan

EMC approved

Model: Triple-R 750

Lumens: 4,620 lm
Beam Distance: 1,067 m
Beam Width: ~25°
Position/Beacon: No
i-LBA: No
Connector: 2-pin
Length (mm): 230
Mounting: Centre
Current @14.4V (A): 1.5


Model: Triple-R 750 Elite

Lumens: 5,400 lm
Beam Distance: 1,204 m
Beam Width: ~25°
Position/Beacon: No
i-LBA: No
Connector: 2-pin
Length (mm): 230
Mounting: Centre
Current @14.4V (A): 1.8


Model: Triple-R 850

Lumens: 6,930 lm
Beam Distance: 1,061 m
Beam Width: ~26°
Position/Beacon: Yes (PL)
i-LBA: No
Connector: 3-pin
Length (mm): 266
Mounting: Side
Current @14.4V (A): 2.3


Model: Triple-R 850 Elite

Lumens: 7,500 lm
Beam Distance: 1,200 m
Beam Width: ~26°
Position/Beacon: Yes (PL)
i-LBA: No

Connector: 3-pin

Length (mm): 266
Mounting: Side
Current @14.4V (A): 2.6


Model: Triple-R 1000

Lumens: 9,240 lm
Beam Distance: 1,225 m
Beam Width: ~27°
Position/Beacon: No
i-LBA: No
Connector: 2-pin
Length (mm): 340
Mounting: Centre
Current @14.4V (A): 3.0


Model: Triple-R 1000 with Beacon

Lumens: 9,240 lm
Beam Distance: 1,225 m
Beam Width: ~27°
Position/Beacon: Yes (Beacon
i-LBA: No
Connector: 4-pin
Length (mm): 340
Mounting: Centre
Current @14.4V (A): 3.0


Model: Triple-R 1000 Elite

Lumens: 10,000 lm
Beam Distance: 1,260 m
Beam Width: ~28°
Position/Beacon: No
i-LBA: No
Connector: 2-pin
Length (mm): 340
Mounting: Centre
Current @14.4V (A): 3.3

Model: Triple-R 1000 Elite i-LBA

Lumens: 10,000 lm
Beam Distance: 1,260 m
Beam Width: ~28°
Position/Beacon: No
i-LBA: Yes
Connector: 4-pin
Length (mm): 340
Mounting: Centre
Current @14.4V (A): 3.3


Model: Triple-R 1250

Lumens: 13,860 lm
Beam Distance: 1,500 m
Beam Width: ~30°
Position/Beacon: No
i-LBA: No
Connector: 2-pin
Length (mm): 405
Mounting: Centre
Current @14.4V (A): 4.4


Model: Triple-R 1250 Elite i-LBA

Lumens: 15,000 lm
Beam Distance: 1,600 m (est.)
Beam Width: ~30°
Position/Beacon: No
i-LBA: Yes
Connector: 4-pin
Length (mm): 405
Mounting: Centre
Current @14.4V (A): 5.0


Model: Triple-R 1250 Elite Plus

Lumens: 14,000 lm
Beam Distance: 1,750 m (est.)
Beam Width: ~32°
Position/Beacon: No
i-LBA: No
Connector: 2-pin
Length (mm): 405
Mounting: Centre
Current @14.4V (A): 4.7


Model: Triple-R 16 Elite

Lumens: 18,040 lm
Beam Distance: 960 m
Beam Width: ~30°
Position/Beacon: No
i-LBA: No
Connector: 2-pin
Length (mm): 765
Mounting: Centre
Current @14.4V (A): 5.8


Model: Triple-R 24 Elite

Lumens: 27,060 lm
Beam Distance: 1,176 m
Beam Width: ~30°
Position/Beacon: No
i-LBA: No
Connector: 2-pin
Length (mm): 1125
Mounting: Centre
Current @14.4V (A): 8.7


Model: Triple-R 24 Elite Plus

Lumens: 24,056 lm + 40 amber
Beam Distance: 1,176 m
Beam Width: ~54° (white)
Position/Beacon: Yes (White/Amber)
i-LBA: No
Connector: 2 & 3-pin
Length (mm): 1125
Mounting: Centre

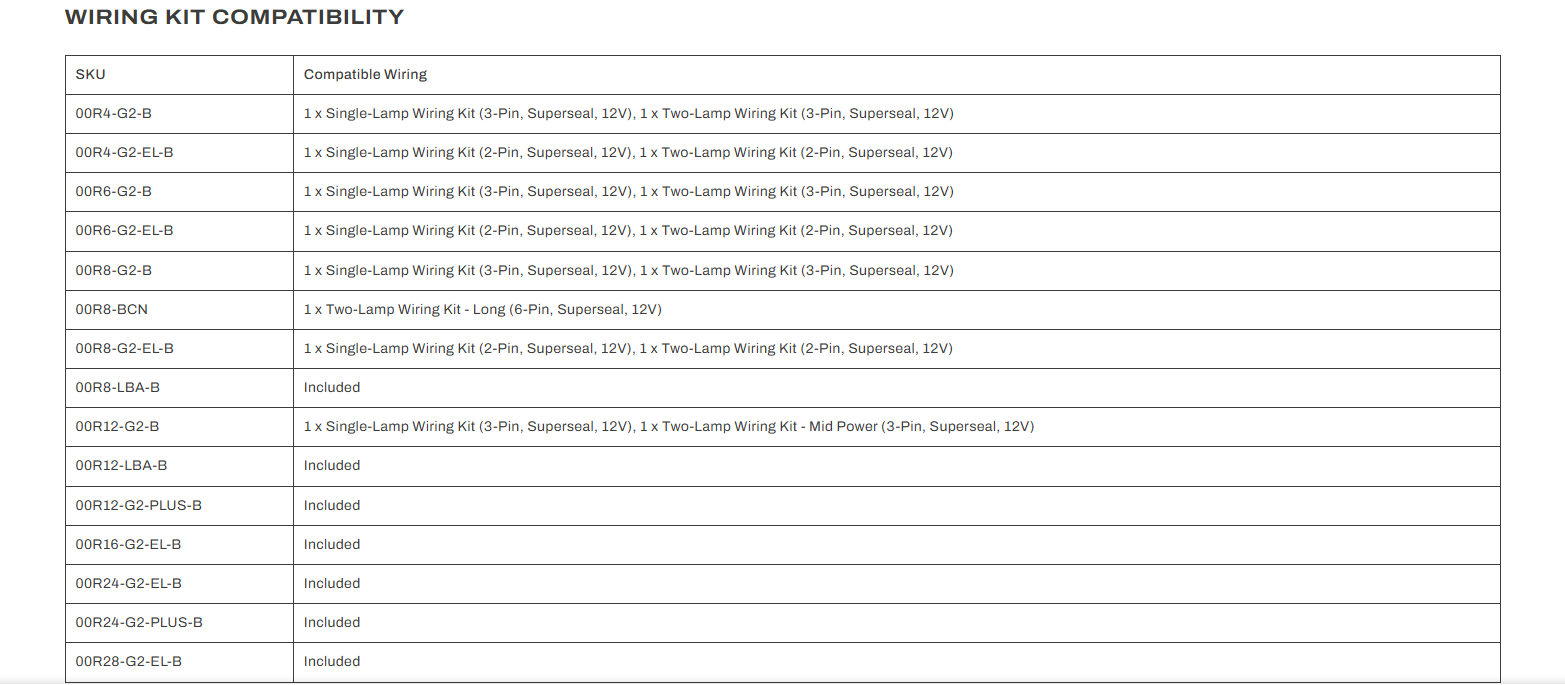

Professional installation is recommended to ensure optimal performance and compliance with local regulations. Wiring kits are available for all models.

All Triple-R models come with a 5-year manufacturer-backed warranty covering defects in materials and workmanship.

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.

Q: Are Triple-R lights road legal?
A: Many Triple-R models meet ECE and ADR lighting standards. Always check local laws to ensure compliance.

Q: Can these lights be used on both 12V and 24V vehicles?
A: Yes, all Triple-R lights support a wide voltage range of 10–32V, making them compatible with most vehicles.

Q: What is Intelligent Low Beam Assist (i-LBA)?
A: i-LBA is an adaptive lighting technology available on select Elite models that automatically adjusts beam intensity to reduce glare and improve safety.

Q: Are the lights waterproof and dustproof?
A: Yes, all models are rated IP67/IP69K, fully sealed against dust ingress and water immersion or pressure washing.

Q: What is E-Boost Technology?
A: E-Boost offers dual output modes allowing you to switch between full brightness and a road-legal lower brightness mode.

Q: Do the lights come with mounting hardware and wiring kits?
A: Mounting brackets are included, but wiring kits may be sold separately depending on the model and purchase option.

Q: How long do the LEDs last?
A: The LEDs have a rated lifespan of approximately 50,000 hours under normal use.

Q: What warranty covers these lights?
A: All Triple-R models include a 5-year warranty against defects in materials and workmanship.
