Lazer Lamps Utility LED Work Light
00U25-U-B
Lazer Lamps Utility LED work lights for 4WDs, trucks, agricultural and industrial machinery. 10-32V multi-voltage, IP68/IP69K sealed, polycarbonate lens. Standard, Slim, Wide, HD and Strobe variants. Deutsch DT connectors.
$175.00
Shipping & collection
*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

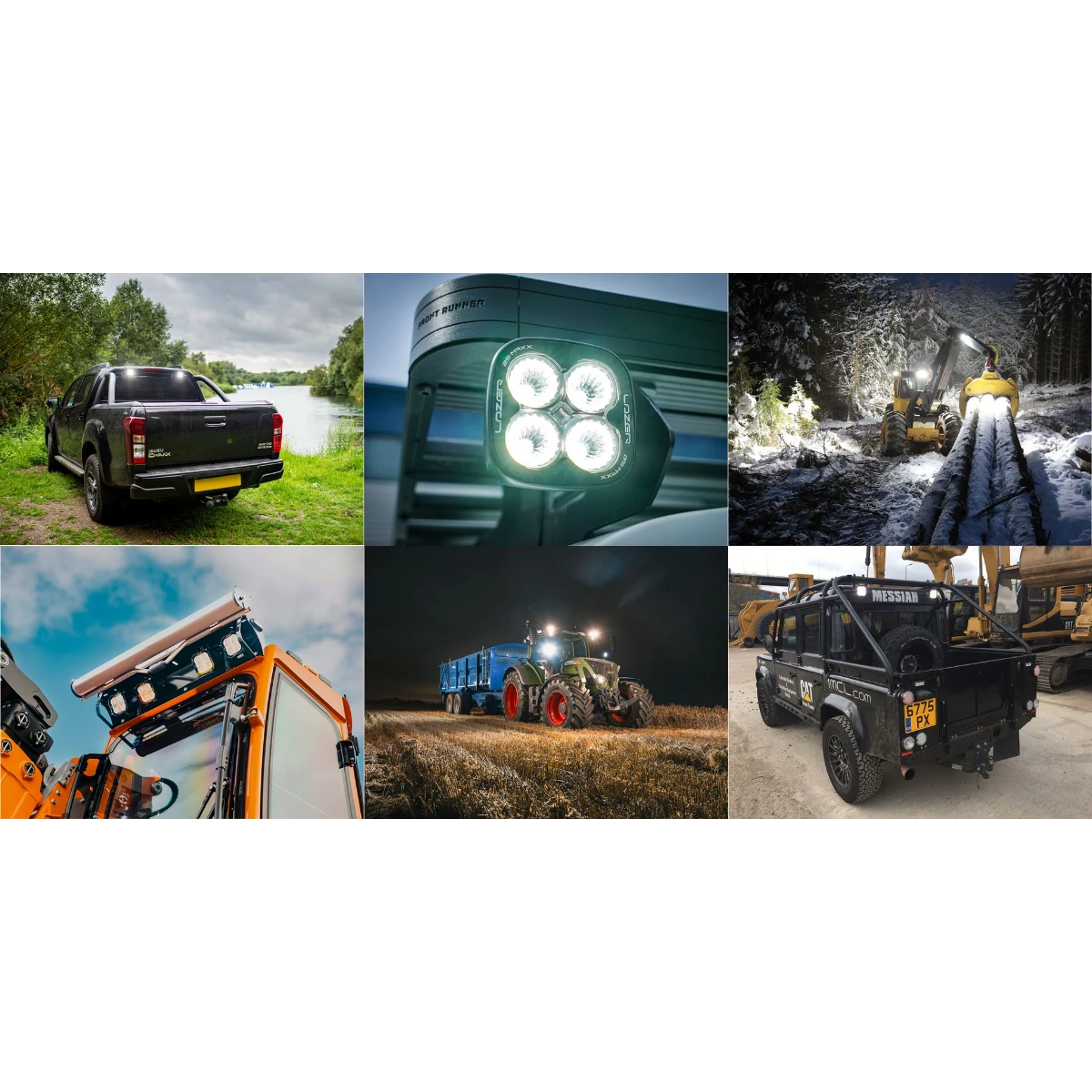

Lazer Lamps Utility LED work lights put high-output premium-bin LEDs behind vacuum-metallised optics and a polycarbonate hard-coated lens. 10-32V multi-voltage means one lamp runs on both 12V and 24V systems. Fits 4WDs, UTVs and ATVs through to agricultural, industrial, mining and fleet equipment.
Housings are die-cast aluminium, sealed to IP68 and IP69K against dust, water and high-pressure wash. Lenses are polycarbonate hard-coated for gravel and brush. 5000K beam temperature gives natural white light for true colour rendition at work. Connectors are Deutsch DT with 2-pin or 4-pin options depending on variant.
The G2 Utility-25, Utility-25 MAXX, Utility-45, Utility-50 and Utility-80 variants carry ECE R112 certification for on-road use. The Utility-80 HD and Utility-80 HD Variable variants are off-road and work-site only. Pick the output and beam pattern first, then match the bracket style to the surface it mounts on.
SKU and wiring guide
| SKU | Model and compatible wiring |
|---|---|
| 00U25-U-B | Utility-25 Standard, 2-Pin Deutsch DT 12V wiring kits available |
| 00U25-MAXX-B | Utility-25 MAXX, 2-Pin Deutsch DT 12V wiring kits available |
| 00U45-G2-Slim | Utility-45 G2 Slim bracket, 2-Pin Deutsch DT 12V wiring kits available |
| 00U45-G2-Wide | Utility-45 G2 Wide bracket, 2-Pin Deutsch DT 12V wiring kits available |
| 00U50-B | Utility-50 Standard, 2-pin and 4-pin Deutsch DT wiring kits available |
| 00U50-RED-B | Utility-50 Red, 2-pin and 4-pin Deutsch DT wiring kits available |
| 00U50-STRB-B | Utility-50 Strobe, 2-pin and 4-pin Deutsch DT wiring kits available |
| 00U50-STRB-RED-B | Utility-50 Strobe Red, 2-pin and 4-pin Deutsch DT wiring kits available |
| 00U80-HD | Utility-80 HD, 2-pin and 4-pin Deutsch DT wiring kits available |
| 00U80-G2-Slim | Utility-80 G2 Slim bracket, wiring included |
| 00U80-G2-Wide | Utility-80 G2 Wide bracket, wiring included |
| 00U80-HD-Variable | Utility-80 HD with variable brightness, 2-pin and 4-pin Deutsch DT wiring kits available |
- Premium-bin LEDs — high output per watt with consistent colour
- Vacuum-metallised optics — superior beam control
- IP68 / IP69K sealed — against dust, water and high-pressure wash
- Polycarbonate lens — hard-coated against gravel and brush
- 10-32V multi-voltage — one lamp for 12V and 24V systems
- 5000K natural white — true colour rendition for work
- EMC and CISPR-25 certified — safe near radios and sensitive electronics
- Multiple bracket options — standard, slim, wide, or dual-function

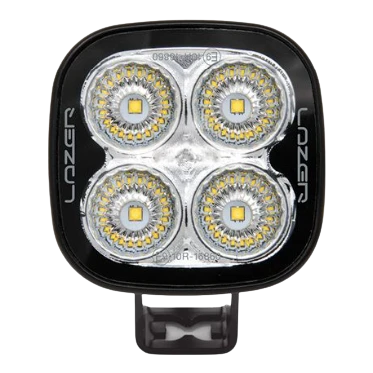

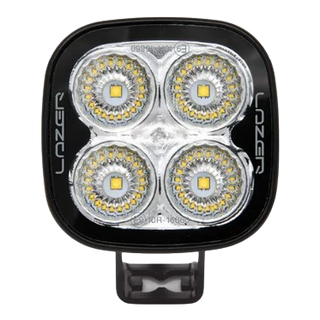

Utility-25
Raw lumens: 3,016
Current draw: 1.6A
Beam angle: 78°
Bracket: Standard

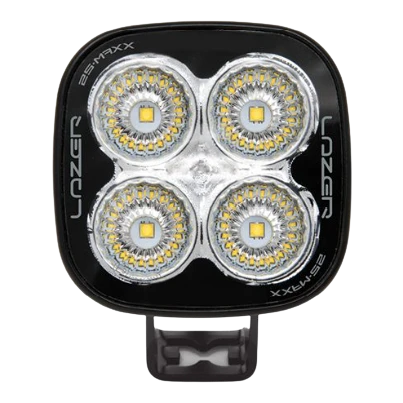

Utility-25 MAXX
Raw lumens: 4,560
Current draw: 3.1A
Beam angle: 78°
Bracket: Standard

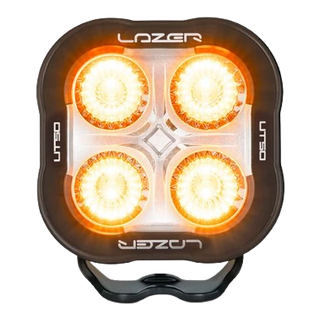

Utility-45 G2
Raw lumens: 4,560
Current draw: 3.1A
Beam angle: 74°
Lux at 50 lx: 16m
Bracket: Slim or Wide

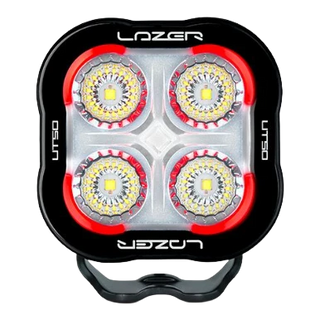

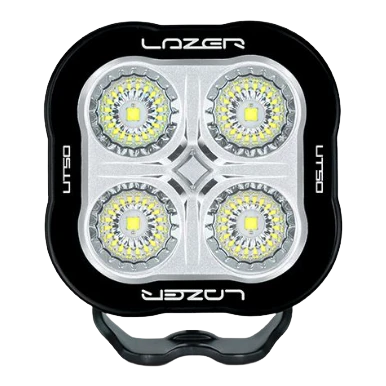

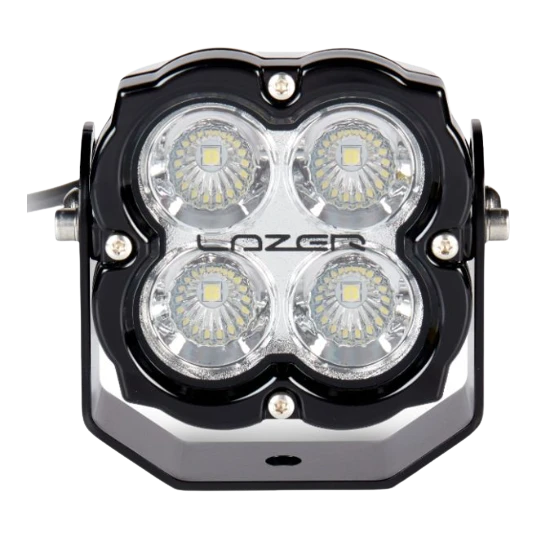

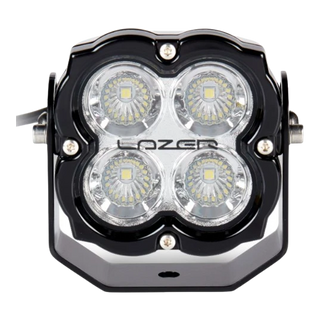

Utility-50
Raw lumens: 5,000
Current draw: 7.25A
Beam angle: Wide
Bracket: Standard or Dual-function
Variants: White, Red, Strobe, Strobe Red

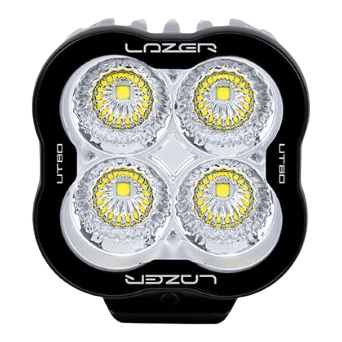

Utility-80 G2
Raw lumens: 8,820
Current draw: 5.5A
Beam angle: 74°
Lux at 50 lx: 19m
Bracket: Slim or Wide

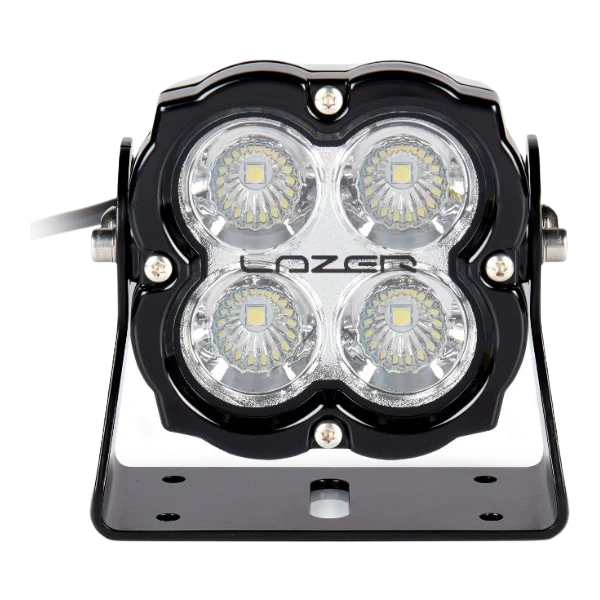

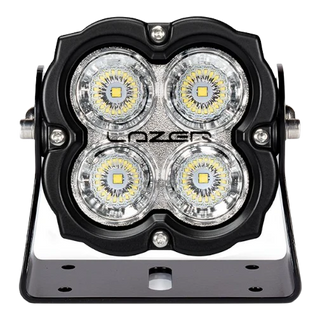

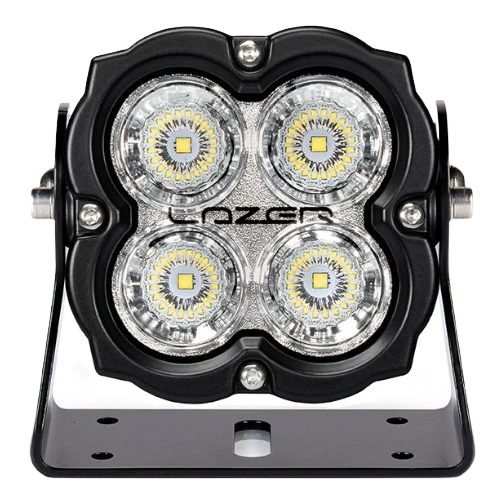

Utility-80 HD
Raw lumens: 8,940
Current draw: 5.6A
Beam angle: Wide
Lux at 50 lx: 19m
Bracket: Standard or Variable Brightness
Note: Off-road and work-site only, not ECE R112 certified for on-road use
