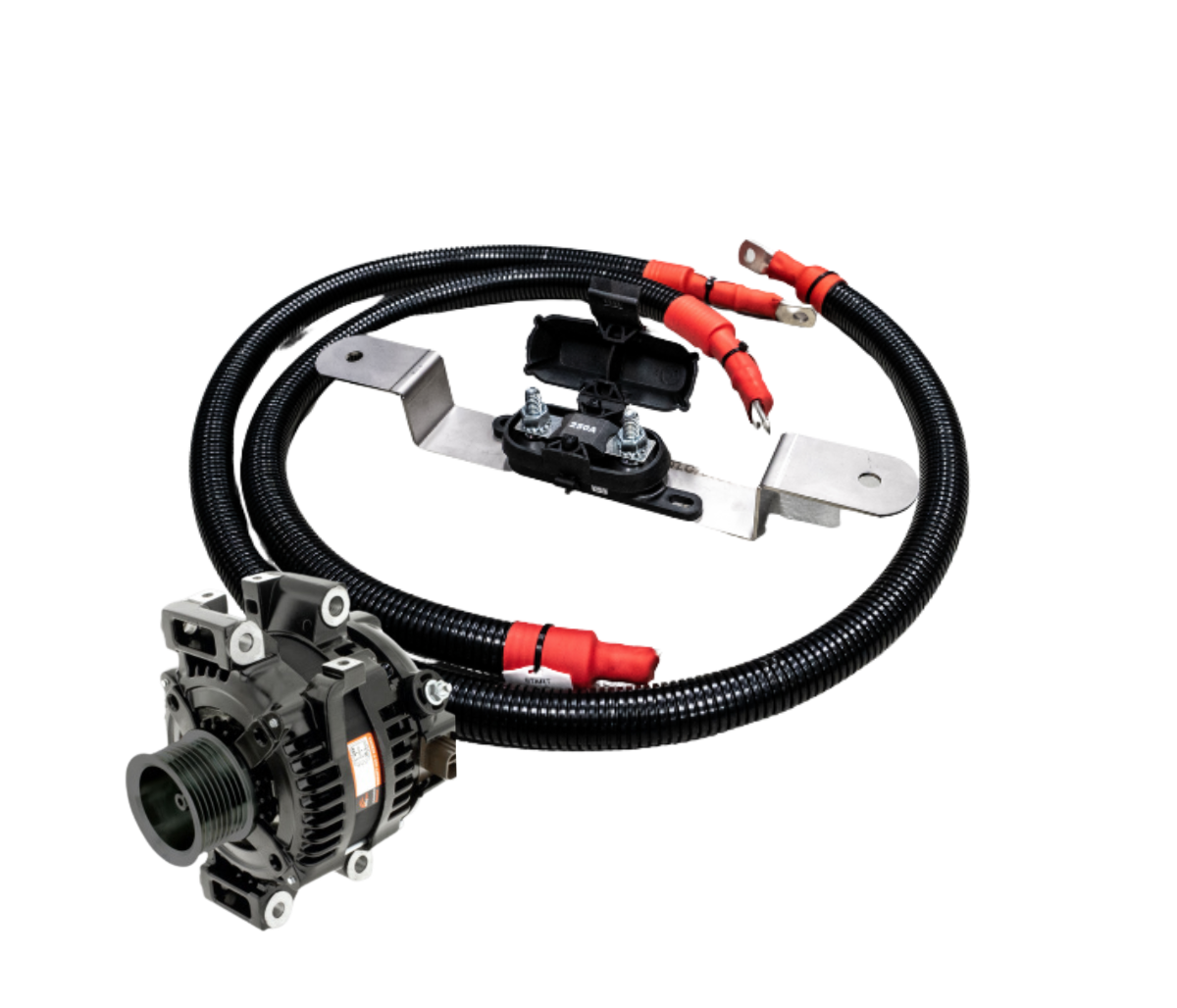

Toyota LandCruiser 200 Series 1VD 240A Upgraded Alternator Kit (BKS-240LC)
BOLTS INTO THE FACTORY LOCATION
160mm mount spacing, 65mm leg ID and a 17mm shaft, all matching the original, so no brackets or spacers
250A FUSED HARNESS INCLUDED
Cable sized to carry the full output, so it reaches the battery instead of heating up undersized factory wire
240A REPLACES 130A
Close to double the factory output, so a loaded touring system is no longer sitting at capacity.
WIRES TO THE FACTORY PLUG
Internal regulator on the EP35 plug with the original B+, S, IG and L terminals, so it lands on the standard connector
217A HOT, NOT JUST COLD
The honest working figure at 13.5V once up to temperature, rather than the cold bench rating alone
Upgrade your Toyota LandCruiser 200 Series with a high-output charging system built for serious touring, towing, and modern off-grid power demands. This kit combines the BKS-240LC Black Series 240A alternator with the Elevate Automotive upgraded alternator wiring harness, purpose-built for the 1VD-FTV platform.
Designed to support dual battery systems, high-load accessories, and long-distance touring setups, this upgrade delivers strong, stable charging performance where factory systems start to fall short.
Whether you’re running fridges, compressors, lighting, winches, or full canopy power systems, this kit ensures your electrical system keeps up.
Quick Specs
Warranty
Connecting this alternator directly to a lithium battery voids the warranty. A DC to DC charger must be fitted between the alternator and any lithium bank.
