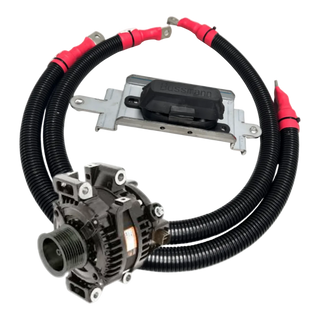

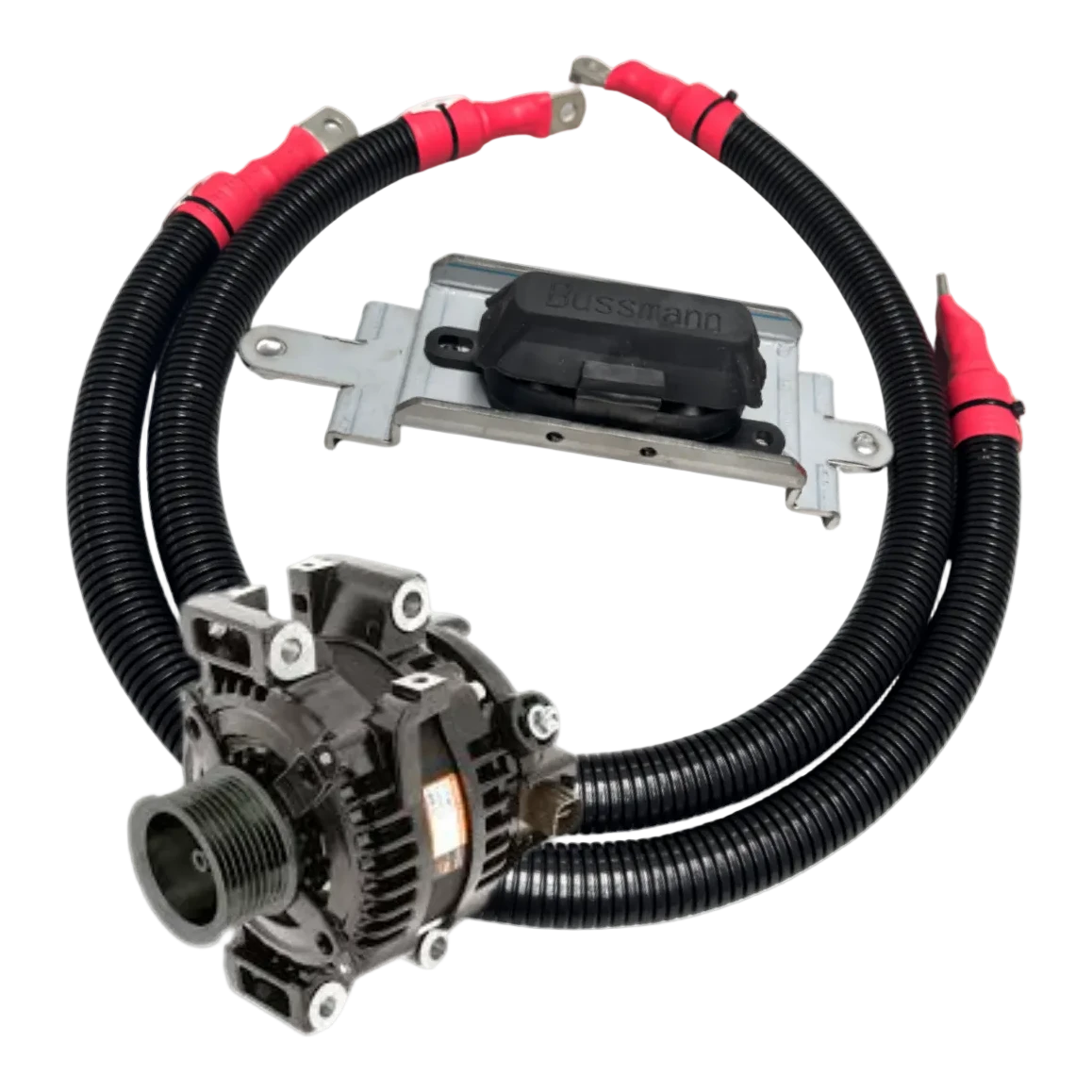

Toyota LandCruiser 70 Series 1GD 2.8L 240A Upgraded Alternator Kit (BKS-240TP)
BOLTS INTO THE FACTORY LOCATION
161mm mount spacing, 55mm leg ID and a 17mm shaft, all matching the original, so no brackets or spacers
217A HOT, NOT JUST COLD
The honest working figure at 13.5V once up to temperature, rather than the cold bench rating alone
240A REPLACES 90A
Nearly triple the factory output, with the headroom a fridge, lights and a compressor actually need.

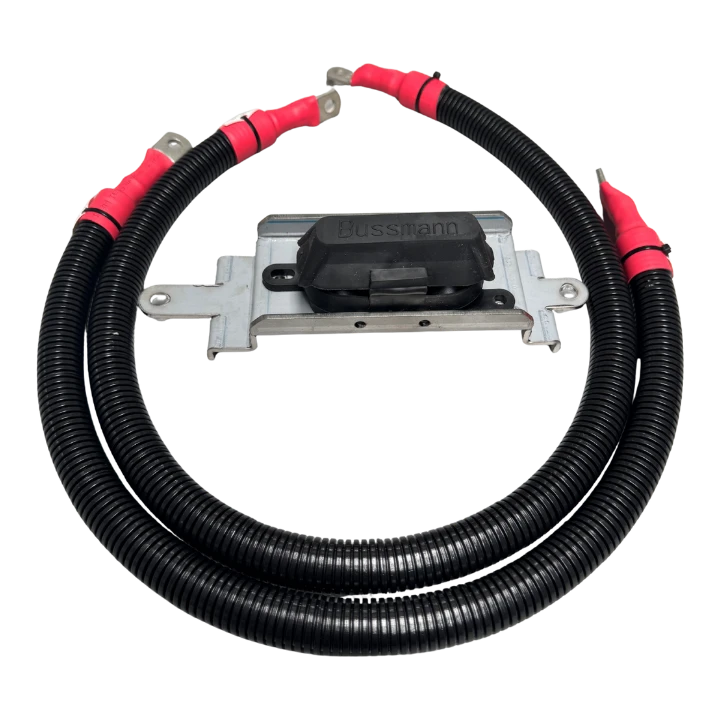

250A FUSED HARNESS INCLUDED
Cable sized to carry the full output, so it reaches the battery instead of heating up undersized factory wire
TALKS TO THE ECU
Internal LIN regulator communicates exactly as the factory alternator does, with no ECU changes or resistor tricks
Upgrade your Toyota LandCruiser LC70 Series 2.8L with a high-output charging system designed for serious touring, off-grid power setups, and modern 4WD electrical demands. This kit combines the BKS-240TP Black Series 240A Alternator with the Elevate Automotive alternator upgrade wiring harness (LC70 1GD-FTV specific) for reliable, stable charging performance under load.
Built for the 1GD-FTV platform, this upgrade solves factory charging limitations and ensures your system can support dual battery setups, lithium batteries, canopies, inverters, fridges, lighting, and winching systems without voltage drop.
Quick Specs
Warranty
Connecting this alternator directly to a lithium battery voids the warranty. A DC to DC charger must be fitted between the alternator and any lithium bank.
