Roadvision 10-30V Stop/Tail x 2/Ind Jumbo Triple Surface Mount 604x132mm

SKU: BR601ARR
$169.00
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Heavy-duty trucks, trailers, and commercial vehicles requiring jumbo combination lamps with multiple lighting functions.

  • ROADVISION BR601 Series Jumbo Combination Lamp
  • Pre-wired 300mm LEDLink Connector

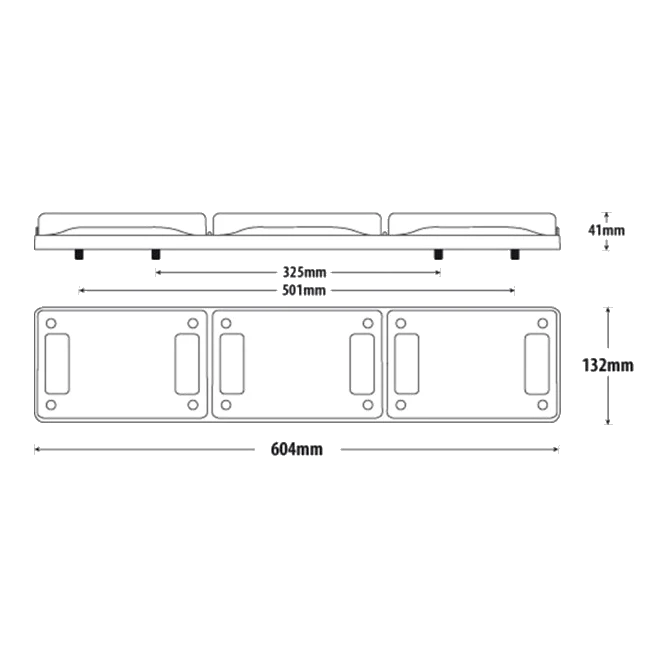

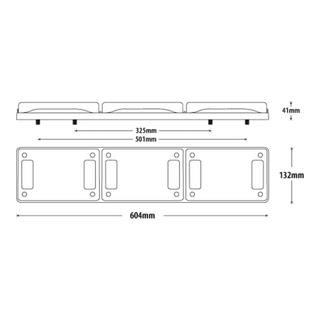

Dimensions (LxWxH): 604 x 132 x 41 mm


ROADVISION BR601 Series offers a durable, maintenance-free LED lighting solution designed specifically for heavy-duty trucks and trailers.

 [{"variant_id":"48408414585105" , "metafield_value":""}]

Roadvision 10-30V Stop/Tail x 2/Ind Jumbo Triple Surface Mount 604x132mm

$169.00
Description

ROADVISION BR601 Series LED Jumbo Combination Lamps offer a durable, all-in-one lighting solution for heavy-duty trucks and trailers. Featuring stop, tail, indicator, reflector, and optional reverse functions in one lamp, they deliver brighter light with lower power consumption compared to incandescent bulbs. Built with tough high-impact ABS housing and unbreakable polycarbonate lenses, these lamps are dust and waterproof, maintenance-free, and rated for 100,000 hours of use. With ROADVISION, it’s a reliable fit-and-forget solution for enhanced safety and performance.

FEATURES
  • Jumbo LED combination lamp range
  • Multi-volt 10-30V DC input & low current draw
  • Brighter than conventional incandescent lamps
  • 100,000-hour LED lifespan, maintenance-free
  • High impact ABS housing & sealed polycarbonate lens
  • Water and dust proof
  • Pre-wired with LEDLink Connector
  • Surface mount, easy retrofit
  • ADR/ECE approved









FAQ's

Q: Are these lamps compatible with 12V and 24V systems?
A: Yes, the lamps support multi-volt 10-30V DC input.

Q: Are they water and dust proof?
A: Yes, sealed polycarbonate lens and high impact ABS housing provide water and dust proof protection.

Specifications
  • Part Number: BR601ARR
  • Functions: Stop, Tail, Indicator, Reflector
  • Voltage Input: 10-30V DC
  • Indicator LEDs: 24
  • Stop/Tail LEDs: 48
  • Current Draw: Indicator 0.1A; Stop/Tail 0.1/0.05A at 13.8V
  • Dimensions (LxWxH): 604 x 132 x 41 mm
  • Lens Material: Polycarbonate
  • Housing Material: High Impact ABS
  • Mounting Type: Surface Mount
  • Mounting Hole/Cut Out: 501 mm & 325 mm
  • Cable Length: 300 mm LEDLink Connector
  • ADR Approval: Indicator CRN 46082, Stop CRN 46121, Tail CRN 46120

Specifications

Installation Information


Simple surface mount design for easy retrofit installation. Pre-wired with 300mm LEDLink Connector for quick connection. Mounting holes at 501mm & 325mm.

Warranty Information


100,000-hour LED lifespan with solid-state technology ensures long-lasting performance and maintenance-free operation. Manufacturer warranty applies.
