Roadvision 230 Series LED Combination Lamp Stop/Tail/Ind/Rev/Ref (Single)

SKU: BR230ARW
$89.00
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Ideal for:

Tray utes

Trailers

Caravans

Commercial vehicles

1 x Roadvision BR230ARW LED Combination Lamp

1 x Removable right-angle mounting bracket

Pre-wired 300mm harness with LEDLink connector

Dimensions: 229mm (L) x 59.5mm (H) x 32mm (D)

Cable: 300mm tinned copper with LEDLink connector

Roadvision’s BR230 Series is engineered for extreme environments and long-lasting performance. It meets all major ADR requirements and is built tough to handle vibration, dust, and water—just fit and forget.

 [{"variant_id":"32527725035629" , "metafield_value":""}]

Roadvision 230 Series LED Combination Lamp Stop/Tail/Ind/Rev/Ref (Single)

$89.00
Description

The Roadvision BR230ARW 230 Series LED Combination Lamp is the all-in-one solution for your rear lighting needs. This compact and ultra-bright lamp covers stop, tail, indicator, reverse, and reflector functions in one rugged unit. Built from impact-resistant polycarbonate and powered by solid-state LED technology, it’s made for harsh Australian conditions.

Perfect for utes, trailers, caravans, and work vehicles, the BR230 Series offers a reliable, energy-efficient upgrade to outdated incandescent systems. Mount it vertically or horizontally using the removable bracket for maximum flexibility.

FEATURES

All-in-one stop, tail, indicator, reverse, and reflector

Multi-volt 10–30V input

Ultra-low current draw

Pre-wired with LEDLink connector

Maintenance-free solid state LEDs

Long 100,000-hour lifespan

Sealed for dust, water, and vibration resistance

Brighter than incandescent alternatives

Compact design suits tight spaces






FAQ's

Q: Can I mount it both ways?
A: Yes, the design allows vertical or horizontal installation.

Q: Is it sold as a pair?
A: No, it's sold individually.

Specifications

Part Number: BR230ARW

Functions: Stop / Tail / Indicator / Reverse / Reflector

Voltage: 10–30V DC

Current Draw: Indicator: 0.05A, Stop/Tail: 0.05A each

LEDs per Function: 9 (each)

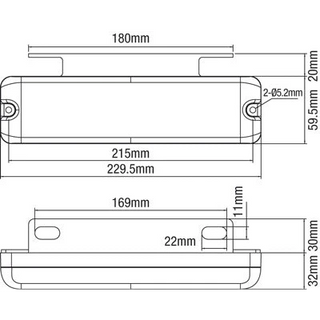

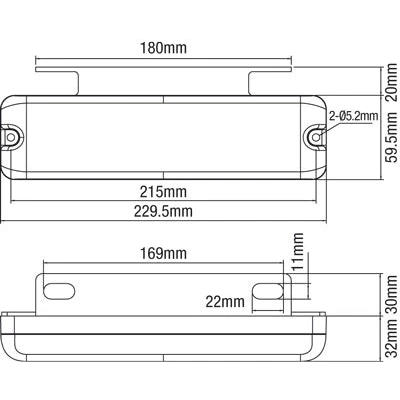

Dimensions: 229mm (L) x 59.5mm (H) x 32mm (D)

Cable: 300mm tinned copper with LEDLink connector

Housing/Lens: Polycarbonate

Mounting: 215mm stud centres or 125–169mm bracket centres

ADR Approvals:

  • Indicator: E4-6R-0124225
  • Stop/Tail: E4-7R-0124225
  • Reverse: E4-23R-0124225
  • Reflector: E4-3R-023771










Installation Information

Can be mounted vertically or horizontally

Removable bracket included

300mm tinned copper cable with LEDLink connector

Mounting hole centres:

  • 215mm (stud)
  • 125–169mm












Warranty Information


Covered by 5-Year Manufacturer Warranty.
