Home / Lighting / Driving & light bars

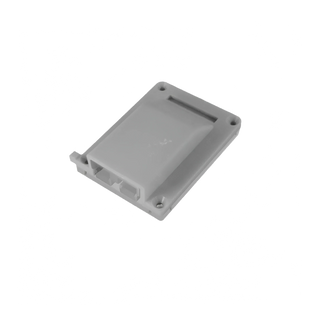

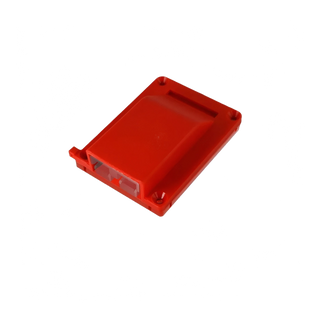

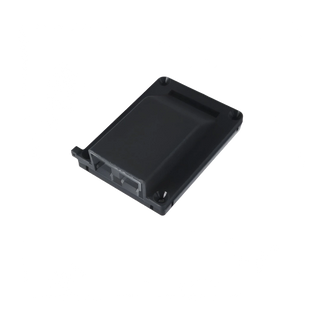

White slimline surface-mount housing for 50A Anderson-style plugRed slimline surface-mount housing for 50A Anderson-style plugBlack slimline surface-mount housing for 50A Anderson-style plug

Elevate Automotive

50A Anderson-Style Plug Housing — Slimline Surface Mount

HU6971

Slimline surface-mount housing for 50A Anderson-style plugs. UV-nylon, matte finish, 83 x 64 x 18mm. Black, red or white.

Fits: 50A Anderson (SB50)
Mount: Surface, pre-drilled
Material: UV nylon

$30.00

4 interest-free payments of $7.50 with
or finance your build with
Colour
We accept
Universal fitmentSlimline surface-mount housing for 50A Anderson-style plugs on any vehicle, caravan, RV, boat or 4WD.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

A slimline surface-mount housing that lets you fit a 50A Anderson-style connector to a caravan wall, a canopy panel, a battery box or a tray without cutting a bulky recess. The plug clips into the housing, the housing bolts to the surface, done.

Made from UV-resistant nylon in a matte finish, 83 by 64 by 18mm, and available in black, red or white to match the panel it mounts to. Pre-drilled holes make it a two-screw install with any 50A Anderson-style plug body.

The housing bolts directly to the panel with two M4 or #8 self-tappers. It doesn't seal itself against water, so if the mounting surface faces the weather, bed it on a smear of silicone before final tightening. Order a 50A Anderson-style plug separately to complete the install.

You'll also need

A 50A Anderson-style plug (sold separately):

[3-way-anderson-connector-plugs-sb50-50a-grey-twin-pack]
  • Fits 50A Anderson — clips a standard SB50 plug in place
  • Surface mount — no bulky recess cutout needed
  • UV nylon — stays intact under exterior sun
  • Slimline profile — 18mm deep, sits flush against the panel
  • Pre-drilled — two-screw install with hardware you already have
  • Three colours — black, red or white to match the panel

Compatibility

Fits: 50A Anderson-style plugs (SB50 pattern)

Mount type: Surface, pre-drilled

Physical

Material: UV-resistant nylon

Finish: Matte

Dimensions: 83 x 64 x 18mm

Weight: 80g

Length: 83mm

Width: 64mm

Height: 18mm

Weight: 0.72kg

Slimline surface-mount housing for 50A Anderson-style plugs on any vehicle, caravan, RV, boat or 4WD.
12V, 24V, 36V and 48V DC systems (housing is passive plastic)
175A and 350A Anderson connectors (SB175/SB350 are larger; use the matching housing)

Q: What's an Anderson-style plug?
A genderless DC connector: the same plug on both ends of the cable, so you can never wire it back-to-front. The 50A size (SB50) is the standard for 4WD, caravan and camper DC leads. This housing takes the SB50 body specifically, not the larger 175A (SB175) or 350A (SB350) plugs.

Q: Does the Anderson plug come with the housing?
No. The housing is just the plastic mount. Order a 50A Anderson-style plug separately if you don't already have one.

Q: Does it come with mounting screws?
No. Two M4 or #8 self-tappers, panhead machine screws, or rivets are fine, matched to the panel material and thickness.

Q: Can I install it outside on the vehicle?
Yes. The UV nylon body is made for exterior use, and the housing keeps the plug in place. It's not IP-rated as a sealed assembly, so bed it on a smear of silicone if the panel is horizontal and rain-facing.

Q: What voltage systems does it suit?
The housing is passive plastic, so it's rated by the plug you put in it. Standard SB50 Anderson plugs are rated to 600V DC, so 12V, 24V, 36V and 48V vehicle systems are all fine.

Q: Will it fit genuine Anderson SB50s and generic 50A plugs?
Yes. It's built to the SB50 dimensional standard, so genuine Anderson-brand plugs and Anderson-style copies from every reputable brand fit.

Q: Can I use it for 175A or 350A Anderson plugs?
No. SB175 and SB350 are physically larger bodies with a different mounting footprint. Use the matching housing for those sizes.

Q: Why pick surface mount over a flush-recessed housing?
Surface mount only needs a small cable pass-through, not a rectangular cutout. Faster to fit, no template needed, and easier to seal against the panel. Flush recessed is neater visually but takes more work to fit and reduces panel strength.

Q: What size cable will pass through the back of the housing?
The cable pass-through accepts twin 6mm² or 8mm² cable comfortably (standard SB50 wire sizes). Larger cable can be run through the panel below the housing rather than through the housing itself.
