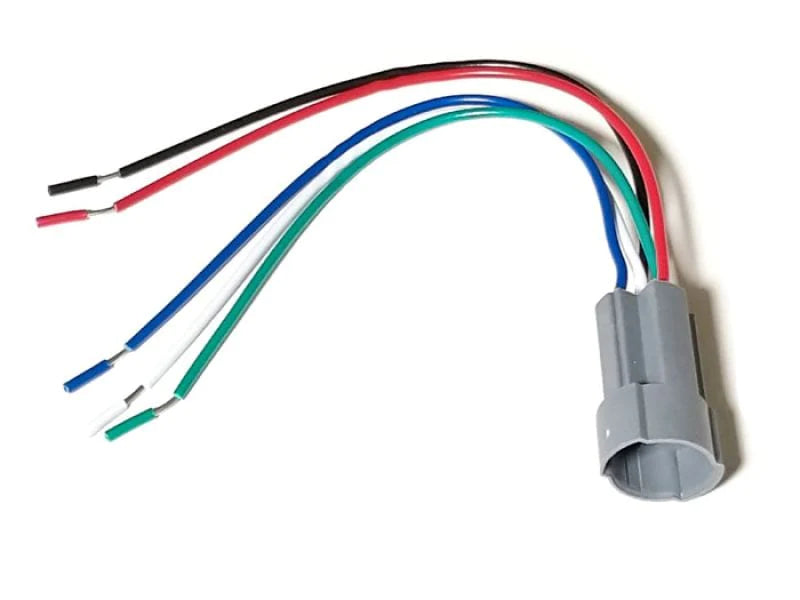

Switch Connector Plug with prewired cable harness for Metal Push Button Switch
- VEHICLE
- INCLUDED
- DIMENSIONS
- Note from Manufacturer
This connector harness is designed to provide a simple, secure, and reliable connection for compatible metal push button switches. Ensure correct wiring and compatibility before installation.
Description
Suit 19mm Metal Push Button Switches
Complete your setup with this plug-and-play connector harness, designed specifically for the Series of Metal Push Button Switches w/LED On/Off, 19mm 5V. This prewired cable harness makes installation quick, clean, and hassle-free—no complicated wiring required.
Perfect for automotive, 4WD, marine, and custom electrical builds, this connector ensures a secure and reliable connection to your push button switch. The pre-crimped wires are colour-coded to match standard wiring configurations, helping you achieve a professional finish every time.
-
White cable: Connects to the power supply
-
Red cable: Connects to the LED positive
-
Black cable: Connects to LED negative (earth)
-
Blue cable: Normally closed – always connected until the switch is pressed
-
Green cable: Normally open – closes when the switch is pressed to activate the circuit
