Victron GX IO-Extender 150
SKU: BPP900800150
This product is not vehicle-specific. It is compatible with any GX device-based system, whether installed in marine vessels, caravans, 4WD touring vehicles, off-grid homes, or commercial energy storage setups.
Victron GX IO-Extender 150 module
USB Type-B to Type-A cable
User manual and installation guide
Factory box packaging
Regular price$204.95
Unit price/ per
Taxes included.
Shipping & Collection
Worldwide Shipping Available*
In-Store Pickup
Professional Installation Available
Shipping costs are calculated at checkout based on your location and the items in your cart. Some products may not be available for delivery to your address due to shipping restrictions

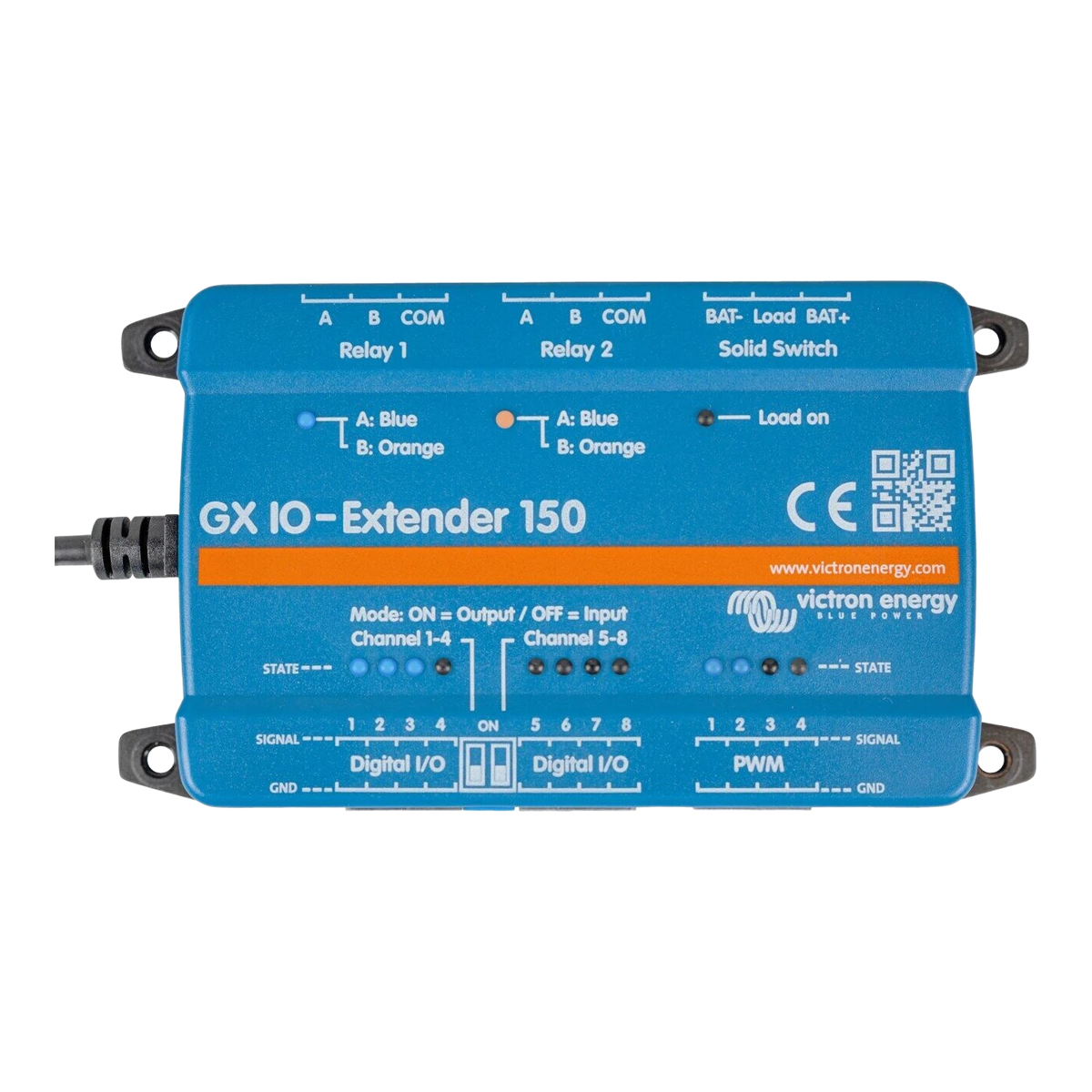

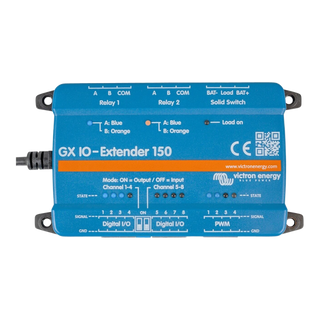

Victron GX IO-Extender 150
$204.95
The Victron GX IO-Extender 150 expands the number of inputs and outputs available to a GX device, adding tank sender inputs, temperature sender inputs and digital inputs beyond what the GX itself provides.
It suits installations where the number of tanks, sensors or switched circuits exceeds the ports on the Cerbo GX or Ekrano GX.
It connects to the GX device and is configured through the same interface, so the additional inputs appear alongside the existing ones in VictronConnect and on the VRM portal.
Ingress ProtectionNot IP-rated (enclosure required for harsh environments)
ComplianceCE, RoHS
Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.
Q: Can the GX IO-Extender 150 switch heavy loads directly?
A: No – all relays are signal level only. Use external relays for high-current switching applications.
Q: Do I need to install drivers?
A: No – the device is plug-and-play on any Victron GX system running Venus OS v3.60 or newer.
Q: What is the PWM signal used for?
A: PWM outputs are commonly used to control DC fan speeds or lighting dimming via compatible controllers.
Q: Can I use this with Node-RED?
A: Yes – the module is fully integrated with Node-RED and accessible via the GX device's web interface.
Length: 123 mm
Width: 67 mm
Height: 23 mm
Weight: 0.17 kg
Warranty
Covered by Victron’s 5-year limited warranty. Warranty applies to original purchaser only and excludes damage caused by misuse or incorrect installation.
