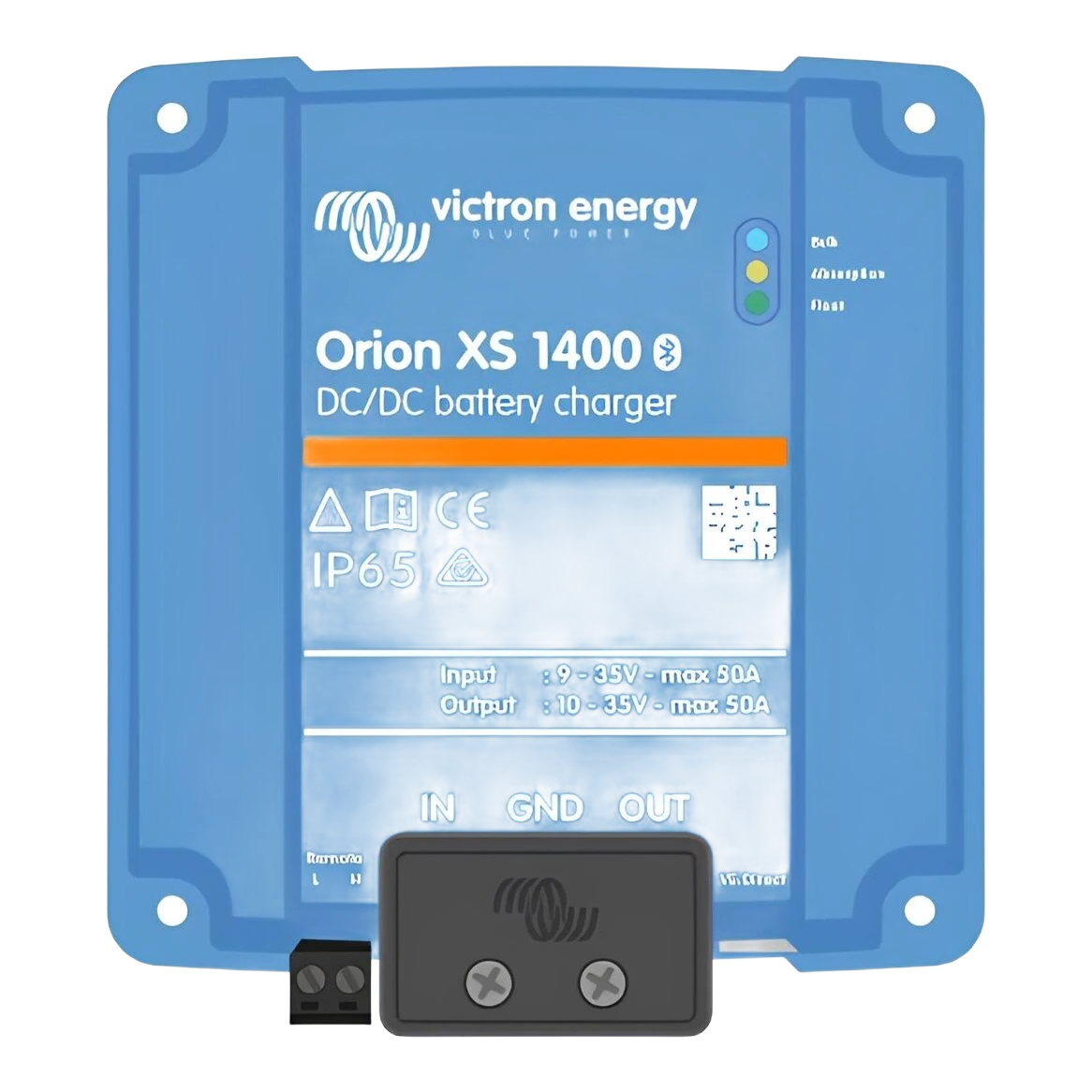

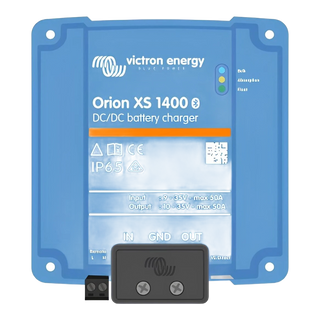

Victron Orion XS 1400 side view showing Bluetooth and VE.Direct port, Elevate Automotive

Victron Energy

Victron Orion XS 1400 — 50A Multivolt DC-DC Charger

Name: Victron Orion XS 1400 — 50A Multivolt DC-DC Charger
Brand: Victron Energy
SKU: ORI242417040
Price: 525.00 AUD
Availability: InStock

ORI242417040

50A multivolt DC-DC charger that steps 12V or 24V alternator feeds up or down to charge 12V or 24V house banks at up to 1400W. Adaptive 4-stage, 8 battery presets, Bluetooth, VE.Direct, IP65.

$525.00

4 interest-free payments of $131.25 with Afterpay

or finance your build with Allied Finance

We accept Visa Mastercard Amex Apple Pay PayPal Zip Afterpay Finance

Universal fitment50A multivolt DC-DC charger for 12V or 24V house banks

Shipping & collection

Worldwide shipping available^*

In-store pickup

Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

A 50A multivolt DC-DC charger that steps a 12V or 24V alternator up or down to charge a 12V or 24V house bank at up to 1400W. Fits caravans, 4WD canopies, boats and motorhomes running a smart Euro 5 or Euro 6 alternator that needs the input current limited, and dual-battery setups where the starter and house banks sit at different voltages. Full output runs through to 40°C ambient with no fans, cooling through an aluminium circuit board.

The unit measures 138 by 124 by 53mm and weighs 520g. Screw terminals accept cable up to 21.2mm² (4 AWG) for the heavy input and output runs. Bluetooth sits inside the case for VictronConnect setup, and a VE.Direct port on the side slots the charger into the wider Victron system (Cerbo GX, GlobalLink, VRM) for monitoring and DVCC. The IP65 case closes the unit against dust and rain for underbonnet, canopy and bilge installs.

Set the input current limit to match the alternator and the engine-shutdown lockout to match the vehicle's running voltage, both from the app, before the first charge. Fuse the input within 300mm of the starter battery at 60A for a 50A output; fuse the output within 300mm of the house battery at 60A. Output derates above 40°C ambient, and the charger shuts down below the user-set input lockout to protect the starter battery.

What sets it apart

Multivolt input and output — runs 12V/24V both directions

Adaptive 4-stage — fully programmable charge profile

8 battery presets — AGM, GEL, lead-acid, LiFePO4

Smart alternator ready — Euro 5 and Euro 6 engine detect

Bluetooth and VE.Direct — VictronConnect plus Cerbo GX integration

98.5% efficient — aluminium cooling, no fans, silent operation

IP65 case — dust and rain protected

Unlimited parallel — stack units to scale output

Pairs with

Victron Cerbo GX MK2

$364.95

Victron SmartShunt 500A/50mV

$154.95

Multivolt I/O — 12V and 24V both ways
4-stage adaptive — fully programmable charging
8 battery presets — AGM, GEL, LiFePO4, lead-acid
Smart alternator — Euro 5 and Euro 6 detect
Bluetooth + VE.Direct — app and Cerbo GX ready
98.5% efficient — aluminium cooling, no fans
IP65 case — dust and rain protection
Unlimited parallel — scale output as needed

Output

System voltage: 12V/24V DC

Max current: 50A

Max power: 1400W @ 40°C

Output voltage: 10–35V adjustable

Charge algorithm: Adaptive 4-stage

Input

Operating range: 9–35V DC

Current limit: 1–50A adjustable

Engine detect: Smart alternator

Control and protection

Bluetooth: Built-in Smart

VE.Direct: Yes with DVCC

Parallel: Unlimited units

Protections: Short-circuit, overload, over-temp, undervoltage

Operating temp: -20°C to +60°C

Humidity: 95% max

Build

Dimensions: 138 × 124 × 53mm

Weight: 520g

Terminals: 21.2mm² (4 AWG) screw

IP rating: IP65

Dimensions138 × 124 × 53mm (H × W × D)

Weight0.52kg

Mount in a ventilated bay with at least 100mm clearance above the heat-sink. The IP65 case handles underbonnet and canopy environments, but output derates above 40°C ambient, so avoid locations next to a turbo or exhaust where sustained temperatures run higher. Any orientation is fine.

Use 21.2mm² (4 AWG) cable both ends for a 50A output and keep the input run under 2m where possible. Fit a 60A fuse within 300mm of the starter battery positive on the input side, and a 60A fuse within 300mm of the house battery positive on the output side. The screw terminals accept bare wire or crimped lugs up to 4 AWG. The remote on/off terminal uses the Phoenix Contact 2-way plug (sold separately as CE-1754449) — jumper the two pins for always-on, or wire to a BMS low-voltage disconnect or a dash switch.

Pair with VictronConnect over Bluetooth, select the battery chemistry preset (or load a custom profile), set the input current limit to the alternator's safe draw, set the engine-shutdown lockout to the vehicle's running voltage (typically 13.2V for 12V vehicles, 26.4V for 24V), then save. The charger starts automatically on the next engine run.

Datasheet: Victron Orion XS 1400 datasheet.

50A multivolt DC-DC charger for 12V or 24V house banks

Caravans, campers, camper trailers, motorhomes with 12V or 24V aux systems

4WD canopies and dual-cab utes with aux battery banks

Boats with 12V or 24V house banks and marine systems

Smart-alternator and Euro 5/6 vehicles with engine shutdown detection

Dual-battery setups where starter and house sit at different voltages

Not for 48V house banks — this charger outputs 10 to 35V DC only

Not for charging a vehicle starter battery (output-only to the house bank)

Q: What does DC-DC charger actually mean?
A 12V (or 24V) feed from the alternator or starter battery goes in; a controlled charge voltage and current for the house battery comes out. Without one, a modern smart alternator won't push enough voltage into the house bank for a full charge.

Q: What does multivolt mean here?
The input accepts 9 to 35V DC, so it runs on 12V or 24V vehicles. The output is adjustable from 10 to 35V, so it charges 12V or 24V house banks. Four combinations in one unit.

Q: What's the real output at 12V versus 24V?
50A either way. Power caps at 1400W, so 24V output at 50A hits the full 1200–1400W; 12V output at 50A delivers ~700W (lower voltage, same current). The datasheet rates 1400W as the peak at 40°C ambient.

Q: Does it work with smart Euro 5 or Euro 6 alternators?
Yes. Built-in engine shutdown detection means the charger only draws power when the alternator is producing it, and it handles the variable voltages intelligent alternators output. Set the engine-shutdown lockout voltage from the app so it matches the vehicle's running range.

Q: What chemistries can I charge?
8 preset profiles for AGM, GEL, lead-acid (flooded, calcium) and LiFePO4, plus a user-defined profile for anything custom. Low-temperature cutoff protects lithium from being charged below 0°C.

Q: What fuses and cable size do I need?
For 50A continuous, run 21.2mm² (4 AWG) cable both ends to keep voltage drop under 3%. Fit a 60A fuse within 300mm of the starter battery positive on the input side, and another 60A fuse within 300mm of the house battery positive on the output side.

Q: Can I run two in parallel to get 100A?
Yes. Unlimited units can be paralleled. Set each unit to the same output voltage and chemistry profile from the app, and the pair will share the load evenly. Confirm the alternator and vehicle wiring can carry the combined input draw first.

Q: Does it have a VE.Direct port?
Yes, on the side. Plug it into a Cerbo GX, GlobalLink 520 or any Victron GX device for VRM cloud monitoring and DVCC (the shunt tells the charger when the battery is full, so charging stops at the right moment).

Q: Is it waterproof?
IP65. Dust-tight and rated against low-pressure water jets. Fine for underbonnet, canopy and bilge installs; not for permanent submersion.

Q: What's the warranty?
5 years from Victron Energy against manufacturing defects. Full terms sit on our warranty policy page.
