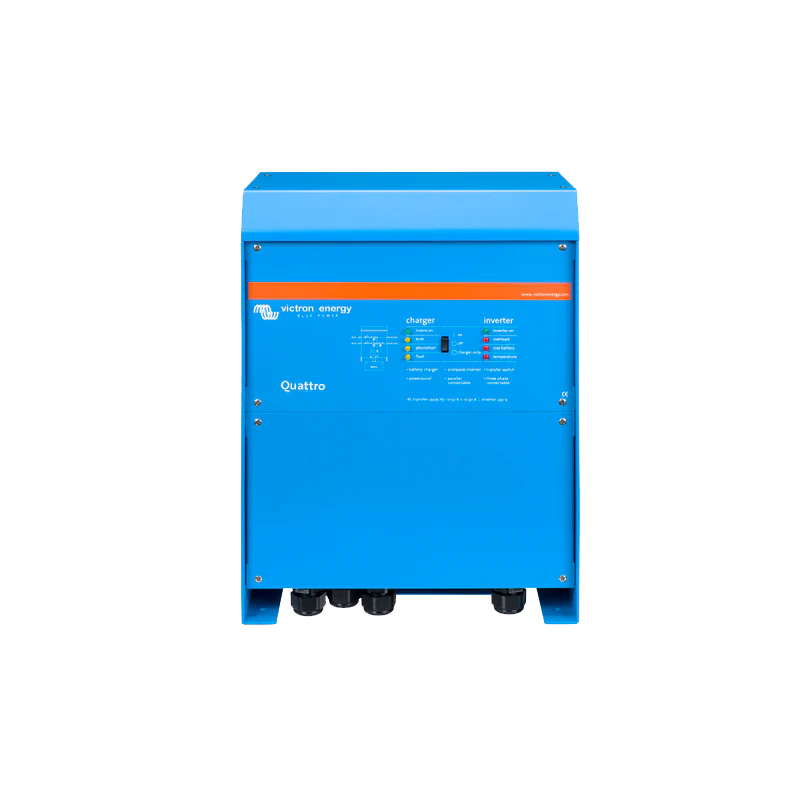

Victron Quattro 24/5000/120-100/100 230V VE.Bus
Victron Quattro 24/5000/120-100/100 230V VE.Bus
Victron Quattro 24/5000/120-100/100 230V VE.Bus
Victron Quattro 24/5000/120-100/100 230V VE.Bus

Victron Quattro 24/5000/120-100/100 230V VE.Bus

SKU: QUA245021010
$3,599.00
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer
  • Victron Quattro 24/5000/120-100/100 inverter/charger
  • Mounting hardware
  • User documentation

Dimensions (H × W × D): 444 × 328 × 240 mm

Weight: Approximately 30 kg

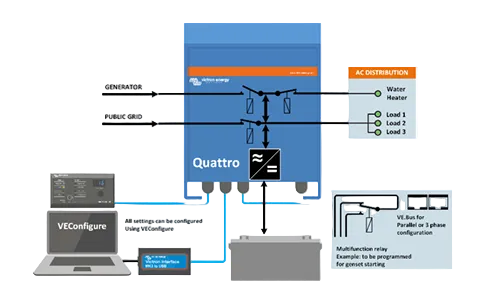

The Quattro combines a pure sine wave inverter, high-capacity battery charger, and dual AC-input transfer switch in one unit. It automatically selects between two AC sources and provides uninterrupted power transfer in less than 20ms.

 [{"variant_id":"53727198871825" , "metafield_value":""}]

Victron Quattro 24/5000/120-100/100 230V VE.Bus

$3,599.00
Description
The Victron Quattro 24/5000/120-100/100 is a premium 24V inverter charger combining a 5000VA pure sine wave inverter, 120A adaptive battery charger and dual AC inputs with automatic transfer switching. Designed for RV, marine, backup power and off-grid applications, the Quattro delivers seamless power continuity,
PowerAssist technology and advanced monitoring capabilities through the Victron ecosystem. Compatible with parallel, split-phase and three-phase installations for scalable energy systems.
FEATURES

5000VA pure sine wave inverter

120A battery charger

Dual AC inputs with automatic source selection

Dual AC outputs

2 x 100A transfer switches

PowerAssist technology

PowerControl functionality

Parallel operation up to 6 units

Split-phase capability

Three-phase capability

Remote monitoring via Victron VRM platform (with GX device)

Suitable for off-grid and grid-connected systems

Specifications

DC System Voltage: 24V

Inverter Rating: 5000VA

Battery Charger Output: 120A

AC Inputs: 2

Transfer Switches: 2 × 100A

Output Waveform: Pure Sine Wave

Parallel Operation: Up to 6 units

Split Phase: Supported

Three Phase: Supported

Remote Monitoring: VRM compatible with GX devices

Installation Information

Wall-mount installation.

Requires appropriate DC cabling, battery protection, and AC circuit protection.

Can be configured through VE.Bus software.

Compatible with GX monitoring devices for advanced system management.

Professional installation recommended.

Warranty Information

Victron Energy 5-Year Manufacturer Warranty

PICKUP OR SHIPPING

Fast Australia-wide shipping available. Every order is carefully packaged to ensure your product arrives safely and ready for installation

FAQ's

Q: Can the Quattro connect to two AC sources?
A: Yes, it automatically switches between two independent AC inputs.

Q: Does it provide uninterrupted power during outages?
A: Yes, transfer occurs in less than 20 milliseconds.

Q: Can multiple units be connected together?
A: Yes, up to six units can operate in parallel.

Q: Is it suitable for solar systems?
A: Yes, it can be used in off-grid and grid-connected solar installations.
