Home / Lighting / Driving & light bars

Redarc BCDC1220-IGN Battery Charger DC to DC 20ARedarc BCDC1220-IGN Battery Charger DC to DC 20ARedarc BCDC1220-IGN Battery Charger DC to DC 20ARedarc BCDC1220-IGN Battery Charger DC to DC 20ARedarc BCDC1220-IGN Battery Charger DC to DC 20ARedarc BCDC1220-IGN Battery Charger DC to DC 20A

Redarc

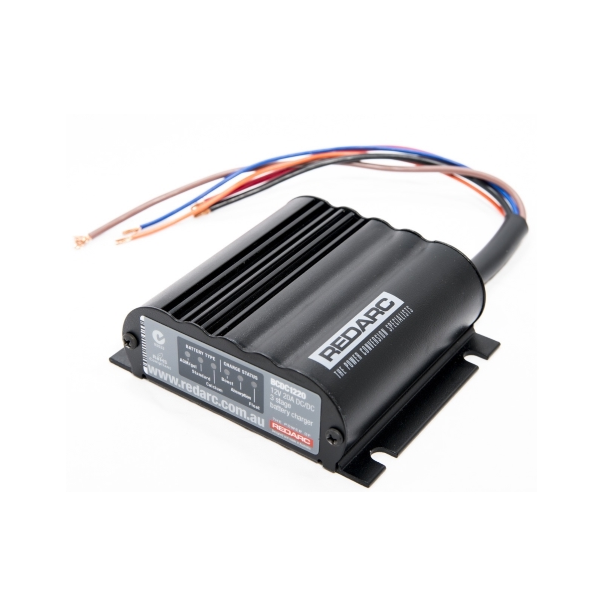

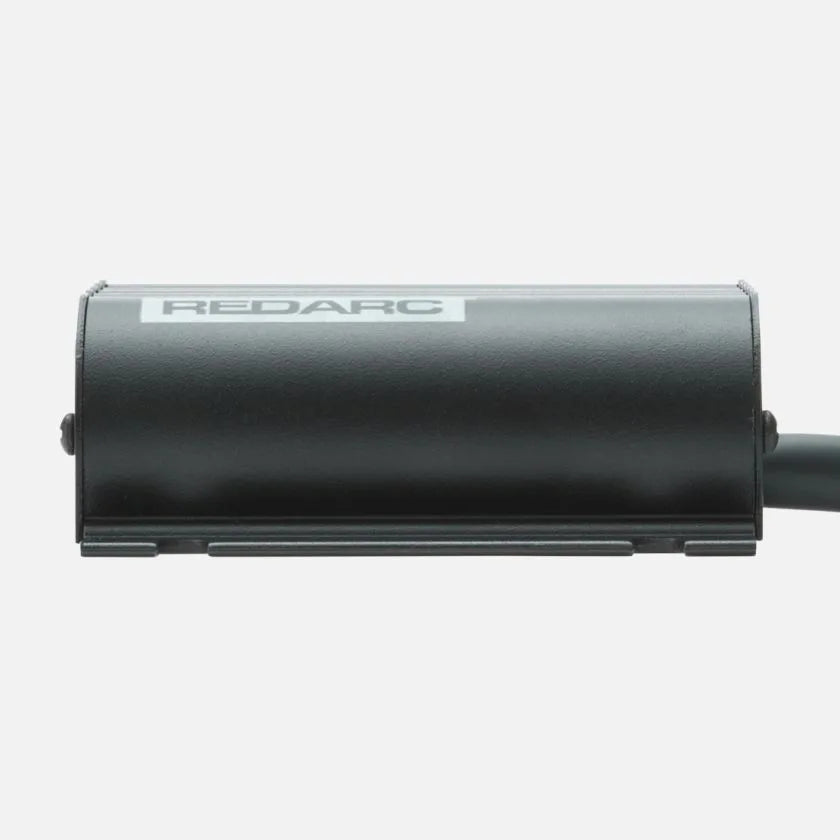

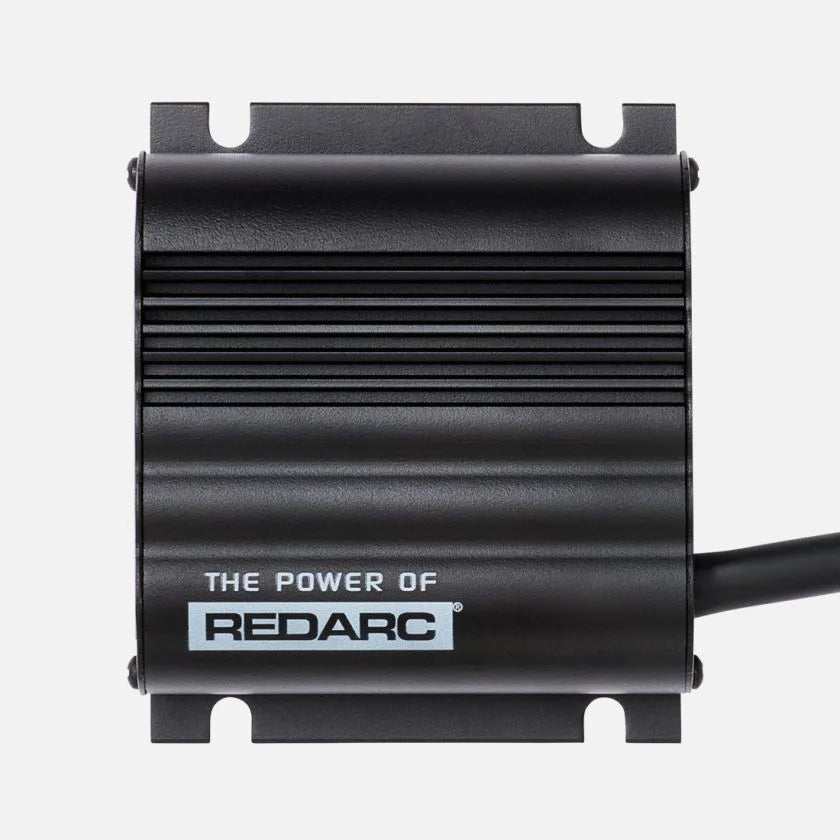

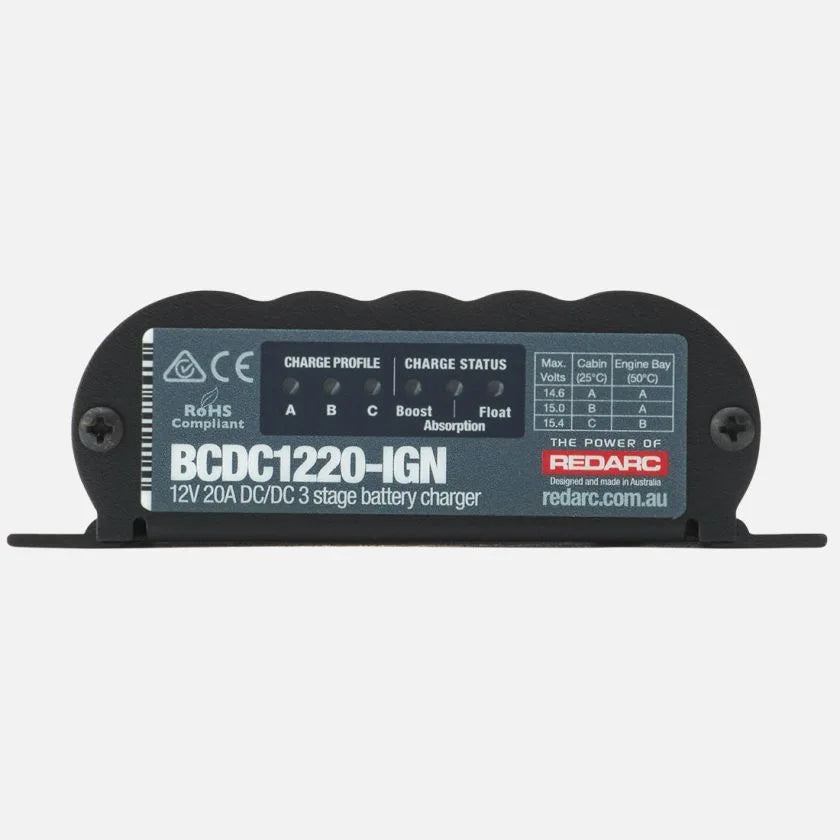

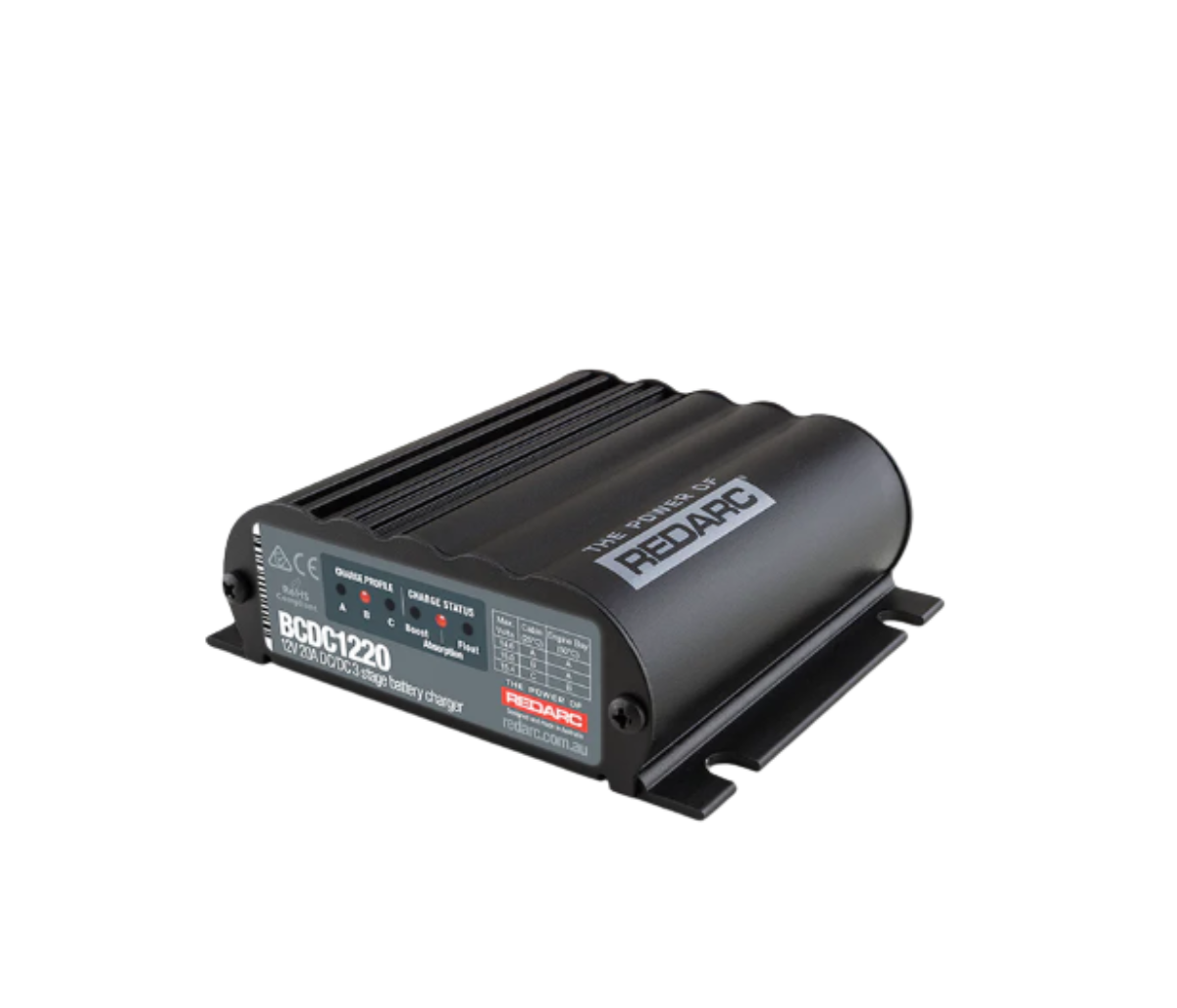

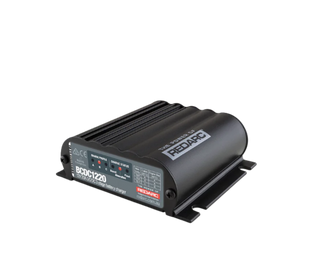

BCDC1220-IGN Battery Charger DC to DC 20A

BCDC1220-IGN

The REDARC BCDC1220-IGN is a 12V 20A DC-DC battery charger for a 12V auxiliary battery bank, with an ignition-switched input built for modern vehicles with variable-voltage or stop-start smart alternators. The ignition wire tells the charger when the vehicle is…

$560.00

4 interest-free payments of $140.00 with
or finance your build with
Important note

The BCDC1220-IGN is purpose-built for vehicles with ECU-controlled variable voltage alternators. Australian-made and tested to withstand tough conditions, it’s the ideal solution for reliable battery charging on the go.

We accept
For 12V vehicles with ECU-controlled variable-voltage or stop-start smart alternators, charging a 12V auxiliary bank. Suitable for late-model utes, 4WDs, vans and commercial vehicles. Ignition-switched input already built in — our standard for smart-alternator installs. For a 24V system, use the Redarc BCDC2420 instead.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

20A FOR SMART ALTERNATORS

Ignition-switched input handles stop-start and variable-voltage alternators found on modern 4WDs.

3-STAGE CHARGING, ANY CHEMISTRY

Selectable charge profiles for AGM, gel, calcium, standard lead-acid and lithium banks.

SEALED FOR ENGINE-BAY HEAT

Rated to run in the engine bay of an Australian 4WD — dust, water and vibration tolerant.

LITHIUM AND AGM READY

Handles any modern deep-cycle chemistry — pick the profile and connect.

2 YEAR REDARC WARRANTY

Backed by 2 years direct from Redarc. Repair or replacement in accordance with Redarc's warranty policy.

The REDARC BCDC1220-IGN is a 12V 20A DC-DC battery charger for a 12V auxiliary battery bank, with an ignition-switched input built for modern vehicles with variable-voltage or stop-start smart alternators. The ignition wire tells the charger when the vehicle is running, so it charges reliably even when the alternator voltage drops during cruising.

Multi-stage charging with selectable profiles for AGM, gel, calcium, standard lead-acid and LiFePO4 lithium banks. Under-bonnet rated, fully sealed against water, dust and vibration. Fanless.

Output is 12V. For a 24V system, use the Redarc BCDC2420 instead.

Designed, built and tested in Australia. Backed by a 2 year Redarc warranty.

  • Multi-stage DC to DC charging
  • Built-in start battery isolator
  • Fan-free and fully sealed for silent, rugged operation
  • Ideal for variable voltage alternators
  • Compatible with AGM, Gel, Calcium, VRLA, and standard lead acid batteries

Input Voltage: 9–32VDC

Output Voltage: 12VDC

Output Current: 20A

Max Charging Voltage: 15.4V

Input Current: 20A

Output Power: 300W

Input Fuse: 40A

Output Fuse: 40A

Standby Draw: <100mA

Warranty: 2 Years

Approvals: CE

Length: 165mm

Width: 120mm

Height: 37mm

Weight: 1.0kg

Source: manufacturer-verified

Everything this install needs

0 of 0 in the box

Compact, fully sealed design allows under-bonnet or vehicle interior installation. Designed for harsh environments — water, dust, and vibration-resistant. Refer to the BCDC1220-IGN Manual English for complete installation guidelines. Professional fitting is recommended.

For 12V vehicles with ECU-controlled variable-voltage or stop-start smart alternators, charging a 12V auxiliary bank. Suitable for late-model utes, 4WDs, vans and commercial vehicles. Ignition-switched input already built in — our standard for smart-alternator installs. For a 24V system, use the Redarc BCDC2420 instead.

Q: What's the difference from the standard BCDC1220?
A: The BCDC1220-IGN has an ignition-switched input wire. Fit this on modern vehicles with stop-start or variable-voltage smart alternators — the ignition signal tells the charger when the vehicle is running.

Q: Which vehicles need the IGN version?
A: Modern vehicles with stop-start, variable-voltage smart alternators, or those where the alternator drops voltage while cruising. If in doubt, ask us.

Q: Same charge current as the standard BCDC1220?
A: Yes — 20A output on 12V, same 3-stage charging, same chemistry support.

Q: What cable size to the start battery?
A: Redarc's install guide specifies 6 B&S. In our workshop's experience that's the right size for most 12V installs — don't go smaller.

Q: How long is the warranty?
A: 2 years, direct from Redarc.
