EvaKool
40L Platinum Drawer Fridge Freezer - 12V / 24V
DC40-DRW-AU
Australian-made 40L single-drawer 12V fridge freezer. −18°C to +10°C. 48-can capacity. No fridge slide required — includes heavy-duty floor plate bracket. 12V/24V DC or 240V AC.
$1,199.00
EvaKool rates the power figures at 32°C ambient over a 24-hour period. Actual draw varies with ambient temperature, door-opening frequency and load. Allow rear and side clearance for the SECOP compressor to breathe — fully enclosed installations reduce cooling efficiency and shorten compressor life.
Shipping & collection
*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.
40L Platinum Drawer Fridge Freezer - 12V / 24V
EvaKool
SECOP Compressor
Globally recognised SECOP PBC 2.5 compressor delivers reliable cooling in extreme heat
Fridge or Freezer
Full -18°C to +10°C range runs it as a fridge or a true deep freezer
No Slide Required
Heavy-duty floor plate bracket secures the unit without drilling or extra tie-downs
Low Power Draw
Just 1.2 A/hr at 2°C in 32°C ambient — easy on your battery bank
Australian Made
Designed and built in Australia for Australian touring conditions
An Australian-made 40L single-drawer 12V fridge freezer that slides out on its own runners — full access to the contents without lifting a lid, and no separate fridge slide required. Suits 4WD canopies, drawer systems, camper trailers and caravans with the rear and side clearance needed for compressor ventilation.
EvaKool designs and builds it on the Sunshine Coast, and backs it with a 5-year manufacturer warranty on units built from November 2023 (2 years on earlier units). Genuine SECOP PBC 2.5 compressor, fully insulated metal cabinet, 12V/24V DC auto-selecting.
What sets it apart

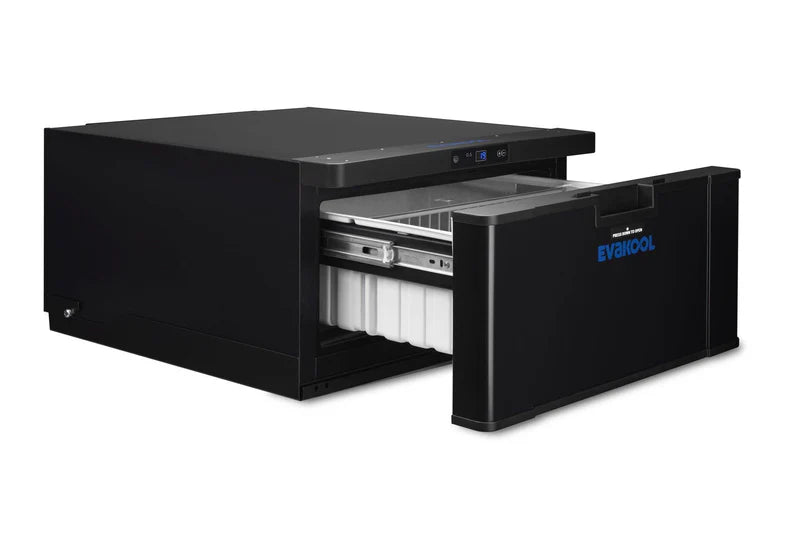

- Drawer format, no fridge slide required — slides on its own runners and locks down with the supplied heavy-duty floor plate bracket. No drilling or extra tie-downs.
- −18°C to +10°C — runs as a fridge, a freezer or a true deep freezer, set from the LED display on the front.
- 1.2 A/hr at 2°C, 32°C ambient — 24-hour average measured by EvaKool. 2.4 A/hr set to −16°C. Suits a 100Ah lithium as a house-battery baseline.

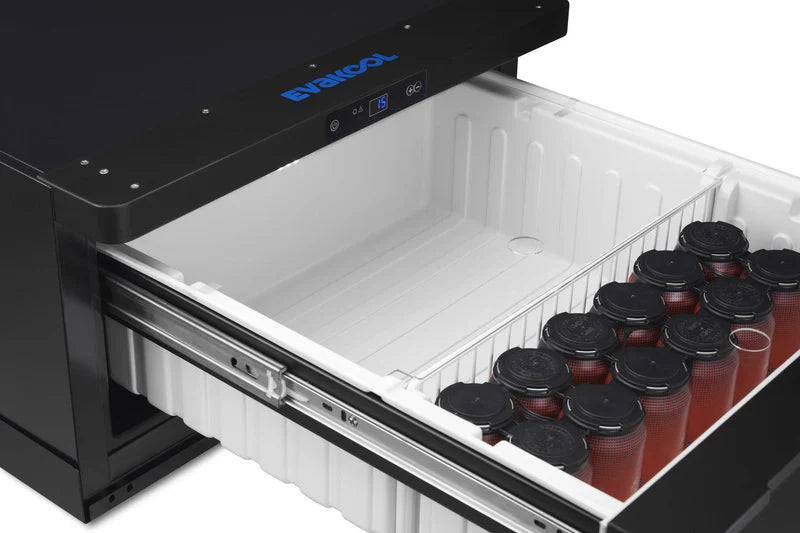

- 40L drawer, up to 48 cans — removable drawer tub for cleaning, clear acrylic lids for visibility, interior LED lighting.
- 12V or 24V DC auto-selecting — 12V Anderson plug fitted to the rear of the unit.

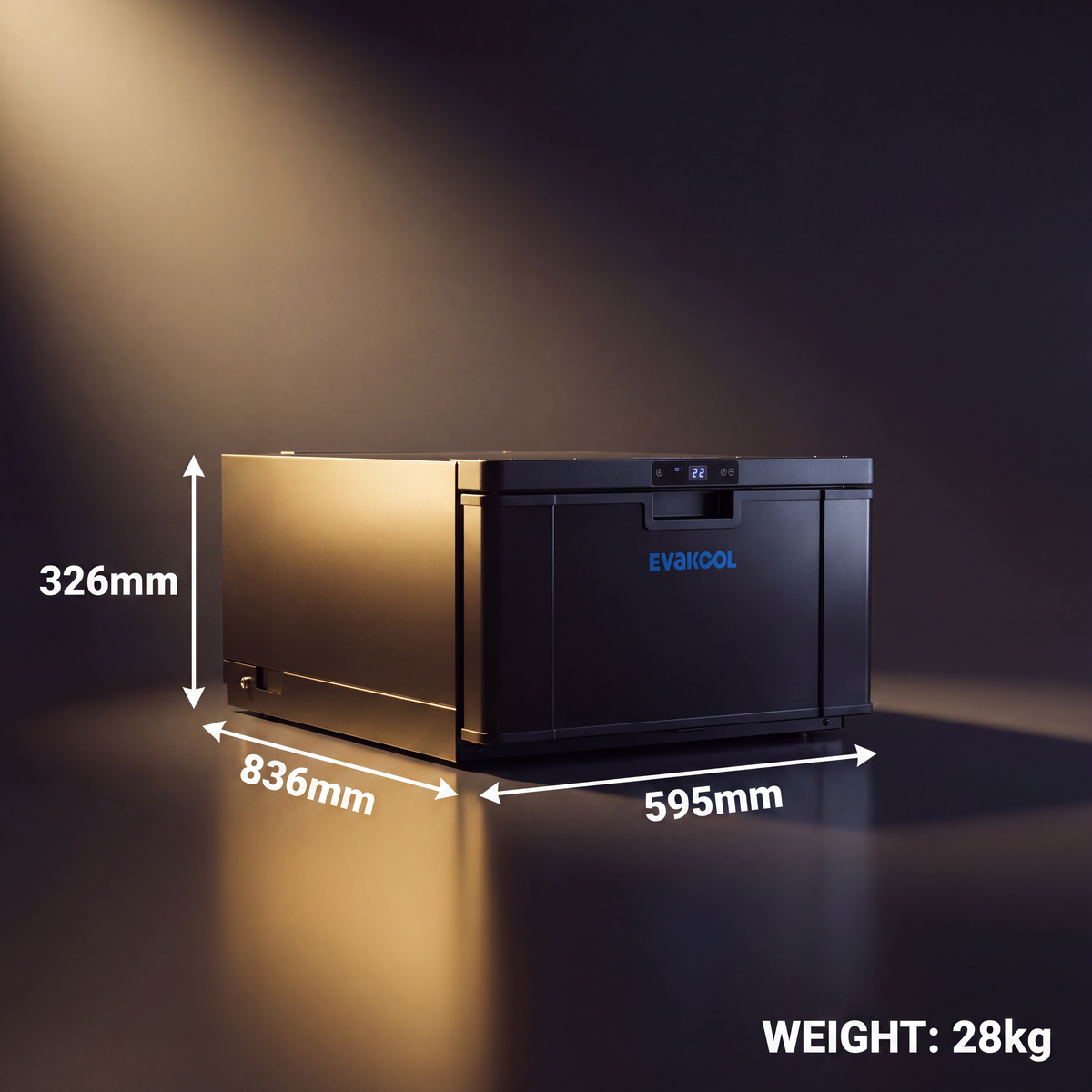

⚠ Check before ordering: the 836 × 595 × 326mm external dimensions need to fit your drawer or canopy space, with rear and side clearance for compressor ventilation. The locking mechanism holds the fridge down without drilling.
These are the auxiliary batteries we pair with this fridge — sold separately.
- Drawer format — slides on its own runners, no fridge slide required
- SECOP compressor — tropical-rated PBC 2.5, industry-standard fridge variant
- −18°C to +10°C — runs as a fridge, freezer or true deep freezer
- 40L, 48 cans — removable drawer tub, clear acrylic lids, LED interior
- 12V or 24V DC — auto-selecting, Anderson plug fitted to the rear
- Floor plate bracket — heavy-duty, locking, no drilling required
- Insulated metal cabinet — built for Australian touring conditions
- Made in Australia — Sunshine Coast, backed by a 5-year EvaKool warranty
Cooling & compressor
Compressor: SECOP PBC 2.5
Temp range: −18°C to +10°C
Refrigerant: Not published
Cabinet: Insulated metal
Power
DC voltage: 12V / 24V auto
Draw @ 2°C: 1.2 A/hr
Draw @ −16°C: 2.4 A/hr
Ambient tested: 32°C, 24-hr avg
Connector: Anderson (rear)
Capacity & storage
Volume: 40L
Can capacity: 48 cans
Drawer tub: Removable
Interior lighting: LED
Lid: Clear acrylic
Display: LED + controls
