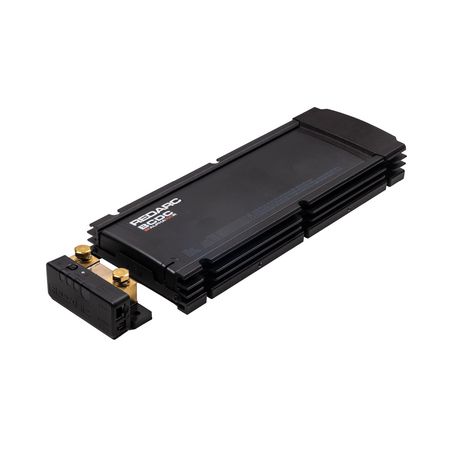

Redarc BCDC Alpha100 R battery manager seen from above at an angle, the long finned black case with the separate battery sense module and its two gold terminal studs sitting alongside

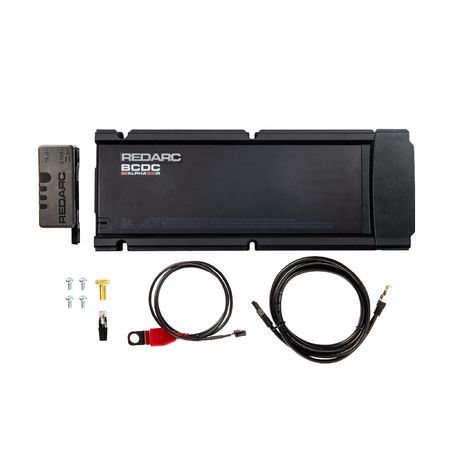

Redarc battery management system with cables and connectors on a white background

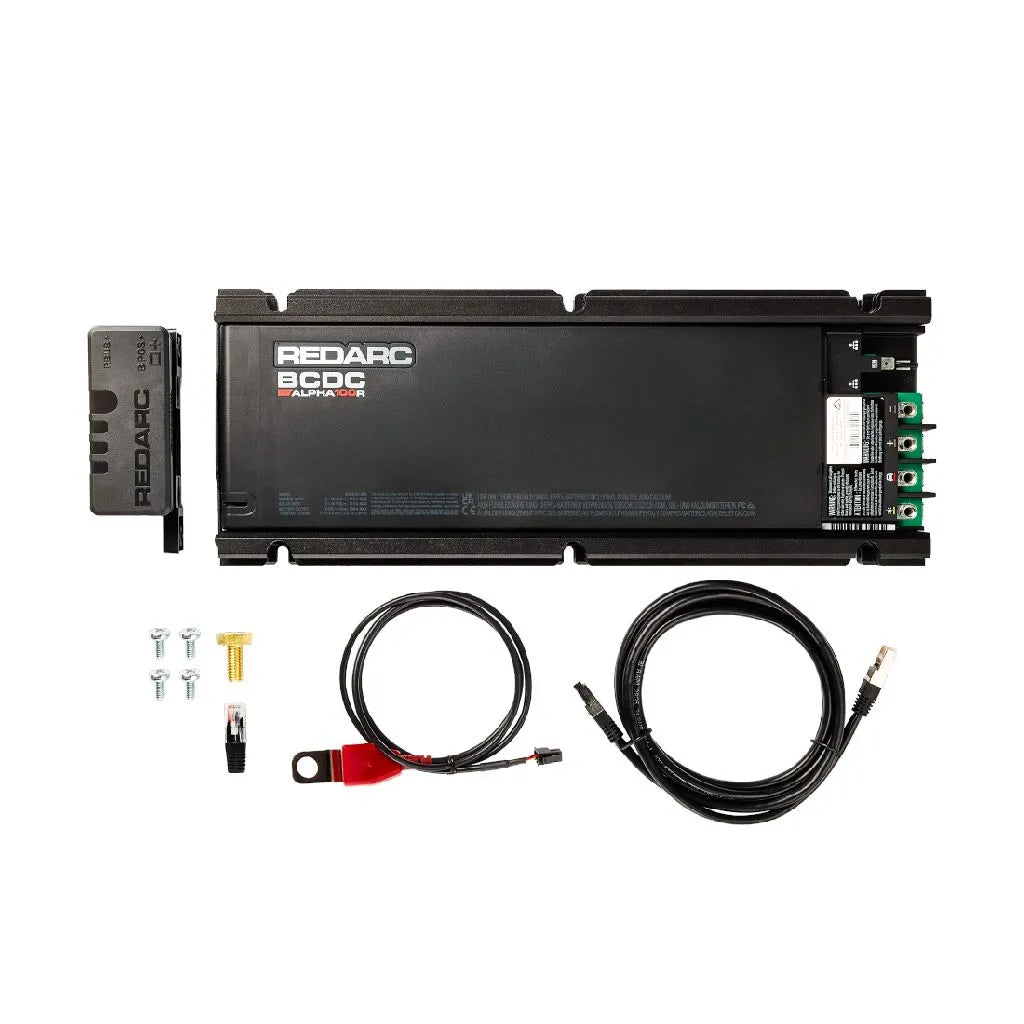

Redarc battery and cables on a white background

Redarc BCDC Alpha100 R DC Battery Manager front

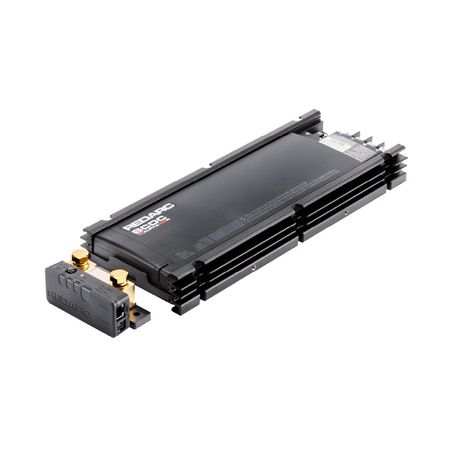

The Alpha100 R from the opposite corner, showing the depth of the extruded heatsink fins and the row of connectors along the far edge, with the sense module in the foreground

Redarc

BCDC Alpha100 R DC Battery Manager

Name: Redarc BCDC Alpha100 R DC Battery Manager
Brand: Redarc
Price: 2374.05 AUD
Availability: InStock

BCDC12100R

The REDARC BCDC Alpha 100R (BCDC12100R) is the top of the Alpha range — a 12V 100A DC-DC battery charger with an integrated battery manager, for a 12V auxiliary battery bank. It combines the Alpha DC-DC charger, MPPT solar input,…

$2,374.05$2,499.00 Save $124.95

4 interest-free payments of $593.51 with Afterpay

or pay over time with Zip

We accept Visa Mastercard Amex Apple Pay PayPal Zip Afterpay Finance

For 12V vehicles with a 12V auxiliary battery bank. Suitable for high-capacity dual-battery setups in 4WDs, touring vehicles, caravans, motorhomes and off-grid vans. Our workshop hardwires an ignition trigger on smart-alternator vehicles and multi-charger setups. For a 24V system, use the Redarc BCDC2420 instead.

Shipping & collection

Worldwide shipping available^*

In-store pickup

Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

100A ALPHA + BATTERY MANAGER

Alpha R — the top of the Alpha range, DC-DC + solar + full battery management in one in-cabin unit.

REDARC APP CONTROL

Monitor charging, set the battery profile and view state-of-charge over Bluetooth.

INTEGRATED BATTERY MANAGEMENT

Shunt-based monitoring built in — no separate BMS purchase needed.

6 CHARGE PROFILES

AGM, gel, calcium, standard lead-acid, LiFePO4 and custom — covers every modern deep-cycle chemistry.

5 YEAR REDARC WARRANTY

Backed by 5 years direct from Redarc — the Alpha series carries the extended warranty. Repair or replacement in accordance with Redarc's warranty policy.

Monitor charging state, view state-of-charge, and set the battery profile through the Redarc app over Bluetooth. Six charge profiles cover AGM, gel, calcium, standard lead-acid, LiFePO4 lithium and custom setups. Green Power Priority uses solar first to reduce alternator load.

Smart alternator vehicles and multi-charger setups. Our workshop always hardwires an ignition trigger to the charger on late-model vehicles with stop-start or variable-voltage smart alternators, and on any build with more than one BCDC (for example a charger in the vehicle plus a second charger in the caravan) so all chargers only run when the vehicle is running. Ask us if you're unsure whether your vehicle needs this.

Output is 12V. For a 24V system, use the Redarc BCDC2420 instead.

Rated for in-cabin installation, near the auxiliary battery bank so the shunt has a short lead. Backed by a 5 year Redarc warranty.

100 A DC charging output for rapid auxiliary battery charging Smart battery management

Nominal Output12 V DC, up to 100 A

Solar Input Voltage Range9–48 V DC

Battery CompatibilityAGM Gel Calcium Flooded lead-acid Lithium (LiFePO4 compatible)

Operating Temperature–20 °C to +60 °C

WeightApprox. 2.2 kg

ConnectionsHeavy-duty screw terminals

MountingEngine bay or cabin suitable

Everything this install needs

0 of 0 in the box

Q: What does the R mean?
A: R = integrated battery management. The Alpha 100R combines the Alpha DC-DC charger with a shunt-based battery manager in one unit — top of the Alpha range at 100A.

Q: Do I still need a separate battery monitor?
A: No — the Alpha 100R has the shunt built in and reports state-of-charge in the Redarc app.

Q: Which chemistries does it support?
A: 6 profiles including LiFePO4.

Q: Where does it mount?
A: In-cabin, near the auxiliary battery bank.

Q: What cable size?
A: 2 B&S is our workshop preference on 100A. Redarc will spec larger — 2 B&S covers the runs typical of 4WD and caravan installs. Do not go smaller.

Q: How long is the warranty?
A: 5 years, direct from Redarc.
