Home / Lighting / Driving & light bars

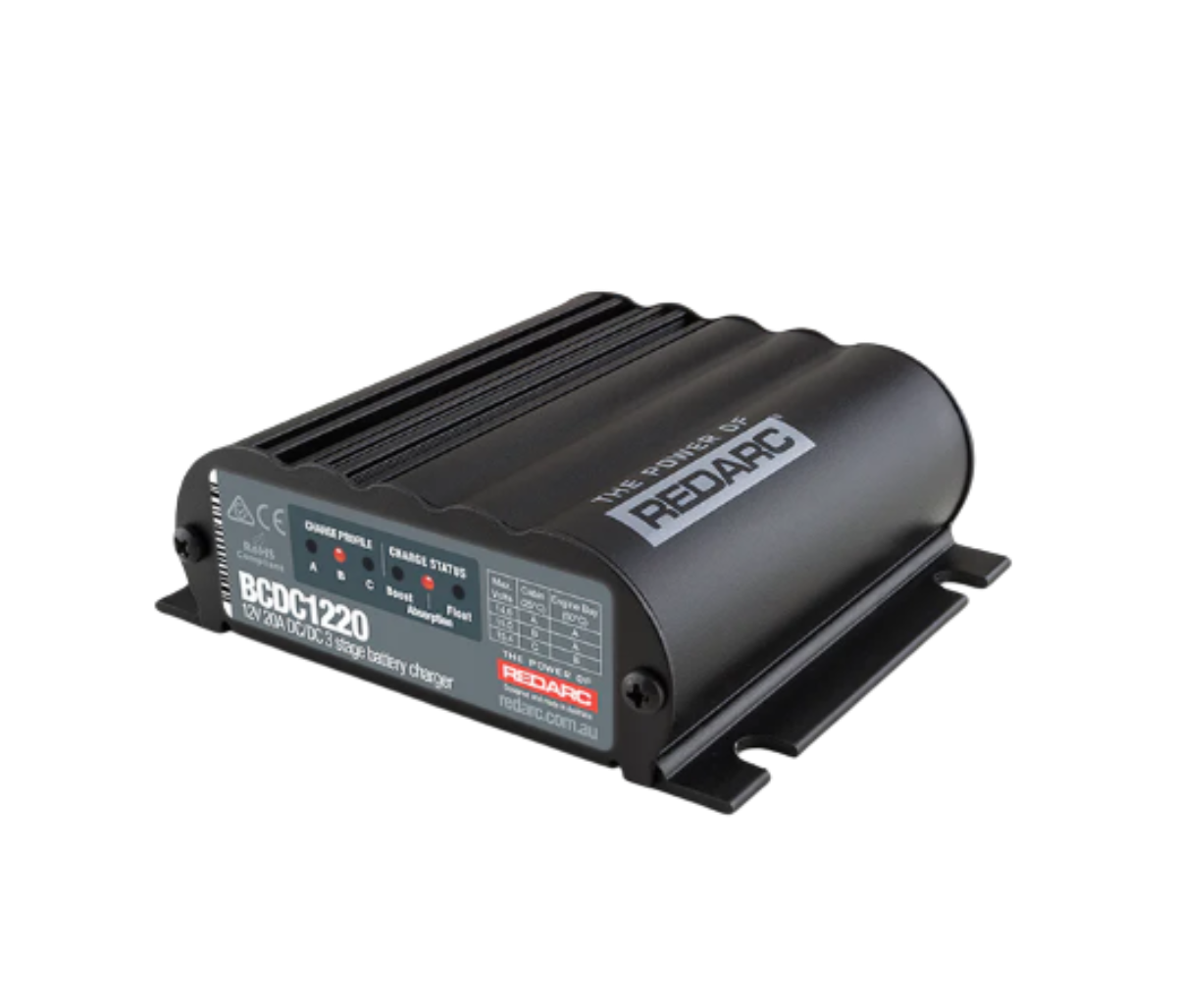

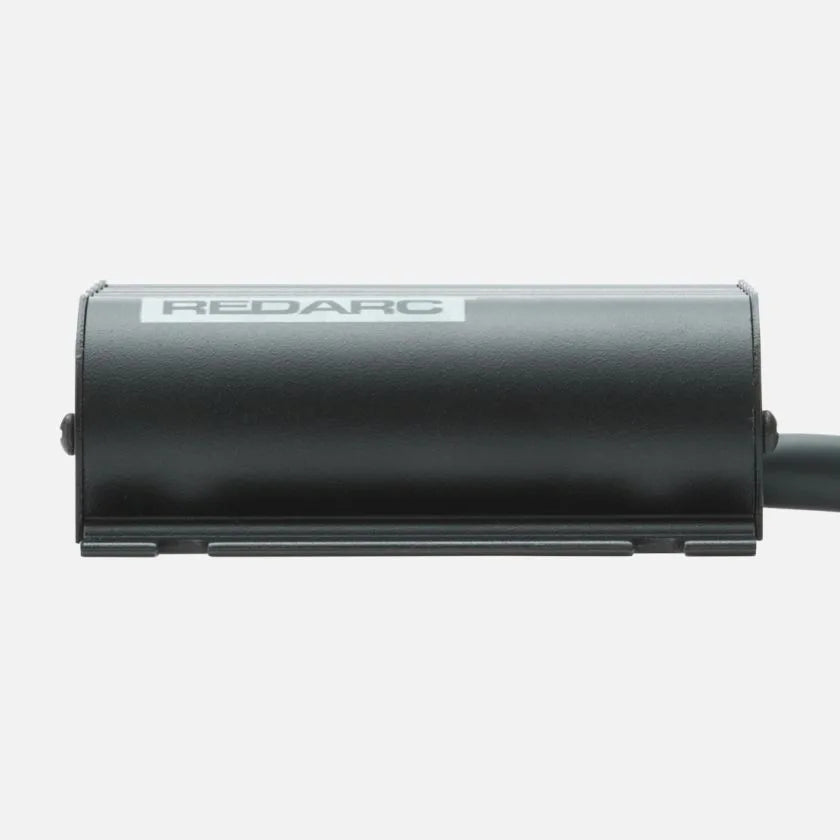

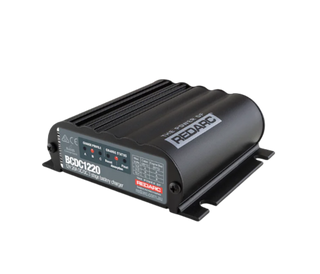

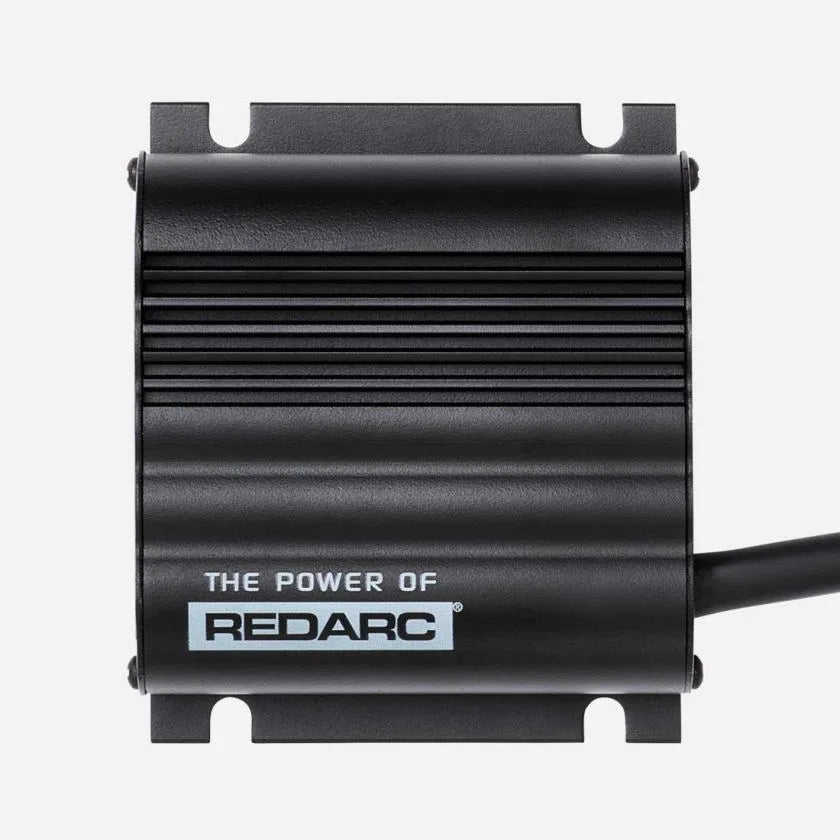

Redarc 20A Under Bonnet DC Battery ChargerRedarc 20A Under Bonnet DC Battery ChargerRedarc 20A Under Bonnet DC Battery Charger

Redarc

20A Under Bonnet DC Battery Charger

BCDC1220

The REDARC BCDC1220 is a 12V 20A DC-DC battery charger for a 12V auxiliary battery bank. It takes power from your vehicle's alternator using a multi-stage charge profile, with selectable settings for AGM, gel, calcium, standard lead-acid and LiFePO4 lithium…

$494.00$520.00 Save $26

4 interest-free payments of $123.50 with
or pay over time with
Important note

REDARC designs and manufactures all products in Australia to withstand harsh conditions, ensuring reliability and durability.

We accept
For 12V vehicles with a 12V auxiliary battery bank. Suitable for 4WDs, utes, vans, campers and boats. Our workshop hardwires an ignition trigger to the charger on smart-alternator vehicles and multi-charger setups (for example a BCDC in the vehicle plus another in the caravan). For a 24V system, use the Redarc BCDC2420 instead.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

20A UNDER-BONNET DC-DC

Compact charger sized to mount in the engine bay of most 4WDs and utes.

3-STAGE CHARGING, ANY CHEMISTRY

Selectable charge profiles for AGM, gel, calcium, standard lead-acid and lithium banks.

SEALED FOR ENGINE-BAY HEAT

Rated to run in the engine bay of an Australian 4WD — dust, water and vibration tolerant.

LITHIUM AND AGM READY

Selectable profiles for AGM, gel, calcium, standard lead-acid and LiFePO4 lithium banks.

2 YEAR REDARC WARRANTY

Backed by 2 years direct from Redarc. Repair or replacement in accordance with Redarc's warranty policy.

The REDARC BCDC1220 is a 12V 20A DC-DC battery charger for a 12V auxiliary battery bank. It takes power from your vehicle's alternator using a multi-stage charge profile, with selectable settings for AGM, gel, calcium, standard lead-acid and LiFePO4 lithium banks.

Fully sealed against water, dust and vibration. Fanless for silent operation and long service life in engine-bay heat. Sized to fit under the bonnet of most 4WDs and utes.

Output is 12V. The 9-32V input range means it will run on a 12V or 24V vehicle, but the output is always 12V. For a 24V system, use the Redarc BCDC2420 instead.

Designed, built and tested in Australia. Backed by a 2 year Redarc warranty.

  • Multi-stage DC-DC charging — selectable profiles for AGM, gel, calcium, standard lead-acid and LiFePO4 lithium
  • 9-32V input from a 12V or 24V vehicle, 12V output at 20A — for a 12V auxiliary bank
  • Start battery isolator built in — protects the vehicle's main battery
  • Fully sealed, fanless, under-bonnet rated for engine-bay heat and vibration
  • Designed, built and tested in Australia


Input (Operating) Voltage: 9 - 32VDC

Maximum Charging Voltage: 15.4V

Output System Voltage: 12VDC

Input Current (Max.): 20A

Output Fuse Rating: 40A

Standby Current Draw: <100mA

Output Current Rating (Cont.): 20A

Input Fuse Rating: 40A

Output Power: 300W

Length (mm): 120

Width (mm): 100

Height (mm): 37

Weight (kg): 0.485

Warranty: 2 Years

Type Approval: CE

Length: 165mm

Width: 120mm

Height: 37mm

Weight: 1.0kg

Source: manufacturer-verified

Everything this install needs

0 of 0 in the box

Compact and fully sealed design allows easy installation in engine bays.

Designed for harsh environments including off-road and marine applications.

Installation by a qualified auto electrician is recommended.

For 12V vehicles with a 12V auxiliary battery bank. Suitable for 4WDs, utes, vans, campers and boats. Our workshop hardwires an ignition trigger to the charger on smart-alternator vehicles and multi-charger setups (for example a BCDC in the vehicle plus another in the caravan). For a 24V system, use the Redarc BCDC2420 instead.

Q: Which battery chemistries does it charge?
A: AGM, gel, calcium, standard lead-acid and LiFePO4 lithium. Select the profile at install.

Q: Where does it mount?
A: Under the bonnet. The BCDC1220 is sealed and rated for engine bay temperatures.

Q: What cable size should I run to the start battery?
A: Redarc's install guide specifies 6 B&S from the start battery. In our workshop's experience, that's the right size for most 12V installs — don't go smaller.

Q: Does it work with smart alternators?
A: The plain BCDC1220 uses voltage sensing and is suitable for older, non-variable alternators. For stop-start or variable-voltage alternators, fit the BCDC1220-IGN instead.

Q: How long is the warranty?
A: 2 years, direct from Redarc.
