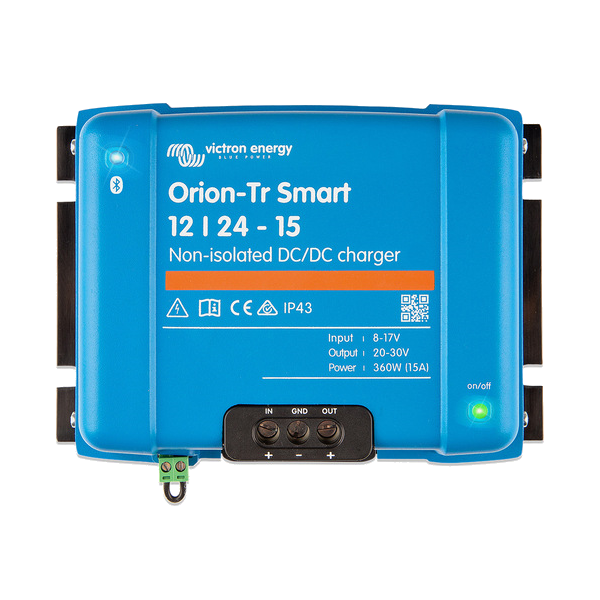

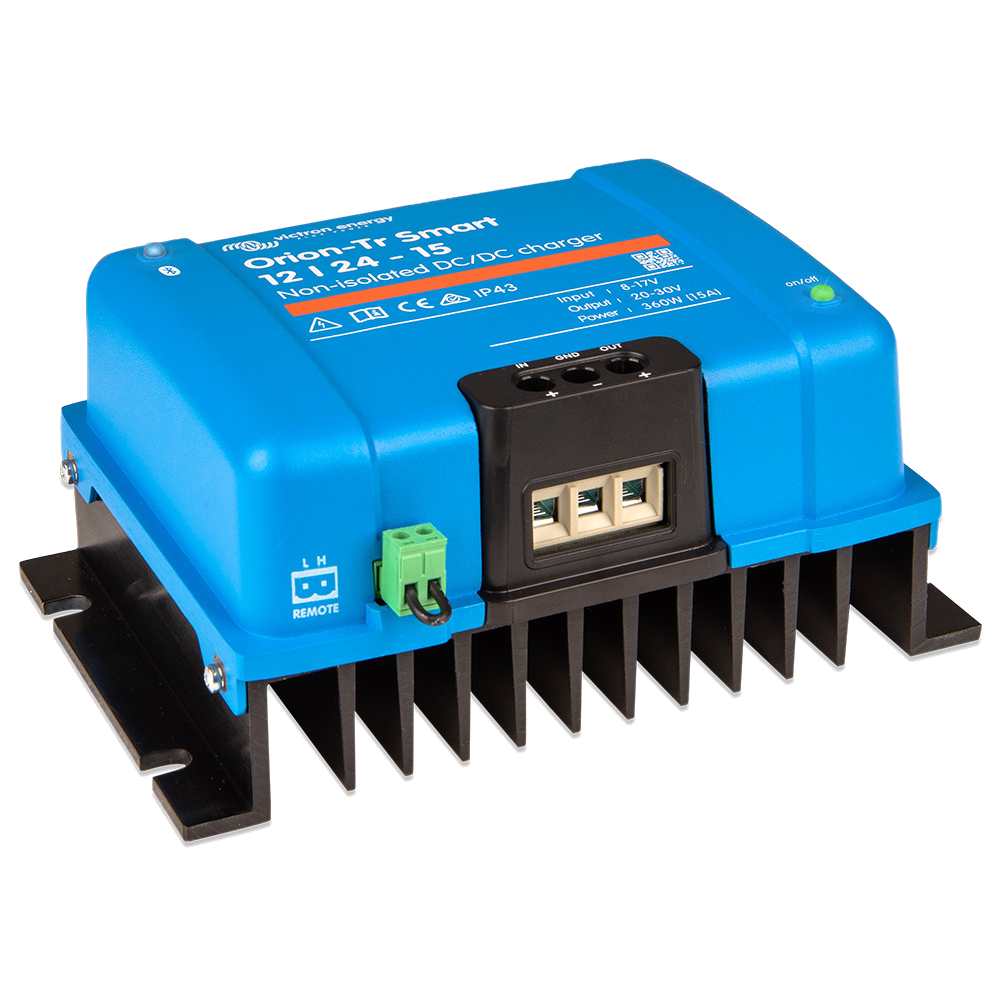

Victron Orion-Tr Smart 12/24-15A (360W) Non-isolated DC-DC charger

SKU: ORI122436140
$306.00
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Ideal for use in vehicles and boats with dual battery systems, including those equipped with smart alternators.


Orion-Tr Smart 12/24-15A (360W) Non-Isolated DC-DC Charger

User manual

Mounting hardware


100 x 113 x 47 mm (H x W x D)

Weight: 0.65 kg

Mounting: Surface mount with pre-drilled holes

The Victron Orion-Tr Smart 12/24-15A (360W) Non-Isolated DC-DC Charger is a professional-grade, adaptive 3-stage charger with built-in Bluetooth. It's designed for dual battery systems in vehicles and boats, where the alternator and start battery are used to charge the service battery. This charger is suitable for both 12V and 24V systems and supports lead-acid and lithium batteries.

 [{"variant_id":"47403352162577" , "metafield_value":""}]

Victron Orion-Tr Smart 12/24-15A (360W) Non-isolated DC-DC charger

$306.00
Description

The Victron Orion-Tr Smart 12/24-15A is a compact, non-isolated DC-DC charger delivering up to 360W power with 15A output. Designed for 12V to 24V battery systems, it efficiently charges your auxiliary battery from the starter battery while protecting both. With Bluetooth connectivity, it offers easy monitoring and configuration via the VictronConnect app, making it ideal for vehicles, boats, and off-grid systems.



FEATURES

Adaptive 3-stage charging

Built-in Bluetooth for remote monitoring and configuration

Compatible with smart alternators

Supports lead-acid and lithium batteries

Parallel operation for increased power output

Remote on/off capability

High-temperature operation








FAQ's

Q: What battery types are compatible with this charger?

A: It supports both lead-acid and lithium batteries.

Q: Can I monitor and configure the charger remotely?

A: Yes, it features built-in Bluetooth for monitoring and configuration via the VictronConnect app.

Q: Is it suitable for vehicles with smart alternators?

A: Yes, it's designed to work with smart alternators commonly found in modern vehicles.

Q: Can multiple chargers be used together?

A: Yes, multiple units can be connected in parallel to increase output power.

Q: What is the operating temperature range?

A: It operates in temperatures up to 55°C, delivering full rated output up to 40°C.

Specifications


Input Voltage Range: 8–17V (12V systems)

Output Voltage: 24V

Continuous Output Current: 15A

Output Power: 360W

Efficiency: 88%

Operating Temperature: -20°C to +55°C (derate 3% per °C above 40°C)

Bluetooth: Built-in for monitoring and configuration

Remote On/Off: Yes

Dimensions: Refer to datasheet

Weight: Refer to datasheet


















Installation Information


Refer to the Orion-Tr Smart DC-DC Charger Non-Isolated Manual for detailed installation and wiring instructions.

Warranty Information


Victron Energy provides a 5-year limited warranty covering manufacturing defects.
