REDARC SOLAR PANEL 12V 120W MONOCRYSTALLINE (1070x590x35)

SKU: SMRP1120

Pick Up Only - Contact us via Chatbox for Delivery options

$279.00
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Suitable for installation on caravans, RVs, motorhomes, camper trailers, and 4x4 vehicles.

1 x REDARC 120W Monocrystalline Solar Panel (SMRP1120)

Monocrystalline Fixed Solar Panel Manual

Fixed Solar Panel Install Manual EN DE ES FR IT PL AR

Length: 1070 mm

Width: 590 mm

Depth: 35 mm

Weight:6.7 kg


The SMRP1120 is designed for fixed installations and integrates seamlessly with REDARC's range of solar regulators and accessories. Its monocrystalline construction ensures high efficiency, and its robust design makes it suitable for various applications.

 [{"variant_id":"48092008317201" , "metafield_value":""}]

REDARC SOLAR PANEL 12V 120W MONOCRYSTALLINE (1070x590x35)

$279.00
Description

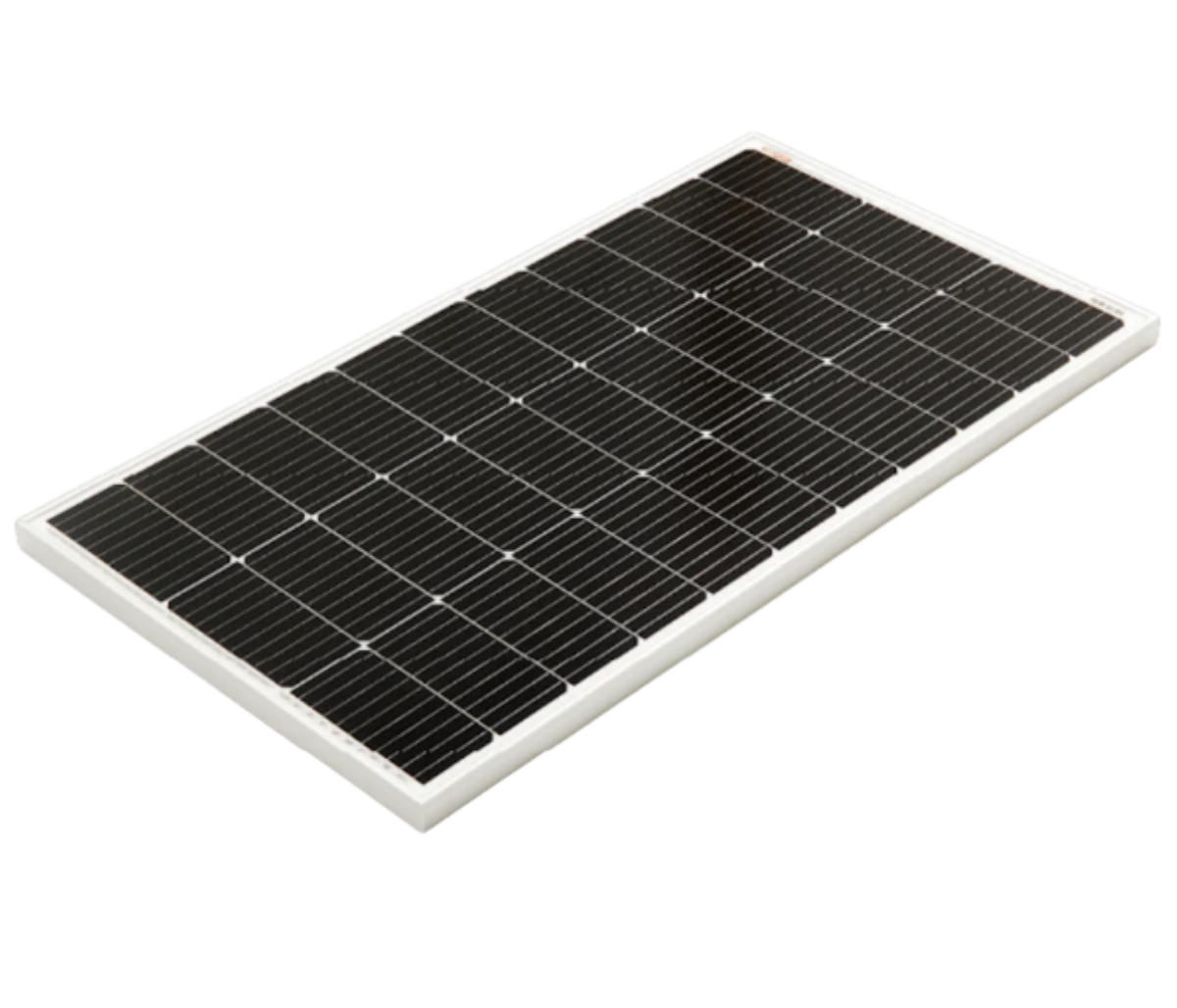

The REDARC 120W Monocrystalline Solar Panel (SMRP1120) is a high-efficiency, fixed solar panel designed to capture solar energy and keep your batteries charged throughout the day.

Ideal for caravans, RVs, motorhomes, camper trailers, and 4x4 vehicles, this panel features a robust design with a tempered glass coating and an anodized aluminium frame, ensuring durability against harsh road conditions and extreme weather. Each panel is tested at the time of manufacture to conform to CE standards, guaranteeing that the panel output matches its specifications.

FEATURES

High-efficiency monocrystalline construction

Robust tempered glass coating

Durable anodized aluminium frame

Quality MC4 style connectors for easy installation

Tested to conform to CE standards


FAQ's

Q:What type of solar cells does the panel use?
A:The panel utilizes monocrystalline solar cells for high efficiency.

Q:Can this panel be used with other REDARC solar accessories?
A: yes, it integrates seamlessly with REDARC's range of solar regulators and accessories.

Specifications

Maximum Power (Pmax): 120W

Maximum Power Voltage (Vmp): 18.8V

Maximum Power Current (Imp): 6.39A

Open Circuit Voltage (Voc): 22.0V

Short Circuit Current (Isc): 6.70A

Maximum Power Tolerance: ±3%

Operating Temperature Range: –40°C to +85°C

Cell Type: Monocrystalline

Connector Type: MC4 Style Connector

Cable Length: 900 mm

Frame Material: Anodized Aluminium

Front Material:Tempered Glass









Installation Information

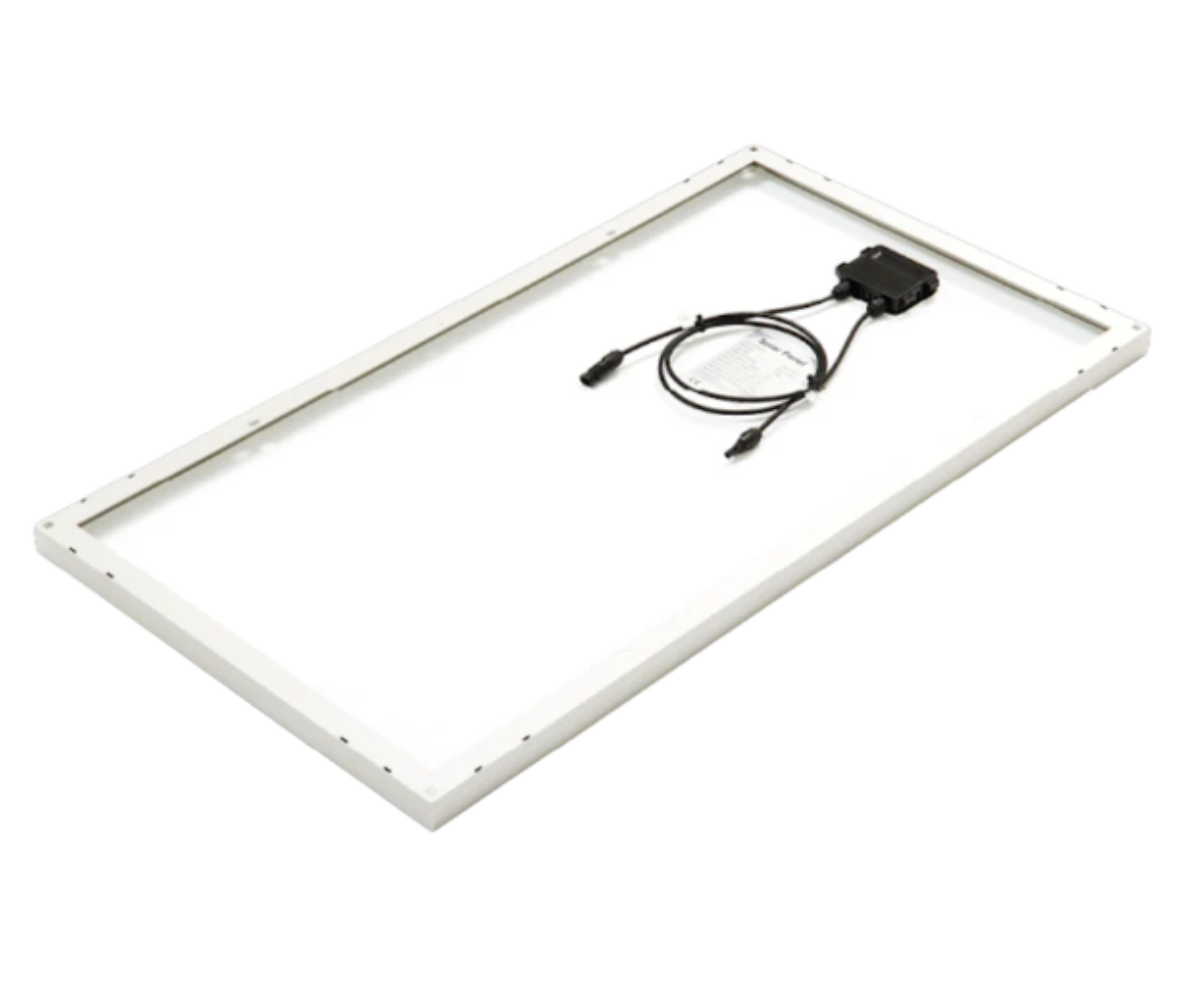

Designed for fixed installations, typically on the roof area of compatible vehicles. The panel employs MC4 style connectors for easy integration with existing systems.

Monocrystalline Fixed Solar Panel Manual

Fixed Solar Panel Install Manual EN DE ES FR IT PL AR

Warranty Information

2 Years Manufacturer Warranty covering defects in materials and workmanship under normal use.
