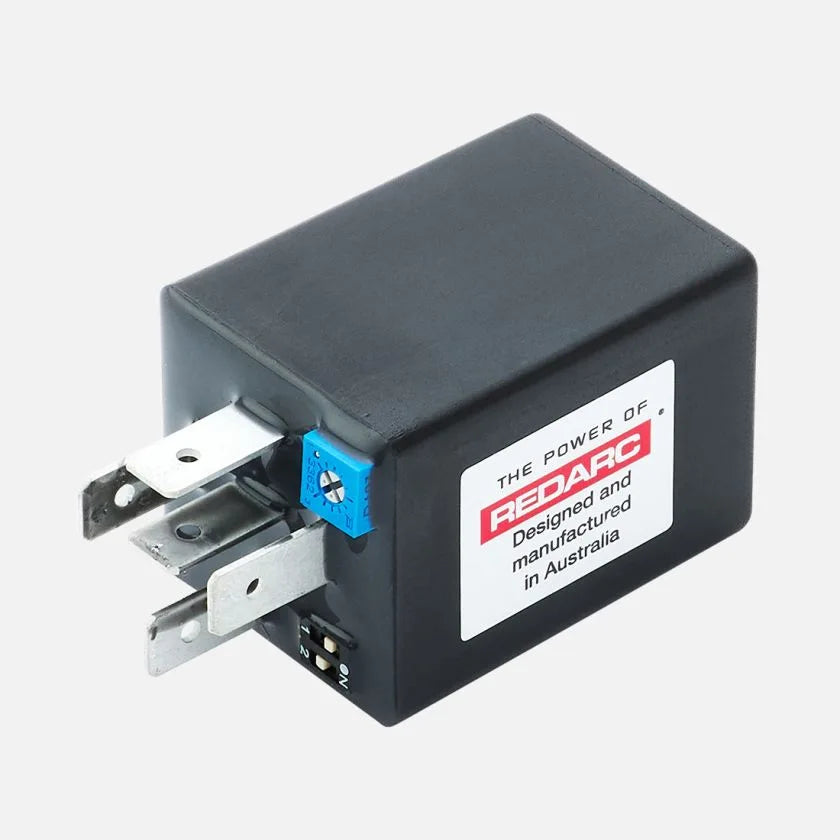

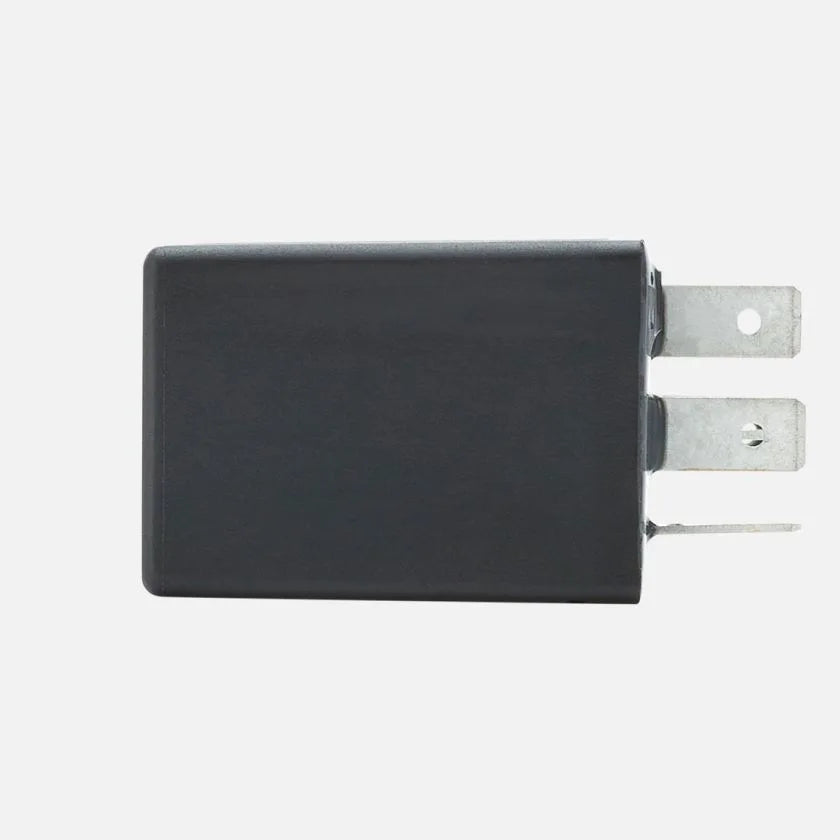

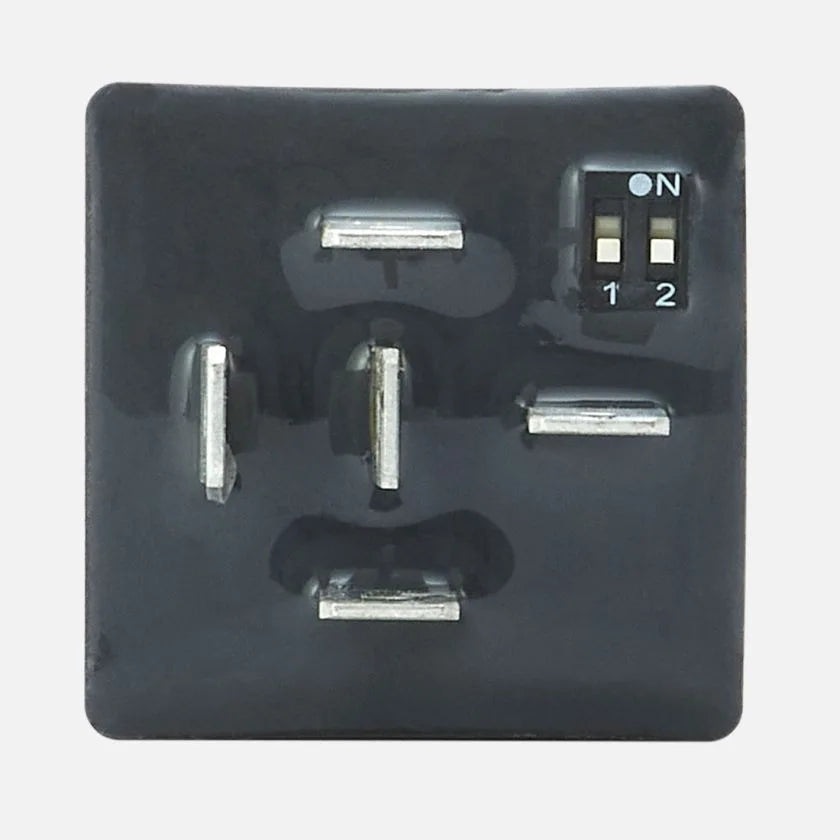

Redarc Multi Function Timer TIM05 / TIM06

SKU: TIM05
$180.00
VariantTIM05
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Compatible with all 12V and 24V negative ground automotive systems.

REDARC Multi-Function Timer (TIM05) unit

TIM05 Manual

(TIM05)

Width: 29 mm

Height: 30 mm

Length: 67 mm (incl. pins)

(TIM06)

Dimensions vary—see REDARC datasheet or contact us for confirmation.

Designed and manufactured by REDARC in Australia, built for durability and reliability in tough conditions.

 [{"variant_id":"51826645598481" , "metafield_value":""},{"variant_id":"51826645631249" , "metafield_value":""}]

Redarc Multi Function Timer TIM05 / TIM06

$180.00
Description

The REDARC Multi-Function Timer series offers flexible, reliable timing solutions for 12V and 24V vehicle and stationary applications. The TIM05 and TIM06 models provide precise control over auxiliary devices such as lights, pumps, fans, and more. Designed for use in 4WDs, caravans, campers, marine setups, and custom electrical systems, these timers are compact, durable, and easy to install.

The TIM05 is compatible with standard automotive relay bases and features a user-configurable time range of 1–60 seconds or minutes. Adjustment is made via DIP switches and a potentiometer, and the timer supports a 10A maximum output current.

The TIM06 is a fully sealed unit built to handle rugged environments. It also supports time configuration via DIP switches, offering dependable operation across a wide range of mobile and recreational vehicle setups.

FEATURES

Works with both 12V and 24V DC systems

Customisable time delay (1–60 seconds or minutes)

DIP switch timer setting with easy configuration

Compact and rugged for mobile applications

Relay base compatible (TIM05)

Fully sealed and waterproof (TIM06)

Suitable for automotive, caravan, marine and off-grid use

Backed by REDARC’s 2-year warranty

FAQ's

Q: Are these timers compatible with both 12V and 24V systems?
Yes, both models work with 12V and 24V vehicle electrical systems.

Q: How do I set the timer delay?
Timer delay is configured via DIP switches. The TIM05 also includes a potentiometer for fine adjustment.

Q: Is the TIM06 waterproof?
The TIM06 is fully sealed, making it suitable for harsh and damp environments.

Q: Can I use these with LED lighting circuits?
Yes, they can be used to control LED lights, pumps, and other auxiliary devices, within rated load limits.

Specifications

Input Voltage: 12V or 24V DC

Timer Range: 1–60 seconds/minutes (configurable via DIP switch)

Output Current (TIM05): Max 10A

Output Current (TIM06): See manufacturer specs

Switch Type: DIP switches

Adjustment Method: Potentiometer (TIM05), DIP switch (TIM06)

Mounting: Relay base (TIM05); surface or panel mount (TIM06)

Installation Information

Plugs into a standard automotive relay base with matching pin configuration. Suitable for both mobile and stationary installations.

Refer to TIM05 Manual for wiring details.

Warranty Information

2-year manufacturer’s warranty covering defects in materials and workmanship.
