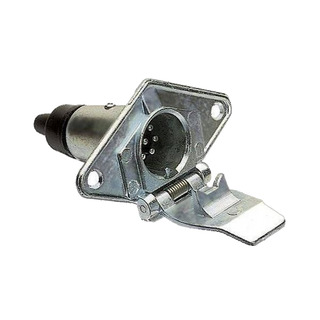

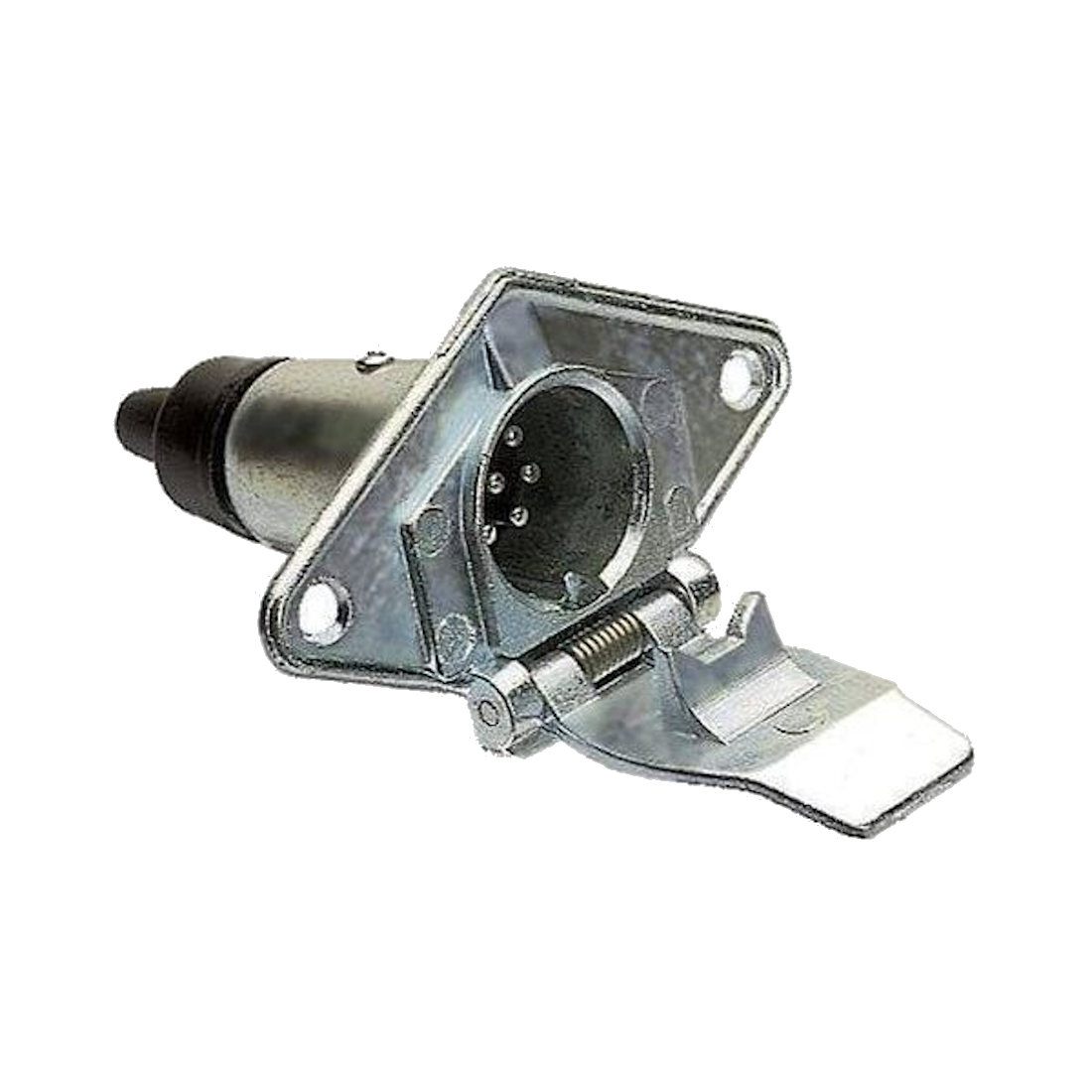

7 Pin Small Round Metal Trailer Socket

SKU: B22
$23.00
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Suitable for use on most trailers, caravans, boats, and other vehicles requiring a 7 pin small round trailer connection.


7 Pin Small Round Metal Trailer Socket

Installation guide


Diameter: Approx. 50mm

Depth: Approx. 30mm

(Please verify measurements before installation.)

This 7 Pin Small Round Metal Trailer Socket is built to meet standard towing electrical connection requirements. Designed for durability and reliable performance in all weather conditions.

 [{"variant_id":"32527714582637" , "metafield_value":""}]

7 Pin Small Round Metal Trailer Socket

$23.00
Description

7 Pin Small Round Metal Trailer Connector Socket B22

Plug to Suit: 7 Pin Small Round Trailer Plug


Pin Circuit

  • 1 - Left Hand turn signal - Yellow
  • 2 - Reversing Lamp - Black
  • 3 - Earth Return - Whte
  • 4 - Right Hand turn Signal - Green
  • 5 - Service Brakes - Blue
  • 6 - Stop Lamps - Red
  • 7 - Clearance and Tail Lamps - Brown



FEATURES


Durable metal construction

Standard 7 pin configuration

Corrosion resistant finish

Compact design for easy mounting

Color-coded wiring for easy installation

FAQ's


Q: Will this fit all trailers?

A: It fits trailers with 7 pin small round connectors. Check your trailer plug type before purchase.

Q: Is it waterproof?

A: Yes, designed with corrosion-resistant materials to withstand outdoor conditions.

Specifications
  • Number of Pins: 7
  • Connector Type: Small Round Metal Socket
  • Material: Corrosion-resistant metal
  • Color: Metallic finish
  • Wiring Standard: SAE J560 compatible

Installation Information


Simple installation with standard wiring configuration. Compatible with 7 pin small round trailer plugs. Refer to wiring color codes for correct connection. Professional installation recommended for optimal safety and performance.

Warranty Information


Covered by a 12-month limited warranty against manufacturing defects. Warranty does not cover damage caused by misuse, improper installation, or wear and tear.

PICKUP OR SHIPPING

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.
