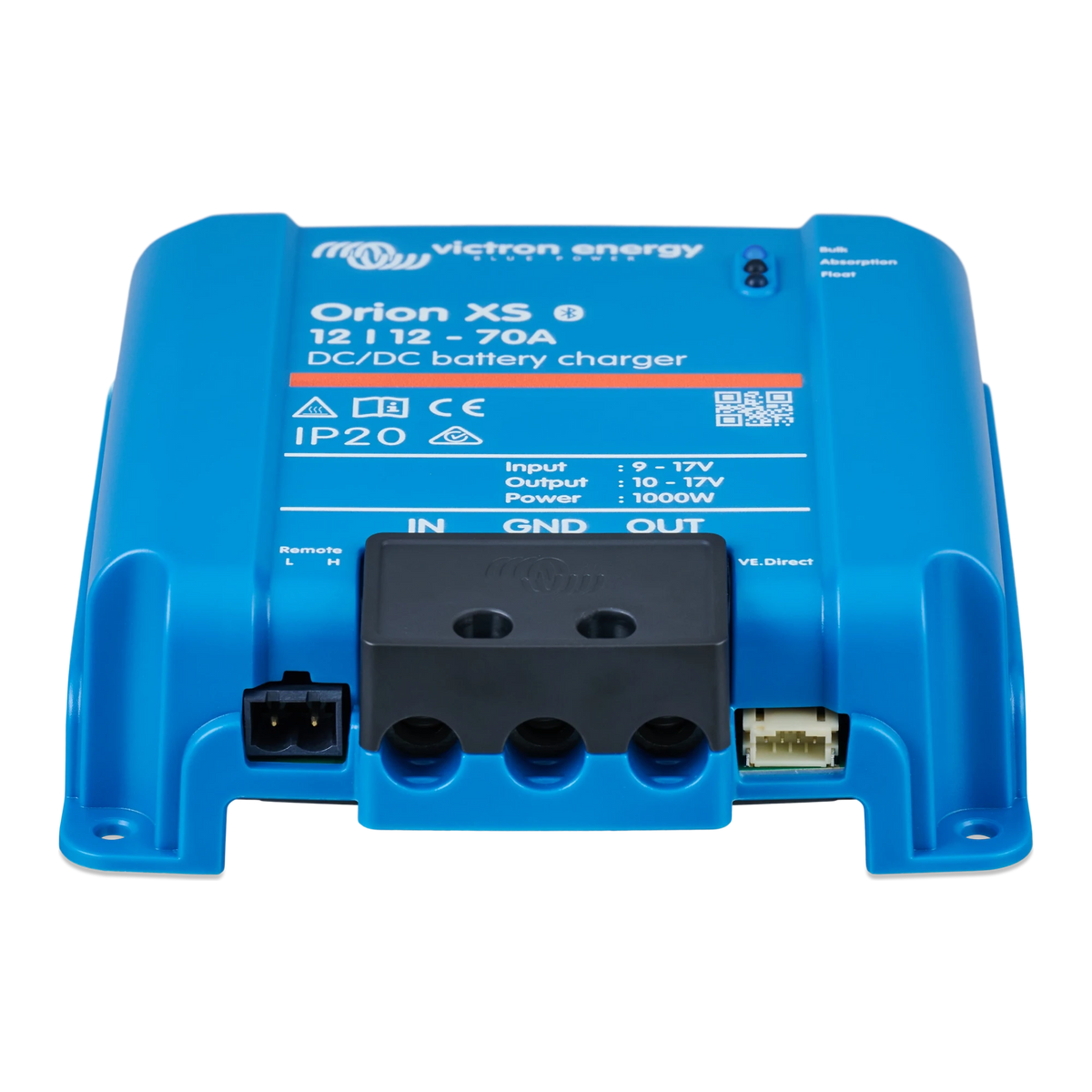

Victron Orion XS 12/12-70A DC-DC charger front view showing the label, terminal cover and VE.Direct port

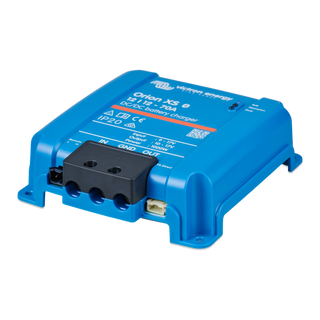

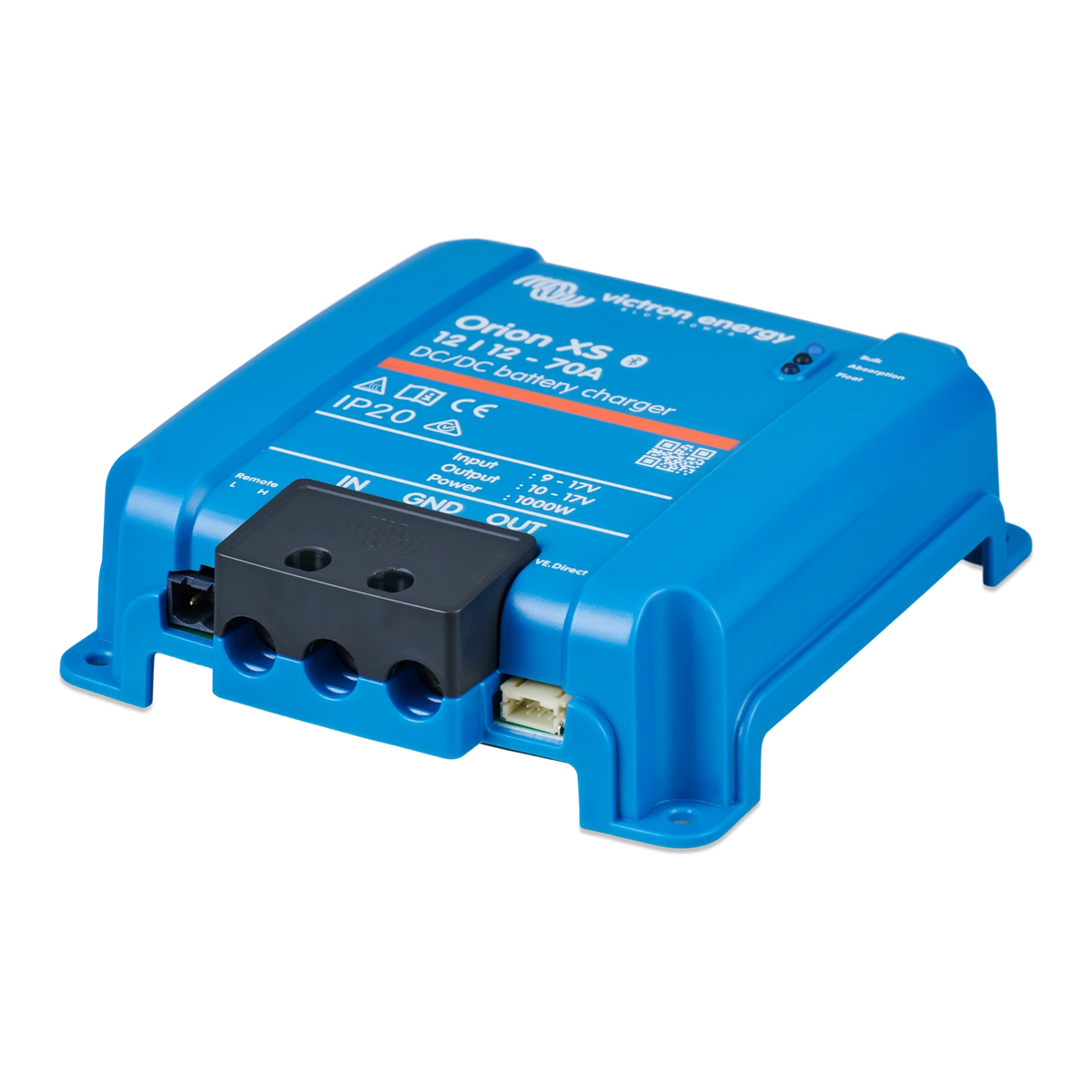

Victron Orion XS 12/12-70A DC-DC charger, left-side angle view

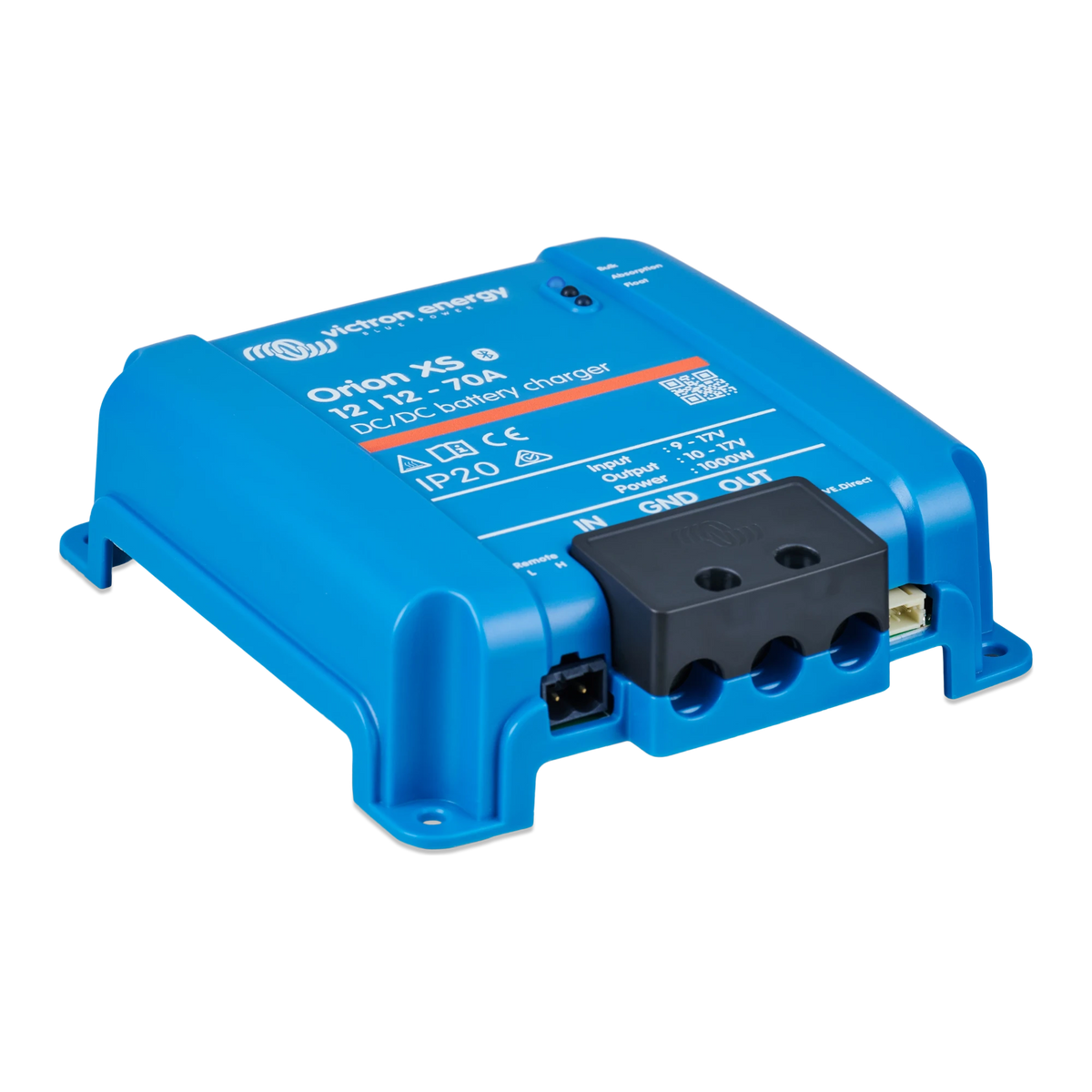

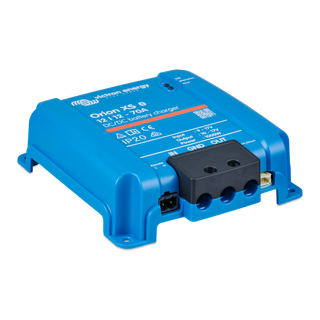

Victron Orion XS 12/12-70A DC-DC charger, right-side angle view

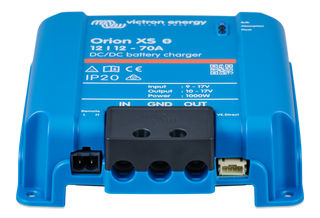

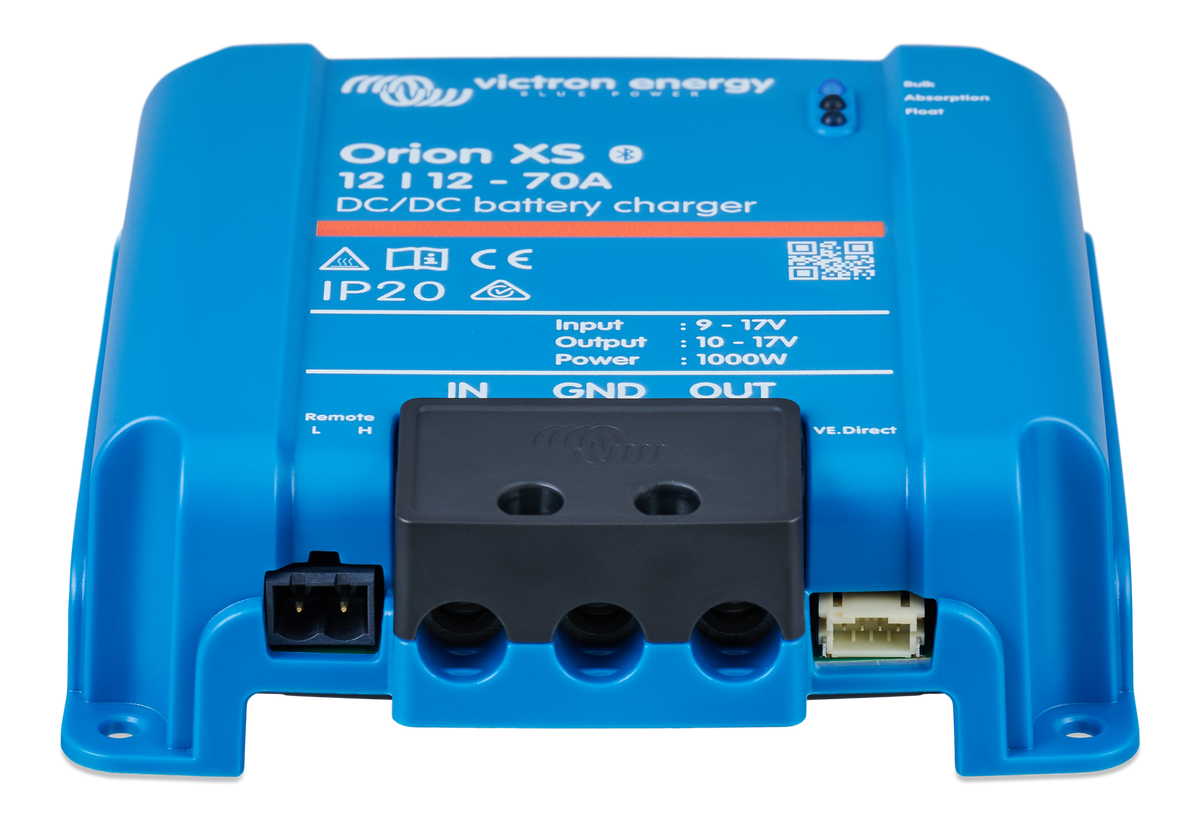

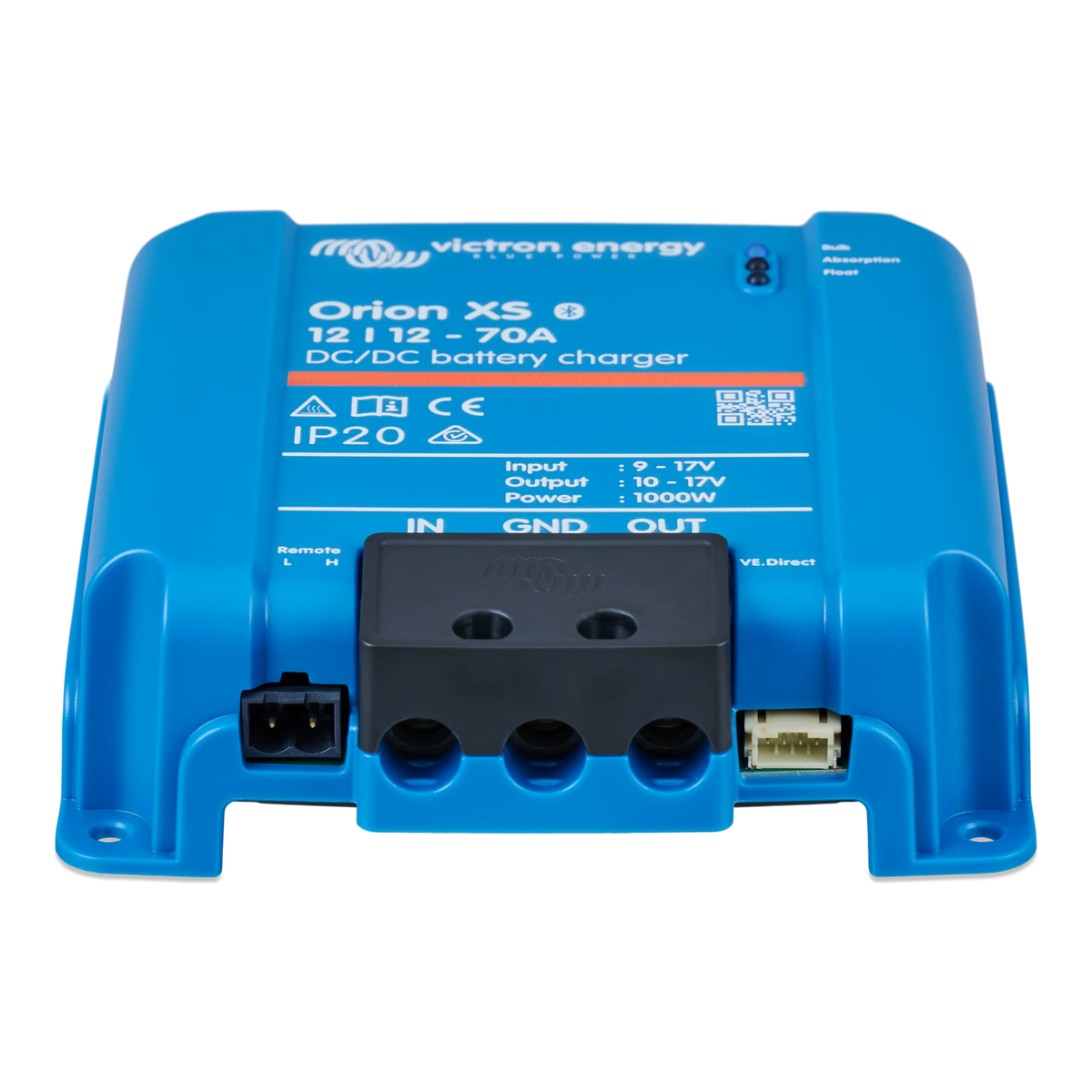

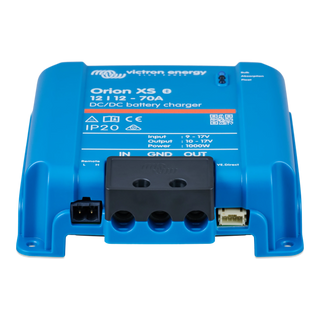

Victron Orion XS 70A DC-DC charger, front view with terminal cover and status LEDs

Victron Energy

Victron Orion XS 70A DC-DC Charger — 12V to 12V 1000W

Name: Victron Orion XS 70A DC-DC Charger — 12V to 12V 1000W
Brand: Victron Energy
SKU: ORI121221040
Price: 580.60 AUD
Availability: InStock

ORI121221040

Victron's compact 70A DC-DC charger for topping up lithium, AGM, gel or lead-acid auxiliary batteries from the vehicle alternator. Smart-alternator-ready. Bluetooth setup via VictronConnect.

$580.60

4 interest-free payments of $145.15 with Afterpay

or finance your build with Allied Finance

We accept Visa Mastercard Amex Apple Pay PayPal Zip Afterpay Finance

Universal auxiliary charging — fits any 12V alternator vehicle that needs an auxiliary battery charged while driving.

Shipping & collection

Worldwide shipping available^*

In-store pickup

Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

A 70A DC-DC charger that puts up to 1000W into an auxiliary 12V battery from the vehicle's alternator. Handles smart alternators and runs eight preset charge profiles for lithium, AGM, gel and lead-acid batteries. Fits 4WD builds, caravans, canopy fit-outs and marine installs where space is tight and the charge needs to be fast.

Measures 137 by 123 by 40mm and weighs 340g, so it tucks into cramped under-bonnet or seat-base cavities most 50A units will not fit. Screw terminals accept cable up to 25mm² (4 AWG) on both the input and output side. Twin internal fans and an aluminium heat-sink plate hold the full 70A output steady to 40°C ambient, then derate 1.5% per degree above.

Pairs with the VictronConnect app over Bluetooth to set output voltage from 10 to 17V, cap current between 1A and 70A, select the charge profile and read live stats. Multiple units can run in parallel for larger banks when a single 70A charger cannot keep up.

What sets it apart

Compact for 70A, 137×123×40mm fits where most 70A units will not. 98.5% peak efficiency, less heat, more charge to the battery. Smart-alternator-ready, engine-running detection with no ignition wire needed. Eight preset charge profiles, plus full user-defined mode via VictronConnect. VE.Direct DVCC-ready, integrates with Cerbo or Ekrano GX for whole-system monitoring. Parallel-capable, stack units beyond a single 70A for larger banks.

Pairs with

Eaton Bussmann MIDI Fuse Holder — Bolt-Down 40A to 80A

$29.00

MIDI Bolt-Down Fuses — 30A to 150A

$6.00

70A DC-DC output — 1000W into a 12V auxiliary bank
Smart-alternator-ready — engine-run detection, no ignition wire
Bluetooth + VictronConnect — tune voltage, current, profile from your phone
Eight preset profiles — lithium, AGM, gel, lead-acid plus user-defined
98.5% peak efficiency — less heat, more charge to the battery
IP65 power electronics — sealed internals for dusty, wet installs
VE.Direct with DVCC — adds whole-system monitoring on a GX
Parallel-capable — stack units for banks beyond a single 70A

Power

Input voltage: 9–17V DC

Output voltage: 10–17V DC

Output current: 1–70A

Output power: 1000W @ 14V

Efficiency: 98.5% max

Charging

Algorithm: Adaptive 4-stage

Preset profiles: 8

Reverse charge: Up to 35A

Standby draw: <1.5mA

No-load draw: <100mA

Build

DC terminals: 25mm² (4 AWG)

Ingress: IP20 unit, IP65 electronics

Operating temp: -20 to +60°C

Cooling: Twin fans + heat-sink

Interfaces

Bluetooth Smart: Yes

VE.Direct: Yes (DVCC)

VE.Smart Networking: Yes

Remote on/off: Yes

Status LEDs: Bulk, Abs, Float

Compliance

Automotive: ECE R10-7

Safety: IEC 62477-1

EMC: EN 300 328, EN 301 489

Length: 137mm

Width: 123mm

Depth: 40mm

Weight: 0.34kg

Mount on a flat vertical surface with at least 100mm of clear airflow above and below. The twin fans draw air across the heat-sink plate from one side to the other; blocking airflow drops the sustained output. Under-bonnet, seat-base and canopy locations all work.

Run 25mm² (4 AWG) cable from the start battery to the input terminals and the same gauge from the output terminals to the auxiliary battery. Keep each cable run under 2 metres per side where possible. Fit an 80A MIDI fuse on the input cable within 300mm of the start battery positive terminal.

Use VictronConnect on a phone to pick the charge profile for the auxiliary battery chemistry, set the output voltage limits per the battery maker's spec sheet, and cap the current if the battery accepts less than 70A. Save the profile. The charger then runs the full programmed profile every time the engine starts, no further setup needed.

For integration with a Victron GX device (Cerbo, Ekrano), add a VE.Direct cable from the Orion XS to any spare VE.Direct port. Firmware v1.03+ and Venus OS v3.20+ required for DVCC.

Universal auxiliary charging — fits any 12V alternator vehicle that needs an auxiliary battery charged while driving.

12V alternator inputs, smart or conventional

Lithium (LiFePO4), AGM, gel and lead-acid auxiliary batteries

Not for 24V input systems — see 24V Orion XS variants

Not for 240V AC — this is DC-DC only

Q: What does DC-DC charger actually mean?
A DC-DC charger steps the vehicle alternator's 12V output up to the voltage an auxiliary battery needs to charge cleanly. A plain voltage-sensing relay just connects the two batteries straight through, which does not suit modern smart alternators or lithium batteries. The DC-DC charger isolates and conditions the charge so it runs at the right profile for the battery chemistry.

Q: What does smart-alternator compatible mean?
Modern vehicles vary alternator output based on engine load and fuel economy. The alternator can drop under 13V while cruising, which will not charge a lithium or AGM auxiliary properly. A smart-alternator-ready DC-DC charger boosts that variable voltage up to the full charge voltage the auxiliary battery needs.

Q: Does this need an ignition wire?
No. The Orion XS senses when the engine is running by monitoring the input voltage, so there is no second wire to run back to a switched ignition source.

Q: How much faster is 70A than 40A?
Roughly 75% faster. A 100Ah lithium bank from 50% to full on a 40A charger takes about an hour and a quarter of driving. The same bank on the Orion XS 70A finishes in about 45 minutes.

Q: Can I charge lithium batteries with this?
Yes. VictronConnect over Bluetooth lets you pick the lithium (LiFePO4) profile from eight presets, or set a user-defined profile with your battery maker's exact bulk, absorption and float voltages.

Q: Can I run two Orion XS units in parallel?
Yes. Multiple units can be wired in parallel to a single battery bank for more output. Each unit has its own 25mm² (4 AWG) input and output terminals.

Q: Does the Orion XS take solar input?
No. The Orion XS is a vehicle-alternator DC-DC charger. For solar input into the same battery, pair it with a Victron MPPT charge controller on its own circuit. The two work together on the same bank.

Q: How is this different from the Victron Orion-Tr Smart?
The Orion-Tr Smart is the older, larger range. The Orion XS is roughly 40% smaller, 30% lighter and runs higher efficiency (98.5% vs around 87%). Both are configured from VictronConnect and both handle lithium, AGM, gel and lead-acid chemistries.

Q: What size input fuse do I need?
An 80A MIDI fuse on the input cable, within 300mm of the start battery. The 70A output draws roughly 80A on the input side at full output, allowing for efficiency losses and startup transients.

Q: Is the Orion XS waterproof?
The power electronics sit inside an IP65 housing, so splash and dust will not reach the circuitry. The outer casing is IP20, so avoid mounting in standing water or spots that collect rain. Under-bonnet, canopy and seat-base locations all work.

Q: Is a VE.Direct cable included?
No. The VE.Direct cable is sold separately. You only need one if you are connecting to a Victron GX device like a Cerbo for whole-system monitoring. For phone-based setup via Bluetooth, no cable is required.

Q: What warranty does Victron offer?
Victron Energy covers the Orion XS for 5 years from the date of purchase against manufacturing defects.
