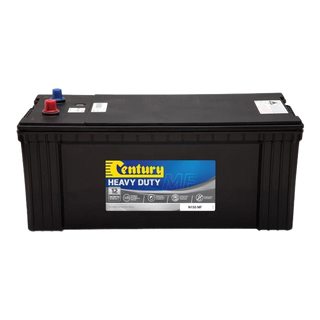

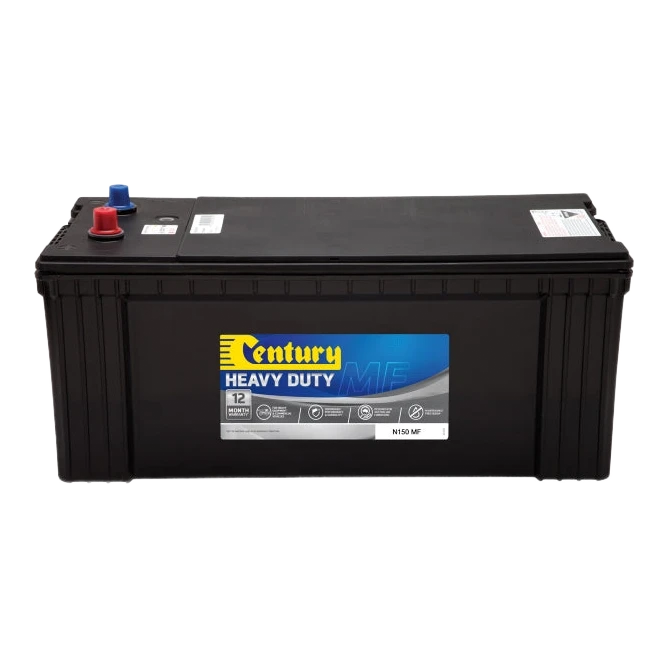

Century Heavy Duty N150 MF 12V 1000CCA 155Ah flooded truck and bus starting battery with Platelock vibration resistance

Century

Heavy Duty N150 MF — 12V 1000CCA 155Ah Truck Battery

125105

Century Heavy Duty N150 MF — 12V 1000CCA 155Ah flooded cranking battery for trucks, buses and heavy equipment. Platelock vibration resistance, 300 min reserve, 506×220×210 mm footprint.

12V 155Ah
1000 CCA
300 min RC

$475.00

4 interest-free payments of $118.75 with
or finance your build with
We accept
Universal fitment12V flooded truck and bus starting battery with Platelock vibration resistance

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

A heavy-duty flooded truck and bus battery that cranks diesel engines and holds up to the vibration those vehicles put a battery through. Starts prime movers, rigid trucks, buses, graders, loaders, tractors and earthmovers. 1000 CCA for cold starts and 300 minutes of reserve for cabin and ancillary loads while the engine is off.

The case is reinforced polypropylene, 506 by 220 by 210 mm with terminals sitting 233 mm over the base, and the whole battery weighs 39.2 kg. Standard SAE posts in a 12V_F (front positive) layout, flame arrestor and central venting on the top, carry handles flush with the ends. Platelock holds the plate stack rigid against road vibration, which is where this kind of battery normally fails in commercial use.

Not a deep-cycle, not a dual-purpose unit, not for daily house-load discharges off-grid. Charge from the vehicle's alternator or a flooded-profile truck-grade charger; AGM-only profiles under-charge it. Warranty runs 12 months against manufacturing defects for commercial use under Century's own cover.

Related in our range

  • Platelock plates — rigid against road vibration
  • 1000 CCA cranking — turns over diesel trucks and buses
  • 300 min reserve — runs cab load with engine off
  • Reinforced case — resists heat, fuel and oil
  • Twin carry handles — balanced two-person lift at 39.2 kg
  • Flame arrestor — maintenance-free sealed vent
  • Central venting — gassing path handled, no top caps
  • Standard SAE posts — drops into OE truck mounts

Electrical

Voltage: 12V

CCA: 1000

Reserve: 300 min

Capacity: 155Ah

Use: Starting only

Physical

Dimensions: 506×220×210

Over-terminals: 233mm

Weight: 39.2 kg

Terminals: STD SAE

Polarity: 12V_F front

Build

Chemistry: Flooded lead

Case: Polypropylene

Vent: Flame arrestor

Vibration: Platelock

Mount: Upright

Length: 506mm

Width: 220mm

Height: 210mm

Over-terminals: 233mm

Weight: 39.2kg

N150 footprint 506 by 220 by 210 mm with terminals at 233 mm over the base; 39.2 kg weight needs a battery tray and clamp rated to the mass. Check the tray clears the 220 mm width (N150 is wider than N70 at 173 mm). Standard SAE posts in a 12V_F (front positive) layout; rotate 180 degrees if the vehicle wiring expects rear positive, or specify the N150L MF sibling for native rear-positive wiring.

Torque SAE post clamps to 12 Nm. Use anti-corrosion washers under both posts. Positive and negative cables sized to carry 1000 CCA, typically 50 mm² minimum for diesel engines over 4 litres.

Flooded charging profile only; AGM profiles under-charge this battery. Alternator should sustain 14.0 to 14.4 V bulk at 25°C, truck-grade float at 13.4 to 13.6 V. Central venting handles the gassing path and the flame arrestor replaces old-style vented caps, so the battery is maintenance-free but still needs airflow around it.

12V flooded truck and bus starting battery with Platelock vibration resistance
Fits prime movers, rigid trucks, buses, graders, loaders, tractors, earthmovers
Suits commercial vehicles taking an N150 (506×220×210mm) flooded starter battery in 12V_F front-positive layout
Standard SAE posts with twin carry handles for the 39.2 kg lift
Not a deep-cycle, don't daily-discharge for house loads
Not for AGM-only charging profiles, needs flooded wet-cell

Q: What's the difference between CCA and MCA?
CCA is cold cranking amps, measured at -18°C; the output a battery delivers when the oil is thick and the cells are cold. MCA is marine cranking amps, measured at 0°C, which prints a higher number for the same battery because cells output more current when warmer. Diesel trucks and buses are specified on CCA because the engine has to turn over in cold conditions.

Q: What does 300 minutes reserve capacity mean on a truck battery?
Reserve capacity is how long the battery supplies 25 amps before dropping below 10.5 volts, with the engine off and the alternator not charging. 300 minutes is 5 hours of lights, cab heater, radio and panel power on an idle rig without the engine running; that matters when a driver sleeps in the cab, parks in a yard with the lights on, or runs cab accessories at a loading bay.

Q: What does 12V_F polarity mean, and how do I tell if it fits my truck?
12V_F is Century's code for front positive; the positive terminal sits on the front edge of the battery as you face the terminals from the long side. Pull the old battery, look at where the positive and negative posts are on the top of the case, and compare to the N150 MF. If your truck's wiring loom expects rear positive instead, the N150L MF sibling has the opposite layout.

Q: Can I use this as a dual-battery or house battery in a motorhome or 4WD?
No. This is a cranking battery, not a deep-cycle or dual-purpose. It is built to deliver a short, massive burst of current to start a truck engine, then recover on the alternator. Daily deep discharges to run a fridge, lights or inverter wreck the plates fast. For a dual-purpose 4WD or caravan battery, look at the Century Dual Force+ 27X MF; for a dedicated house battery, the Century C12-120XDA Deep Cycle AGM.

Q: Can I side-mount this battery?
No. Flooded lead-acid batteries hold electrolyte as free liquid and have to sit upright. Side-mounting one leaks acid out of the vent and strips the plates on the low side. If a side-mount orientation is unavoidable, choose an AGM battery instead.

Q: What charging profile does this battery need?
Flooded (wet-cell) profile. Bulk voltage 14.0 to 14.4 V at 25°C, float 13.4 to 13.6 V, with temperature compensation. The alternator in a commercial truck is already set to this profile. An AGM charger set to AGM mode under-charges a flooded battery because AGM holds a lower absorption voltage; use the charger's flooded or wet-cell setting.

Q: Does this battery need maintenance like checking fluid levels?
No. It is a maintenance-free design; the central venting and flame arrestor keep gassing contained and the cells are not accessible for topping up with distilled water. Keep the top clean, check the terminal posts for corrosion once a year, and watch the alternator output voltage; that is the full maintenance list.

Q: What's Platelock technology actually doing?
Platelock is Century's name for a plate-restraint system that holds the lead plates rigid inside the cells so road vibration can't shake the active material off. Commercial vehicles vibrate a battery constantly; standard automotive batteries lose capacity and die early in trucks and heavy equipment because the plates shed. Platelock extends service life in that use case.

Q: Can I use an AGM charger on this battery?
Only if the charger has a flooded or wet-cell mode and that is the mode selected. A charger set to AGM profile holds absorption voltage around 14.4 to 14.7 V and then drops to a lower float that under-charges a flooded battery over time. Flooded profile is 14.0 to 14.4 V absorption with a higher float, which is what this battery wants.

Q: Is this battery suitable for solar off-grid systems that discharge daily?
No. Solar off-grid use is a daily deep-discharge pattern that destroys a cranking battery in weeks. For solar off-grid or house-load use, choose a dedicated deep-cycle AGM or lithium battery; the Century C12-120XDA Deep Cycle AGM is one option in our range.

Q: What's covered by the 12-month warranty?
Twelve months against manufacturing defects; plate shorts, case defects, failures that come down to how the battery was built rather than how it was used. Battery failures from under-charging, boiling the cells dry by over-charging, physical damage, incorrect install, or deep-cycling a cranking battery are not covered. Keep the warranty label affixed to the top of the case so Century can action a claim.
