Home / Lighting / Driving & light bars

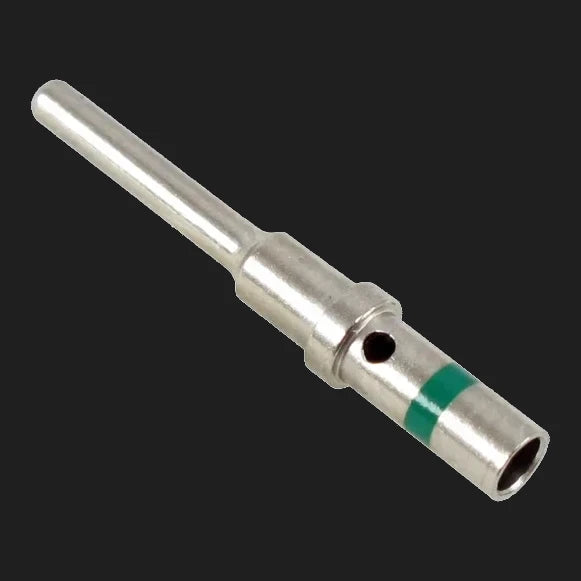

Nickel-plated 14 AWG solid pin contact with a green identification band near the mating end, sized SZ16 for Deutsch DT/DTM/DTP housings

Deutsch

Solid Pin Contact — SZ16 (14 AWG, Nickel Green Band)

0460-215-16141

Genuine Deutsch SZ16 solid pin contact for 14 AWG (4mm²) wire. Nickel finish, green identification band. Fits DT, DTM and DTP Deutsch housings.

Genuine Deutsch SZ16 solid pin
Nickel, green band
14 AWG (4mm²)

$1.00

4 interest-free payments of $0.25 with
or finance your build with
We accept
Universal fitmentGenuine Deutsch SZ16 pin contact for any 12V, 24V, 36V or 48V DC harness using DT-series housings

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

Genuine Deutsch SZ16 solid pin contact, sized to crimp onto 14 AWG (4mm²) wire. The nickel finish with green identification band matches the SZ16 socket, so a mated pair carries a consistent contact class through the connector.

Solid contacts are the machined, industrial-grade choice over stamped-and-formed. They survive vibration, thermal cycling and repeated mating cycles without contact-spring fatigue, which is why they are the default in mining, off-road, canopy, service body, trailer and industrial wiring. Crimp with the correct four-indent Deutsch tool for a consistent, gas-tight termination.

Buy this pin to complete an SZ16 circuit inside a Deutsch housing. Pair with the matching SZ16 solid socket on the mating half of the connector so both ends carry the same contact class.

Pairs with

Deutsch Solid Socket Contact — SZ16 (14 AWG, Nickel Green Band)

$2.30

  • Genuine Deutsch — TE-manufactured contact, not generic clone
  • Solid machined body — vibration-proof for mobile use
  • Nickel plated — corrosion resistance in harsh environments
  • Green ID band — instantly readable in a busy loom
  • SZ16 form factor — fits every DT, DTM and DTP housing

Contact typeSolid pin

SizeSZ16

Wire range14 AWG / 4mm²

FinishNickel plated

ID bandGreen

Current rating13 A per contact

HousingsDT, DTM, DTP series

Genuine Deutsch SZ16 pin contact for any 12V, 24V, 36V or 48V DC harness using DT-series housings
Suits 14 AWG (4mm²) wire
Not for 240V AC mains — mains connectors must be AS/NZS 3000 compliant and installed by our licensed electrician (EC17073)

Q: What does SZ16 actually mean?
SZ16 is Deutsch's size class for contacts sized for 14 AWG to 18 AWG wire (roughly 0.8 to 2.5mm²). It defines the physical dimensions of the contact so it fits the correct cavity size in a Deutsch housing. The green identification band is the visual cue for SZ16.

Q: Solid vs stamped-and-formed contacts, which one do I need?
Solid contacts are machined from a single piece of brass. They handle vibration, thermal cycling and repeated mating without contact-spring fatigue. Stamped contacts are cheaper but wear out faster. If the harness lives in a vehicle, on a trailer, or anywhere the temperature cycles, solid is the right call.

Q: Pin or socket, which side of the connector does this go into?
The pin (male) contact mates into the socket (female) contact. On a keyed Deutsch pair, one housing takes pins and the other takes sockets. Check the housing you are working on before ordering: the plug and receptacle each accept only one contact type.

Q: What wire size does this contact suit?
14 AWG (4mm²) is the primary target size. It will also crimp acceptably onto 16 AWG (1.5mm²) with the correct die setting, but 14 AWG is the sweet spot. For 18 AWG use the nickel-white-band variant instead.

Q: Can I crimp this with regular pliers or an open-barrel crimper?
No. Solid Deutsch contacts need a four-indent Deutsch crimper (HDT-48-00 or equivalent) to form the gas-tight seal Deutsch is designed around. Open-barrel or generic crimps do not compress the contact correctly and the connection will fail under vibration.

Q: What housings does this contact fit?
Any Deutsch housing with SZ16 cavities: DT (2 to 12 way), DTM (2 to 12 way), DTP (2 to 6 way) and the DTHD series. If the cavity is sized for SZ16, this contact drops in.

Q: How much current can one SZ16 contact carry?
13 A per contact is the standard SZ16 rating per Deutsch's published data. At 12V DC that covers most auxiliary lighting, sensor loops and low-current accessories. For higher current use SZ12 (25 A) or SZ8 (40 A) contacts instead.

Q: How do I know these are genuine Deutsch, not a knock-off?
The part number is 0460-215-16141, the current TE Connectivity/Deutsch catalogue number for the SZ16 solid pin. Generic clones typically carry no part number, use a slightly different wire-well geometry, or lack the correct nickel plating.

Q: Do I need cavity plugs for unused positions in the housing?
Yes, on every unused cavity. Cavity plugs (also called sealing plugs) keep the IP rating intact. A single missing plug in a 12-way housing lets water track through the whole connector.
