EvaKool

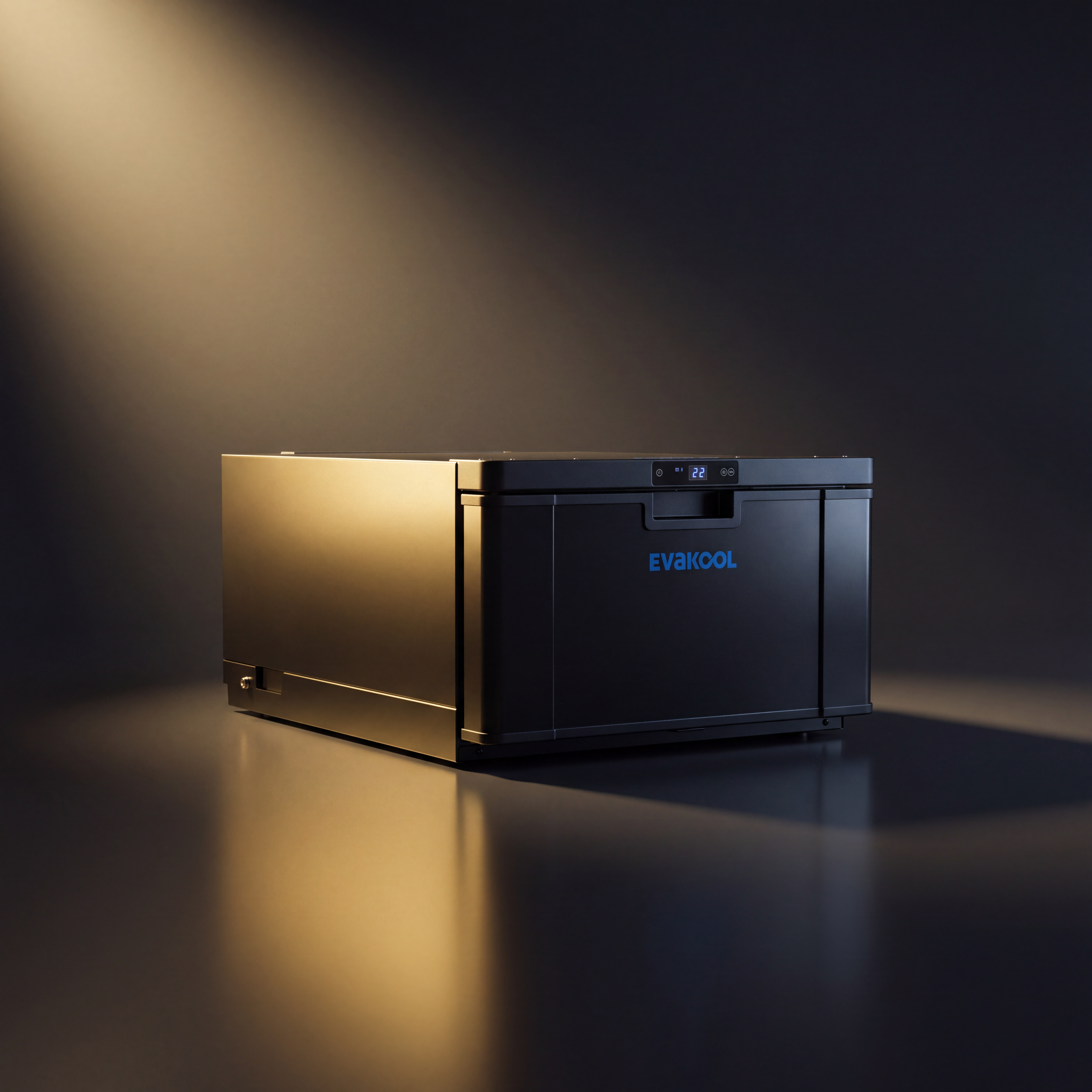

40L Platinum Drawer Fridge Freezer — 12V/24V
DC40-DRW-AU
Australian-made 40L single-drawer 12V fridge freezer. −18°C to +10°C. 48-can capacity. No fridge slide required — includes heavy-duty floor plate bracket. 12V/24V DC or 240V AC.
$1,199.00
Shipping & collection
*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.
40L Platinum Drawer Fridge Freezer — 12V/24V
EvaKool
SECOP Compressor
Globally recognised SECOP PBC 2.5 compressor delivers reliable cooling in extreme heat
Fridge or Freezer
Full -18°C to +10°C range runs it as a fridge or a true deep freezer
No Slide Required
Heavy-duty floor plate bracket secures the unit without drilling or extra tie-downs
Low Power Draw
Just 1.2 A/hr at 2°C in 32°C ambient — easy on your battery bank
Australian Made
Designed and built in Australia for Australian touring conditions

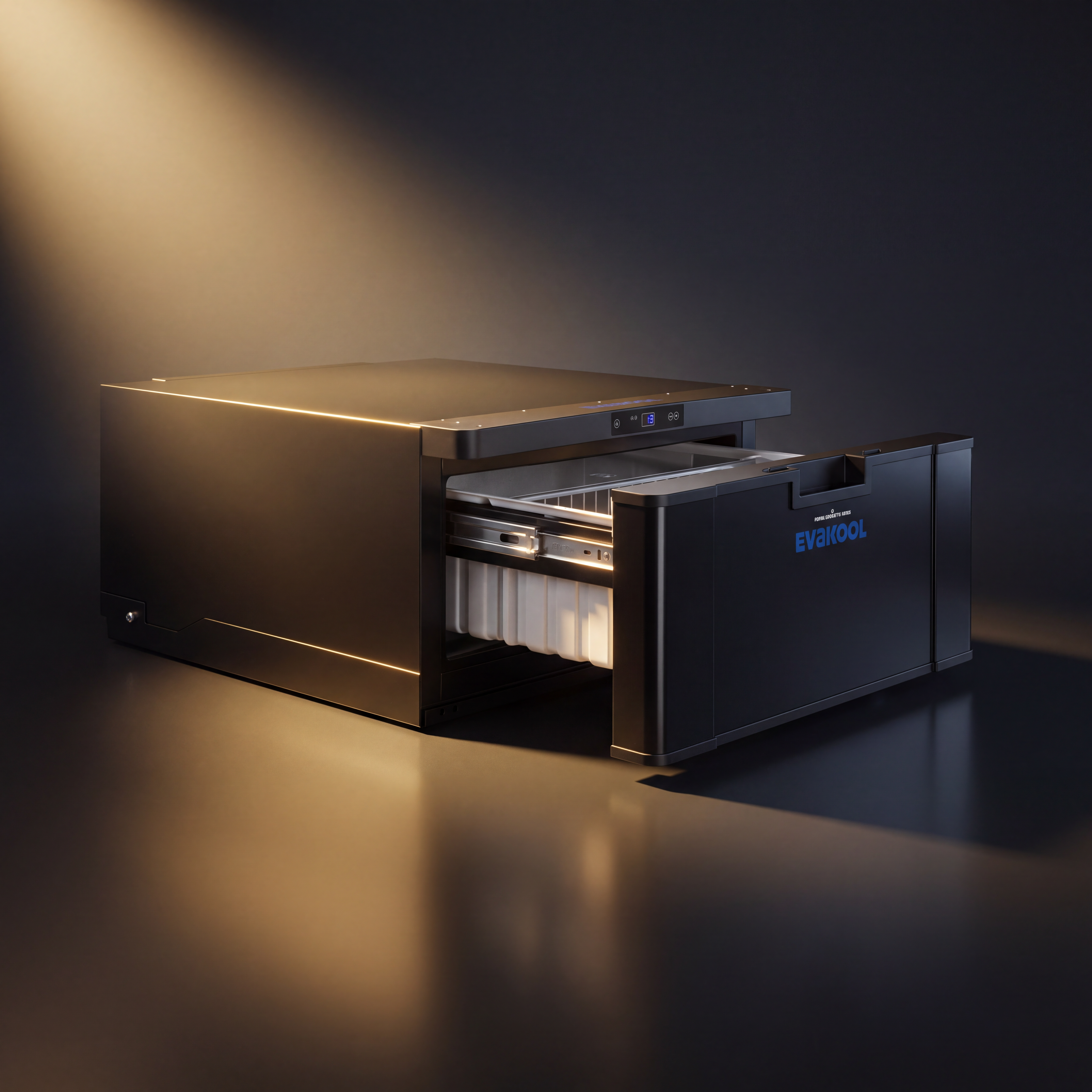

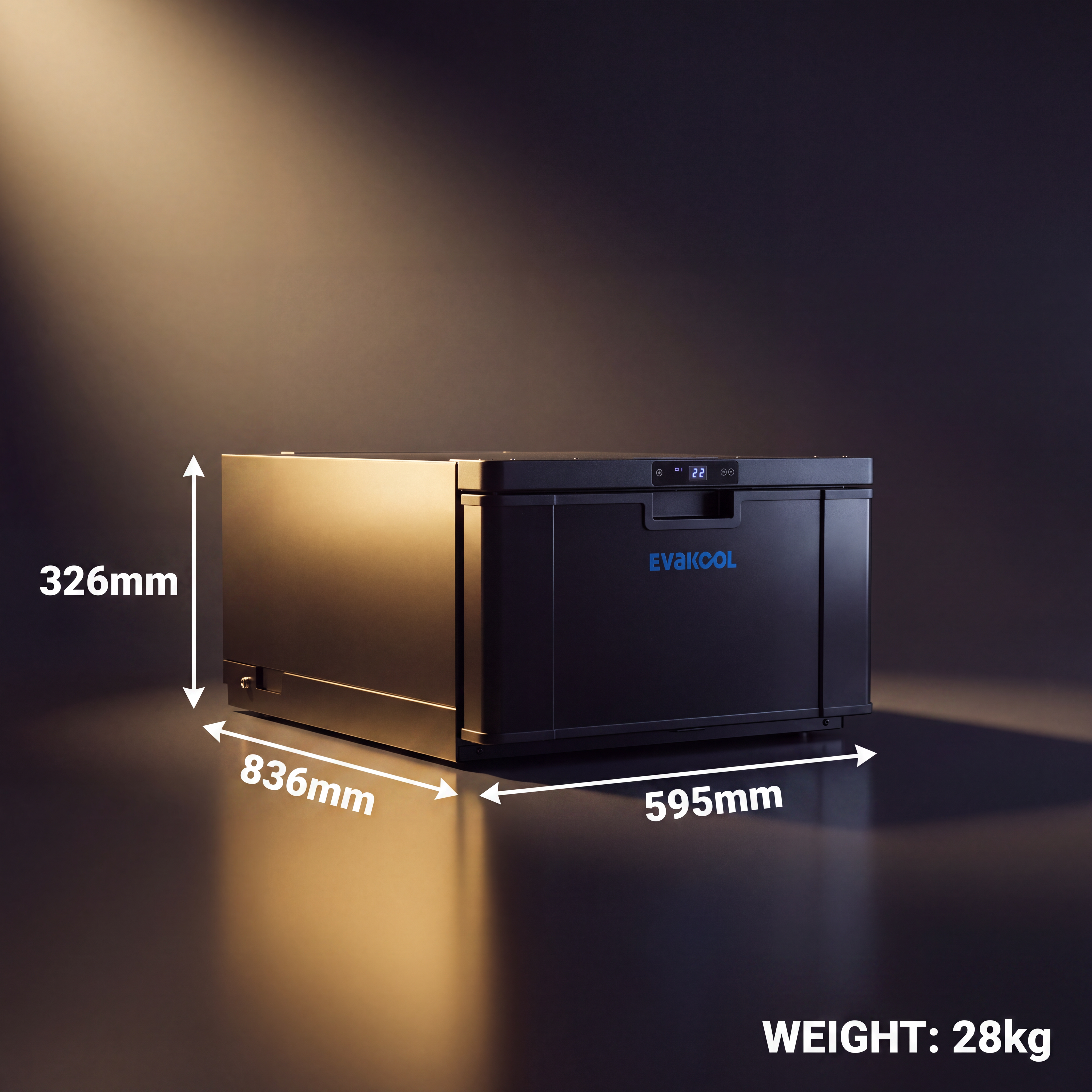

A 40L drawer fridge freezer that slides out on its own runners, so there's no need for a separate fridge slide. Puts food, drinks or ice behind an acrylic lid you can see through, with a locking floor plate bracket that holds everything down without drilling. Fits 4WD canopies, drawer systems, camper trailers and caravans with 836 × 595 × 326mm of space plus clearance for the compressor to breathe.
EvaKool build it on the Sunshine Coast with a SECOP PBC 2.5 compressor, an insulated metal cabinet, LED interior lighting and a front-panel display for temperature control. Runs from 12V or 24V DC auto-sensing through the Anderson plug fitted to the rear, or from 240V AC with the mains adapter.
Temperature range runs from -18°C right up to +10°C, so the same drawer runs as a fridge, a freezer or a true deep freezer depending on how you set it. Peak draw is around 2.4 A/hr set to -16°C and averages 1.2 A/hr set to 2°C at 32°C ambient over 24 hours. Pair it with a 100Ah lithium house battery as a starting point.
Pairs with
- Drawer format — slides on its own runners, no slide needed
- SECOP PBC 2.5 — tropical-rated compressor variant
- -18°C to +10°C — fridge, freezer or true deep freezer

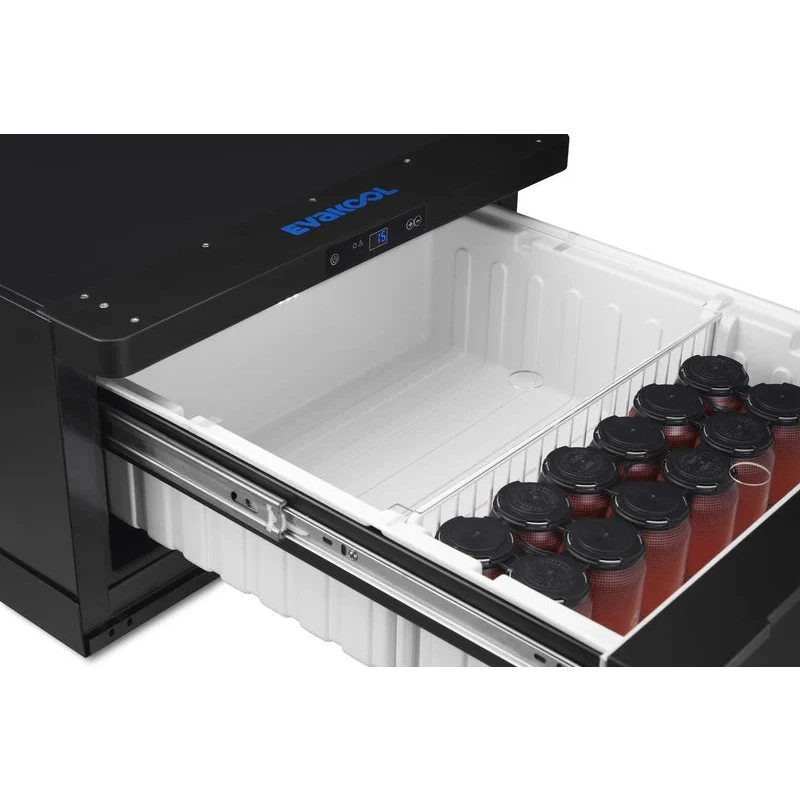

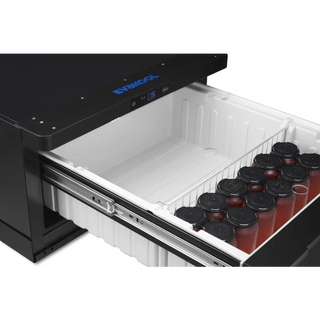

- 40L, 48 cans — removable drawer tub, acrylic lid, LED interior
- 12V or 24V DC — auto-selecting, Anderson plug fitted at the rear
- Floor plate bracket — heavy-duty locking, no drilling required
- Insulated metal cabinet — built for Australian touring conditions
- Made in Australia — Sunshine Coast, 5-year EvaKool warranty
Cooling & compressor
Compressor: SECOP PBC 2.5
Temp range: -18°C to +10°C
Cabinet: Insulated metal
Power
DC voltage: 12V/24V DC auto
Draw @ 2°C: 1.2 A/hr
Draw @ -16°C: 2.4 A/hr
Ambient tested: 32°C, 24-hr avg
Connector: Anderson (rear)
Capacity & storage
Volume: 40L
Can capacity: 48 cans
Drawer tub: Removable
Interior lighting: LED
Lid: Clear acrylic
Display: LED + controls
