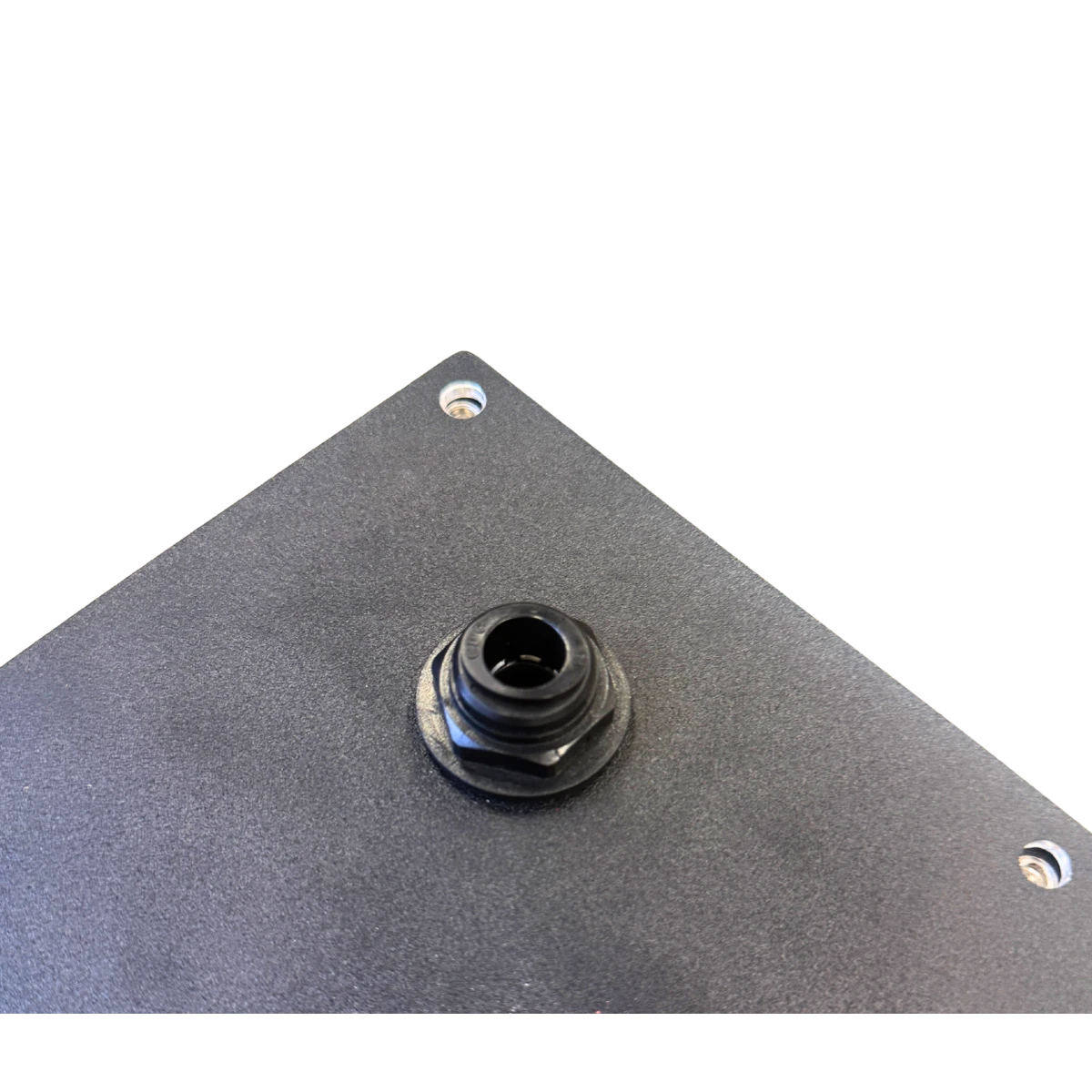

Close-up of the 12mm push-fit vent fitting mounted through the corner of the compartment lid, where the hose to the outside of the vehicle connects

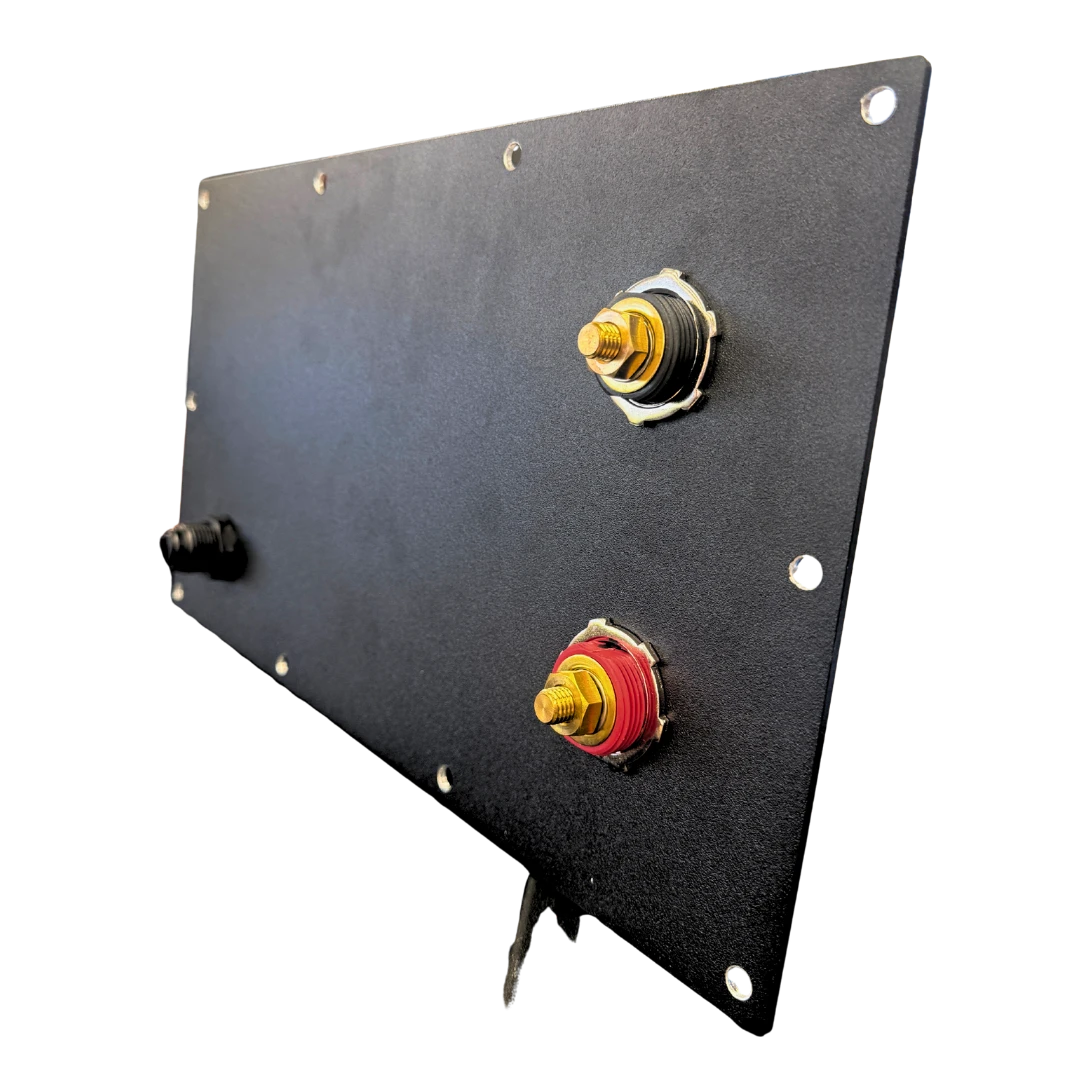

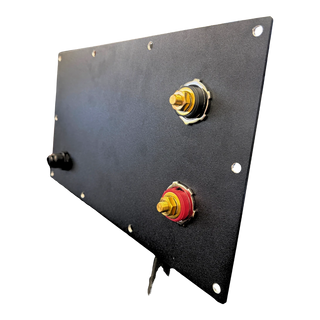

The compartment lid held on edge, showing both insulated terminal studs passing through the plate and the bolt holes spaced around the perimeter

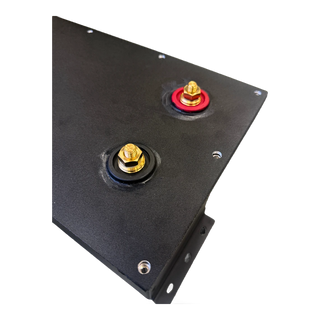

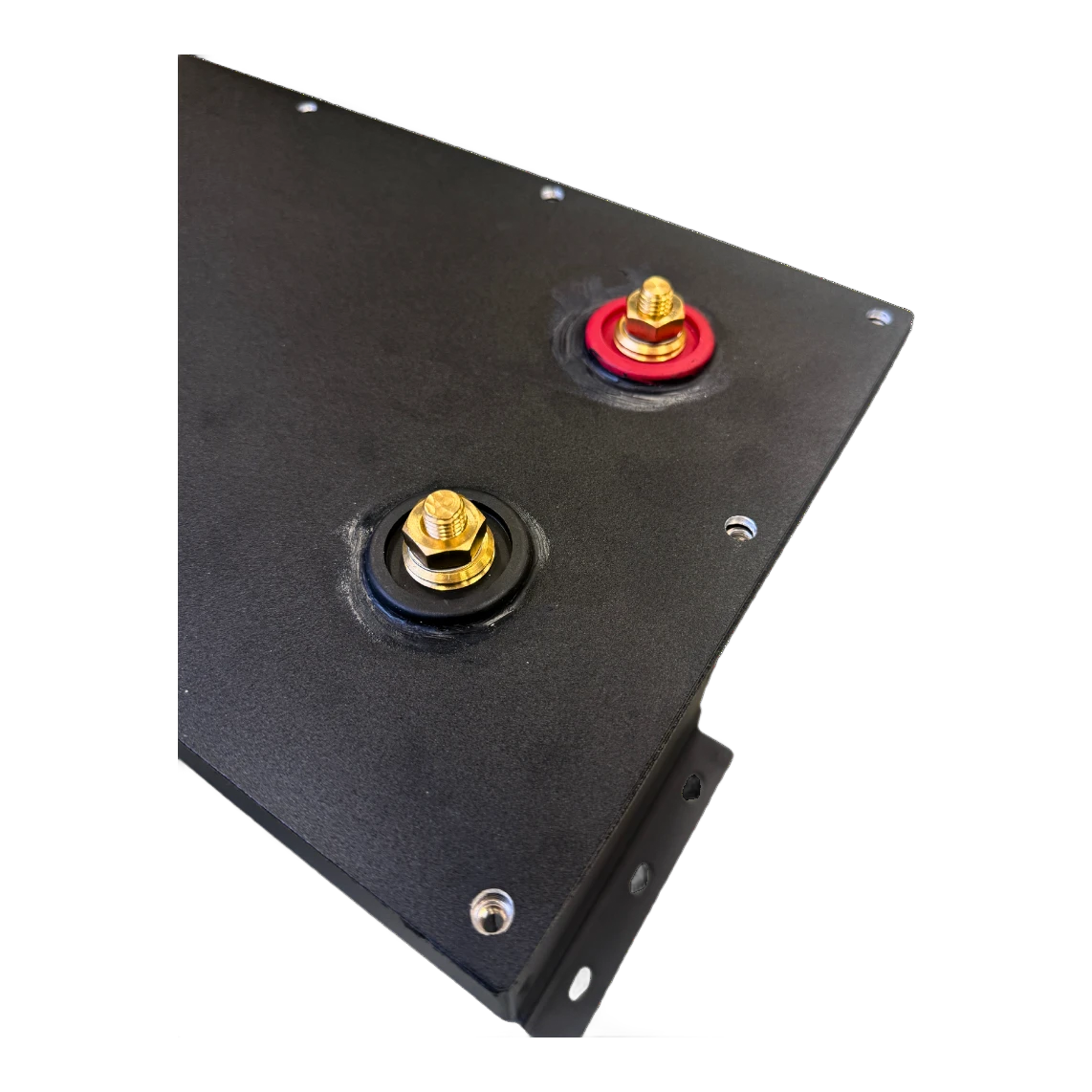

Close-up of the compartment lid showing the red positive and black negative terminal studs, each brass stud sealed through the plate with a rubber grommet

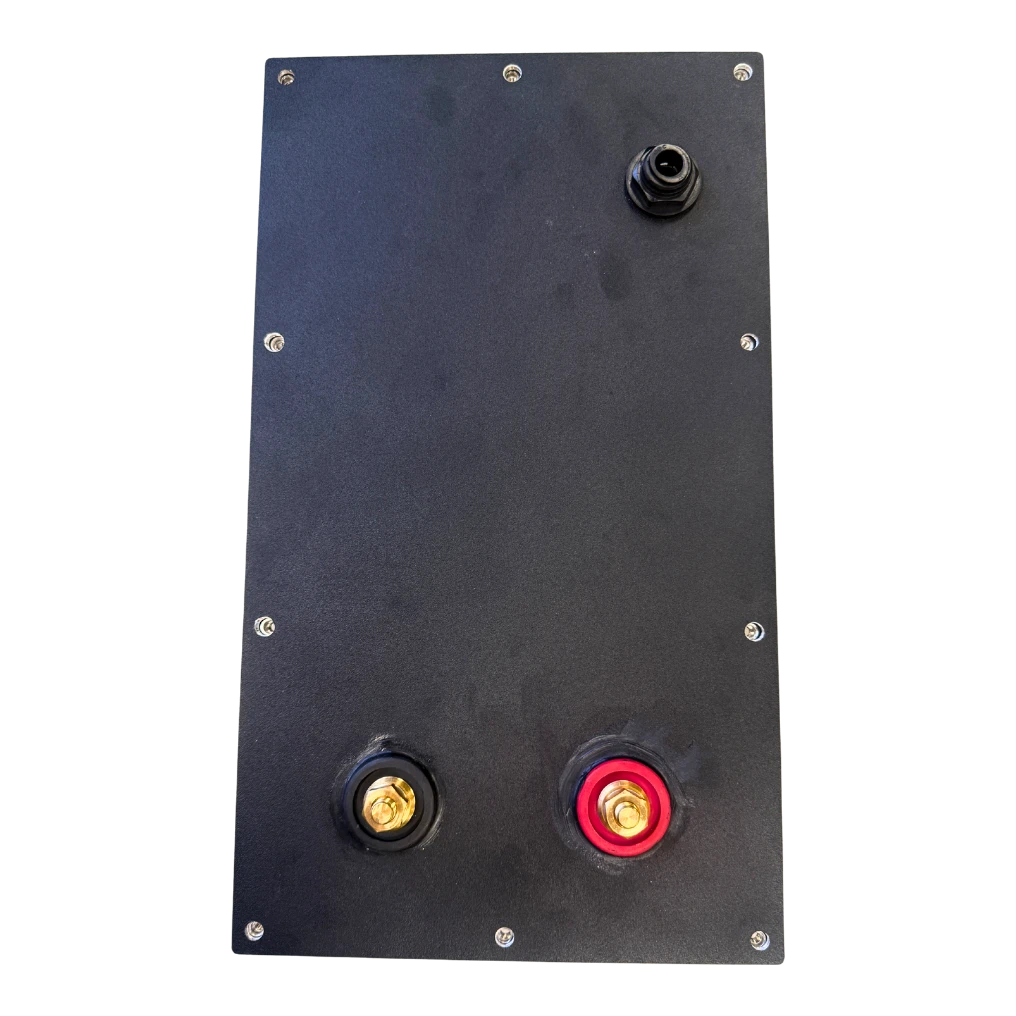

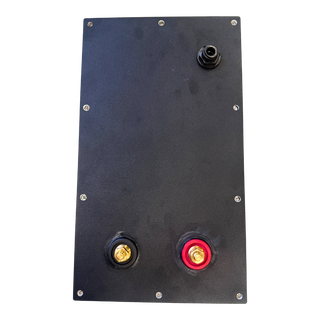

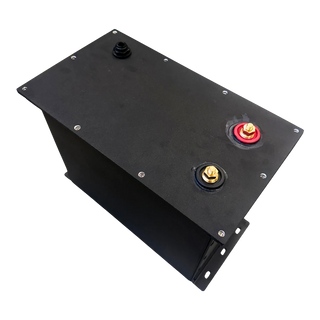

Lithium Single Battery Compartment Top View

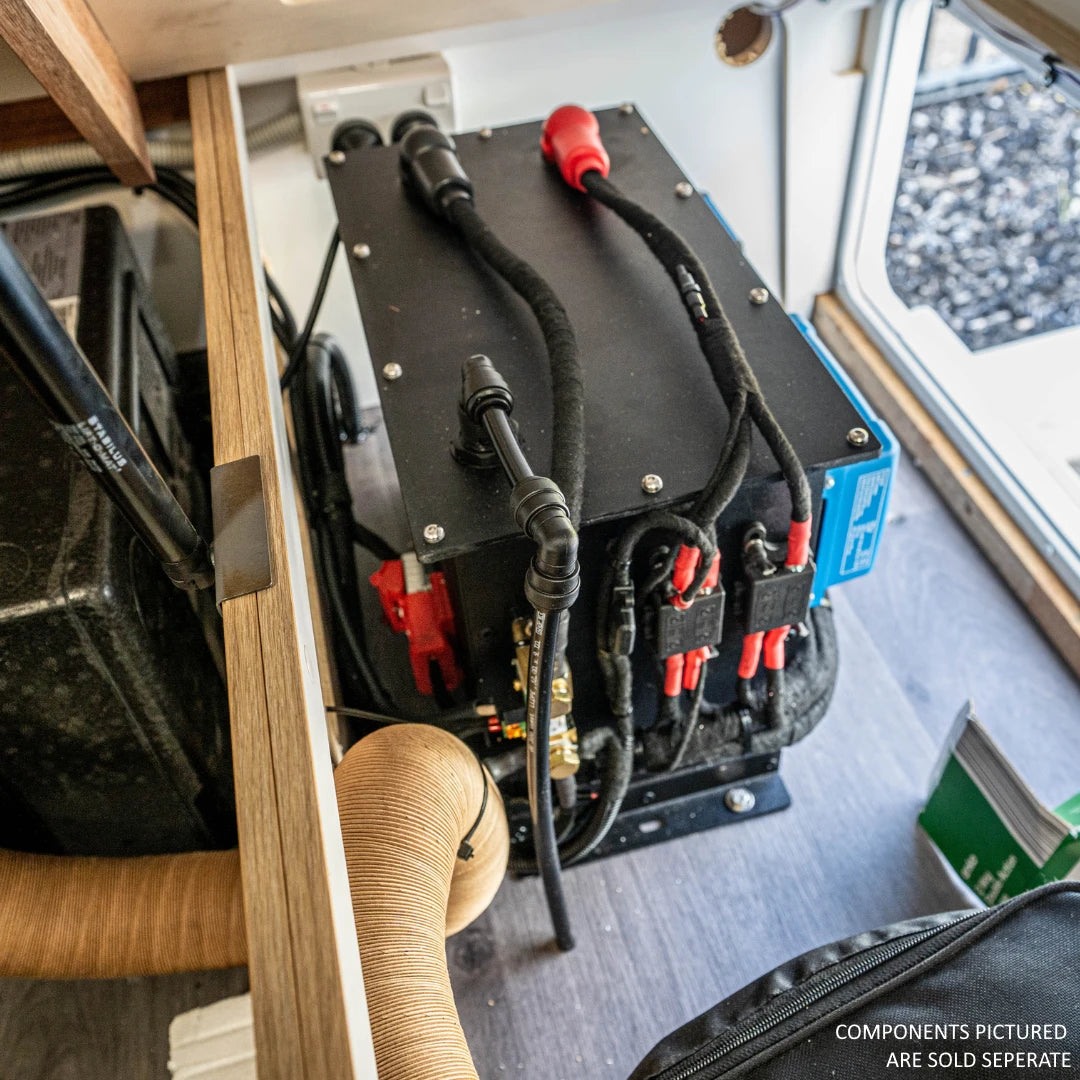

The compartment installed against a wall in a fitted-out vehicle, seen from above, with heavy battery cable, in-line fuse holders and the vent line running off the top

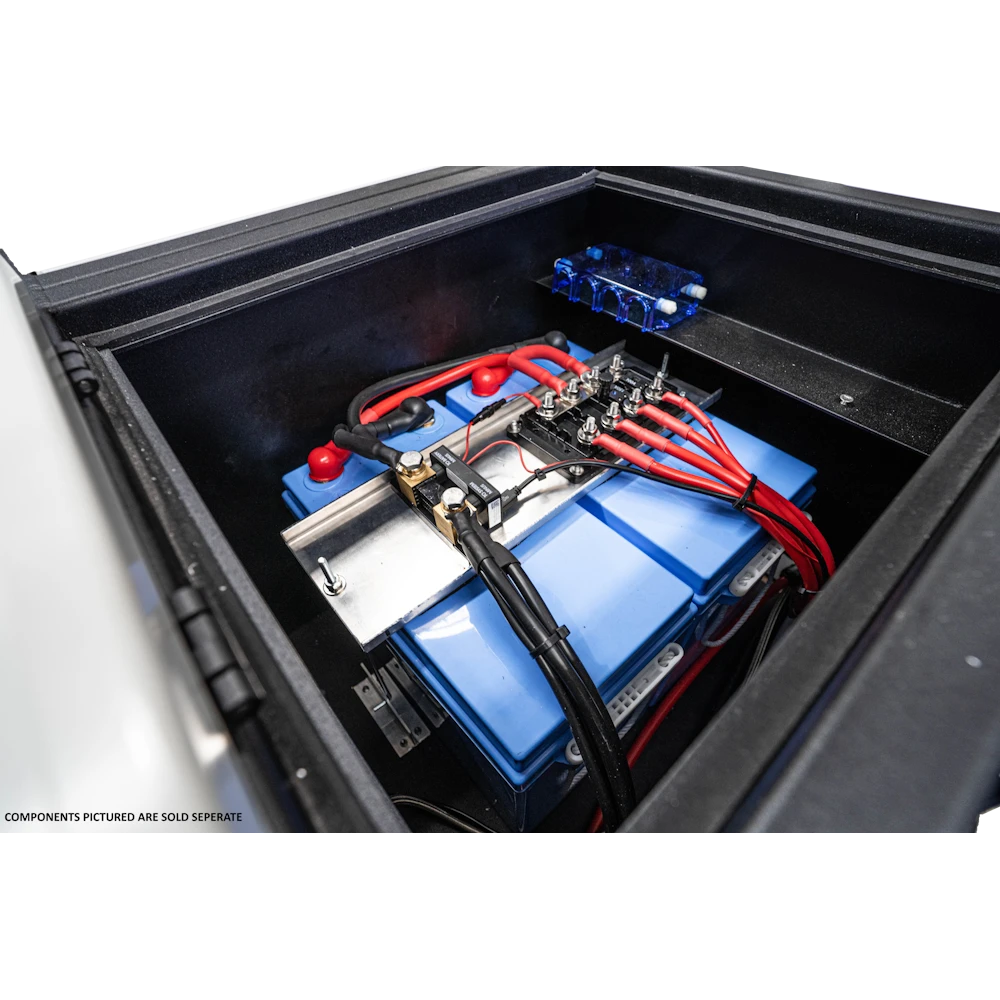

Two lithium batteries installed inside the compartment in a vehicle drawer, wired to a busbar and shunt on a mounting rail with a fuse block beside them. Caption on the image notes the components pictured are sold separately

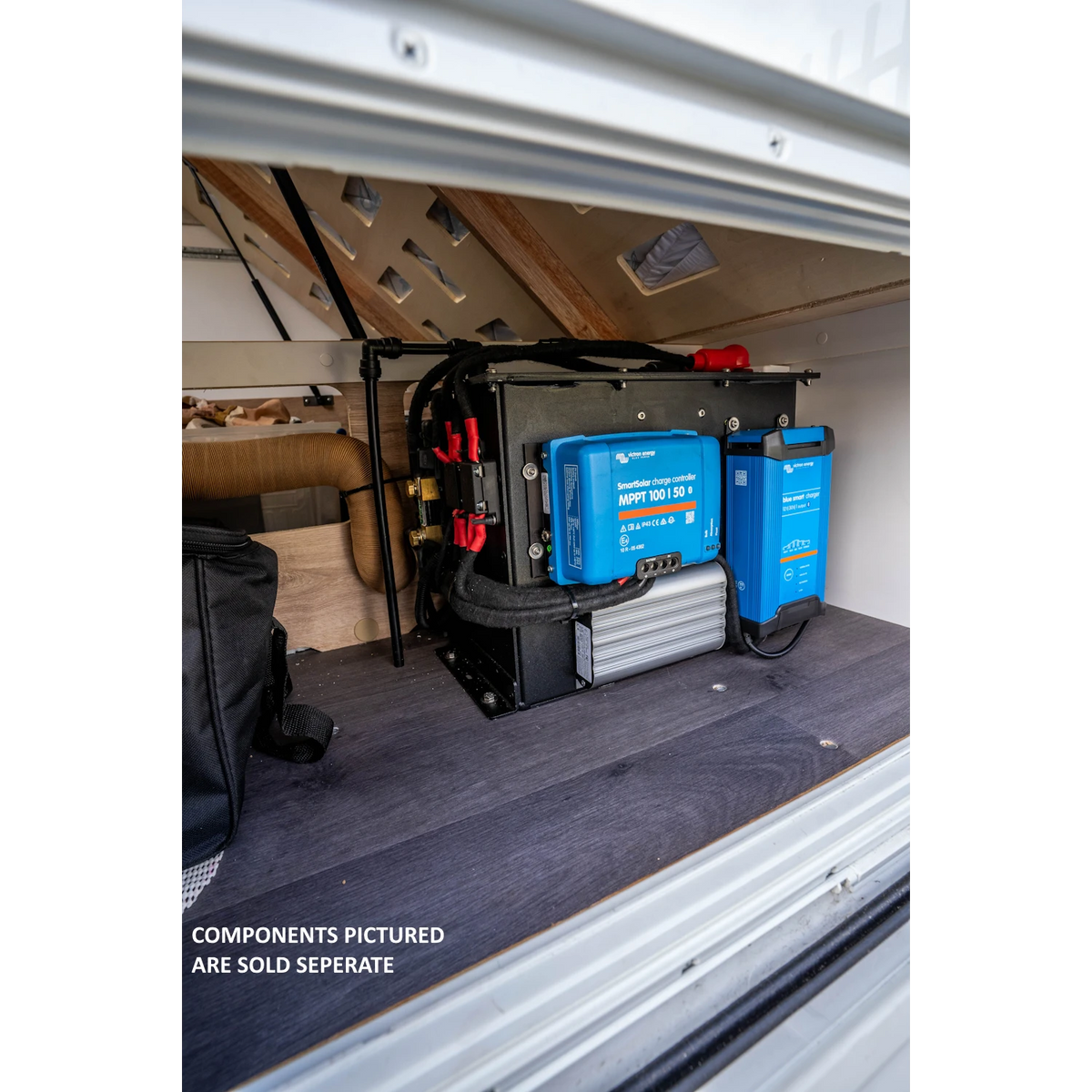

The compartment mounted on its side under a bed platform in a van, with a Victron SmartSolar MPPT 100/50 charge controller and a Victron Blue Smart charger fixed to its outer face

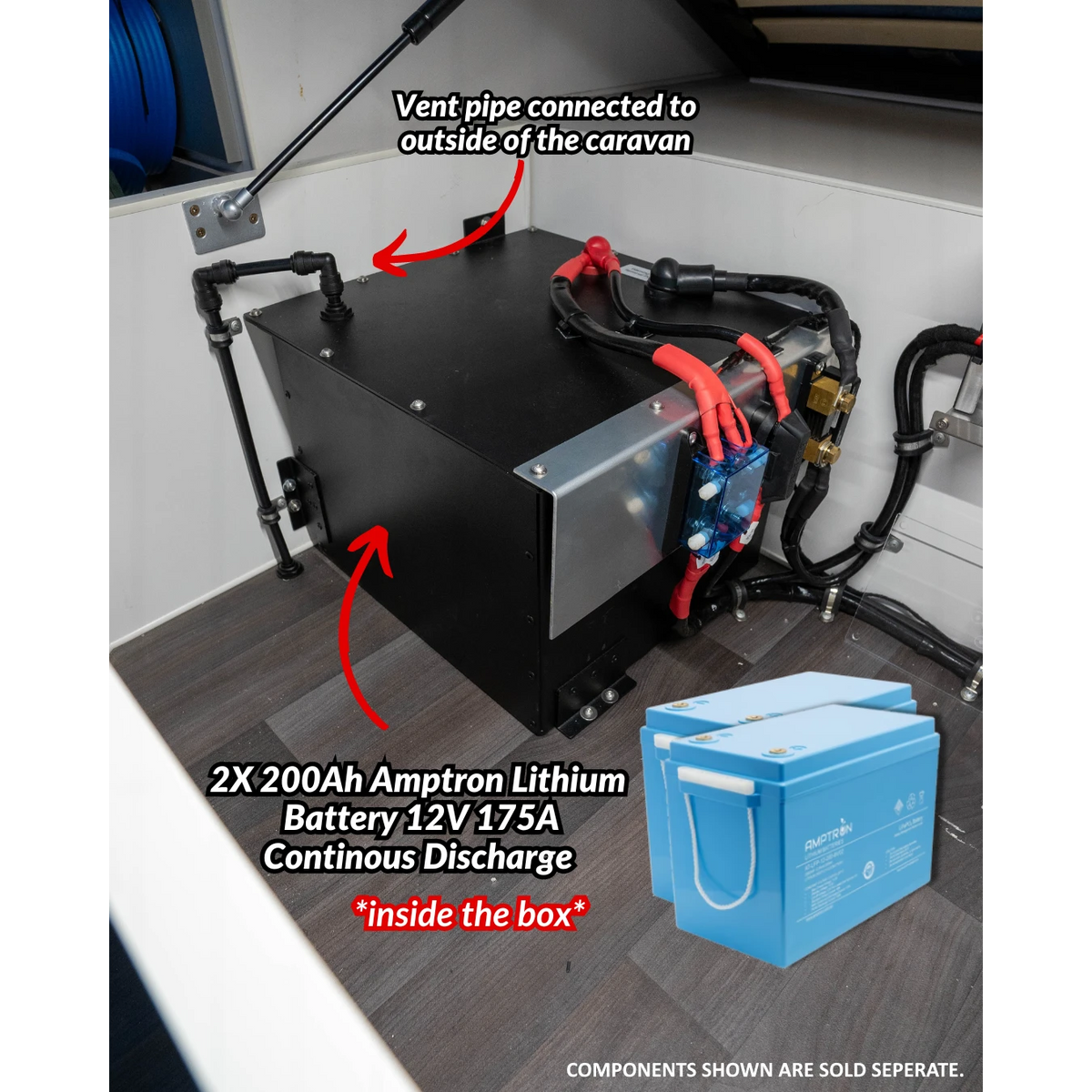

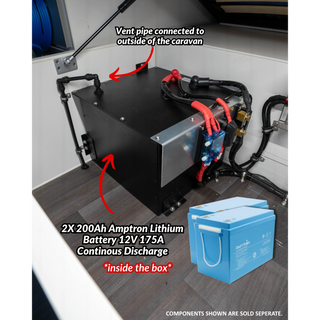

The compartment installed in the corner of a caravan on a timber-look floor, with a labelled arrow pointing to the vent pipe that runs to the outside of the van, and two Amptron lithium batteries shown alongside to indicate what sits inside

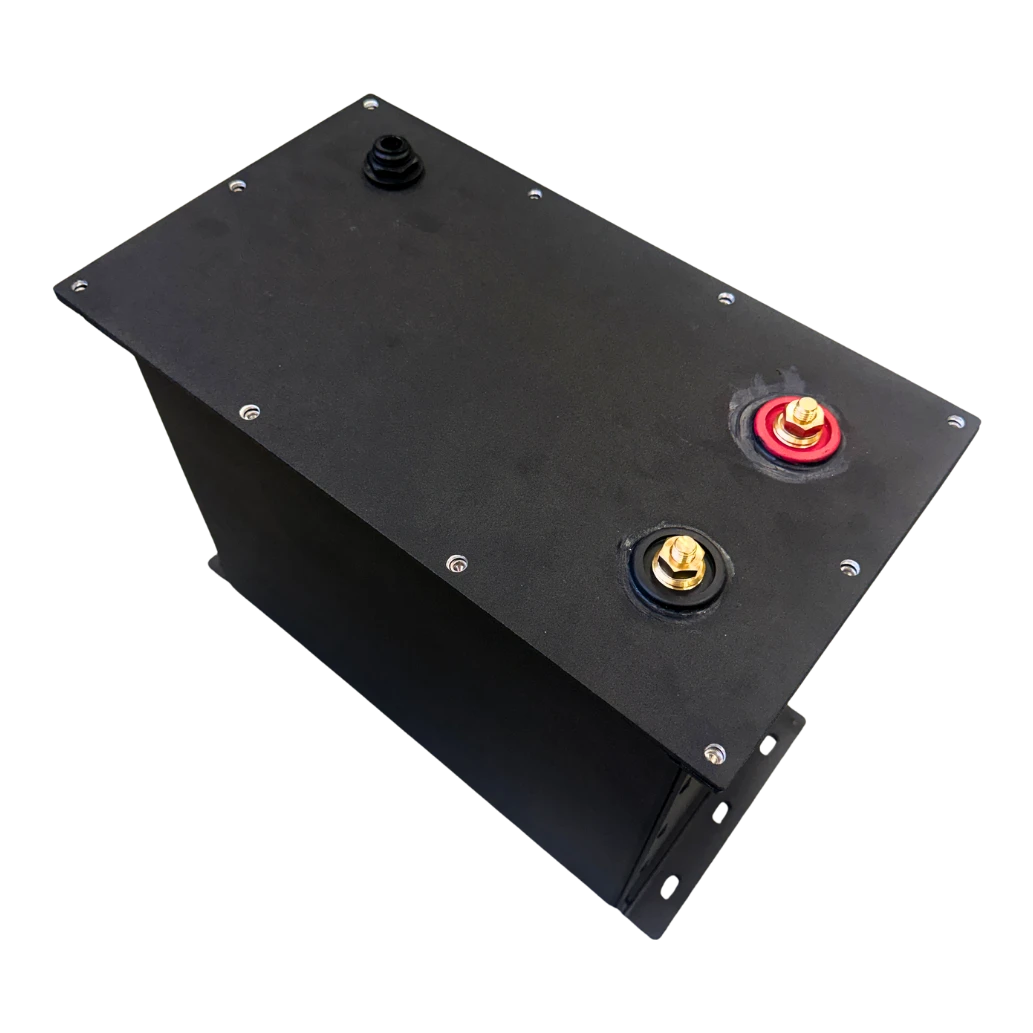

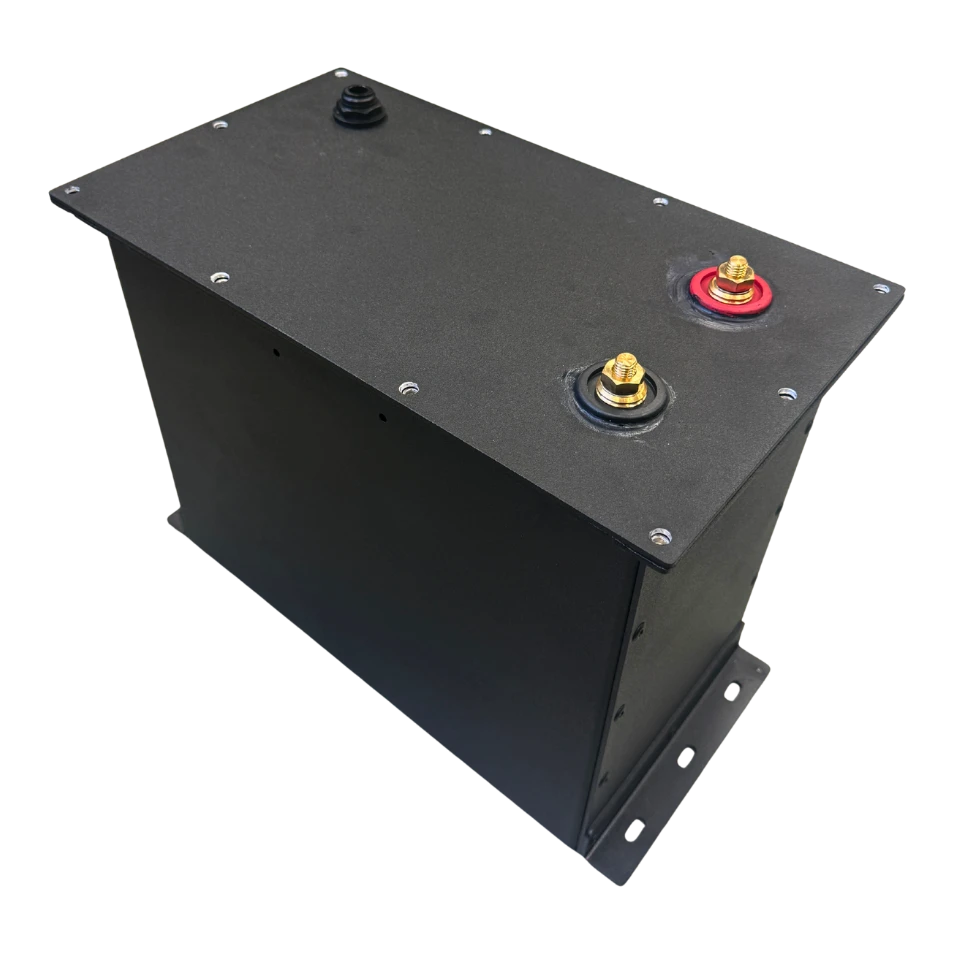

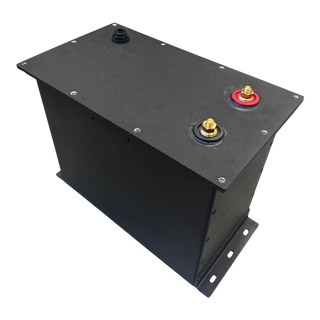

Lithium Single Battery Compartment

Name: Lithium Single Battery Compartment
Brand: Elevate Automotive
Price: 590.0 AUD
Availability: InStock

SKU: FAB-ASM-GTSBB

Suits caravans, camper trailers, motorhomes, van builds and troop carriers where the battery has to sit inside the living space
Mounts to structure through the fixing holes in the mounting feet
Needs a path from the compartment lid to the exterior of the vehicle for the 12mm vent hose

1 x Sealed lithium battery compartment

1 x Hold-down plate

1 x 12mm push-fit vent fitting, fitted to the lid

Mounting feet with fixing holes

Not included, and needed to finish the job: the battery, 0 B and S cable in black and red, 50-8 copper lugs, 12mm hose for the vent run, and a polyurethane sealant for the lid. We stock the cable, lugs and hose. We do not stock the sealant.

$590.00

Taxes included.

{"in_cart_html"=>"<span class=\"quantity-cart\">{{ quantity }}</span> in cart", "decrease"=>"Decrease quantity for {{ product }}", "multiples_of"=>"Increments of {{ quantity }}", "minimum_of"=>"Minimum of {{ quantity }}", "maximum_of"=>"Maximum of {{ quantity }}"}

1
2
3
4
5
6
7
8
9
10 +

Shipping & Collection

Worldwide Shipping Available*

In-Store Pickup

Professional Installation Available

Shipping costs are calculated at checkout based on your location and the items in your cart. Some products may not be available for delivery to your address due to shipping restrictions

Lithium Single Battery Compartment

$590.00

LITHIUM IN A LIVING SPACE

Built for batteries that sit inside the van, not in an open locker

3MM ALUMINIUM

Powder coated, and it will not rust like a steel box

SEALED, AND VENTED OUTSIDE

A 12mm vent fitting runs a hose to the exterior, so anything the battery vents leaves the vehicle instead of the cabin

AS/NZS 3001.2:2022

Designed around the standard for electrical work in relocatable vehicles

MADE IN WA

Cut, folded and coated by us, and available as a custom build

Lithium batteries are routinely installed inside living spaces, and that is exactly where a bare battery on a shelf becomes a problem. This compartment is the enclosure for doing it properly: a sealed, powder-coated 3mm aluminium box that holds one lithium battery, keeps it clamped down over corrugations, and vents to the outside of the vehicle rather than into the space you sleep in.

It is fully sealed, with one important condition. A 12mm push-fit vent fitting sits on the top face, and a 12mm hose runs from there to the exterior of the vehicle so anything the battery vents goes outside. The seal is only as good as the installation — the lid has to be fitted and sealed correctly for the compartment to do its job. Where we supply the compartment on its own rather than fitting it ourselves, that part is in the installer's hands, so it is worth being deliberate about it.

On standards, we would rather be straight with you. The compartment is designed around the requirements of AS/NZS 3001.2:2022, which is the standard covering electrical installations in relocatable vehicles. It does not carry third-party certification, and no enclosure on its own can make an installation compliant — that comes down to the whole install and the person doing it. Wiring and mounting should be carried out by a competent person.

What fits. It takes the Amptron BluEdge 200Ah or the Custom Lithium Compact 310Ah. Those two share a case size, so if one fits, the other does:
Amptron BluEdge 12V 200Ah → · Custom Lithium Compact 310Ah →

Lithium only. Do not put a lead acid, AGM, gel or calcium battery in this compartment. They vent differently and the enclosure is not built for it.

To finish the install you will also need cable, lugs and the vent hose, none of which are in the box:
0 B&S single core battery cable, black and red →
50-8 copper cable lugs →
12mm hose for the vent run → — choose the Black Coil, which is 12mm on the outside and is the size the push-fit fitting takes.
You will also need a polyurethane sealant such as Sikaflex for the lid, which we do not stock.

Made by us in Western Australia. Backed by a 12 month warranty against defects in materials and workmanship.

Quick Specs

Holds 1 Lithium battery

Battery size it takes 370 x 190 x 245mm

Material 3mm aluminium, powder coated

Sealing Fully sealed, 12mm vent to outside

Designed to AS/NZS 3001.2:2022

Made in Western Australia

Warranty

3 Years on the structure, 12 months on the powder coating.
Against defects in materials and workmanship. It does not cover improper installation or the use of battery types the compartment is not built for.
